Sheet metal and tube processing along the complete process chain: laser cutting, punching, bending, welding, assembly – all from a single source.
ABP – Innovative Blechbearbeitung GmbH
Genthin OT Schopsdorf (Headquarters / Production)New on Amplifa
About ABP

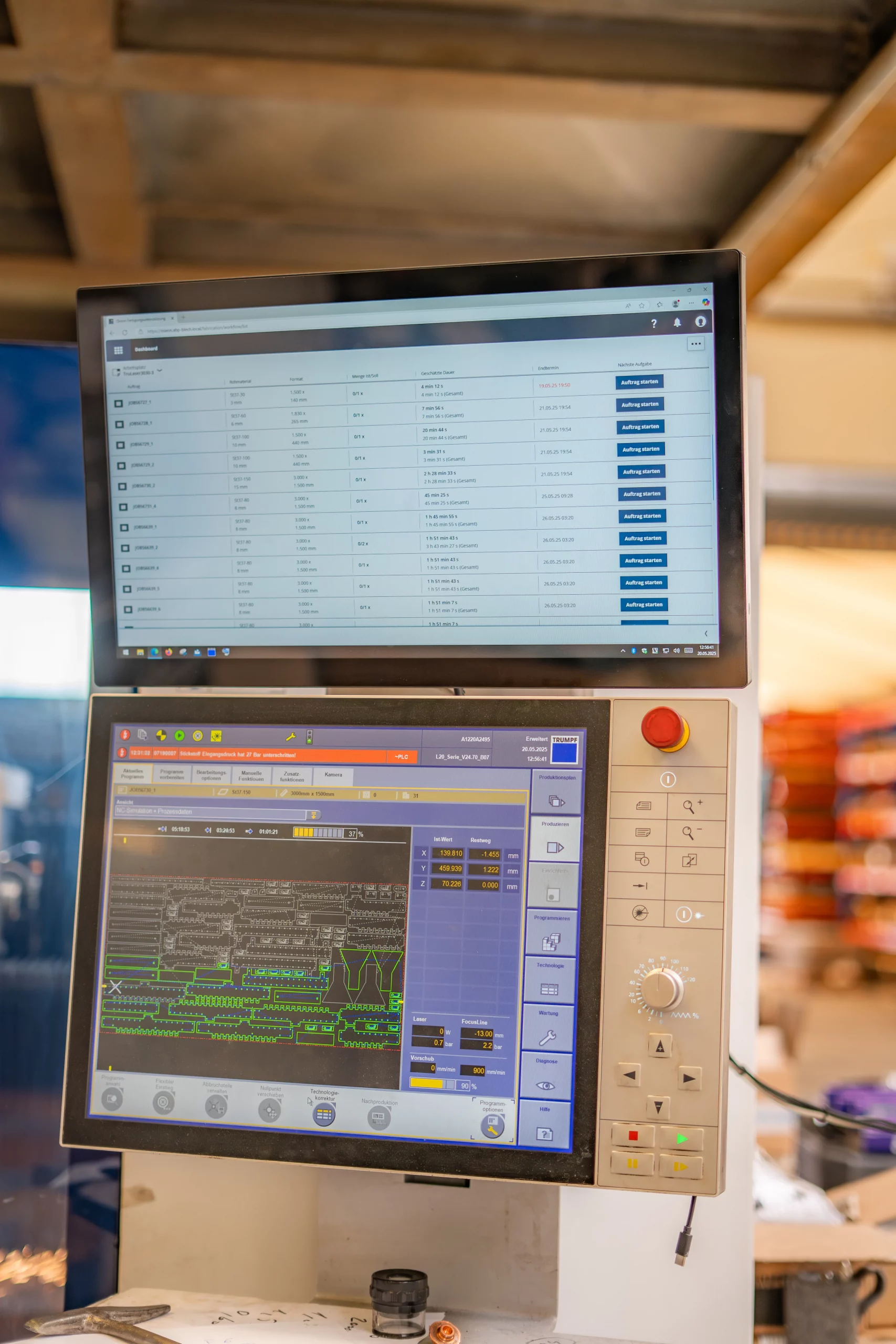

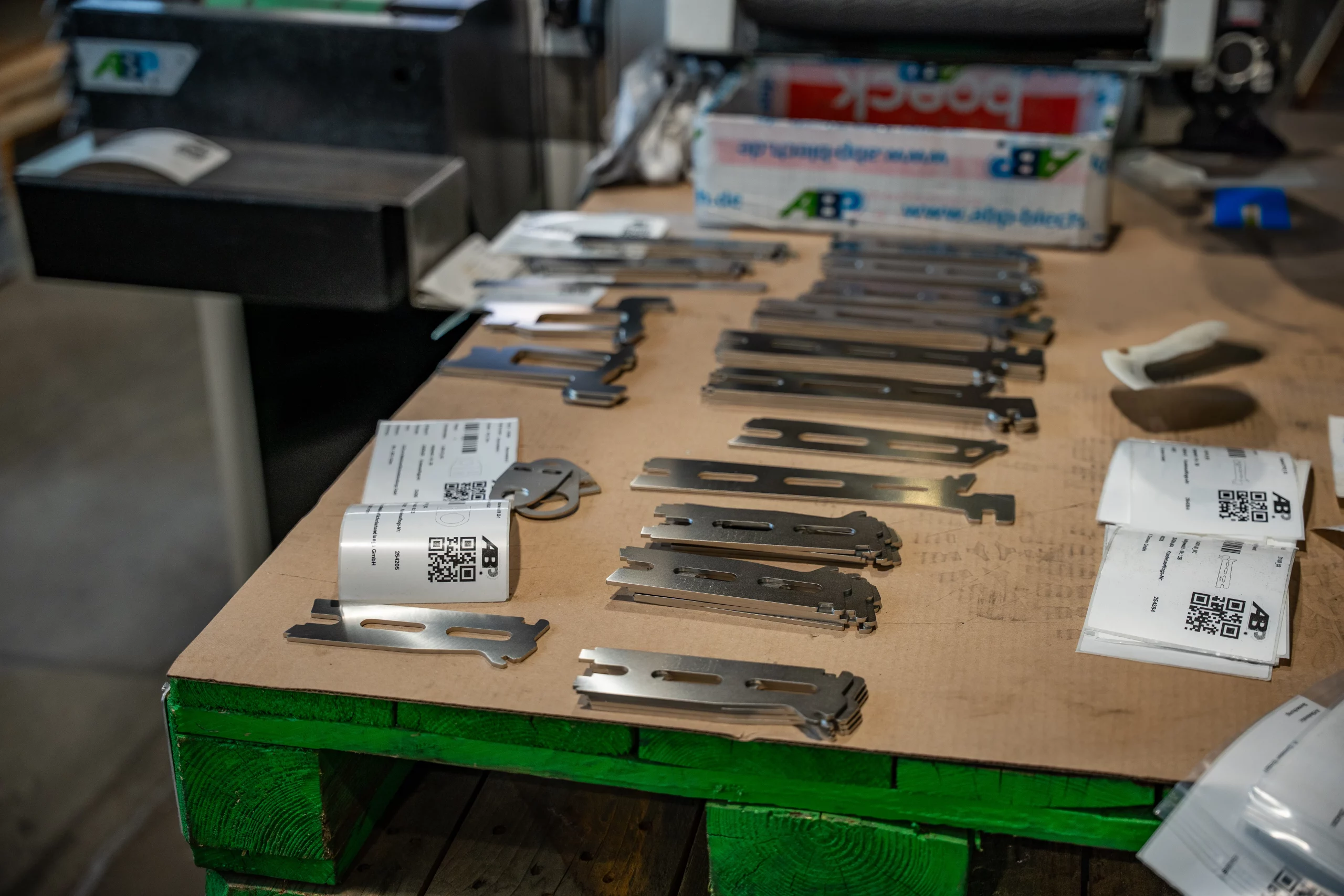

ABP – Innovative Blechbearbeitung GmbH is a system supplier for sheet metal and tube processing founded in 2013, headquartered in Genthin OT Schopsdorf (Saxony-Anhalt), directly on the A2 motorway. As a contract manufacturer and system supplier, the company produces components and assemblies made of steel, stainless steel and aluminium: from laser cutting (TruLaser 3030, up to 12 kW) and tube laser cutting to punch-laser combination processing, bending, deburring, trovalizing, straightening and rolling, through to CNC milling and turning. The welding technology includes MAG and TIG manual welding stations, laser welding (TruLaser Weld 5000), welding robots and CNC stud welding in accordance with DIN EN 1090 EXC3 for load-bearing welded assemblies up to 5 t. The process chain is complemented by assembly of modules, design and component optimization in 2D/3D CAD as well as powder coating at the partner company Zippy's Coating Factory. All machines are digitally networked; every order is tracked via QR code through the entire production process. The company works across industries for mechanical engineering, medical technology, architecture and automation, and supplies customers within a 200 km radius with its own delivery fleet as well as throughout Germany and Europe.
- Site
- Genthin OT Schopsdorf
- Processes
- Laser cutting, Tube laser cutting, Punch-laser combination processing, Deburring, Trovalizing, Bending, Machining (CNC milling), Welding technology (MAG, TIG, laser welding, stud welding)
- Materials
- Steel, Stainless steel, Aluminium, Metal (sheet, tube)
- Certificates
- DIN EN ISO 9001, EN 1090 (EXC3, load-bearing welded assemblies), ISO 9001, EN 1090 (EXC3)
- Founded
- 2013
- Industries
- Mechanical engineering, Medical technology, Architecture, Automation, Open to all industries, industry-neutral
- 01
Design, development & component optimization (2D/3D CAD)
- 02
Cutting (laser cutting, tube laser cutting, punch-laser combination)
- 03
Bending, straightening & rolling
- 04
Machining (CNC milling, CNC turning)
- 05
Welding technology (MAG, TIG, laser, robot, stud welding)
- 06
Deburring & trovalizing
- 07
Surface finishing (powder coating at partner company)
- 08
Assembly / module assembly
- 09
Quality assurance & delivery
Materials & Processes
Steel
Base material for laser cutting, bending, welded fabrication and assemblies, also as large assemblies up to 5 t.
Stainless steel
Machining and welding for corrosion protection requirements, e.g. in medical technology and mechanical engineering.
Aluminium
Lightweight sheet and tube material for machining, forming and joining.
Locations
Genthin OT Schopsdorf
DEHeadquarters / Production
- Part weight / size
- Assemblies up to 5 t
- Materials
- Steel, stainless steel, aluminium
- TRUMPF TruLaser 3030 (up to 12 kW)
- TRUMPF TruLaser Tube 7000 Fiber
- TRUMPF TruMatic 1000 Fiber
- Weber TT1100 deburring machine
- SPALECK mass finishing system
- TRUMPF TruBend 7036 press brake
- Spinner VC1150 CNC milling machine
- CNC lathe
- TRUMPF TruLaser Weld 5000
- TRUMPF TruArc Weld 1000 welding robot
- OHaumatic (Ohau2mate) welding robot
- CNC stud welding system
- 5x MAG manual welding station
- 2x TIG manual welding station
- ARKU Flatmaster 55 leveling machine
- Hexagon Absolute Arm (7 axes)
Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Laser cuttingMachining | – | – | – | – | Steel, Stainless steel, Aluminium |
| Tube laser cuttingMachining | – | – | – | – | Steel, Stainless steel, Aluminium |
| Punch-laser combination processingForming | – | – | – | – | Steel, Stainless steel, Aluminium |
| DeburringSurface | – | – | – | – | – |
| TrovalizingSurface | – | – | – | – | – |
| BendingForming | – | – | – | – | Steel, Stainless steel, Aluminium |
| Machining (CNC milling)Machining | – | – | – | – | – |
| Welding technology (MAG, TIG, laser welding, stud welding)Joining | – | – | 5 t (assemblies) | – | Steel, Stainless steel, Aluminium |
| Straightening & rollingForming | – | – | – | – | – |
| Assembly (module assembly)Assembly | – | – | – | – | – |
| Surface finishing (powder coating, at partner company)Surface | – | – | – | – | – |
| Design, development & component optimization (2D & 3D CAD)Engineering | – | – | – | – | – |
| Quality assurance & management (first article inspection, series release, inspection reports)Testing | – | – | – | – | – |
| CNC turningMachining | – | – | – | – | – |
16 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Laser sheet cutting machine | TRUMPF TruLaser 3030 (12 kW) | multiple | – | – | Genthin OT Schopsdorf |
| Tube laser machine | TRUMPF TruLaser Tube 7000 Fiber | – | – | – | Genthin OT Schopsdorf |
| Punch-laser combination machine | TRUMPF TruMatic 1000 Fiber | – | – | – | Genthin OT Schopsdorf |
| Deburring machine | Weber TT1100 | – | – | – | Genthin OT Schopsdorf |
| Mass finishing system (trovalizing) | SPALECK | – | – | – | Genthin OT Schopsdorf |
| Press brake | TRUMPF TruBend 7036 | – | – | – | Genthin OT Schopsdorf |
| CNC milling machine | Spinner VC1150 | – | – | – | Genthin OT Schopsdorf |

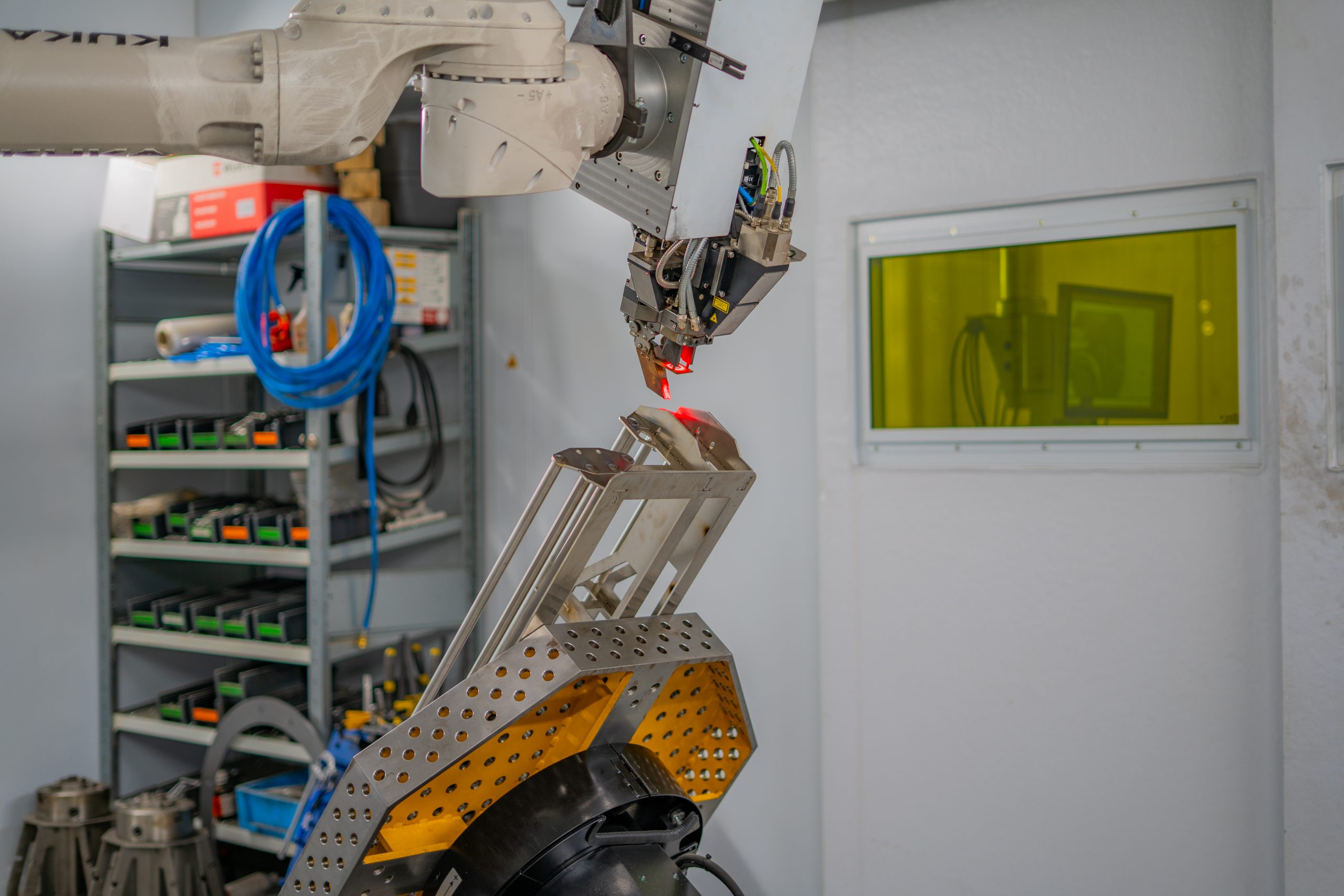

| Laser welding system | TRUMPF TruLaser Weld 5000 | – | – | – | Genthin OT Schopsdorf |
| Welding robot | TRUMPF TruArc Weld 1000 | 1 | – | – | Genthin OT Schopsdorf |
| Welding robot | OHaumatic (Ohau2mate) | 1 | – | – | Genthin OT Schopsdorf |
| CNC stud welding system | – | 1 | – | – | Genthin OT Schopsdorf |
| MAG manual welding station | – | 5 | – | – | Genthin OT Schopsdorf |
| TIG manual welding station | – | 2 | – | – | Genthin OT Schopsdorf |
| Leveling machine | ARKU Flatmaster 55 | – | – | – | Genthin OT Schopsdorf |
| 3D coordinate measuring arm (7 axes) | Hexagon Absolute Arm | 1 | – | – | Genthin OT Schopsdorf |
| Lathe (CNC turning) | – | – | – | – | Genthin OT Schopsdorf |
Additional services
Quality & Certification
Quality assurance includes a measuring room with a Hexagon Absolute Arm (7 axes), conventional and digital metrology, as well as incoming and final inspections; first article inspection and series release (e.g. according to VDA/PPAP) are possible. ABP is certified according to DIN EN ISO 9001 and EN 1090.
| Evidence | Genthin OT Schopsdorf |
|---|---|
| ISO 9001 | |
| EN 1090 (EXC3) |
History
- 2013
Founded by Marcel Wendt and Hatem Drira in Genthin OT Schopsdorf; since then more than 2,300 customers served and 55,000 customer orders manufactured.
