Manufacturer of drive elements made of grey cast iron and aluminium with its own foundry and machine shop in Bad Driburg.
B&E Antriebselemente GmbH
Bad DriburgNew on Amplifa
The Company
B&E Antriebselemente GmbH in Bad Driburg manufactures drive elements made of grey cast iron and aluminium, including V-belt pulleys, flat-belt pulleys, timing-belt pulleys, poly-V ribbed belt pulleys, idler pulleys, pillow blocks, bearing flanges, bearing housings and screw-on hubs. Value creation takes place in-house: raw castings are produced in the company's own foundries and then machined in the in-house machine shop on CNC-controlled turning machines, CNC milling machines and drilling machines; balancing machines are available for compensating rotating parts. Custom-made products to customer drawings are part of the programme as well as standard products, complemented by machine handwheels and ball handles made of light metal to DIN 950, DIN 39 and DIN 98. Production is carried out in lot sizes from 1 to 500 pieces. Customers come from drive technology and mechanical engineering and are supplied throughout Germany and Europe. The company originated in 1928 as Käsemann and Schmitz in Alhausen and has operated under its current name since 2004.
- Site
- Bad Driburg
- Processes
- Casting of drive elements (own foundries), CNC turning machine (machine shop), CNC milling, Drilling, Balancing, Manufacturing to drawing / custom-made products (V-belt, flat-belt and timing-belt pulleys,, Custom-made products to drawings, own foundries
- Materials
- Grey cast iron, Aluminium, Bimetal, Light metal (handwheels DIN 950, ball handles DIN 39/DIN 98), Light metal (DIN 950, DIN 39, DIN 98)
- Certificates
- ISO 9001
- Founded
- 1928
- Industries
- Drive technology, Mechanical engineering
- 01
Casting (own foundry)
- 02
CNC turning
- 03
CNC milling
- 04
Drilling
- 05
Balancing
- 06
Custom manufacture to drawing
Materials and Processes
Grey cast iron
Casting material for V-belt, flat-belt and taper pulleys as well as bearing housings.
Aluminium
Light metal for drive pulleys, handwheels and ball handles, also in combination with grey cast iron cores.
Bimetal
Material combination for V-belt, flat-belt and taper pulleys.
Light metal (DIN 950, DIN 39, DIN 98)
Material for machine handwheels and matching ball handles, fixed or swivelling.

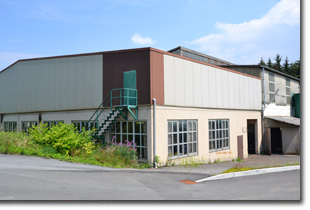

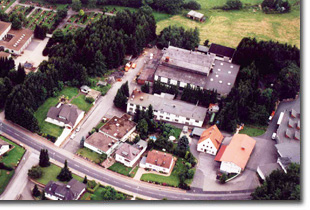

Location
Bad Driburg
DEFoundry, machine shop, administration
- Lot size
- 1–500 pieces
- Materials
- Grey cast iron, aluminium, bimetal

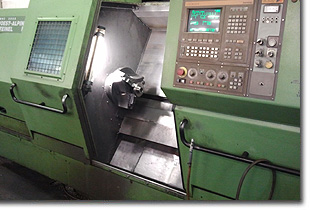

- CNC-controlled turning machines
- CNC milling machines
- Drilling machines
- Balancing machines
Components

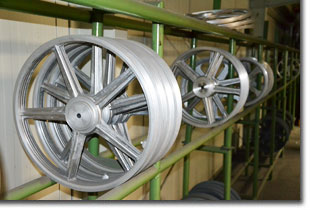

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Casting of drive elements (own foundries)Casting | – | – | – | 1 piece – 500 pieces | Grey cast iron, Aluminium |
| CNC turning machine (machine shop)Machining | – | – | – | 1 piece – 500 pieces | Grey cast iron, Aluminium |
| CNC millingMachining | – | – | – | 1 piece – 500 pieces | Grey cast iron, Aluminium |
| DrillingMachining | – | – | – | 1 piece – 500 pieces | Grey cast iron, Aluminium |
| BalancingTesting | – | – | – | 1 piece – 500 pieces | – |
| Manufacturing to drawing / custom-made products (V-belt, flat-belt and timing-belt pulleys,Engineering | – | – | – | 1 piece – 500 pieces | Grey cast iron, Aluminium |
4 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| CNC-controlled turning machine | – | – | – | – | Bad Driburg |
| CNC milling machine | – | – | – | – | Bad Driburg |
| Drilling machine | – | – | – | – | Bad Driburg |
| Balancing machine | – | – | – | – | Bad Driburg |
Additional services
Quality
Production takes place in the company's own foundries and an in-house machine shop with CNC-controlled turning and milling machines; balancing machines are available for quality control of rotating components. Information on certifications is not published.
| Evidence | Bad Driburg |
|---|---|
| ISO 9001 |
History
- 1928
Founded as Käsemann und Schmitz in Alhausen; product programme included lightning conductors, among other things.
- 1930
Relocation to Bad Driburg; expansion of the product range under the sole leadership of Heinrich Schmitz.
- 1960
Around 100 employees, at times operating in three shifts.
- 2004
Acquisition of Heinrich Schmitz GmbH by Stefan Ewald and Detlef Böger, renaming to B&E Antriebselemente GmbH.
