CNC machining, plastic injection molding for prototypes and small series as well as 3D metrology from Gevelsberg.
CAD Konstruktion Haracic
Gevelsberg (DE)New on Amplifa
About HARACIC GROUP
CAD Konstruktion Haracic is an owner-managed family business founded in 2010 in the southern Ruhr region in Gevelsberg (North Rhine-Westphalia). Originally established with a focus on tool design, the company today develops and manufactures products in the fields of metal and plastics engineering with a dozen qualified partners. The services include CAD design, CNC machining (milling, turning, grinding) and plastic injection molding for prototype and small-series production. As a development partner and system supplier, Haracic accompanies projects from idea to finished product. The value chain is complemented by metrology with measuring instruments, a roughness measuring device, measuring machines and a 3D GOM scanner for quality assurance. The company supplies customers from virtually all industries in metal and plastics engineering.
- Site
- Gevelsberg
- Processes
- CNC machining (subtractive manufacturing), Milling, Turning, Grinding, Plastic injection molding, Tool design, Metrology / quality assurance (measuring instruments, roughness measuring device, measuring, CAD design
- Materials
- Metal, Plastics, Injection molding, Machining (milling, turning, grinding), Metrology (3D GOM scanner)
- Certificates
- Measuring instruments / roughness measuring device / measuring machines, 3D GOM scanner, ISO 9001
- Founded
- 2010
- Industries
- Metal engineering, Plastics engineering, virtually all industries (metal and plastics engineering)
- 01

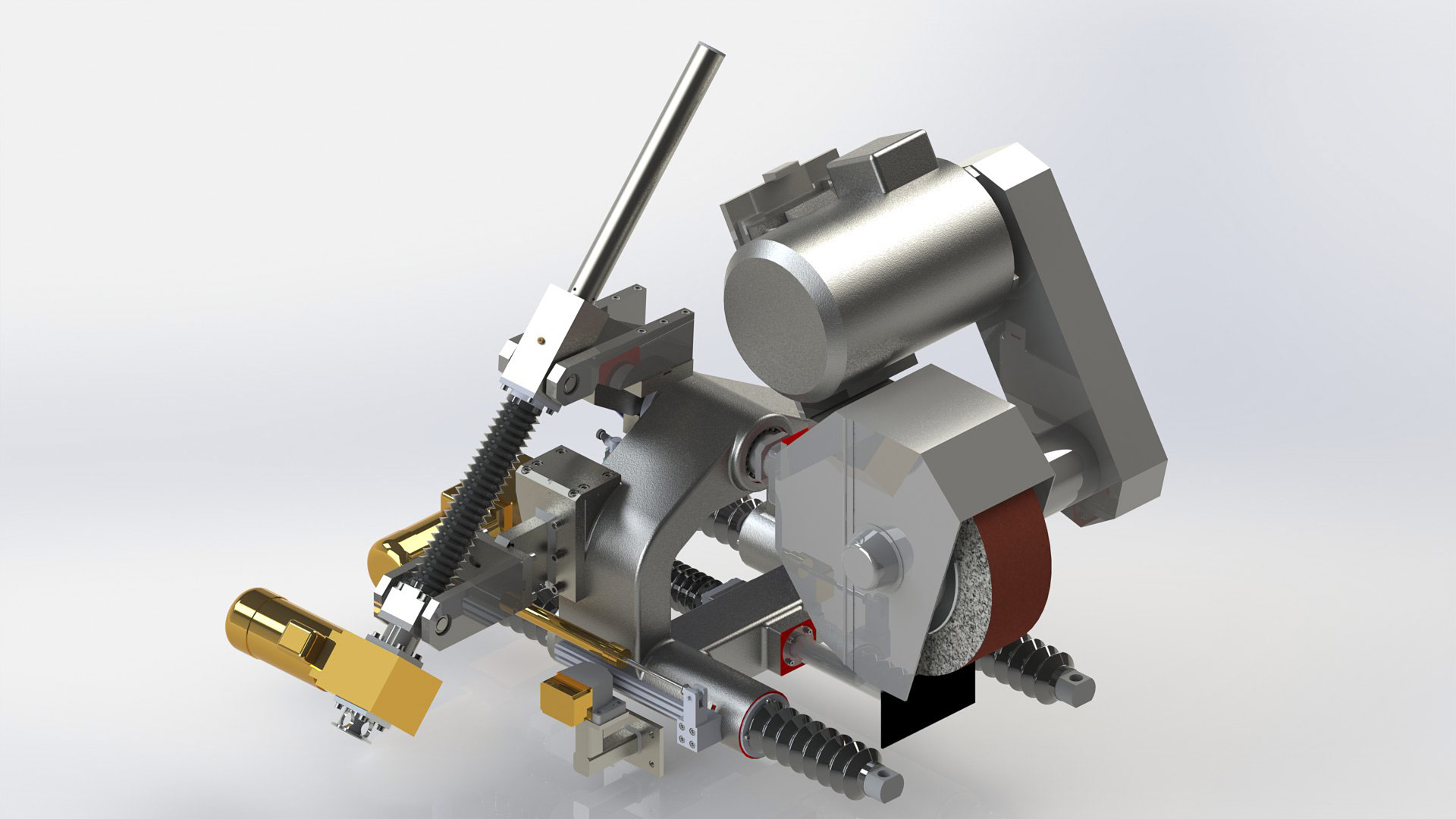

CAD design
- 02
Tool design
- 03
CNC milling
- 04
CNC turning
- 05
Grinding
- 06
Injection molding
- 07
Metrology / quality assurance
Materials & Processes
Metal

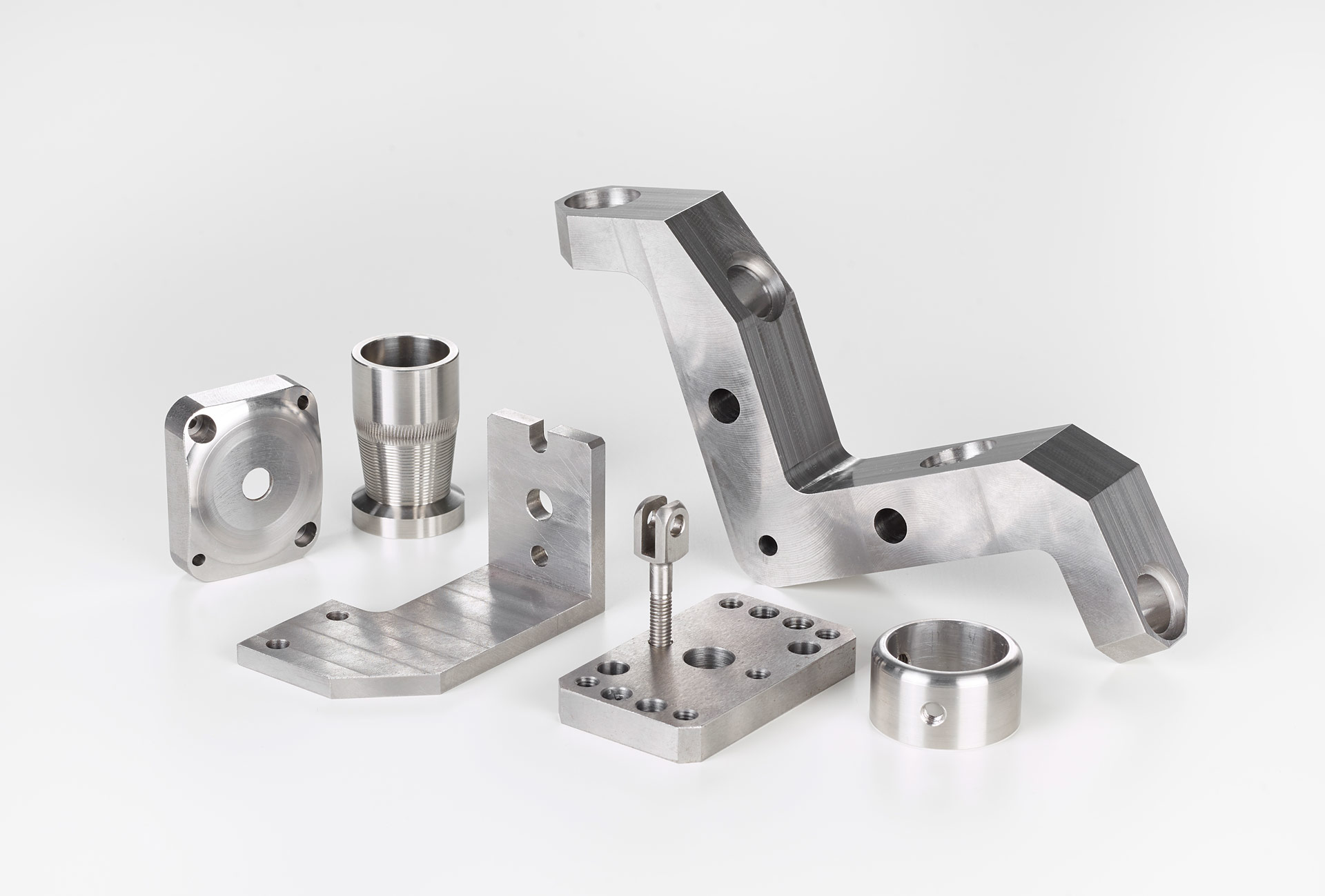

CNC machining of metal components on CNC machine tools.
Plastics

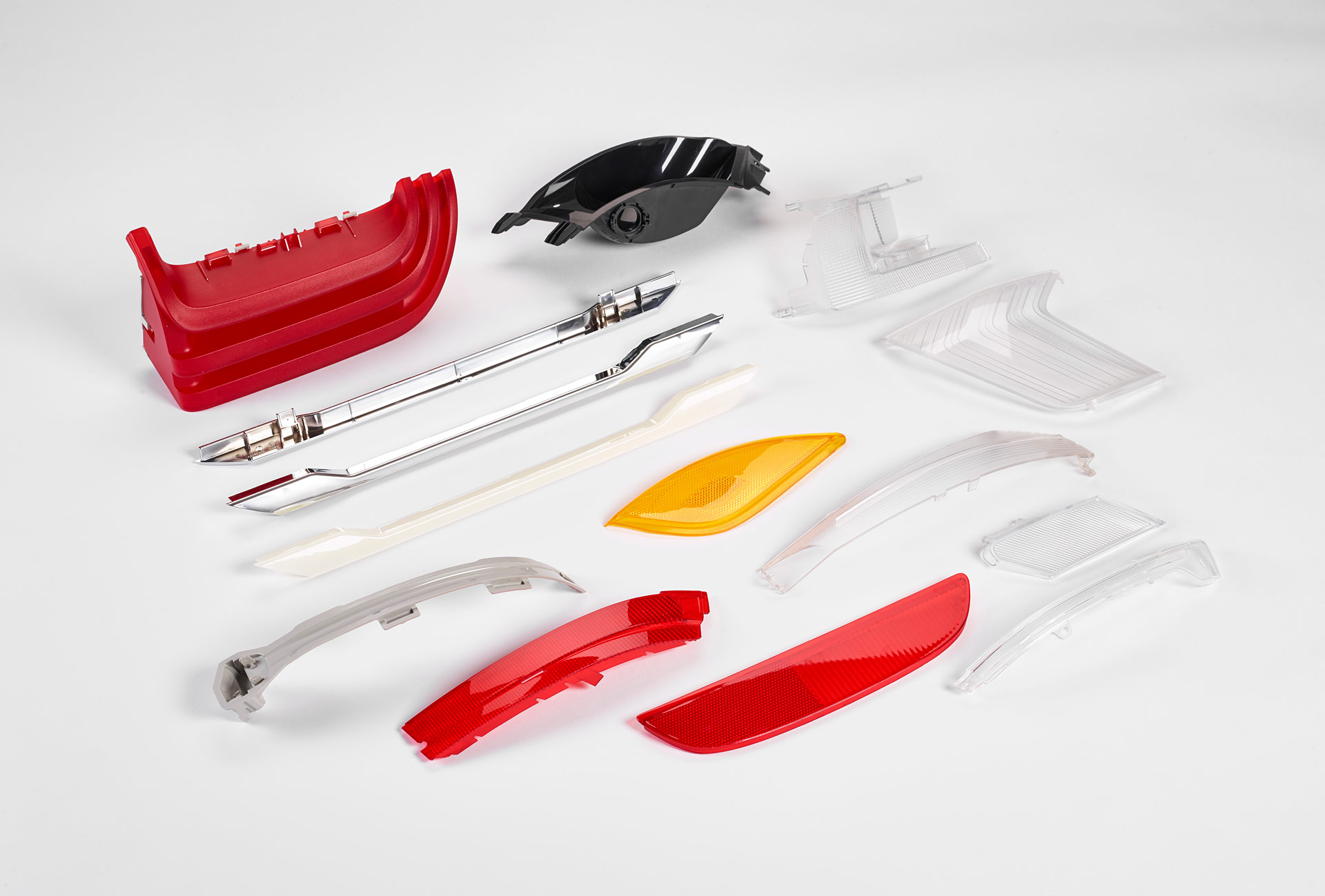

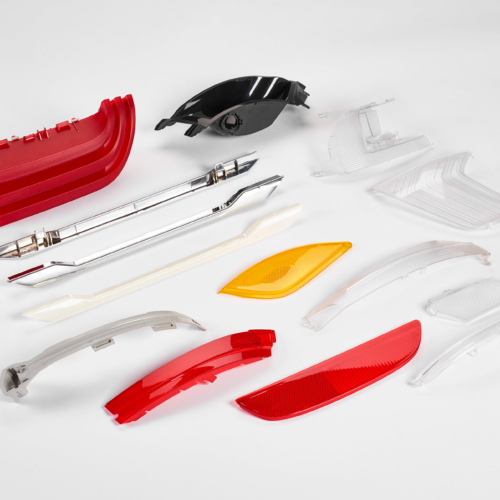

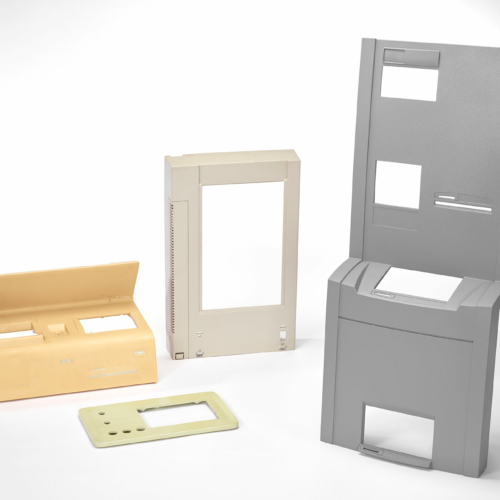

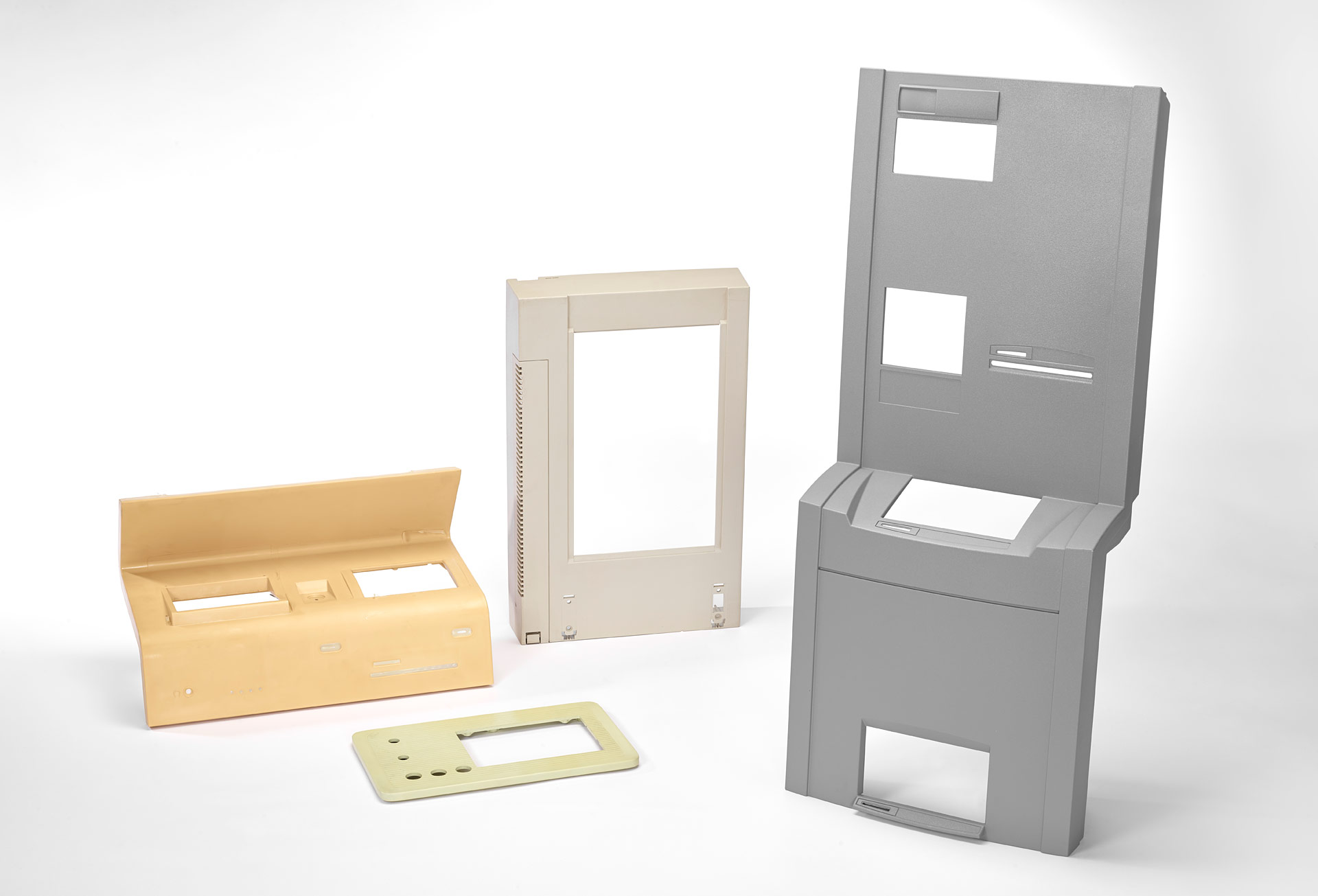

Injection-molded plastic parts in prototype and small-series production.
Injection molding
Manufacturing process for intelligent injection molding solutions made of plastic.
Machining (milling, turning, grinding)
CNC machining processes for precise metal components.
Metrology (3D GOM scanner)
Non-contact capture and inspection of component geometries.
Locations
Gevelsberg
DEOffice and CAD design
- Materials
- Metal, plastics
- 3D GOM Scanner

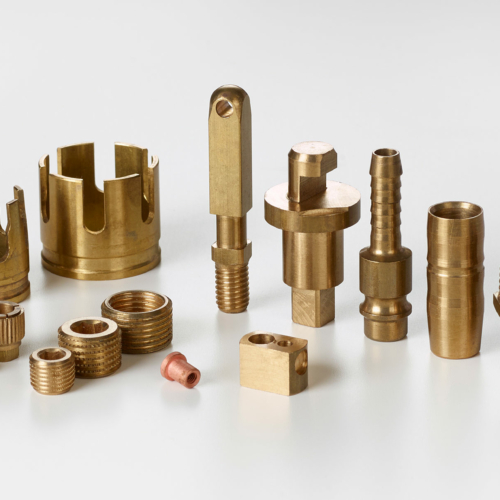

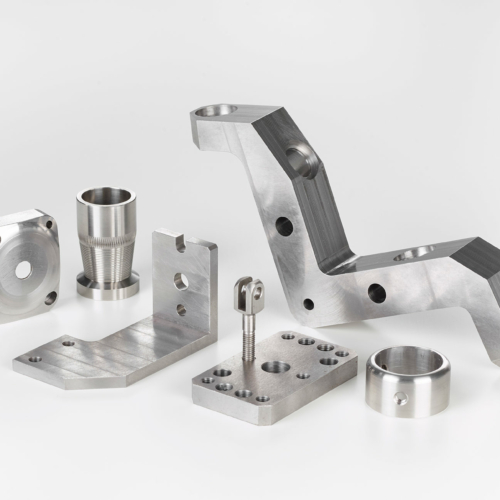

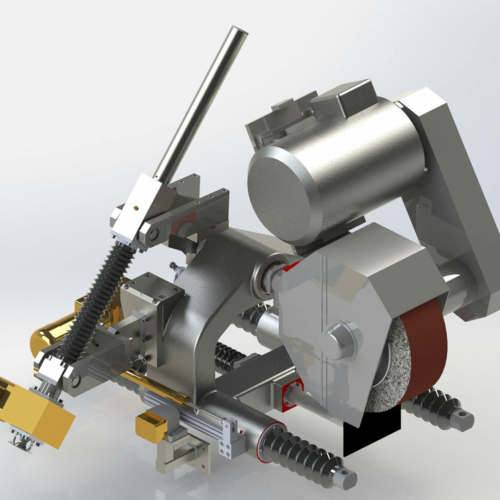

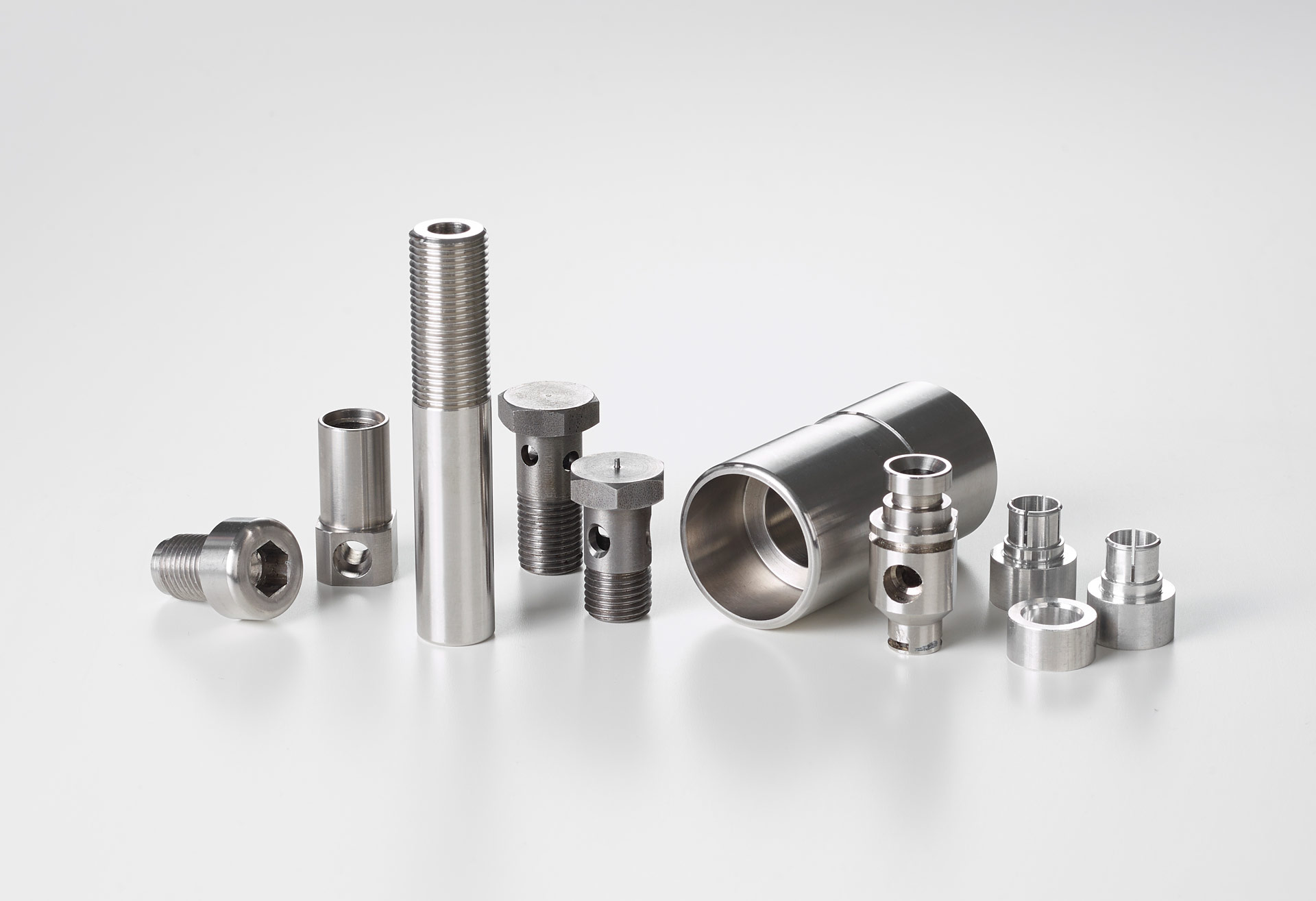

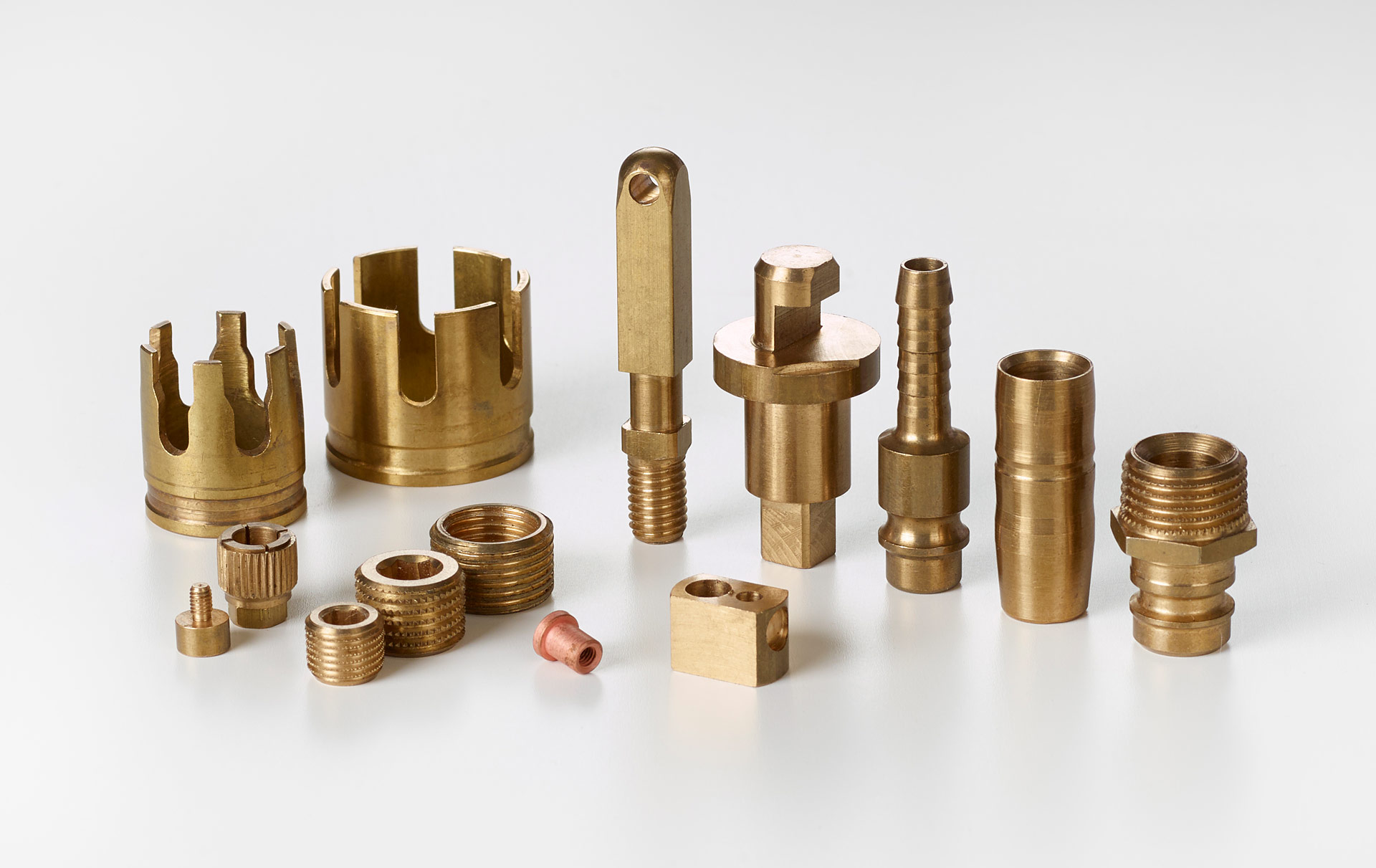

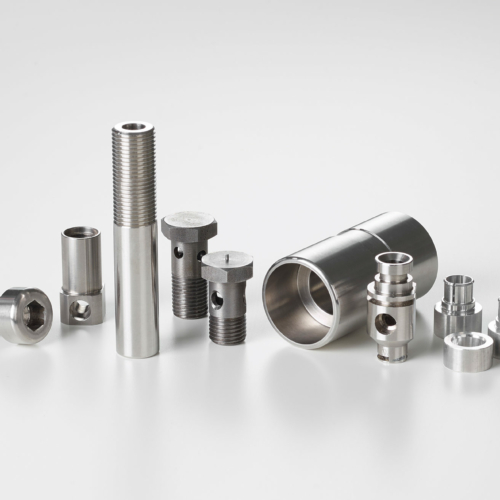

Components & Portfolio
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| CNC machining (subtractive manufacturing)Machining | – | – | – | Prototypes – Small series | Metal |
| MillingMachining | – | – | – | – | – |
| TurningMachining | – | – | – | – | – |
| GrindingMachining | – | – | – | – | – |
| Plastic injection moldingPlastics | – | – | – | Prototypes – Small series | Plastics |
| Tool designEngineering | – | – | – | – | – |
| Metrology / quality assurance (measuring instruments, roughness measuring device, measuringTesting | – | – | – | – | – |
1 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| 3D scanner | GOM | – | – | – | Gevelsberg |
Additional services
Quality & Metrology

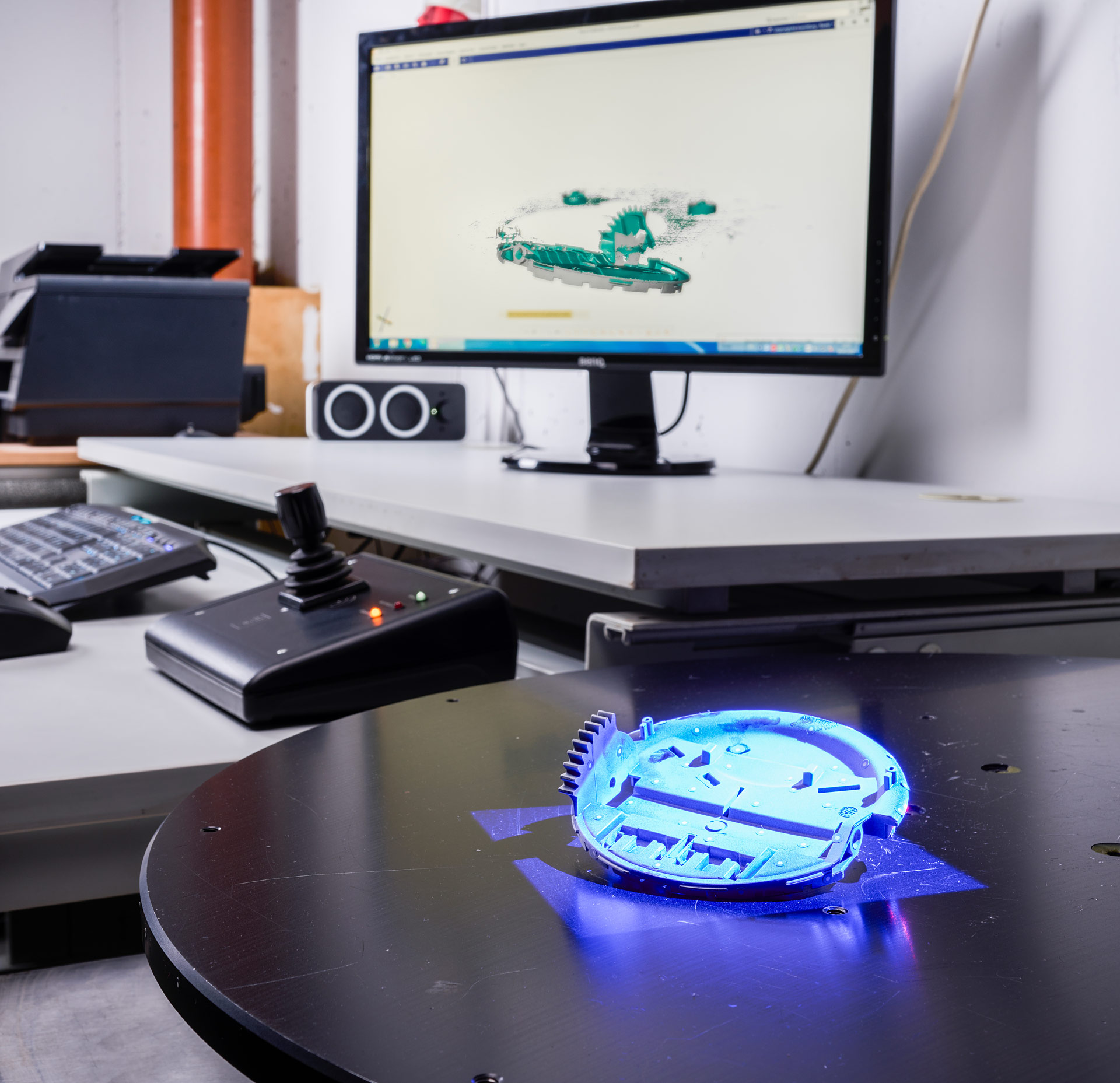

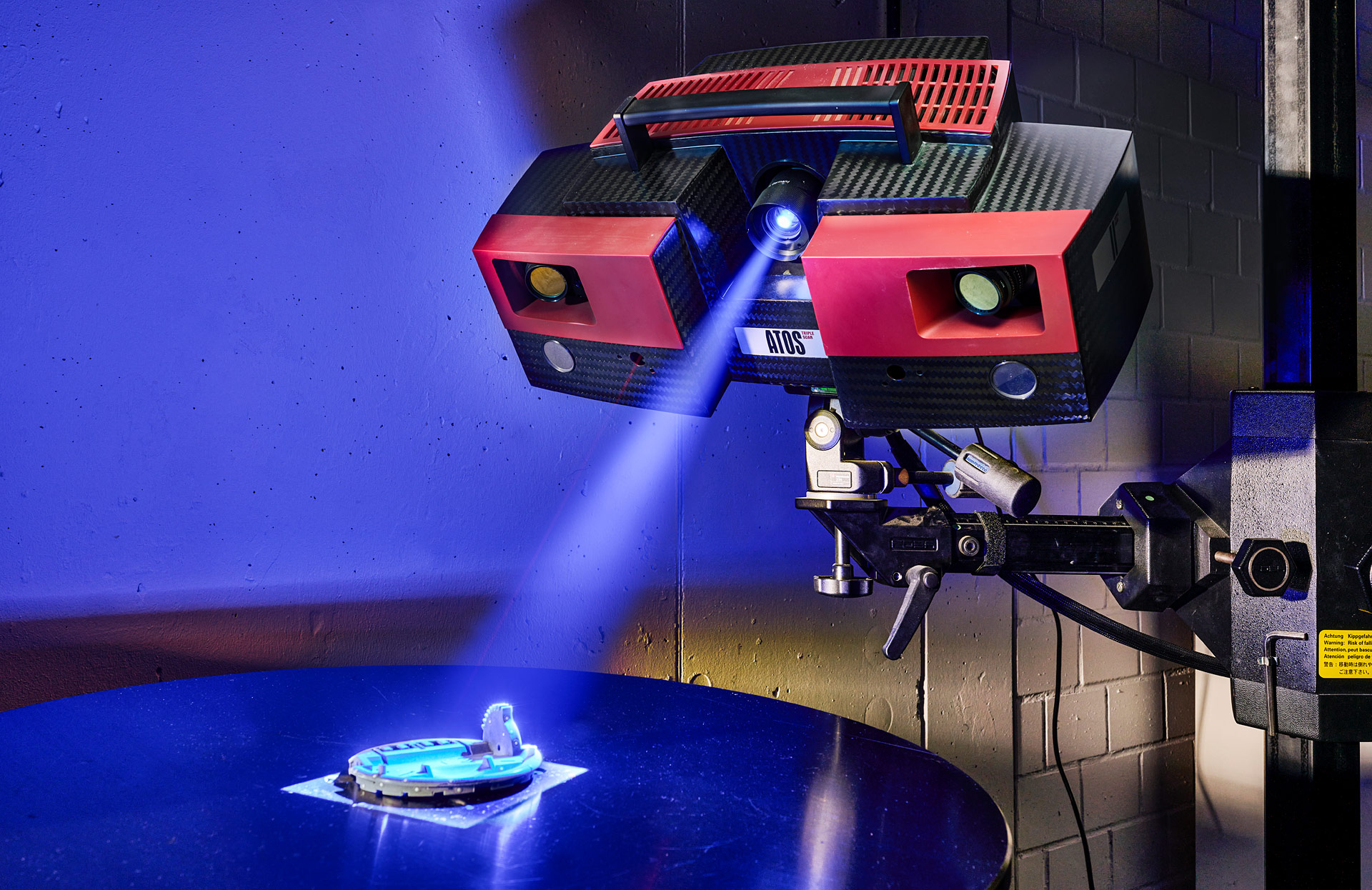

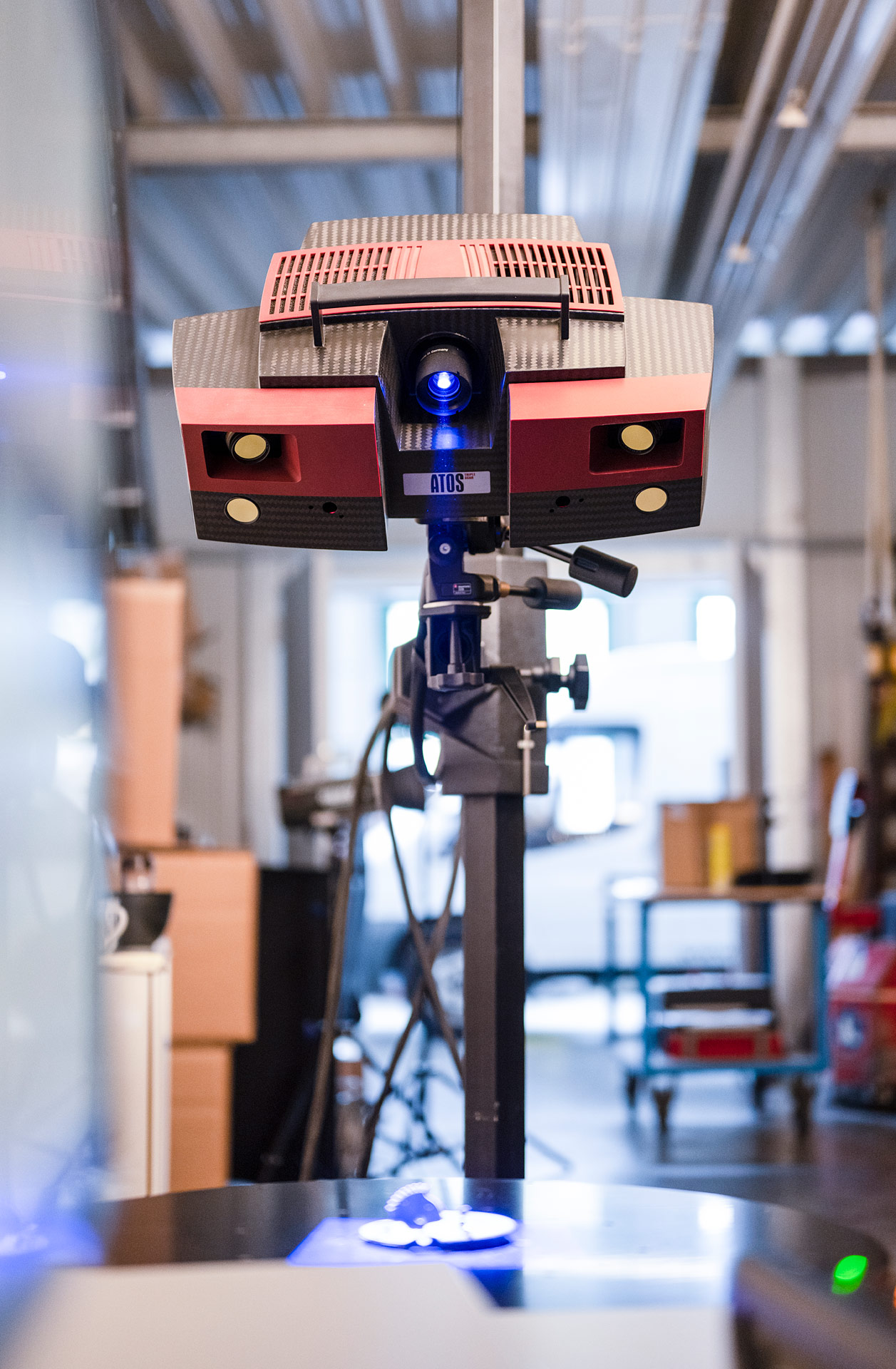

For quality assurance, measuring instruments, a roughness measuring device and measuring machines are used; a 3D GOM scanner is used for non-contact geometry capture. Quality is understood as part of the entire process chain from design to manufacturing.
| Evidence | Gevelsberg |
|---|---|
| Measuring instruments / roughness measuring device / measuring machines | |
| 3D GOM scanner | |
| ISO 9001 |
History
- 2010
Founded with a focus on tool design in Gevelsberg.
