Manufacturer of multistage centrifugal blowers, exhausters, turbo compressors and ATEX gas boosters for air and gas applications.
Continental Industrie GmbH Gebläse- und Exhaustorentechnik
Dormagen (Clemens-August-Platz 7) · Dormagen (Emdener Straße 10) · Saint-Trivier sur Moignans (FR) · Milano (IT) · Anoeta (ES) · Taicang (CN) · Perth (AU) · East Syracuse, NY (US) · Caracas (VE) ·New on Amplifa
About Continental Industrie

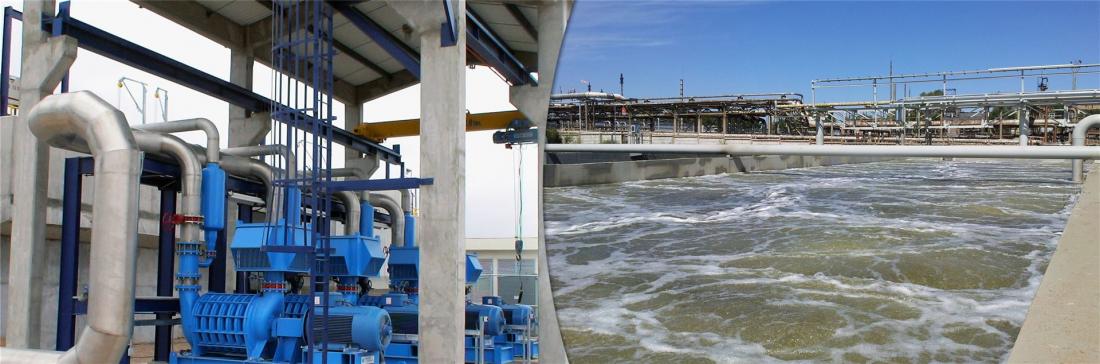

Since April 1992, Continental Industrie GmbH has been based in Dormagen as an independent sales and engineering company of Continental Industrie S.A.S. (Saint-Trivier sur Moignans, France). The corporate group has been developing and manufacturing multistage centrifugal blowers and exhausters, single-stage turbo compressors of the TCH and TCB series, and ATEX-compliant gas boosters of the GB 100 series for EX zones 1, 2, 21 and 22 in accordance with EU Directive 2014/34/EU for over 40 years. The machines convey and compress air and gases in a volume flow range from 150 to 60,000 m³/h at pressure increases up to 1,450 mbar or negative pressures up to 570 mbar. Housing segments are manufactured from aluminium or grey cast iron with vertical split, impellers are cast from treated aluminium alloy and dynamically balanced (balance grade G = 6.3 per ISO 1940). The units are delivered fully pre-assembled on base frames with control and regulating equipment. Fields of application include wastewater aeration, biogas and landfill gas, gas conveyance, galvanizing, paper and textile industries, drying, dust extraction as well as power plant applications such as flue gas desulfurization. More than 30,000 installed machines are in continuous operation worldwide.
- Site
- Dormagen-Nievenheim
- Processes
- Manufacture of multistage centrifugal blowers and exhausters, Manufacture of single-stage turbo compressors (TC series, TCH/TCB), Manufacture of ATEX blowers / gas boosters (GB 100) for EX zones 1, 2, 21, 22, Cross-manufacturer service: condition assessment, maintenance, repair of radial, centrifugal, Blower check / inspection of third-party products (Piller, Hoffman, Lamson, Edelhoff, Hibon), Cleaning, inspection and balancing of impellers, rotor and bearing replacement, ATEX maintenance workshop (bearing and seal replacement, V-belt drive, re-greasing), Planning, design and engineering of air and gas conveying systems
- Materials
- Aluminium (impellers, housing segments), Grey cast iron (housing segments, bearing housings), Steel (ground shafts), Ceramics (angular contact ball bearings TCB), Graphite (four-part graphite ring seals), Grey cast iron, Aluminium casting, Steel
- Certificates
- ISO 9001:2015, ATEX (EU 2014/34/EU, zones 1/2/21/22), CE (Machinery Directive 2006/42/EC)
- Founded
- 1992
- Industries

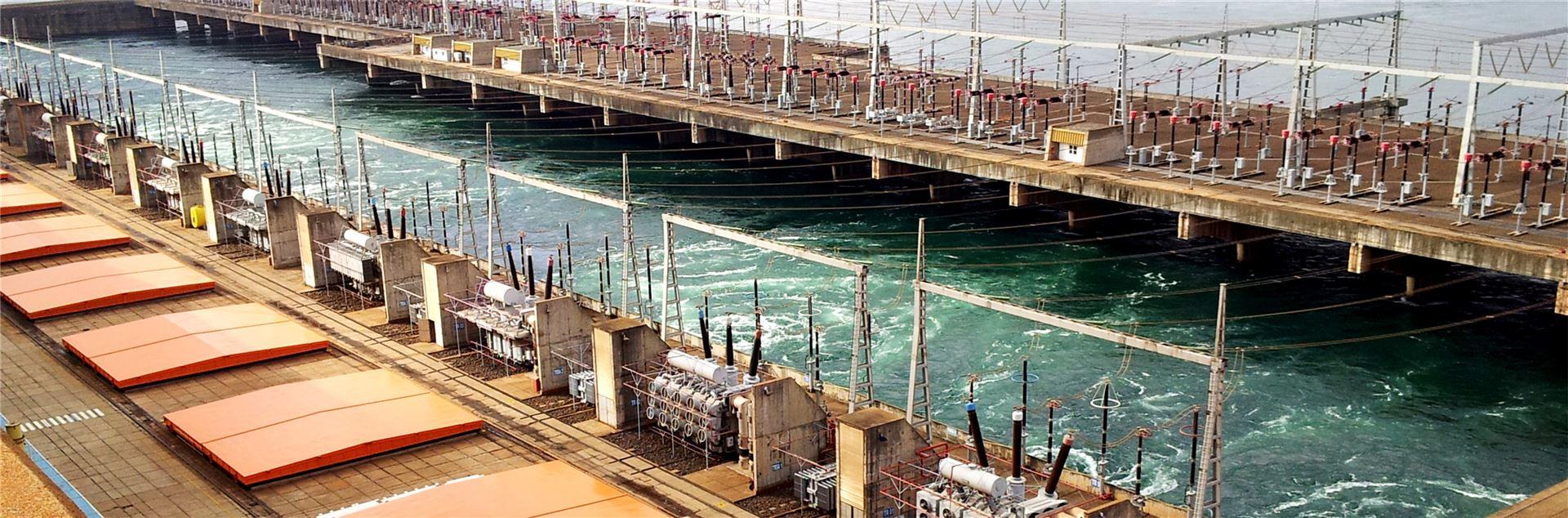

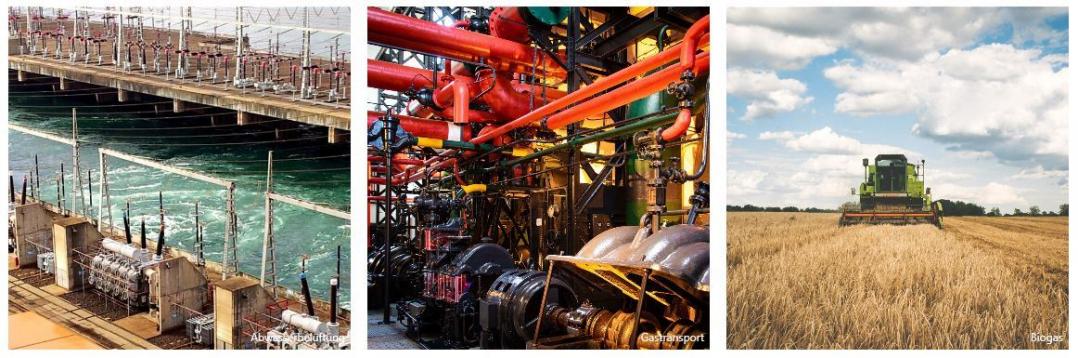

- Wastewater treatment / sewage treatment plants, Biogas / landfill gas, Gas conveyance / gas compression, Galvanizing / electroplating, Paper industry, Textile industry
- 01
Engineering and design of air/gas applications
- 02
Casting of housing segments (aluminium/grey cast iron)
- 03
Casting and machining of the aluminium impellers
- 04
Dynamic balancing of the impeller sets (G = 6.3)
- 05
Assembly on base frames incl. motor and drive
- 06
Delivery with control and regulating equipment
- 07
Service: maintenance, repair, blower check
- 08
Spare parts shipping within 24 hours
Materials and Manufacturing
Grey cast iron
Housing segments and bearing housings of the centrifugal blowers, thick-walled for acoustic damping.
Aluminium casting
Vertically split housing segments as well as impellers with low mass inertia.
Steel
Ground shafts for the impeller set.
Ceramic angular contact ball bearings
Bearing arrangement in the TCB turbo compressor series.
Graphite ring seals
Four-part seals against the air or gas flow on larger blowers.
ATEX design (zones 1, 2, 21, 22)
Gas-tight design of the GB 100 per EU Directive 2014/34/EU for explosive and flammable gases.
Locations

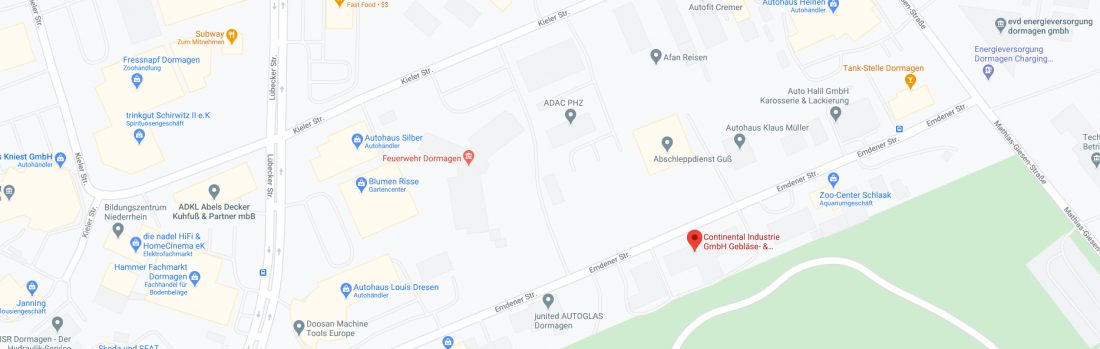

Dormagen (Clemens-August-Platz 7)
DESales and engineering company

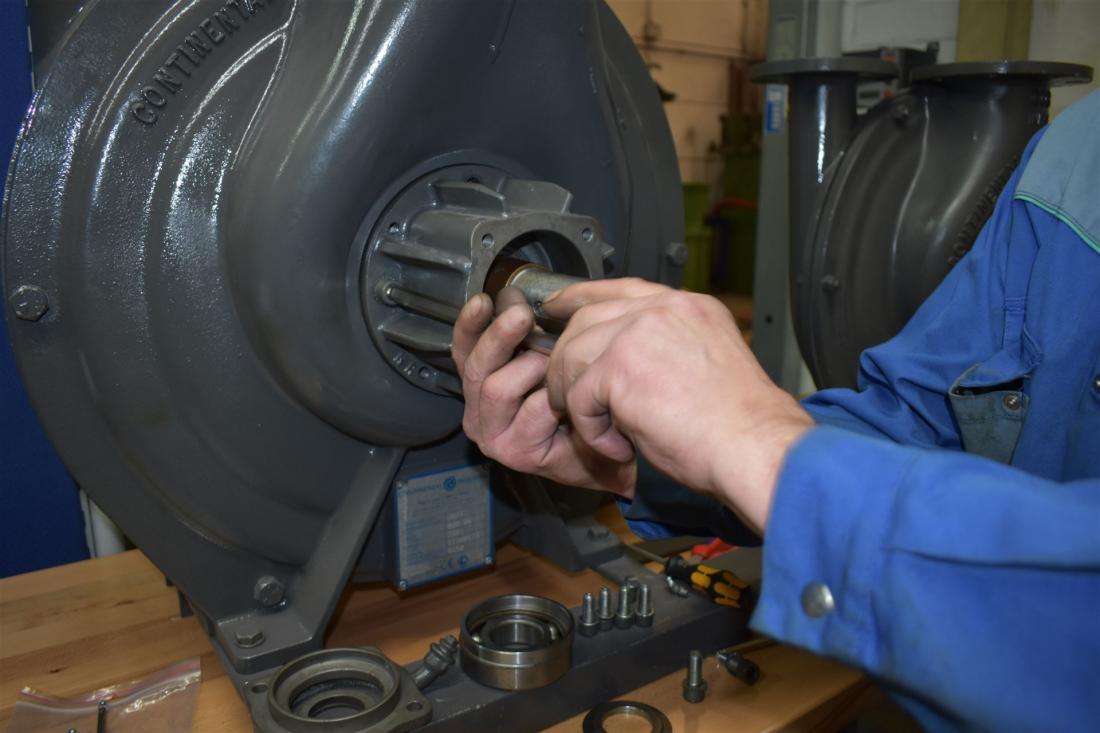

Dormagen (Emdener Straße 10)
DEService / service workshop
Saint-Trivier sur Moignans
FRHeadquarters and production (Continental Industrie S.A.S.)
- Materials
- Aluminium casting, grey cast iron, steel
- Blower and exhauster manufacturing
- Balancing facility
- Model series 008–600, GB 100, turbo compressors TCH/TCB
Milano
ITBranch office (Continental Industrie Italia SRL)
Anoeta
ESBranch office (Continental Industrie Soplantes y Bombas de Vacio S.L.)
Taicang
CNBranch office (Continental Blower Engineering)
Perth
AUBranch office (Continental Engineering Services Aust. Pty. Ltd.)
East Syracuse, NY
USBranch office (Continental Blower, L.L.C.)
Caracas
VEBranch office (Continental Industrie South America)
Dubai
AEBranch office (Continental Industrie Middle East)
Components and Machines
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Manufacture of multistage centrifugal blowers and exhaustersAssembly | – | – | – | – | Aluminium, Grey cast iron |
| Manufacture of single-stage turbo compressors (TC series, TCH/TCB)Assembly | – | – | – | – | – |
| Manufacture of ATEX blowers / gas boosters (GB 100) for EX zones 1, 2, 21, 22Assembly | – | – | – | – | Aluminium, Grey cast iron |
| Cross-manufacturer service: condition assessment, maintenance, repair of radial, centrifugalAssembly | – | – | – | – | – |
| Blower check / inspection of third-party products (Piller, Hoffman, Lamson, Edelhoff, Hibon)Testing | – | – | – | – | – |
| Cleaning, inspection and balancing of impellers, rotor and bearing replacementAssembly | – | – | – | – | – |
| ATEX maintenance workshop (bearing and seal replacement, V-belt drive, re-greasing)Assembly | – | – | – | – | – |
| Planning, design and engineering of air and gas conveying systemsEngineering | – | – | – | – | – |
| Dynamic balancing of impeller sets (balance grade G = 6.3 per ISO 1940-1973 (F))Testing | – | – | – | – | Aluminium |
| Manufacture of housing segments from aluminium or grey cast iron (vertically split)Casting | – | – | – | – | Aluminium, Grey cast iron |
7 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Single-stage turbo compressor with integrated gearbox (hydrodynamic plain bearings, IGV/VDV) | Continental Industrie TCH | – | Volume flow 9,500 to 60,000 Nm³/h, pressure up to 140 kPa g | – | Saint-Trivier sur Moignans (France) / product program |
| Single-stage turbo compressor with integrated gearbox (ceramic angular contact ball bearings, | Continental Industrie TCB | – | Volume flow 1,500 to 15,000 Nm³/h, pressure up to 95 kPa g | – | Saint-Trivier sur Moignans (France) / product program |
| Multistage centrifugal blower with belt drive | Continental Industrie Model series 008 - 151 | – | Gas volume flow up to 12,000 Nm³/h, pressure increase up to 600 mbar | – | Saint-Trivier sur Moignans (France) |
| Multistage centrifugal blower with direct drive | Continental Industrie Model series 251 - 600 | – | Gas volume flow up to 45,000 Nm³/h, pressure increase up to 1000 mbar | – | Saint-Trivier sur Moignans (France) |
| Gas compressor with direct drive | Continental Industrie GB100 DD | – | Volume flow up to 1,500 Nm³/h, pressure increase up to 70 mbar | – | Saint-Trivier sur Moignans (France) |
| Gas compressor with belt drive | Continental Industrie GB100 VB | – | Volume flow up to 3,000 Nm³/h, pressure increase up to 180 mbar | – | Saint-Trivier sur Moignans (France) |

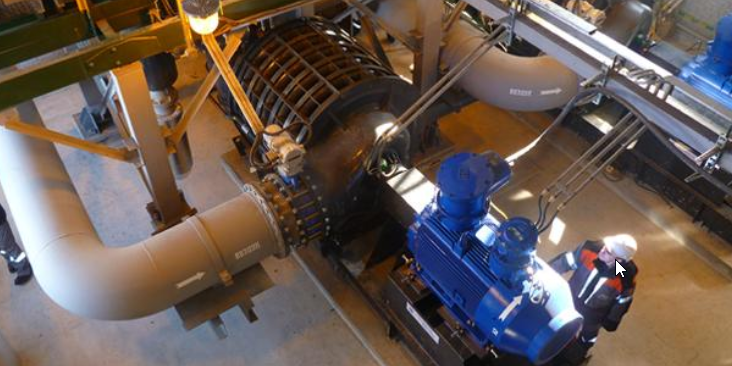

| Centrifugal blower | Continental Industrie 600 | – | 17,500 to 25,500 Nm³/h, efficiency >80% (adiabatic, peak 83% at 21,000 Nm³/h) with | – | Product program |
Additional services
Reference customers
Quality Assurance
The Saint-Trivier plant has been ISO 9001 certified since August 25, 2005 and was recertified by Bureau Veritas in 2023 (FR083547-1, valid until 29.07.2026). Quality assurance includes the dynamic balancing of the impeller sets with balance grade G = 6.3 according to ISO 1940-1973 (F) as well as the static balancing of each individual impeller.
| Evidence | Saint-Trivier sur Moignans |
|---|---|
| ISO 9001:2015 | |
| ATEX (EU 2014/34/EU, zones 1/2/21/22) | |
| CE (Machinery Directive 2006/42/EC) |
History
- 1982
Egbert A. Boeckh has been active in the field of turbomachinery since 1982.
- 1992
Founding of Continental Industrie GmbH in Dormagen as an independent sales and engineering company of Continental Industrie S.A.S., France.
- 2005
Initial ISO 9001 certification of the Saint-Trivier plant by BVQI on August 25, 2005.
- 2020
Takeover of the sales of Piller multistage blowers; ISO 9001 recertification (valid until 29.07.2023).
- 2023
ISO 9001:2015 recertification by Bureau Veritas (FR083547-1, valid until 29.07.2026).
- 2024
Membership in the BIOGAS trade association.
