Dental laboratory in Aachen: digital dentures with CAD/CAM milling technology, laser sintering (SLM), 3D printing and full ceramics
Dentallabor Evident GmbH & Co. KG
Aachen (DE) · Telephone contact Belgium (BE)New on Amplifa
About the dental laboratory
Dentallabor Evident is a dental technology business in Aachen covering the entire spectrum of fixed and removable dentures. The laboratory produces all-ceramic restorations made of zirconia (ZrO2) and E-Max, laser-sintered metal-ceramics on NEM (non-precious metal) basis, cast partial dentures, combined dentures with attachments, telescopic and bar work, as well as implant-supported dentures from all manufacturers. The portfolio also includes complete dentures made of PMMA, soft resilient relining, PEEK frameworks, snoring appliances and sports mouthguards. A large proportion of the work is produced digitally: with 3D scanning and intraoral scan processing, CAD/CAM design, 5-axis CAM milling (dry and wet), 3D printing from light-curing polymer resins and laser sintering (SLM) at over 1400 °C. Since 2009, 95% of all NEM crown and bridge frameworks have been laser sintered, resulting in stress-free and accurately fitting frameworks. Production takes place entirely in Germany; customers are dental practices in Germany and Belgium.
- Site
- Aachen
- Processes
- Zirconia work (ZrO2), veneered and monolithic, E-Max full ceramic (pressed ceramic, lithium disilicate glass ceramic), Laser sintering (SLM) for NEM frameworks (crowns, bridges, inlays, suprastructure), Laser welding (joining metallic components of dentures), Metal-ceramics laser-sintered for NEM, PEEK process (crown and bridge frameworks, cast partial dentures), Milling technique / CAM milling (5-axis simultaneous and 3+2-axis, dry and wet), CAD/CAM design and production
- Materials
- Zirconia / zirconium dioxide, E-Max (lithium disilicate glass ceramic), PMMA (denture plastic), PEEK (polyetheretherketone), Non-precious metal alloys (NEM), Precious metal alloys, Steel, Titanium
- Certificates
- Individual tooth shade taking, Digital production (CAD/CAM)
- Industries
- Dental technology/dental laboratory, Dental practices
- 01
3D scanning / intraoral scan processing
- 02
CAD/CAM design
- 03
CAM milling (5-axis, dry/wet)
- 04
Laser sintering (SLM) / 3D printing (resins, laser melting)
- 05
Laser welding / veneering
- 06
Assembly and finishing
- 07
Quality control and shipping
Locations
Aachen
DELaboratory/production
- Lot size
- Individual production on dentist's order
- Materials
- Zirconia, E-Max, NEM, precious metal, PMMA, PEEK, titanium, steel, glass ceramic, polymer resins

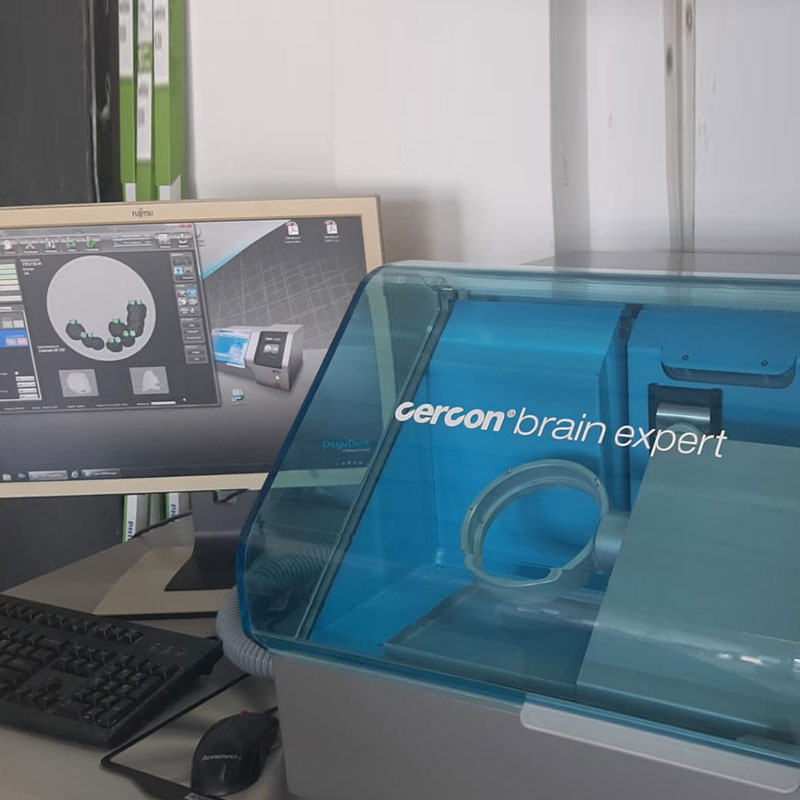

- 5-axis CAM milling machine with material changer/loader (dry and wet)
- Laser sintering system (SLM, >1400 °C)
- Laser welding unit
- 3D printer (polymer resins)
- 3D dental scanner
- Intraoral scanner
Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|

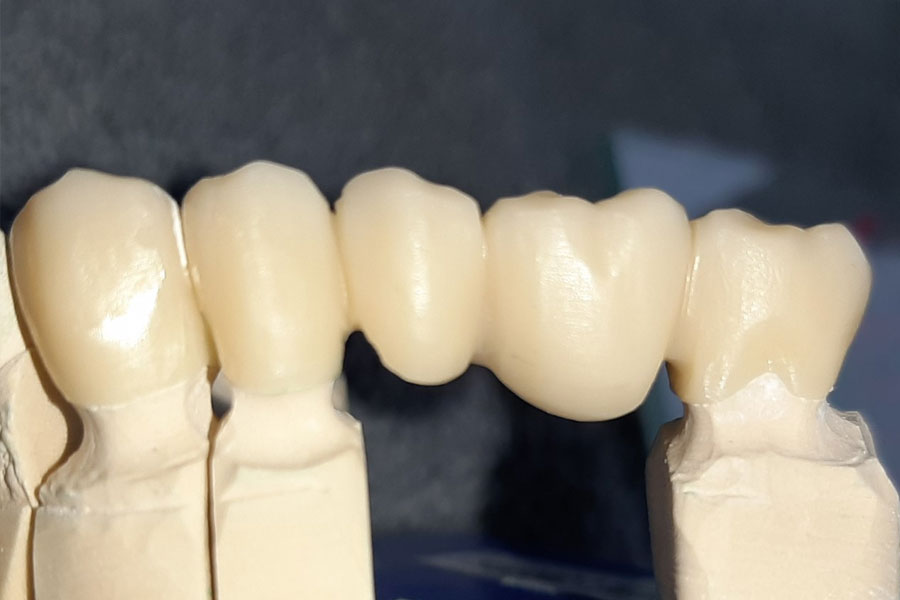

| Zirconia work (ZrO2), veneered and monolithicPlastics | – | – | – | – | Zirconium dioxide (ZrO2) |

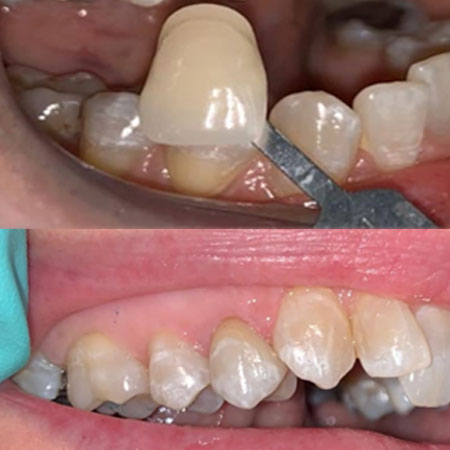

| E-Max full ceramic (pressed ceramic, lithium disilicate glass ceramic)Plastics | – | – | – | – | E-Max (lithium disilicate glass ceramic) |
| Laser sintering (SLM) for NEM frameworks (crowns, bridges, inlays, suprastructure)Additive | – | – | – | – | Non-precious metal alloys (NEM) |

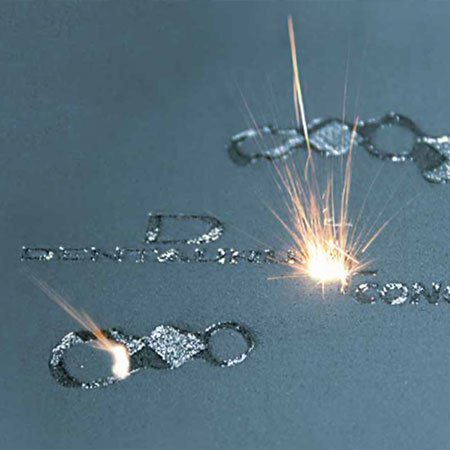

| Laser welding (joining metallic components of dentures)Joining | – | – | – | – | Metal |
| Metal-ceramics laser-sintered for NEMPlastics | – | – | – | – | NEM alloys, Ceramic |
| PEEK process (crown and bridge frameworks, cast partial dentures)Plastics | – | – | – | – | PEEK (polyetheretherketone) |
| Milling technique / CAM milling (5-axis simultaneous and 3+2-axis, dry and wet)Machining | – | – | – | – | Zirconium dioxide (ZrO2), Steel, Titanium, Plastic, Glass ceramic, Wax |
| CAD/CAM design and productionEngineering | – | – | – | – | – |
| 3D printing of plastic-based polymer resins (dental models, tooth stumps, drilling guides,Additive | – | – | – | – | Light-curing polymer resins |
| 3D printing / laser melting of metal alloys (semi-finished products for crown and bridge frameworks)Additive | – | – | – | – | Non-precious metal alloys (NEM) |
| 3D printing stereolithographyAdditive | – | – | – | – | Light-curing polymer resins |
| Cast partial dentureCasting | – | – | – | – | NEM alloys, Precious metal alloys |

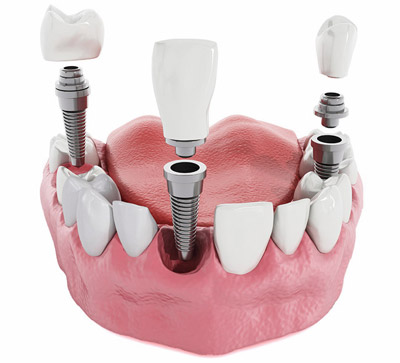

| Combined dentures (milling technique, attachment, telescopic and bar work)Assembly | – | – | – | – | – |

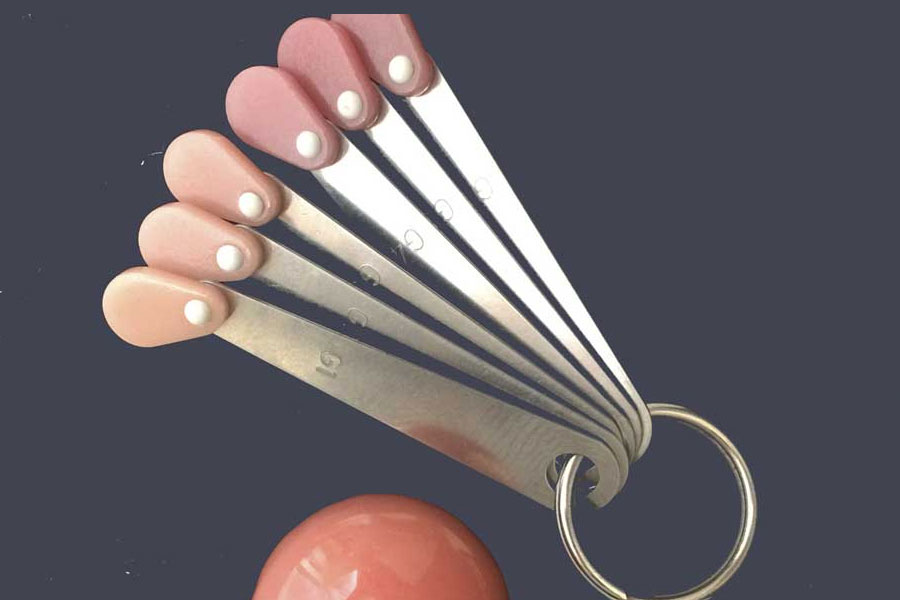

| Complete dentures (full dentures)Plastics | – | – | – | – | PMMA, Soft resilient relining material |
| Soft resilient reliningPlastics | – | – | – | – | PMMA |
| Anti-snoring appliancePlastics | – | – | – | – | Plastic |
| Mouthguard for every sportPlastics | – | – | – | – | Plastic |

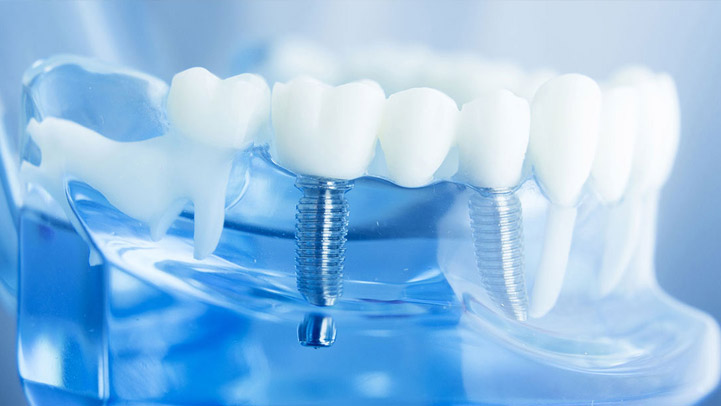

| Implant restoration for all manufacturers (implant-supported dentures)Assembly | – | – | – | – | Zirconia, E-Max, Metal |
| Intraoral scan processing + model fabricationEngineering | – | – | – | – | – |
| Denture cleaningSurface | – | – | – | – | PMMA |
| Individual tooth shade taking / material and shade consultationTesting | – | – | – | – | – |
| 3D scanning (dental scanner)Testing | – | – | – | – | – |
6 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| 5-axis CAM milling machine (industrial milling machine for dental technology, with material | – | – | – | – | Aachen |
| Laser sintering system (SLM, >1400°C) | – | – | – | – | Aachen |
| Laser welding unit | – | – | – | – | Aachen |

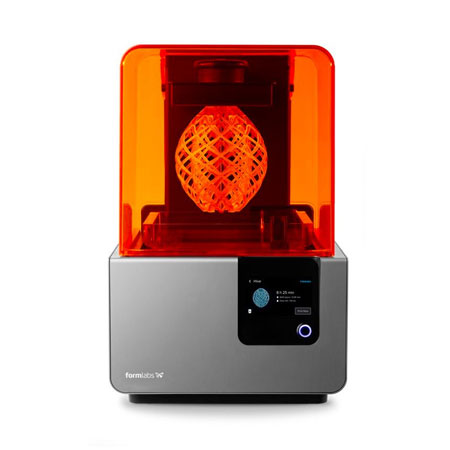

| 3D printer (polymer resins/stereolithography) | – | – | – | – | Aachen |
| 3D dental scanner | – | – | – | – | Aachen |
| Intraoral scanner | – | – | – | – | Aachen |
Additional services
Quality
Production is largely digital with 3D scanning, CAD/CAM design and 5-axis milling operations; stress-free, accurately fitting frameworks are achieved through laser sintering. Individual tooth shade taking and coordination with dentist and patient are part of the production process.
| Evidence | Aachen |
|---|---|
| Individual tooth shade taking | |
| Digital production (CAD/CAM) |
History
- 2009
Start of laser sintering; since then, 95% of all NEM crown and bridge frameworks have been laser sintered
