Design, manufacturing and assembly of steel structures, plants and machines as well as sheet metal working, machining and surface technology
FERA GmbH
Schwalbach (Saarland)New on Amplifa
About FERA

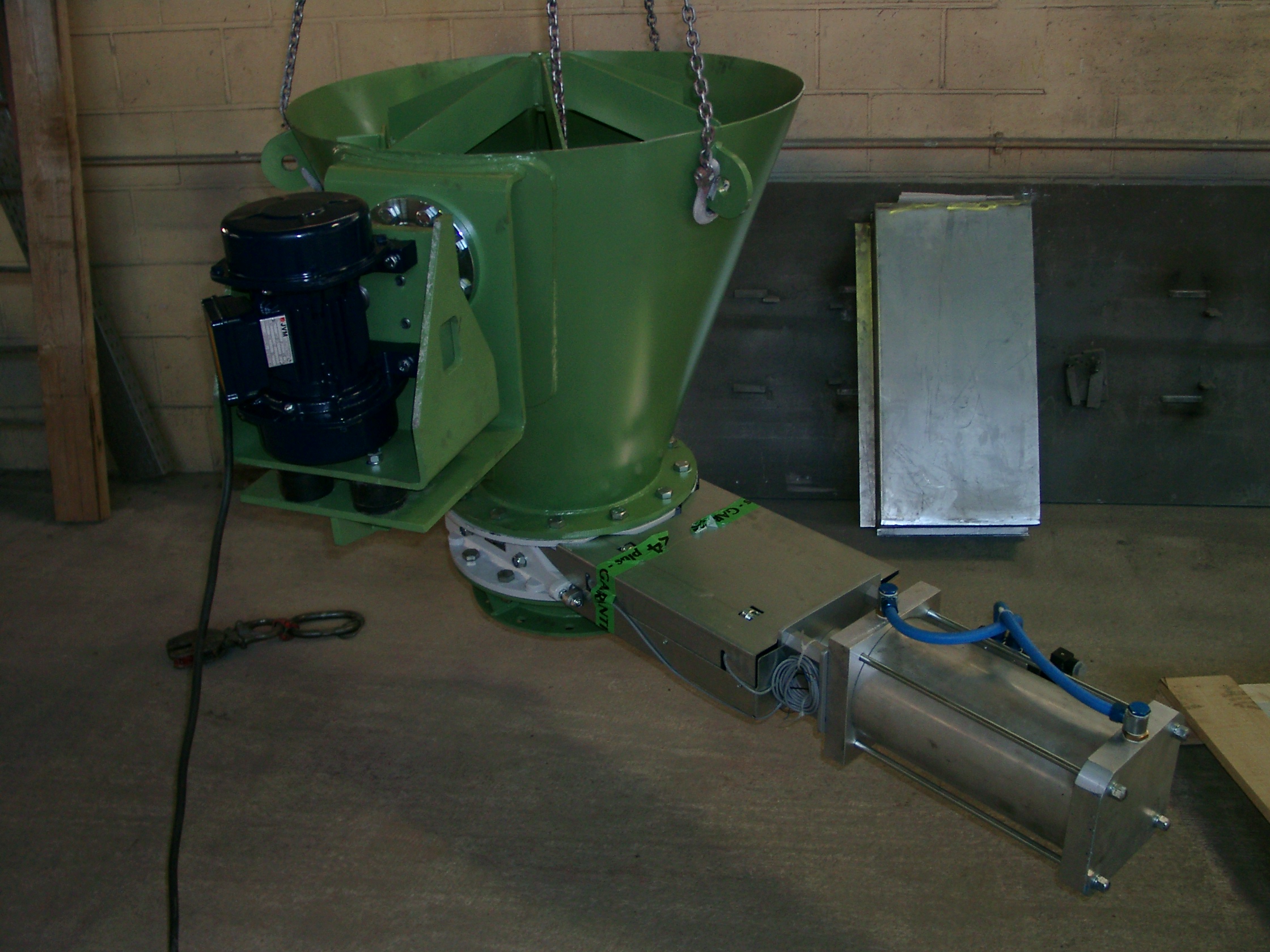

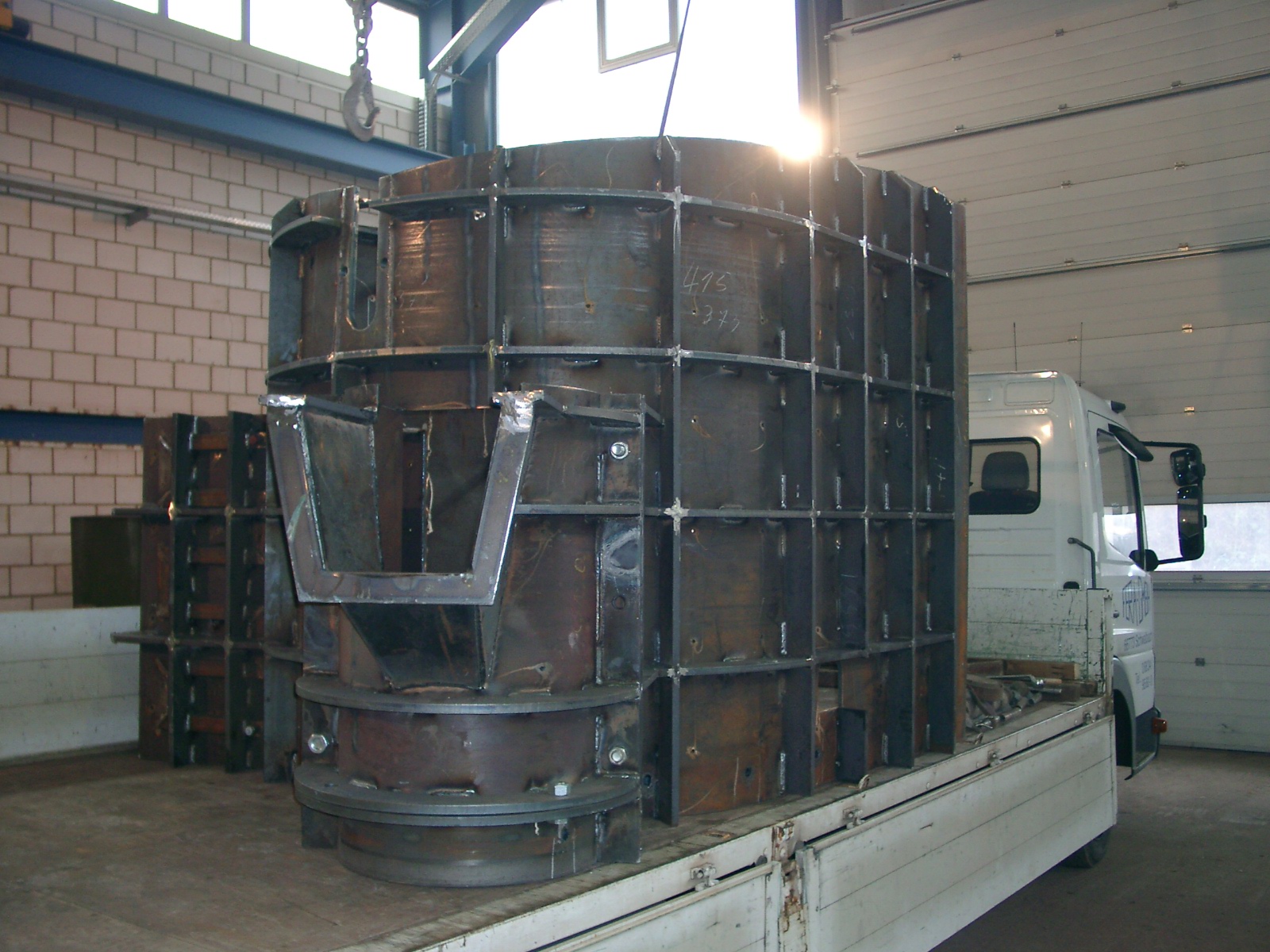

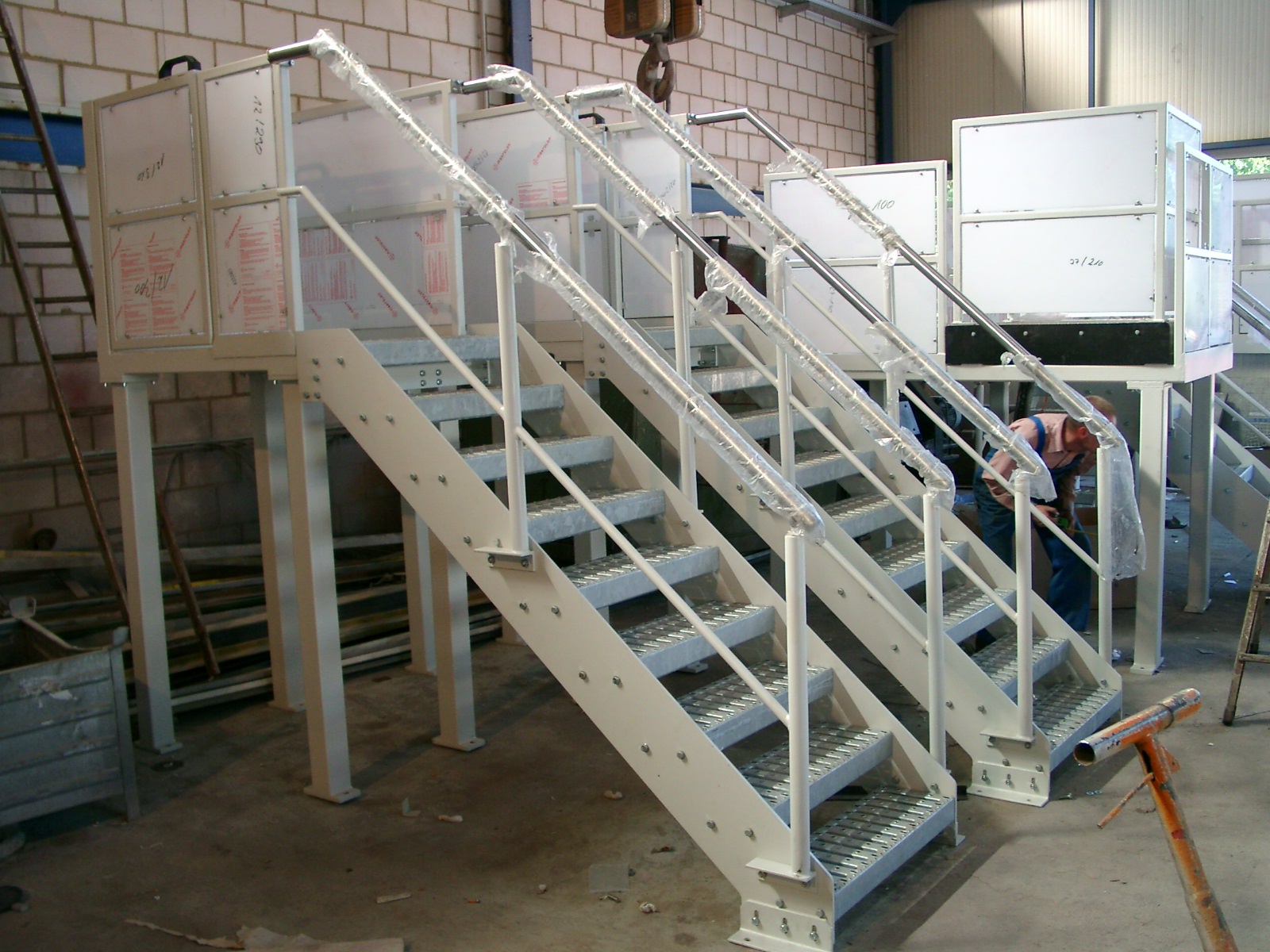

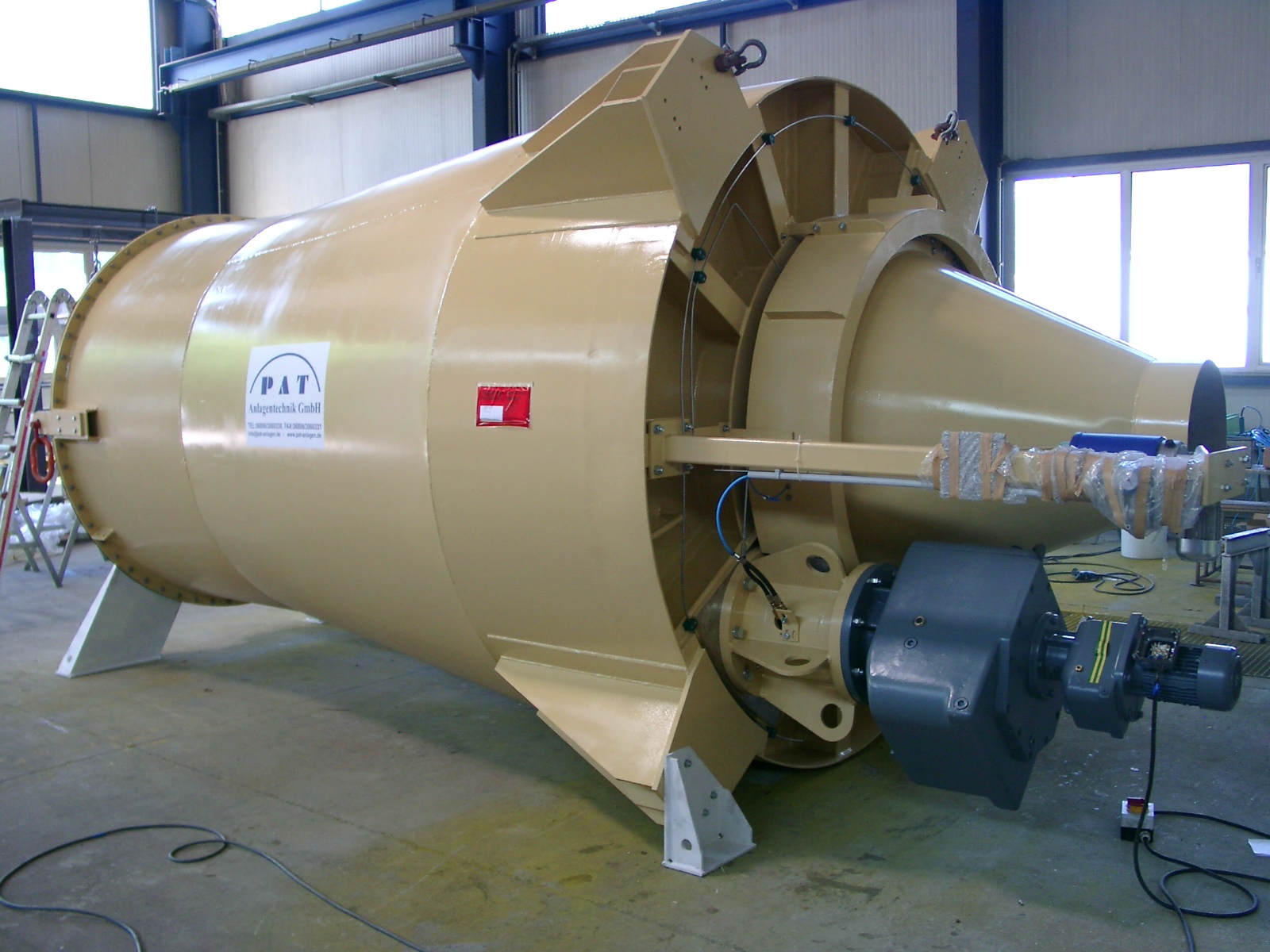

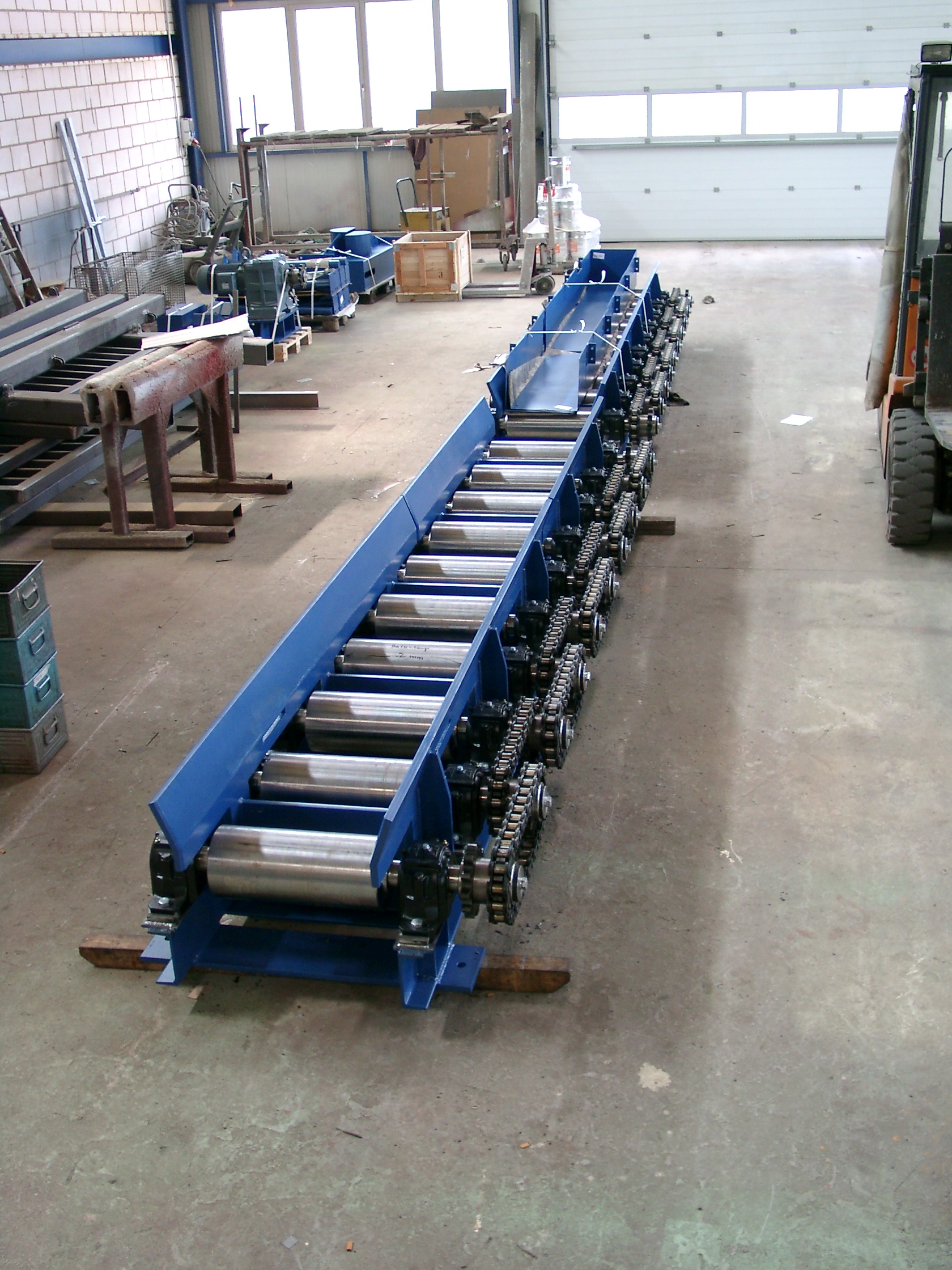

FERA GmbH, based in Schwalbach (Saarland), specializes in the design, manufacturing and assembly of steel structures, plants and machines. The family-owned company, founded in 1976, primarily serves the iron and steel industry, plant engineering, mechanical and tool engineering, civil and structural engineering, as well as transport and conveying technology. Its value chain includes mechanical and automated sheet metal working (CNC flame and plasma cutting up to 100 mm sheet thickness, shearing, bending, round bending, profile rolling), welding by certified welders, CNC machining on boring mills and milling machines, as well as sandblasting and airless painting in its own halls. Steel and aluminium sheets are processed. Around 30 qualified employees manufacture individual parts, assemblies and complete plants up to on-site assembly at the customer, including silos, discharge devices, work platforms, roller conveyors and components for cupola furnaces.
- Site
- Schwalbach
- Processes
- CNC flame/plasma cutting (oxy-fuel and plasma torches), Plasma cutting HiFocus Kjellberg 160i, Guillotine sheet shearing, Bending (hydraulic press brake), Four-roll round bending, Three-roll profile rolling (angle profiles and tubes up to 70 mm), Gas-shielded welding, Arc welding with welding transformer
- Materials
- Steel (sheets), Aluminium (sheets), Steel, Aluminium, CNC machining, Sheet metal working, Surface technology
- Certificates
- Welders with certification
- Founded
- 1976
- Employees
- 30
- Industries
- Iron and steel industry, Plant engineering, Mechanical and tool engineering, Structural and civil engineering, Transport and conveying technology, Mining
- 01
Design
- 02
Sheet metal cutting (flame/plasma cutting, shearing)
- 03
Forming (bending, round bending, profile rolling)
- 04
Welding
- 05
Machining (drilling, milling, turning)
- 06
Sandblasting
- 07
Painting
- 08
Assembly
Materials & Processes
Steel
Main material for sheet metal construction, welded constructions and machining, up to 100 mm cutting thickness.
Aluminium
Sheets for welded constructions, including thin-walled via TIG welding.
CNC machining
Drilling and milling on CNC boring mills (Heidenhain control) up to 1,800 x 1,500 x 1,000 mm.
Sheet metal working
Cutting, shearing, bending, round bending and profile rolling of steel and aluminium sheets.
Surface technology
Sandblasting and airless painting in the company's own paint shop.
Locations
Schwalbach
DEHead office with production halls, paint shop, machine shop and office building
- Lot size
- Single-part and series production
- Materials
- Steel, aluminium
- CNC flame/plasma cutting system SATO (2,000 x 8,000 mm, up to 100 mm)
- Plasma cutting system Kjellberg HiFocus 160i (1–25 mm)
- Sheet metal guillotine shear ATLANTIC (13 mm up to 3,000 mm width)
- Hydraulic press brake ATLANTIC (3,600 mm, 230 t)
- Four-roll round bending machine DAVI MCB 3028
- Three-roll profile rolling machine STÖLTING
- Gas-shielded welding equipment ESAB/Lorch/Oerlikon 250–600 A
- TIG welding unit ESAB WTB250
- CNC boring mill DEFUM (Heidenhain 426, 1,800 x 1,500 x 1,000 mm)
- Boring mill COLLET-ENGELHARD BFf 85
- Bed-type milling machine IMATEC OROPESA
- Radial drilling machines MAS and CSEPEL
- Sandblasting booth GLAESSNER
- Airless paint spraying system WAGNER
Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| CNC flame/plasma cutting (oxy-fuel and plasma torches)Cutting/Severing | – | 8,000 mm × 2,000 mm | – | – | Steel, Aluminium |
| Plasma cutting HiFocus Kjellberg 160iCutting/Severing | – | – | – | – | Steel |
| Guillotine sheet shearingCutting/Severing | – | 3,000 mm | – | – | Steel (sheets up to 13 mm), Aluminium |
| Bending (hydraulic press brake)Forming | – | 3,600 mm | – | – | Steel, Aluminium |
| Four-roll round bendingForming | – | 3,000 mm | – | – | Steel (up to 10 mm sheet thickness), Aluminium |
| Three-roll profile rolling (angle profiles and tubes up to 70 mm)Forming | – | – | – | – | Steel, Aluminium |
| Gas-shielded weldingJoining | – | – | – | – | Steel, Aluminium |
| Arc welding with welding transformerJoining | – | – | – | – | Steel |
| TIG welding (for thin steel and aluminium sheets)Joining | – | – | – | – | Steel, Aluminium |
| Radial drillingMachining | – | – | – | – | Steel, Aluminium |
| CNC boring mills (drilling/milling, Heidenhain control)Machining | – | 1,800 mm × 1,500 mm × 1,000 mm | – | – | Steel, Aluminium |
| Boring mills (digital)Machining | – | 1,350 mm × 1,000 mm × 1,000 mm | – | – | Steel, Aluminium |
| Bed-type milling (digital)Machining | – | 1,700 mm × 650 mm × 750 mm | – | – | Steel, Aluminium |
| Various turning and milling workMachining | – | – | – | – | Steel, Aluminium |
| SandblastingSurface | – | 1,200 mm × 1,000 mm × 800 mm | – | – | Steel |
| Airless painting/spray paintingSurface | – | – | – | – | Steel, Aluminium |
| Design, manufacturing and assembly of steel structures, plants and machines (steel construction,Assembly | – | – | – | – | Steel |
17 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| CNC flame/plasma cutting system (oxy-fuel and plasma torches) | SATO | 1 | 2,000 x 8,000 mm, up to 100 mm sheet thickness | 2004 | Schwalbach |
| Plasma cutting system HiFocus | Kjellberg 160i | 1 | 1-25 mm | – | Schwalbach |
| Guillotine sheet shear | ATLANTIC | 1 | Sheets 13 mm thick up to 3,000 mm width | – | Schwalbach |
| Hydraulic press brake | ATLANTIC | 1 | Bending length 3,600 mm, pressing force 230 t | 1998 | Schwalbach |
| Four-roll round bending machine | DAVI MCB 3028 | 1 | at 10 mm sheet thickness, 3,000 mm roll length | – | Schwalbach |
| Three-roll profile rolling machine | STÖLTING | 1 | Angle profiles and tubes up to 70 mm | – | Schwalbach |
| Gas-shielded welding equipment 250A–600A | ESAB, Lorch, Oerlikon | – | – | – | Schwalbach |
| Welding transformers 130A–400A | ESAB, Messer | 15 | – | – | Schwalbach |
| TIG welding unit | ESAB WTB250 | 1 | – | – | Schwalbach |
| Radial drilling machine | MAS | 1 | Reach 1,600 mm, 60 mm diameter drilling into solid material | 1998 | Schwalbach |
| Radial drilling machine | CSEPEL | 1 | Reach 1,800 mm, 60 mm diameter drilling into solid material | – | Schwalbach |
| Sandblasting booth | GLAESSNER | 1 | Welded assemblies up to 800 x 1000 x 1200 mm | – | Schwalbach |
| Airless paint spraying system | WAGNER | 1 | – | – | Schwalbach |
| Truck | DAIMLER-BENZ ATECO 817 | 1 | Payload 4.0 t | – | Schwalbach |
| CNC boring mill (Heidenhain 426) | DEFUM | 1 | x=1800, y=1500, z=1000 mm | 2001 | Schwalbach |
| Boring mill (digital) | COLLET-ENGELHARD BFf 85 | 1 | x=1000, y=1000, z=1350 mm | – | Schwalbach |
| Bed-type milling machine (digital) | IMATEC OROPESA | 1 | x=1700, y=650, z=750 mm | – | Schwalbach |
Additional services
Quality
Around 30 qualified employees, including certified welders, staff with CNC expertise and further specialist competence, work according to high quality standards that shape the entire value creation process.
| Evidence | Schwalbach |
|---|---|
| Welders with certification |
History
- 1976

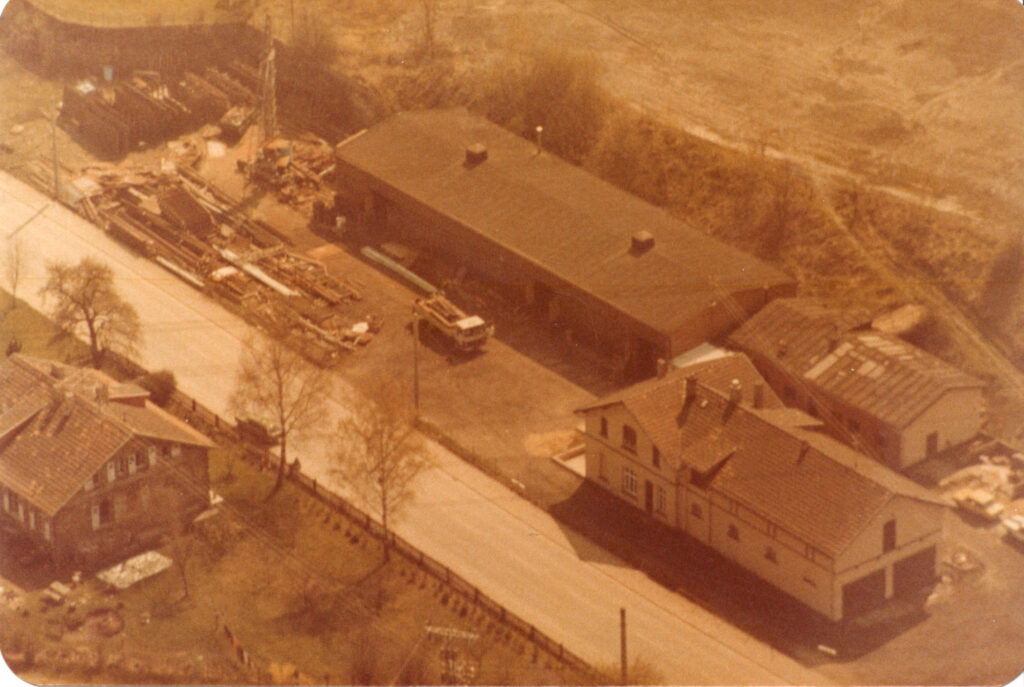

Founded on 01.07.1976 by Raimund Feld and Josef Raubuch; company initially located on rented premises of Saarberg (former bus depot).
- 1976
Registered on 16.08.1976 (North Data).
- 1979
Purchase of the company premises; later expansion to include further production halls, a paint shop, machine shop and office building.
- 2003
Stephan Feld and Christian Raubuch registered as managing directors (05.11.2003).
- 2012
Renamed FERA Stahl- und Maschinenbau GmbH (14.05.2012); share capital €35,000.
