Toolmaking, CNC manufacturing and prototypes in Schlettau – from the 3D model to the production-ready tool.
FormCAD GmbH
09487 SchlettauNew on Amplifa
About FormCAD
FormCAD GmbH is a toolmaking and CNC manufacturing company based in Schlettau in the Erzgebirge region of Saxony. Since 1996, the company has combined design expertise with high-tech manufacturing, delivering complete solutions from the initial 3D model to the finished production tool. Its range of services covers toolmaking from concept to finished tool set, prototype manufacturing via 3D printing, HSC milling and specialized prototype tools, as well as CNC services for complex 3D shapes in hardened steel and plastics, in particular active components for forming, injection moulding and die casting tools. In addition, wire EDM machining of almost all conductive materials, small-series production on a 320t press, and design, manufacturing preparation and NC programming are offered. An in-house try-out center and precision metrology ensure the quality of the results. Customers come from industries such as the automotive industry, forming technology, injection moulding and die casting.
- Site
- Schlettau
- Processes
- Toolmaking (concept to finished tool set, try-out center), Prototype manufacturing (design models, functional prototypes based on CAD data), 3D printing, HSC milling, CNC manufacturing (complex 3D shapes, active components for forming, injection moulding and die, Wire EDM, Small-series production on 320t press, Design / 3D modelling / manufacturing preparation / NC programming
- Materials
- hardened steel, Plastic, conductive materials, high-strength materials, Aluminium nitride (thin film for force sensor), Hardened steel, Conductive materials, Aluminium nitride (thin film)
- Certificates
- Try-out center, Precision metrology, ISO 9001
- Founded
- 1996
- Industries
- Automotive industry, Tool and mould making, Forming technology, Injection moulding, Die casting
- 01
Design / 3D modelling
- 02
Manufacturing preparation / NC programming
- 03
CNC manufacturing (milling, wire EDM, 3D printing)
- 04
Try-out
- 05
Precision metrology / quality assurance
Materials & Processes
Hardened steel
Used for active components of forming, injection moulding and die casting tools as well as complex 3D shapes in CNC manufacturing.
Plastic
Machining in CNC and prototype manufacturing, including design models and functional prototypes.
Conductive materials
Machining by wire EDM, from individual parts to series production.
Aluminium nitride (thin film)
Thin-film material for the space-saving segmented force sensor for process monitoring in the Senor funded project.
Locations

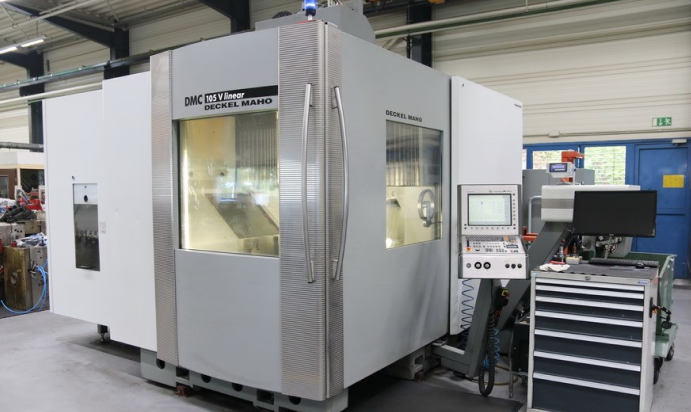

Schlettau
DEHeadquarters / Manufacturing (toolmaking, CNC manufacturing, try-out center)
- Lot size
- Individual parts to small series
- Materials
- Hardened steel, plastic, conductive materials
- 5-axis machining center
- HSC milling machine
- Wire EDM machine
- 3D printer
- 320t press
- CAD/CAM systems
- Precision metrology
Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Toolmaking (concept to finished tool set, try-out center)Engineering | – | – | – | – | – |
| Prototype manufacturing (design models, functional prototypes based on CAD data)Engineering | – | – | – | – | – |
| 3D printingAdditive | – | – | – | – | – |
| HSC millingMachining | – | – | – | – | Steel (hardened), Plastic |
| CNC manufacturing (complex 3D shapes, active components for forming, injection moulding and dieMachining | – | – | – | – | hardened steel, Plastic |
| Wire EDMMachining | – | – | – | Individual parts – Series | conductive materials |
| Small-series production on 320t pressForming | – | – | – | Small series | high-strength materials |
| Design / 3D modelling / manufacturing preparation / NC programmingEngineering | – | – | – | – | – |
| Precision metrology (quality assurance)Testing | – | – | – | – | – |
5 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| 5-axis machining center | – | – | – | – | Schlettau |
| Press | – | 1 | – | – | Schlettau |
| Wire EDM machine | – | – | – | – | Schlettau |
| 3D printer | – | – | – | – | Schlettau |
| HSC milling machine | – | – | – | – | Schlettau |
Additional services
Quality
Quality assurance is carried out through an in-house try-out center as well as precision metrology for documented accuracy.
| Evidence | Schlettau |
|---|---|
| Try-out center | |
| Precision metrology | |
| ISO 9001 |
History
- 1996
Company founded in Schlettau; over 28 years of experience in toolmaking.
- 2023
EU/Saxony-funded project "Space-saving force sensor for process monitoring (Senor)" under EMAF 2021–2027, FRL AuF/2023 (Free State of Saxony): development of a segmented thin-film force sensor based on aluminium nitride with evaluation using machine learning.
