Design and manufacture of injection molds for plastic parts up to 5 t mold weight – planning, production, prototyping and maintenance from a single source.
Formenbau Wollscheid GmbH
Nonnweiler, GermanyNew on Amplifa
About Formenbau Wollscheid
Formenbau Wollscheid GmbH was founded in 1982 in Neunkirchen/Saar and is now based in Nonnweiler in the Saarland. The company designs and manufactures custom injection molds for plastic parts, including 2-component injection molding, sample and pilot molds, and initial production runs through to series maturity. The range of services includes planning and development in collaboration with the customer, CAD design (Creo Parametric 7.0, Creo Direct), fill simulation with Moldex3D for optimizing part design and the injection molding process, as well as mold trials of injection molding tools up to 350 t clamping force. Manufacturing covers mold sizes up to max. 700 x 1200 mm with a mold weight of up to 5 t and is carried out on modern milling, turning, grinding and EDM machines. In addition, the company offers maintenance, repair and modification of injection molding tools – including third-party tools – as well as on-site customer service with replacement and modification services. With 50 employees, Formenbau Wollscheid serves customers across industries including medical technology, automotive, hydraulics, pneumatics, electronics, building services, aerospace and storage technology.
- Site
- Nonnweiler
- Processes
- Design of injection molds / fill simulation (Moldex3D), Manufacture of custom injection molds, 2-component injection molding (mold making), Mold trials of injection molding tools, Prototyping: sample molds and pilot molds, Initial production runs – manufacture of the mold and further development through to series maturity, Milling (HSC machining), Turning (CNC)
- Materials
- Plastics (injection molds for plastic parts), Tool steel (injection molds, implied), Plastics, Tool steel, Creo Parametric 7.0 / Creo Direct, Fill simulation
- Certificates
- DIN EN ISO 9001:2015
- Founded
- 1982
- Employees
- 50
- Industries
- Medical technology, Automotive, Hydraulics, Pneumatics, Electronics, Building services
- 01
Planning and development with the customer
- 02
Design (CAD, fill simulation with Moldex3D)
- 03
Mold manufacturing (milling, turning, EDM, grinding)
- 04
Prototyping (sample and pilot molds)
- 05
Mold trials up to 350 t clamping force
- 06
Maintenance, repair and modification service
Materials and Processes
Plastics
Injection molds for plastic parts, including 2-component applications.
Tool steel
Material of the manufactured injection molds, machined by milling, EDM and grinding.
Creo Parametric 7.0 / Creo Direct
CAD systems for designing injection molds according to customer specifications.
Fill simulation
Optimization of the injection molding process, part design and mold.
Locations
Nonnweiler
DEHeadquarters with mold making, mold trials and metrology
- Part weight / size
- Mold size max. 700 × 1200 mm, up to 5 t mold weight
- Lot size
- Sample molds through initial production runs
- Materials
- Tool steel, plastics
- Hermle C400 iTNC 530
- Hermle C 650U (5-axis)
- High Speed Eagle V9 / V5 (HSC)
- Deckel Maho DMC 650V
- Sodick SPW 600 / G+F CUT E600 (wire EDM)
- Eagle 800 / G5 Precision (die sinking EDM)
- Grinding machines Stichel, Asyst, ZT
- CNC lathes Spinner, Deckel CTX Alpha 500
- Engel Victory 350 / Victory 50, Demag Ergotech Multi 125, Fanuc ROBOSHOT α-S250iB (mold trials)
- Mitutoyo Crysta-Plus M 544 / QUICK-VISION Actiy L202Z1L (metrology)
- LRS 100 EVO 160 (laser marking)
- LRS 100 (laser welding)
Molds and Parts
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Design of injection molds / fill simulation (Moldex3D)Engineering | – | – | – | – | Plastics |
| Manufacture of custom injection moldsToolmaking | – | 1200 mm × 700 mm | 5 t (mold weight) | – | Plastics, Steel |
| 2-component injection molding (mold making)Plastics | – | – | – | – | Plastics |
| Mold trials of injection molding toolsPlastics | – | – | up to 350 t clamping force | – | Plastics |
| Prototyping: sample molds and pilot moldsPlastics | – | – | – | – | Plastics |
| Initial production runs – manufacture of the mold and further development through to series maturityPlastics | – | – | – | – | Plastics |
| Milling (HSC machining)Machining | – | – | – | – | Steel, Aluminium, Copper, Cast |
| Turning (CNC)Machining | – | – | – | – | Steel, Aluminium, Copper |
| Die sinking EDMMachining | – | – | – | – | Steel |
| Wire EDMMachining | – | – | – | – | Steel |
| GrindingMachining | – | – | – | – | Steel |
| Laser weldingJoining | – | – | – | – | – |
| Laser markingSurface | – | – | – | – | – |
| 3D measurement / optical metrologyTesting | – | – | – | – | – |
| Maintenance, repair and modification of injection molding tools (including third-party tools)Toolmaking | – | – | – | – | – |
30 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Milling machine / machining center | Hermle C400 iTNC 530 | 1 | – | – | Nonnweiler |

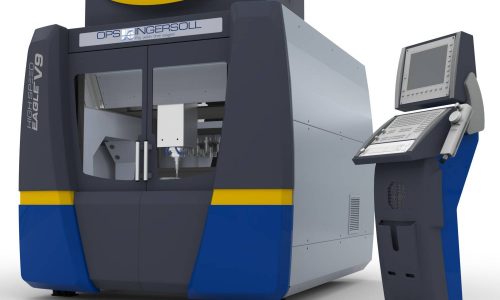

| HSC milling machine | High Speed Eagle V9 (670019) | 1 | – | – | Nonnweiler |

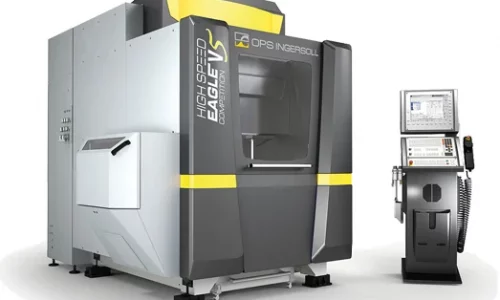

| HSC milling machine | High Speed Eagle V5 (655402) | 1 | – | – | Nonnweiler |
| Milling machine | Deckel Maho DMC 650V | 1 | – | – | Nonnweiler |

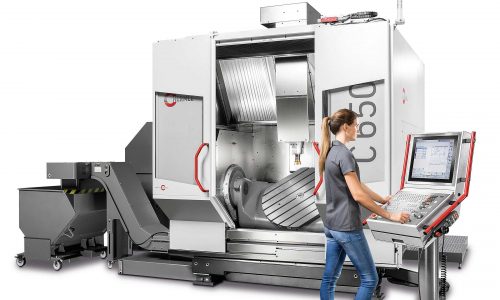

| 5-axis machining center | Hermle C 650U | 1 | – | – | Nonnweiler |
| 3D coordinate measuring machine | Mitutoyo Crysta-Plus M 544 | 1 | – | – | Nonnweiler |
| Vision measuring machine | Mitutoyo QUICK-VISION Actiy L202Z1L | 1 | – | – | Nonnweiler |
| Projection measuring device | Mitutoyo PJ 300 | 1 | – | – | Nonnweiler |
| Projector / measuring device | Vision PJ 300 | 1 | – | – | Nonnweiler |
| Measuring microscope / measuring device | Novex RZ 65.550 | 1 | – | – | Nonnweiler |
| Measuring device | Novex RZ D12093249 | 1 | – | – | Nonnweiler |
| Injection molding machine | Engel Victory 350 VC 1060H/200V/350 | 1 | – | – | Nonnweiler |
| Injection molding machine | Demag Ergotech Multi 125 | 1 | – | – | Nonnweiler |

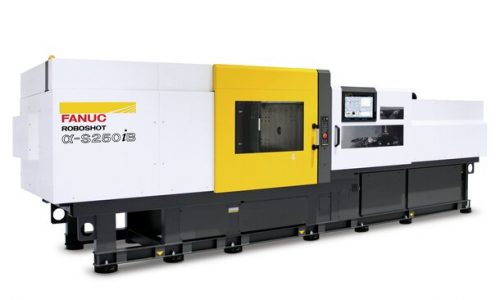

| Injection molding machine | Fanuc ROBOSHOT α-S250iB | 1 | – | – | Nonnweiler |
| Injection molding machine | Engel Victory 50 | 1 | – | – | Nonnweiler |
| Grinding machine | Stichel SOE 86-6144 | 1 | – | – | Nonnweiler |
| Grinding machine | ZT 510 (0601095) | 1 | – | – | Nonnweiler |
| Grinding machine | Asyst A630 | 1 | – | – | Nonnweiler |
| Grinding machine | ZT 612 (0601081) | 1 | – | – | Nonnweiler |
| Die sinking EDM machine | Eagle 800 (575410) | 1 | – | – | Nonnweiler |
| Wire EDM machine | Sodick SPW 600 (T0635) | 1 | – | – | Nonnweiler |
| EDM machine | River 600HP1 | 1 | – | – | Nonnweiler |
| Die sinking EDM machine | Eagle G5 Precision | 1 | – | – | Nonnweiler |
| Wire EDM machine | G+F Agie Charmilles CUT E600 | 1 | – | – | Nonnweiler |
| CNC lathe | Spinner (0091198) | 1 | – | – | Nonnweiler |
| CNC lathe | Deckel CTX Alpha 500 | 1 | – | – | Nonnweiler |
| Lathe | Jessey Prince PR1330A | 1 | – | – | Nonnweiler |
| CNC lathe | Spinner AD2937 | 1 | – | – | Nonnweiler |
| Laser marking machine | LRS 100 EVO 160 | 1 | – | – | Nonnweiler |
| Laser welding machine | LRS 100 | 1 | – | – | Nonnweiler |
Additional services
Quality
Quality inspection is performed on 3D coordinate measuring machines (Mitutoyo Crysta-Plus M 544), vision and projection measuring devices (Mitutoyo QUICK-VISION Actiy, PJ 300) and measuring microscopes (Novex). The quality management system is certified to DIN EN ISO 9001:2015.
| Evidence | Nonnweiler |
|---|---|
| DIN EN ISO 9001:2015 |
History
- 1982
Foundation of Formenbau Wollscheid in Neunkirchen/Saar
- 2005
Peter Maas takes over the company, initially with a partner
- 2015
Peter Maas becomes sole owner of Formenbau Wollscheid GmbH
