Contract machining of machine parts: CNC turning, milling and drilling up to 4 m length and 10 t piece weight.
Geukes GmbH
BocholtNew on Amplifa
About Geukes GmbH
Geukes GmbH from Bocholt is a contract manufacturer of machine parts and assembled component groups. The company executes orders according to customer drawings in CNC turning, milling and drilling as well as in the welding sector (MIG/MAG/TIG). Production is designed for small series of 5 to 50 pieces; in the machining of welded constructions, one-off parts are also frequently produced, which are assembled, welded, stress-relief annealed in the metalworking shop and subsequently machined on the CNC machines. The plant capacity extends to component lengths of 4 m and piece weights of 10 t; the machine portfolio includes lathes, large boring and milling machines with working areas up to 4,000 mm as well as 5-axis machining centers. GEUKES is integrated as a solution provider into customers' internal supply chain structures and also secures the raw material supply there. Manufacturing is carried out for machine builders, gearbox manufacturers, rolling mills, forging technology (forge manipulators) and manufacturers of coffee roasting systems. The company is located in Bocholt (North Rhine-Westphalia).
- Site
- Bocholt
- Processes
- CNC turning, CNC milling, Drilling, Welding (MIG, MAG, TIG, manual welding), Metalworking / assembly of welded constructions, Stress-relief annealing, Assembly of component groups / pre-assembled assemblies, CNC machining (turning, milling, drilling)
- Materials
- Steel
- Certificates
- ISO 9001
- Founded
- 1928
- Industries
- Mechanical engineering, Gearbox manufacturers, Rolling mills, Forging technology, Coffee roasting systems, Forging technology (forge manipulators)
- 01
Order planning (ERP, CAD-CAM)
- 02
Raw material supply
- 03
Metalworking shop / welded constructions
- 04
Stress-relief annealing
- 05
CNC turning
- 06
CNC milling / boring
- 07
Assembly of component groups
Materials and Processes
Steel
Material for welded constructions and machined machine parts; also machining of steel components for forge manipulators.
Locations

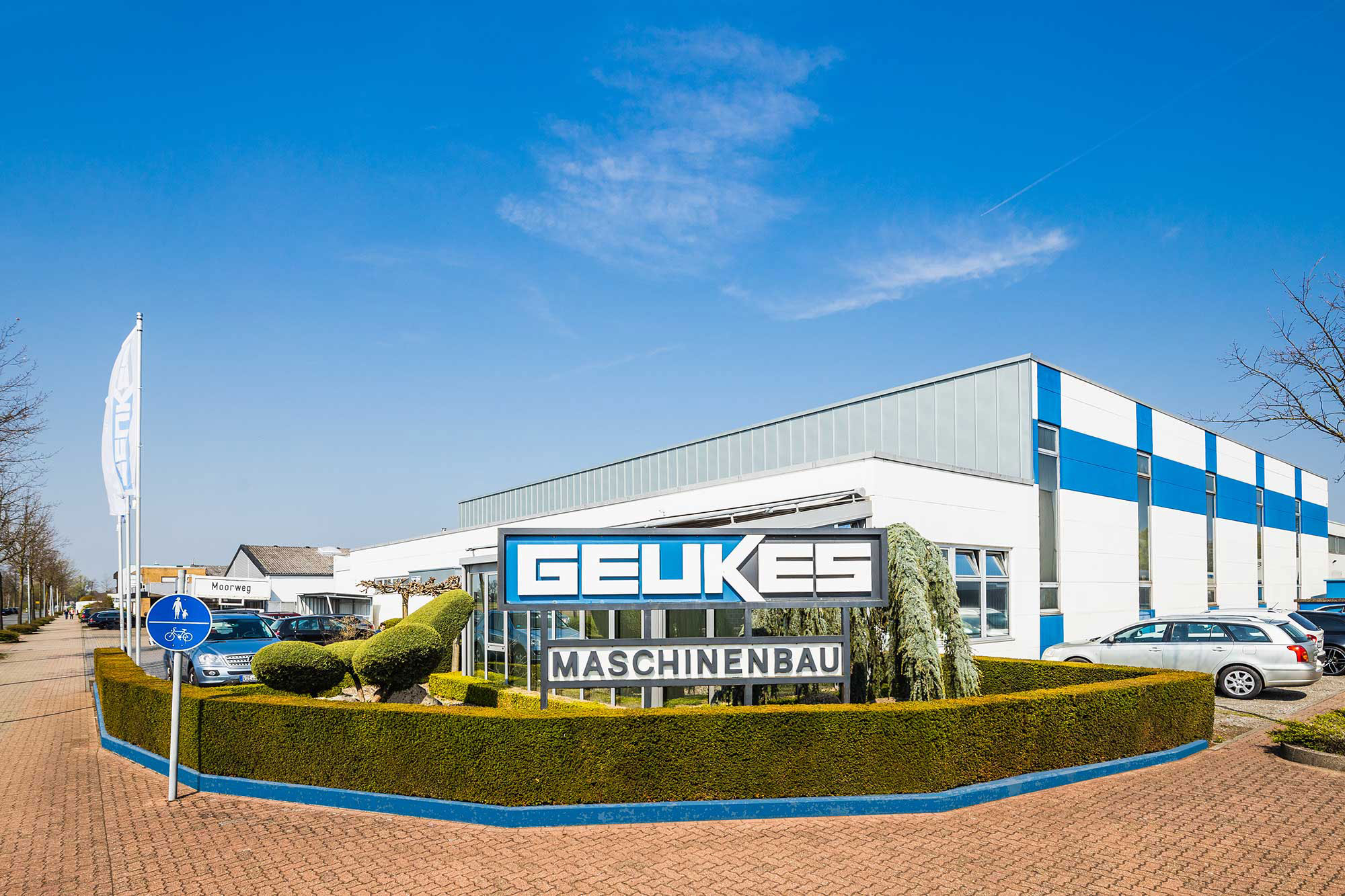

Bocholt
DEProduction and administration
- Part weight / size
- up to 10 t
- Lot size
- Single pieces up to series of 50 pieces
- Materials
- Steel
- Boehringer DUS 1110 ti (turning diameter ø 1110 mm, turning length 3000 mm)
- Boehringer VDF 400 / VDF 315 (conventional lathes)
- Hyundai WIA L 700 MA CNC lathe (ø 800 mm)
- EMAG VLC 500 vertical single-spindle turning center
- Union KC 130/1 boring mill (X 4000 / Y 2500 / Z 1500 mm, 4 axes)
- Sachman T 314 / TRT 314 milling machines (up to 3500 mm, angular head)
- Deckel-Maho DMU 65 / DMU 100 P 5-axis machining centers
- Toyoda FV 1680-50 3-axis milling machine
- Manual welding systems MIG/MAG/TIG
Parts
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| CNC turningMachining | – | 3000 mm × Turning diameter up to ø 1110 mm | 10 t | – | – |
| CNC millingMachining | – | 4000 mm × 2500 mm × 1500 mm | 10 t | 1 – 50 | – |
| DrillingMachining | – | – | – | – | – |
| Welding (MIG, MAG, TIG, manual welding)Joining | – | – | – | – | Steel |
| Metalworking / assembly of welded constructionsAssembly | – | – | – | 1 | – |
| Stress-relief annealingHeat treatment | – | – | – | – | – |
| Assembly of component groups / pre-assembled assembliesAssembly | – | – | – | 1 – 50 | – |
13 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Lathe over bed | Boehringer DUS 1110 ti | 1 | ø 1110 mm, face slide ø 810 mm, turning length 3000 mm | – | Bocholt |
| Conventional lathe | Boehringer VDF 400 | 1 | Turning diameter ø 500 mm, turning length 2000 mm | – | Bocholt |
| Conventional lathe | Boehringer VDF 315 | 1 | Turning diameter ø 350 mm, turning length 2000 mm | – | Bocholt |
| CNC lathe | Hyundai WIA L 700 MA | 1 | Turning diameter ø 800 mm, turning length 1600 mm | – | Bocholt |
| Conventional lathe | – | – | Turning diameter ø 500 mm, turning length 2000 mm | – | Bocholt |
| Vertical single-spindle turning center | EMAG VLC 500 | 1 | – | – | Bocholt |
| Boring mill | Union KC 130/1 | 1 | X = 4000 mm, Y = 2500 mm, Z = 1500 mm; 4 axes, rotary table 2500 mm x 1600 mm | – | Bocholt |
| Milling machine | Sachman T 314 | 1 | X = 3000 mm, Y = 1400 mm, Z = 1500 mm; 3 axes with angular head | – | Bocholt |
| Milling machine | Sachman TRT 314 | 1 | X = 3500 mm, Y = 1400 mm, Z = 1500 mm; 4 axes with angular head, rotary table 2000 mm x 1600 mm | – | Bocholt |
| 5-axis machining center | Deckel-Maho DMU 65 | 1 | X = 735 mm, Y = 650 mm, Z = 560 mm | – | Bocholt |
| 5-axis machining center | Deckel-Maho DMU 100 P | 1 | X = 1000 mm, Y = 1000 mm, Z = 1000 mm | – | Bocholt |
| 3-axis milling machine | Toyoda FV 1680 - 50 | 1 | X = 1600 mm, Y = 800 mm, Z = 800 mm | – | Bocholt |
| Welding system (manual welding MIG/MAG/TIG) | – | – | – | – | Bocholt |
Additional services
Quality
Geukes GmbH is certified according to ISO 9001. Production is carried out according to customer drawings and specifications with CAD-CAM programming and a tool management system.
| Evidence | Bocholt |
|---|---|
| ISO 9001 |
History
- 1928
Foundation of a mechanical engineering company by Alfons Geukes.
- 1996
Thomas Terodde took over the company from Josef Geukes after 68 years of family ownership.
- 2019
Dr.-Ing. Gereon Schäfer became the new owner and drives forward digitalization (ERP, order planning, CAD-CAM, tool management) and lean organization.
