Contract manufacturing of sheet metal parts and enclosures: laser cutting, punching, bending, welding, powder coating and assembly.
H-S Feinblechbau GmbH
StadtrodaNew on Amplifa
About us
H-S Feinblechbau GmbH was founded in 1991 and is a family-run company headquartered in Stadtroda, Thuringia. As a flexible contract manufacturer, the company is a Europe-wide supplier for sheet metal working and enclosure construction. The cross-process production covers sheet metal processing with laser cutting, punching and CNC bending, welding (MIG, MAG, TIG, spot welding, stud welding, projection welding, soft and hard soldering), powder coating including pre-treatment, degreasing and iron phosphating, as well as pre-assembly and logistics management. Materials processed include steel, stainless steel and aluminium, with bending lengths up to 3000 mm and punching forces up to 200 kN. A key focus is the manufacture of enclosures, among other things for the electrical industry and mechanical engineering. Further customers come from the solar industry, medical technology, air conditioning technology and the construction sector. In addition to series production, the company also offers one-off custom production as well as just-in-time assembly, packaging and delivery with its own vehicle fleet.
- Site
- Stadtroda
- Processes
- Laser cutting, Punching / Punching-nibbling, Bending (CNC bending), MIG welding process, MAG welding process, TIG welding process, Spot welding process, Stud welding process
- Materials
- Steel, Stainless steel, Aluminium, Laser cutting, Punching / Nibbling, CNC bending, Welding & Soldering, Powder coating
- Founded
- 1991
- Industries
- Electrical industry, Mechanical engineering, Solar industry, Medical technology, Air conditioning technology, Construction sector
- 01
Laser cutting
- 02
Punching/nibbling
- 03
Bending
- 04
Welding/soldering
- 05
Powder coating (pre-treatment, degreasing, iron phosphating)
- 06
Assembly/riveting
- 07
Packaging & delivery
Materials & Processes
Steel
Used for laser cutting, punching, bending as well as welding with MIG, MAG, TIG, spot welding, stud welding and projection welding processes.
Stainless steel
Used for laser cutting, punching, bending as well as welding with MIG, MAG, TIG, spot welding, stud welding and projection welding processes.
Aluminium
Used for laser cutting, punching, bending as well as welding with MIG, MAG, TIG, spot welding, stud welding and projection welding processes.

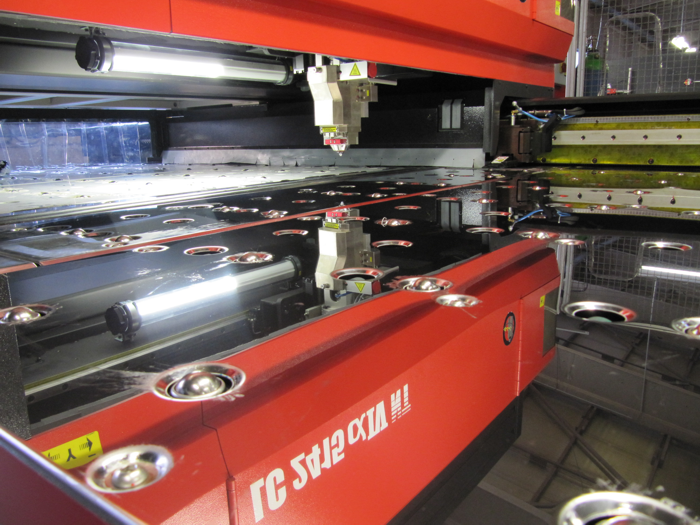

Laser cutting
Two laser cutting systems for arbitrary contours, working areas 3000 x 1500 mm (2 kW) and 1250 x 1250 mm (1 kW).

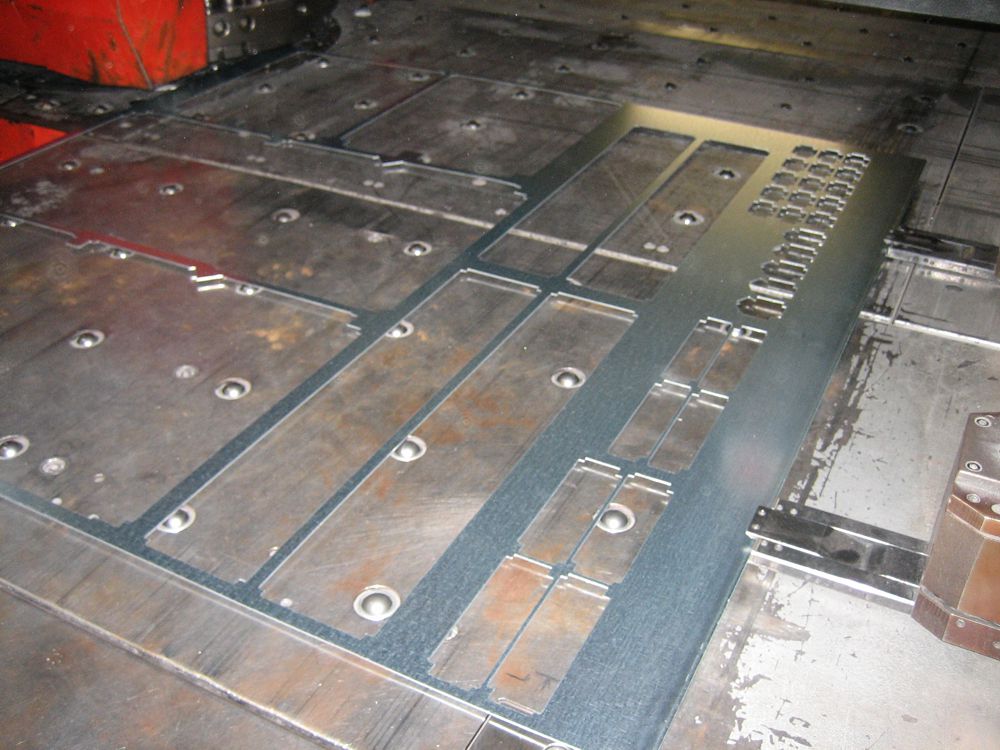

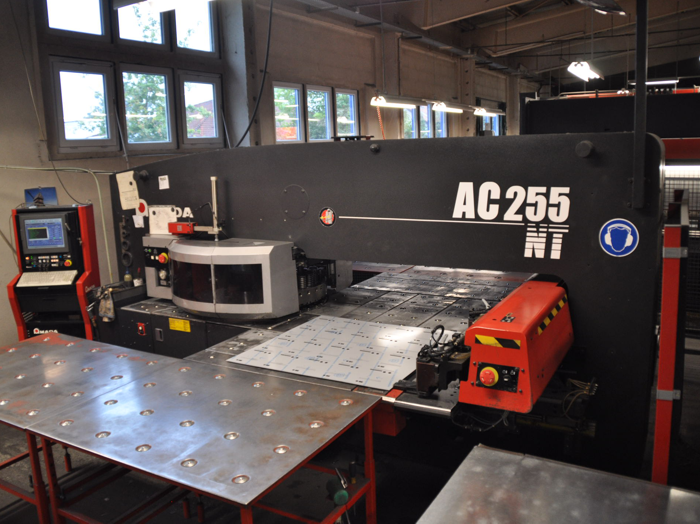

Punching / Nibbling
Punching and nibbling machine with a working area of 3000 x 1500 mm and 200 kN punching force for blanks and custom punching, embossing and special tools.

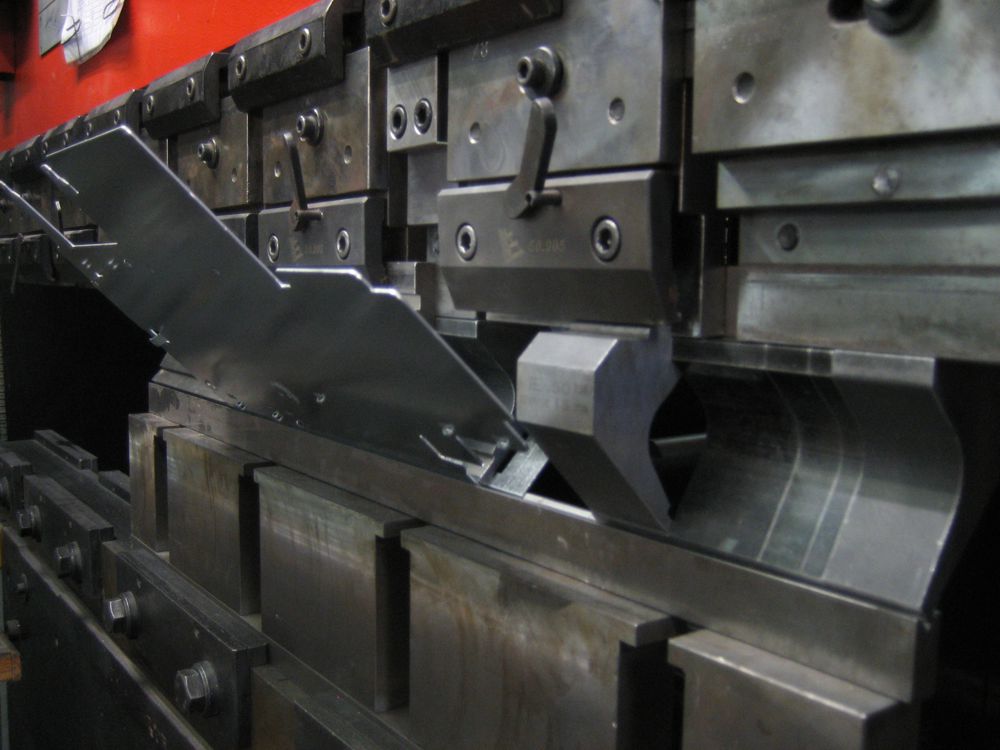

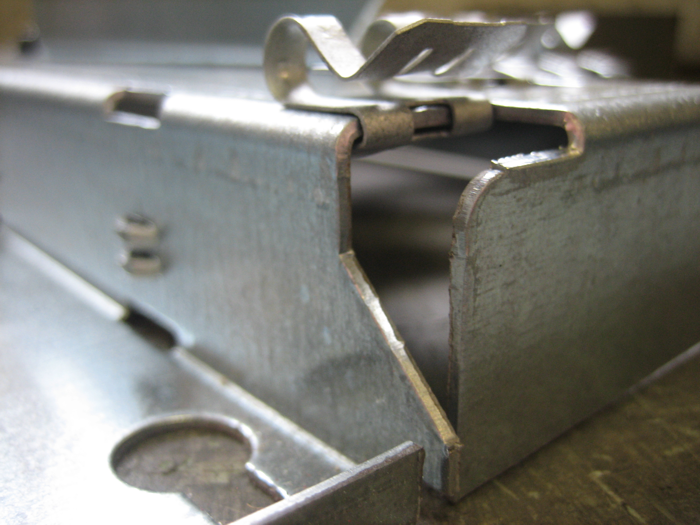

CNC bending
Press brakes up to 3000 mm bending length and 100 t pressing force with digital angle measurement for precise bending tasks.
Welding & Soldering
MIG, MAG, TIG, spot welding, stud welding, projection welding as well as soft and hard soldering for individual parts and complete assemblies.
Powder coating
Takt line with pre-treatment, degreasing and iron phosphating; rapid colour changes enable small series with individual colours.

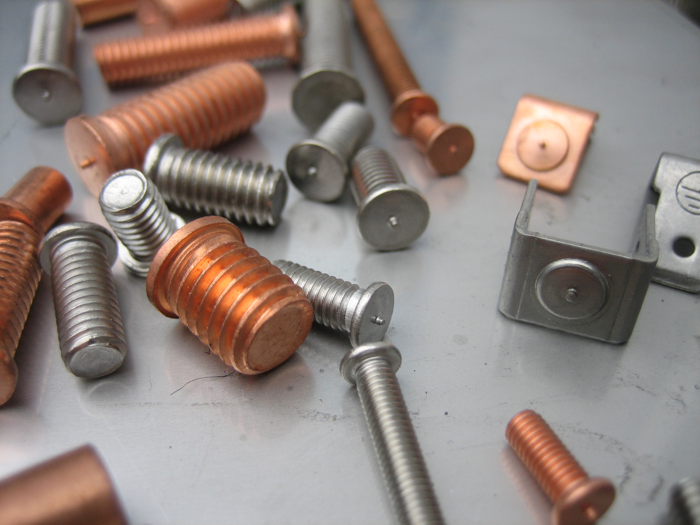

Assembly

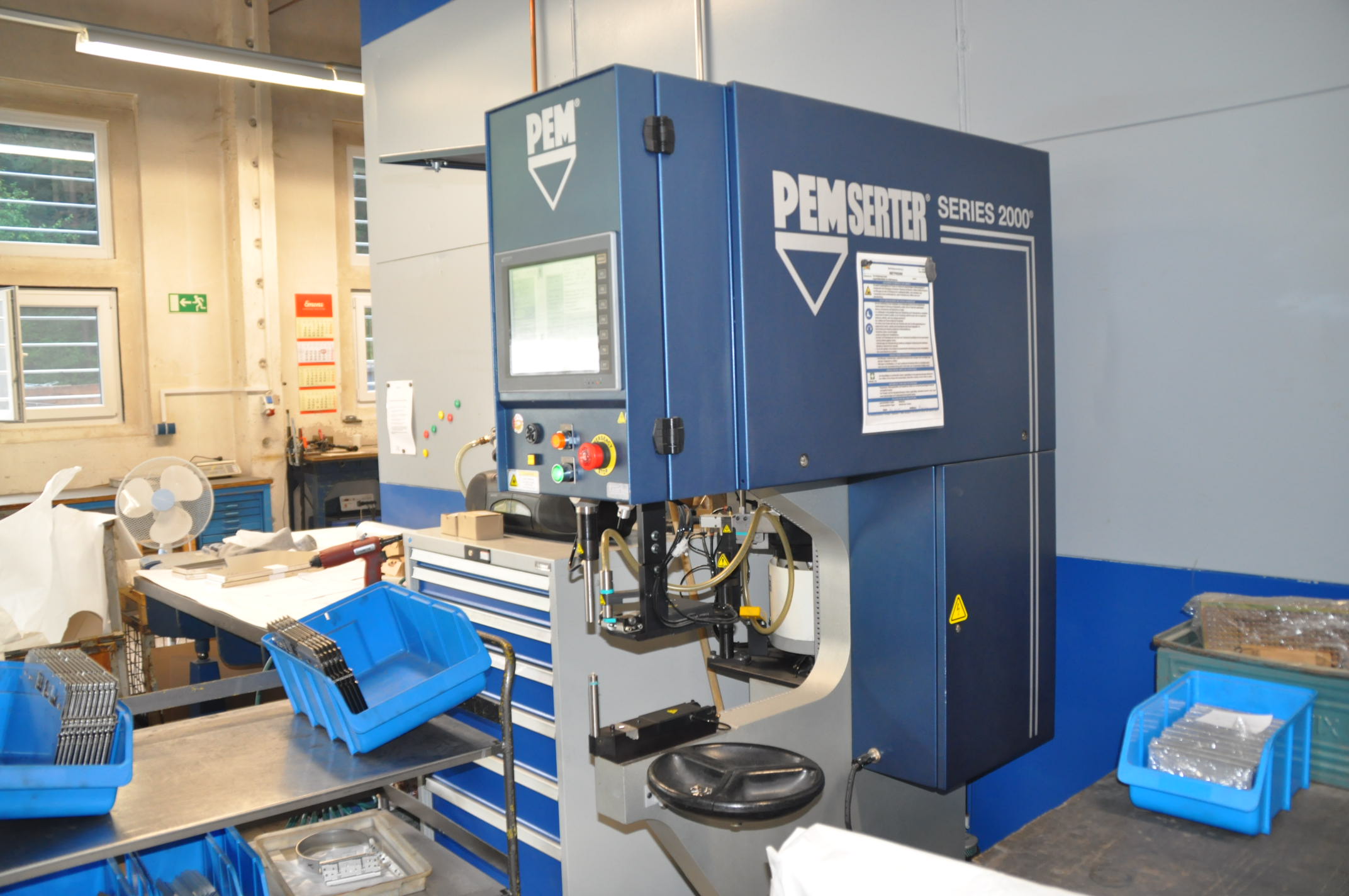

Press-fitting of standard parts and fasteners, riveting and assembly of complete assemblies.
Locations
Stadtroda
DEProduction and administration
- Materials
- Steel, stainless steel, aluminium
- 2 press brakes 3000 mm, 100 t

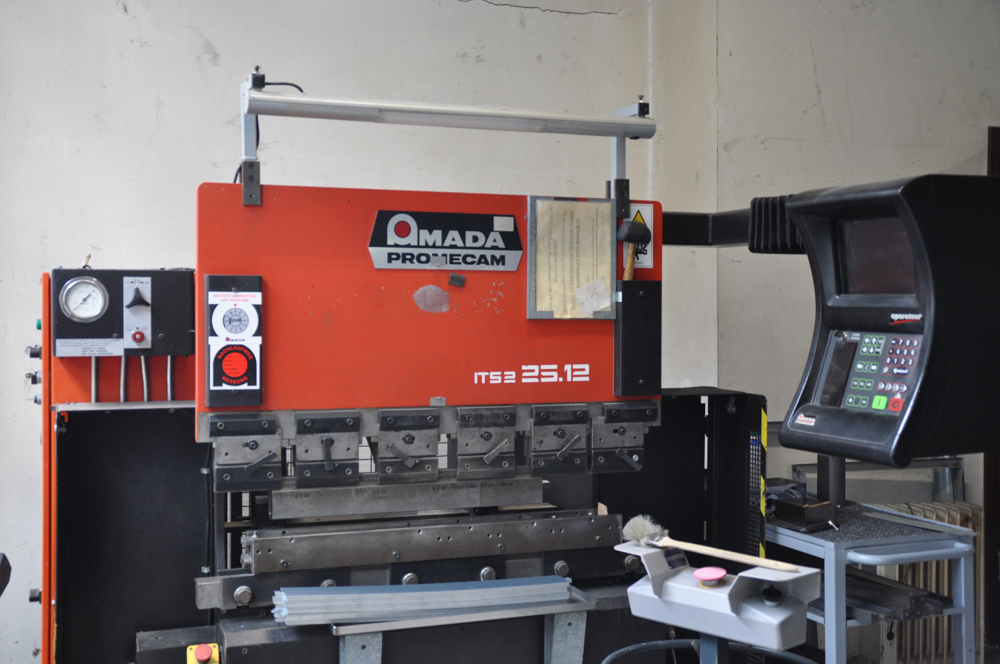

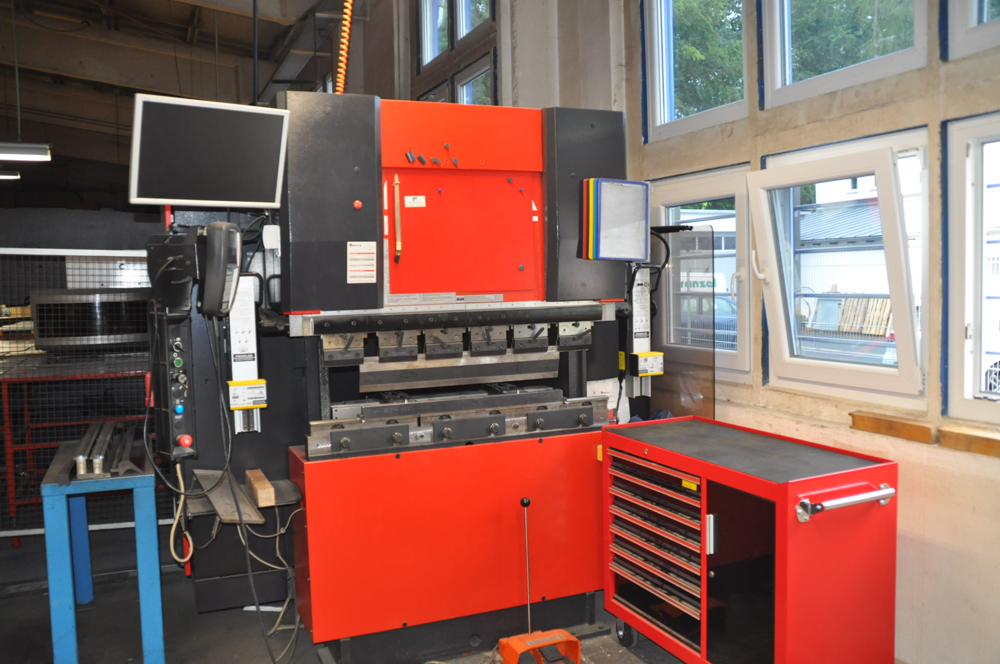

- Amada press brake 1250 mm, 25 t
- Press brake 1250 mm, 25 t
- Punching and nibbling machine 3000 x 1500 mm, 200 kN

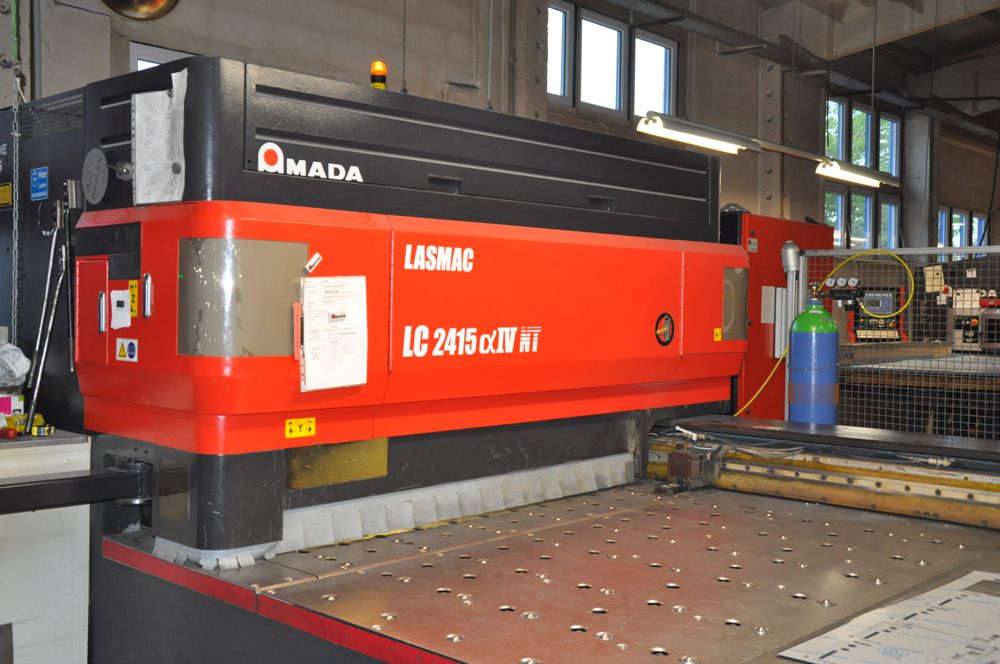

- Laser cutting system 1250 x 1250 mm, 1 kW

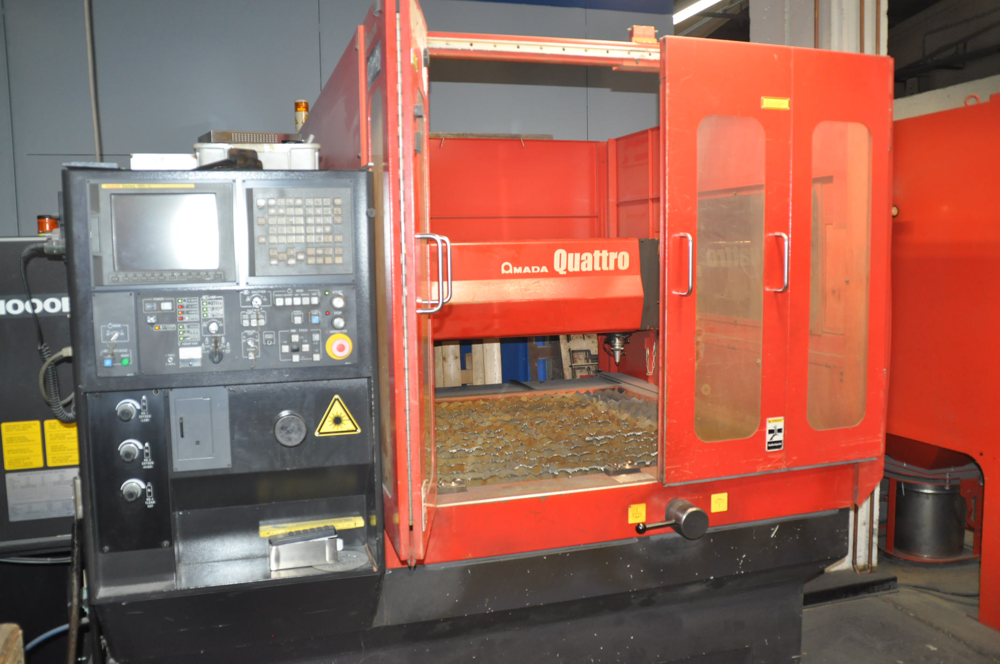

- Laser cutting system 3000 x 1500 mm, 2 kW

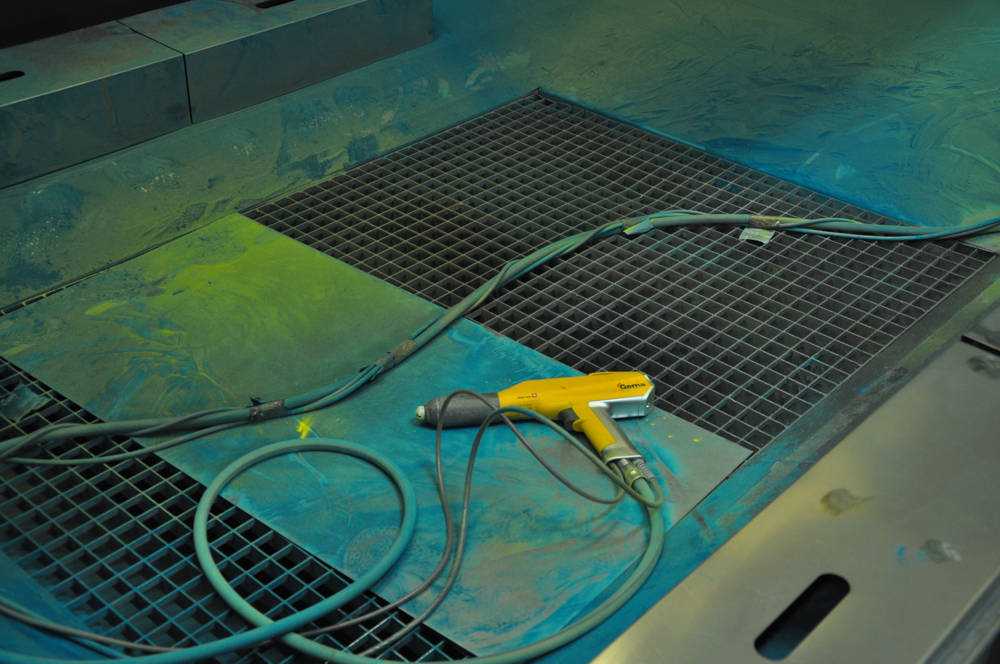

- Powder coating takt line
Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Laser cuttingMachining | – | 3000 mm × 1500 mm | – | – | Steel, Stainless steel, Aluminium |
| Punching / Punching-nibblingForming | – | 3000 mm × 1500 mm | – | – | Steel, Stainless steel, Aluminium |
| Bending (CNC bending)Forming | – | 3000 mm | – | – | Steel, Stainless steel, Aluminium |
| MIG welding processJoining | – | – | – | – | Aluminium, Steel, Stainless steel |
| MAG welding processJoining | – | – | – | – | Aluminium, Steel, Stainless steel |
| TIG welding processJoining | – | – | – | – | Aluminium, Steel, Stainless steel |
| Spot welding processJoining | – | – | – | – | Aluminium, Steel, Stainless steel |
| Stud welding processJoining | – | – | – | – | Aluminium, Steel, Stainless steel |
| Projection welding processJoining | – | – | – | – | Aluminium, Steel, Stainless steel |
| Soft solderingJoining | – | – | – | – | – |
| Hard soldering (brazing)Joining | – | – | – | – | – |
| Powder coatingSurface | – | – | – | – | – |
| Pre-treatment / degreasingSurface | – | – | – | – | – |
| Iron phosphatingSurface | – | – | – | – | – |
| Assembly (press-fitting of standard parts, riveting, assembly of assemblies, riveting)Assembly | – | – | – | – | – |
| Packaging & delivery (just-in-time)Engineering | – | – | – | – | – |
7 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Press brake | – | 2 | 3000 mm, 100 t pressing force | – | Stadtroda |
| Press brake | Amada | 1 | 1250 mm, 25 t | – | Stadtroda |
| Press brake | – | 1 | 1250 mm, 25 t | – | Stadtroda |
| Punching and nibbling machine | – | 1 | 3000 mm x 1500 mm, 200 kN | – | Stadtroda |
| Laser cutting system | – | 1 | 1250 mm x 1250 mm, 1000 W (1 kW) | – | Stadtroda |
| Laser cutting system | – | 1 | 3000 mm x 1500 mm, 2000 W (2 kW) | – | Stadtroda |
| Powder coating takt line | – | – | – | – | Stadtroda |
Additional services
History
- 1991
Foundation of H-S Feinblechbau GmbH as a family-run company and flexible contract manufacturer for sheet metal working
