Contract surface technology with electroplating, coatings and mechanical manufacturing through to ready-to-install components
Herbert Bauer GmbH & Co. KG
94130 Obernzell (Passauer Str. 36)New on Amplifa
About Herbert Bauer
Herbert Bauer GmbH & Co. KG is a service and industrial company for surface treatment founded in 1950, headquartered in Obernzell (Lower Bavaria). At the site, around 400 employees process up to 400 tonnes of material daily. The range of services includes electroplating such as acid and alkaline zinc, zinc nickel, nickel plating, tin plating, silver plating and copper plating, as well as surface and coating processes such as KTL, powder coating, wet paint, multi-layer systems (duplex/triplex), Geomet® zinc flake, electroless nickel and phosphating. In addition, the company manufactures components mechanically: 2D laser cutting (3000x1500x25 mm), CNC bending, dual-robot MAG welding, 5-axis milling, CNC tube bending, as well as assembly and kitting. Steel, stainless steel, aluminium, copper, brass, bronze and non-ferrous metals are processed. As part of the KFB Surfaces group, Herbert Bauer primarily supplies the automotive, commercial vehicle, mechanical engineering, agricultural machinery, electrical industry, construction and plant engineering sectors in Germany, Austria and the Czech Republic.
- Site
- Obernzell
- Processes
- Acid zinc (electrolytic zinc plating), Alkaline zinc, Zinc nickel, Nickel plating, Tin plating, Silver plating, Copper plating, KTL (cathodic dip painting)
- Materials
- Steel, Stainless steel, Aluminium, Copper, Brass, Non-ferrous metals, Bronze, Casting and forging materials
- Certificates
- ISO 9001:2015, ISO 9001, ISO 14001, Salt spray test (DIN EN ISO 9227), 3D measuring centre, X-ray coating thickness measurement
- Founded
- 1950
- Employees
- 400
- Industries
- Automotive, Commercial vehicles, Mechanical engineering, Agricultural machinery, Electrical industry, Construction
- 01
Laser cutting
- 02
Bending/edging
- 03
Welding (robotic welding systems)
- 04
Milling (5-axis)
- 05
Tube bending
- 06
Pretreatment (degreasing, pickling, sand blasting)
- 07
Electroplating / coating
- 08
Tempering
- 09
Assembly & kitting
- 10
Packaging
Materials & Processes
Steel
Main base material for zinc plating, phosphating, coating and mechanical manufacturing.
Stainless steel
Pickling, electropolishing and laser cutting of stainless components.
Aluminium
Nickel plating, tin plating, passivation and pickling of aluminium components.
Copper
Electrolytic copper and silver plating for conductivity applications.
Brass
Silver plating and copper plating of brass parts for electrical and decorative applications.
Bronze
Rack coating in silver plating and copper plating.
Non-ferrous metals
Base material for electroless nickel.
Casting and forging materials
Suitable for electrolytic zinc plating for corrosion protection.

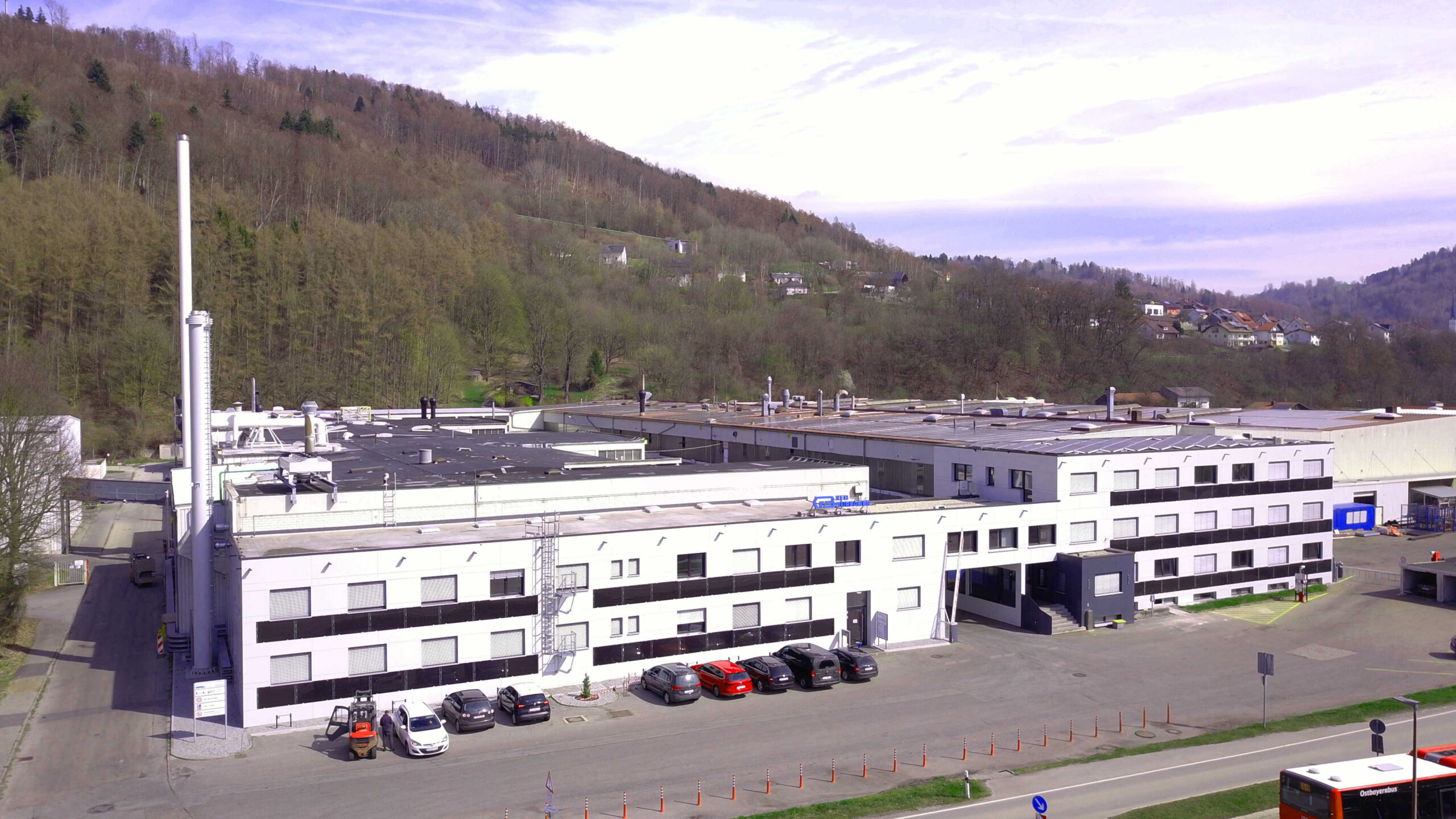

Site
Obernzell
DEHeadquarters · Electroplating, surfaces & coatings, mechanical manufacturing
- Part weight / size
- Rack electroplating up to 500 kg · KTL up to 1500 kg ·
- Lot size
- Rack and barrel goods, single parts through to series production
- Materials
- Steel, stainless steel, aluminium, copper, brass, bronze, non-ferrous metals
- 2D laser cutting machines (3000x1500x25 mm)
- CNC bending machines (3000 mm)
- Dual-robot MAG welding systems (1300 mm)
- 5-axis machining centres (850x700x500 mm)
- CNC tube bending machines (Ø 45 mm, bending radius 3–280 mm)
- Electroplating lines (acid/alkaline zinc, zinc nickel, nickel plating, tin plating, silver plating, copper plating)
- KTL and powder coating line (6000x2000x1000 mm, fully automatic with robots)
- Wet paint line
- Electroless nickel line
- Phosphating lines (zinc/manganese)
- Sand blasting system
- Circular vibrators (trowalizing)
- Tempering ovens (up to 300 °C)
- 3D measuring centre
Components & Services
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|

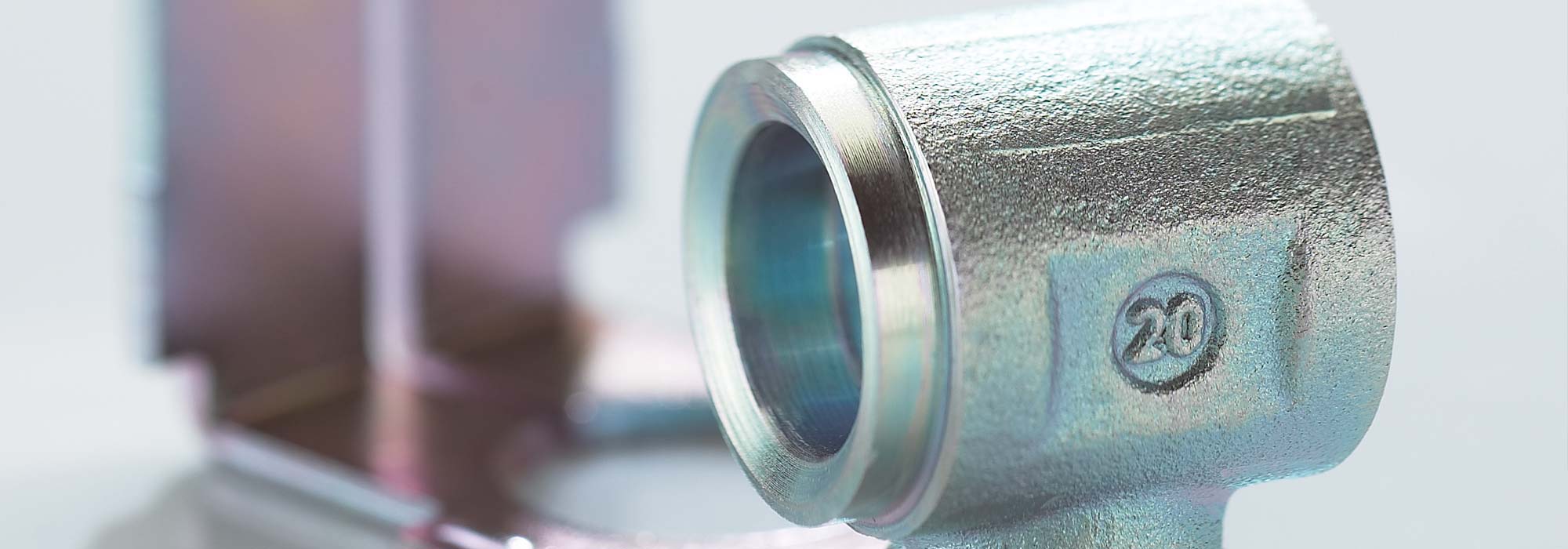

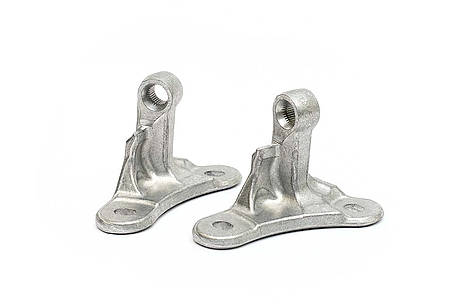

| Acid zinc (electrolytic zinc plating)Surface | – | 6000 mm × 1800 mm × 400 mm | 500 kg | – | Steel |
| Alkaline zincSurface | – | 3800 mm × 1200 mm × 300 mm | 350 kg | – | Steel |

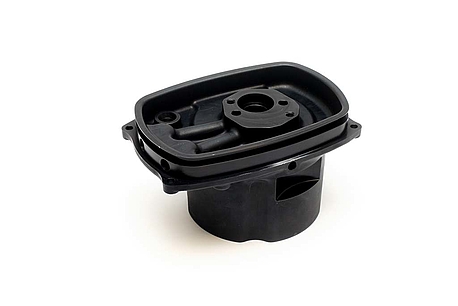

| Zinc nickelSurface | – | 3800 mm × 1200 mm × 300 mm | 350 kg | – | Steel |
| Nickel platingSurface | – | 2400 mm × 900 mm × 200 mm | 250 kg | – | Aluminium |

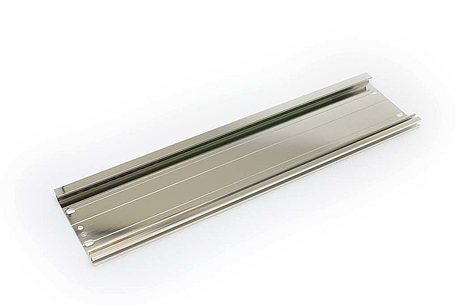

| Tin platingSurface | – | 2400 mm × 900 mm × 200 mm | 250 kg | – | Aluminium |

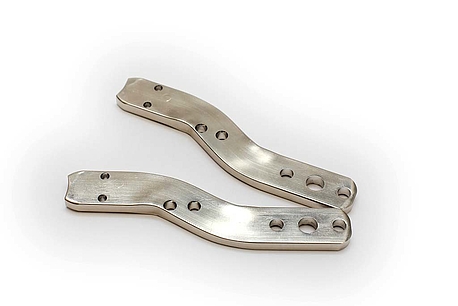

| Silver platingSurface | – | 1000 mm × 600 mm × 250 mm | 100 kg | – | Steel, Copper, Brass, Aluminium, Bronze |
| Copper platingSurface | – | 1000 mm × 600 mm × 250 mm | 100 kg | – | Steel, Copper, Brass, Aluminium, Bronze |

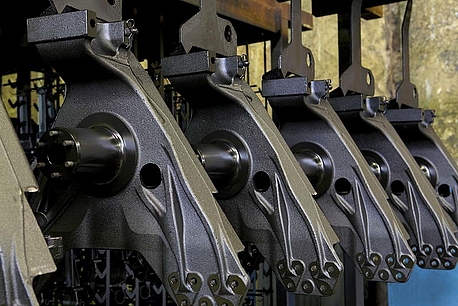

| KTL (cathodic dip painting)Surface | – | 2800 mm × 1750 mm × 800 mm | 1500 kg | – | Steel, Aluminium |

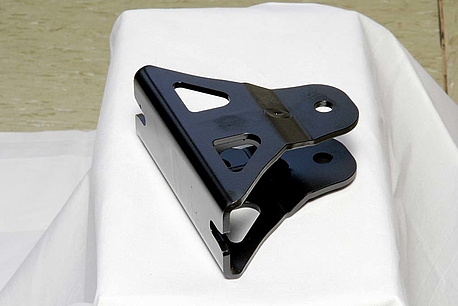

| Powder coatingSurface | – | 6000 mm × 2000 mm × 1000 mm | 1000 kg | – | Steel, Aluminium |

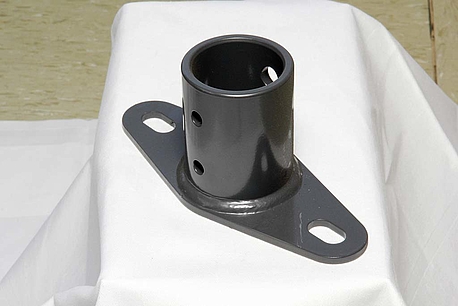

| Wet paintSurface | – | 2600 mm × 1300 mm × 500 mm | 350 kg | – | Steel, Aluminium, Copper |
| Multi-layer systems (duplex/triplex)Surface | – | 2600 mm × 1350 mm × 500 mm | 50 kg | – | Steel, Aluminium, Copper |
| Geomet® zinc flakeSurface | – | 2600 mm × 1350 mm × 500 mm | 350 kg | – | Steel, Aluminium |

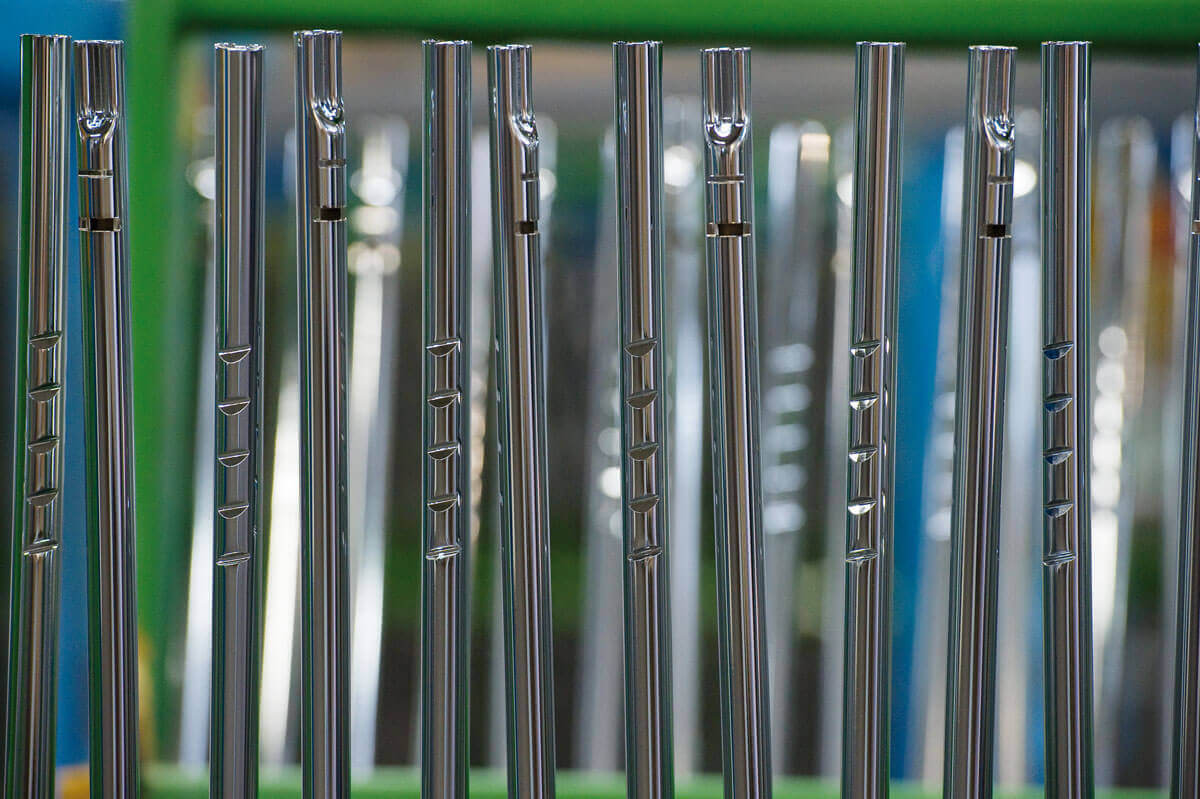

| Electroless nickelSurface | – | 1550 mm × 650 mm × 450 mm | 250 kg | – | Steel, Non-ferrous metals, Stainless steel, Aluminium |
| Zinc phosphateSurface | – | 2700 mm × 850 mm × 490 mm | 250 kg | – | Steel |
| Manganese phosphateSurface | – | 2700 mm × 850 mm × 490 mm | 250 kg | – | Steel |
| Degreasing, pickling, preservationSurface | – | 2700 mm × 850 mm × 490 mm | 250 kg | – | Steel |
| Sand blastingSurface | – | 6000 mm | 300 kg | – | Steel |
| TrowalizingSurface | – | – | 200 kg | – | – |
| Tempering (up to max. 300°C)Heat treatment | – | 2000 mm | 250 kg | – | Steel |
| Laser technology (2D laser cutting)Machining | – | 3000 mm × 1500 mm × 25 mm | – | – | Steel, Stainless steel, Aluminium |
| Bending / edging technology (CNC press brakes)Forming | – | 3000 mm | – | – | Steel, Stainless steel, Aluminium |
| Welding technology (dual-robot welding systems, MAG)Joining | – | 1300 mm | – | – | Steel |
| Milling technology (5-axis machining)Machining | – | 850 mm × 700 mm × 500 mm | – | – | – |
| Tube bending (CNC)Forming | – | 3000 mm | – | – | Steel |
| Assembly workAssembly | – | – | – | – | Steel, Stainless steel, Aluminium |
| Zinc ironSurface | – | 3000 mm × 1000 mm × 400 mm | 300 kg | – | Steel |
| ElectropolishingSurface | – | 3000 mm × 1200 mm × 350 mm | 300 kg | – | Stainless steel |
| Chemical deburringSurface | – | – | 40 kg | – | Steel |

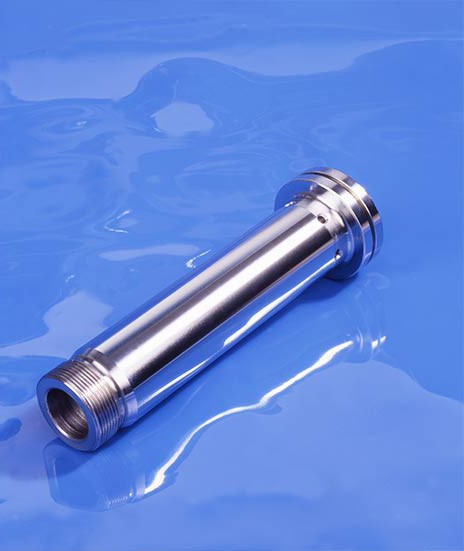

| Bright chrome platingSurface | – | 3500 mm × 1300 mm × 600 mm | 200 kg | – | Steel, Copper, Brass, Stainless steel |
| Hard chrome platingSurface | – | 8120 mm × 1000 mm × 1280 mm | – | – | Steel |
| Piston rods (hydraulic manufacturing)Machining | – | – | – | – | Steel |
| Hydraulic cylindersAssembly | – | – | – | – | Steel |
| Grinding & polishing (cylindrical, surface, centreless grinding)Machining | – | – | – | – | Steel |
| Aluminium passivationSurface | – | – | – | – | Aluminium |
| Aluminium picklingSurface | – | – | – | – | Aluminium |
| Stainless steel picklingSurface | – | – | – | – | Stainless steel |
18 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| 2D laser cutting machines | – | – | 3000x1500x25 mm | – | Obernzell |
| CNC bending machines | – | – | 3000 mm | – | Obernzell |
| Dual-robot welding systems (MAG) | – | – | 1300 mm | – | Obernzell |
| 5-axis machining centres | – | – | 850x700x500 mm | – | Obernzell |
| CNC tube bending machines | – | 2 | up to tube Ø 45 mm, wall thickness 2.5 mm, bending radius 3–280 mm | – | Obernzell |
| Tempering ovens | – | – | Tempering up to max. 300°C | – | Obernzell / Bürgstadt |
| Circular vibrators (trowalizing) | – | – | – | – | Obernzell |
| Electroplating lines (acid/alkaline zinc, zinc nickel, nickel plating, tin plating, silver plating, | – | – | – | – | Obernzell |
| Fully automatic CNC bending cell | – | – | 3000 mm | – | Vimperk (CZ) |
| 2D laser cutting machines | – | – | 3000x1500x25 mm | – | Vimperk (CZ) |
| Dual-robot welding systems | – | – | 1300 mm | – | Vimperk (CZ) |
| CNC tube bending machines | – | – | up to tube Ø 45 mm | – | Vimperk (CZ) |
| CNC grinding machines | – | – | – | – | Goldbach |
| CNC systems (piston rods/hydraulic cylinders) | – | – | – | – | Goldbach |
| 3D measuring centre | – | – | – | – | Obernzell |
| X-ray gauges (coating thickness) | – | 2 | – | – | Mitwitz-Steinach |
| Salt spray chamber (DIN EN ISO 9227) | – | – | – | – | Bürgstadt / Würzburg / Mitwitz-Steinach |
| Powder coating line with robots (fully automatic) | – | – | 6000x2000x1000 mm | – | Obernzell |
Additional services
Quality
Quality is ensured through extensive testing procedures: within the KFB group network, 3D measuring centres, X-ray coating thickness gauges and salt spray chambers according to DIN EN ISO 9227 are available for testing corrosion resistance. Herbert Bauer is certified according to ISO 9001:2015 (SGS, valid until 28.03.2029, scope: electroplating, component manufacturing, sheet metal processing).
| Evidence | Obernzell |
|---|---|
| ISO 9001 | |
| ISO 14001 | |
| Salt spray test (DIN EN ISO 9227) | |
| 3D measuring centre | |
| X-ray coating thickness measurement |
History
- 1950
Founded as a one-man operation; developed into a service and industrial company for surface treatment.
