Technical components to drawing: process selection, international sourcing and series supply across 14 manufacturing processes.
Kälin Formteile GmbH
Bielstrasse 11, 4512 Bellach (CH)New on Amplifa
About Kälin Formteile
Kälin Formteile GmbH is a technical procurement service provider for components to drawing with its operational base in Bellach, Switzerland. The company supports technical buyers and design engineers in the selection of manufacturing processes and suppliers, the design of components for manufacturability, project coordination and quality alignment. The scope covers 14 relevant processes: CNC machining, investment casting, die casting, sand casting, permanent mould casting, die forging, MIM, injection moulding, sheet metal working including deep drawing, extrusion, blow moulding, rapid prototyping/3D printing, toolmaking as well as coating consultation. On the materials side, steel, stainless steel, aluminium, zinc, magnesium, copper and nickel alloys, cast materials, plastics, elastomers and ceramics are classified; a materials and coatings database supports the selection assistance. Customers come from mechanical and plant engineering, vehicle-related mobility applications, apparatus engineering and medical technology. Supply runs from prototype and sample through to series production, supported by a warehouse in Bellach for frame orders, call-off logic and shorter response paths. Sourcing is carried out internationally, while operational handling and communication run via Switzerland.
- Site
- Bellach
- Processes
- Investment casting, Die casting, Sand casting, Permanent mould casting, CNC machining (turning/milling), Die forging, MIM (metal injection moulding), Injection moulding
- Materials
- Steel, Stainless steel, Aluminium, Zinc (zinc die casting), Magnesium, Copper alloys, Nickel alloys, Cast materials
- Certificates
- ISO 9001, ISO 13485
- Industries

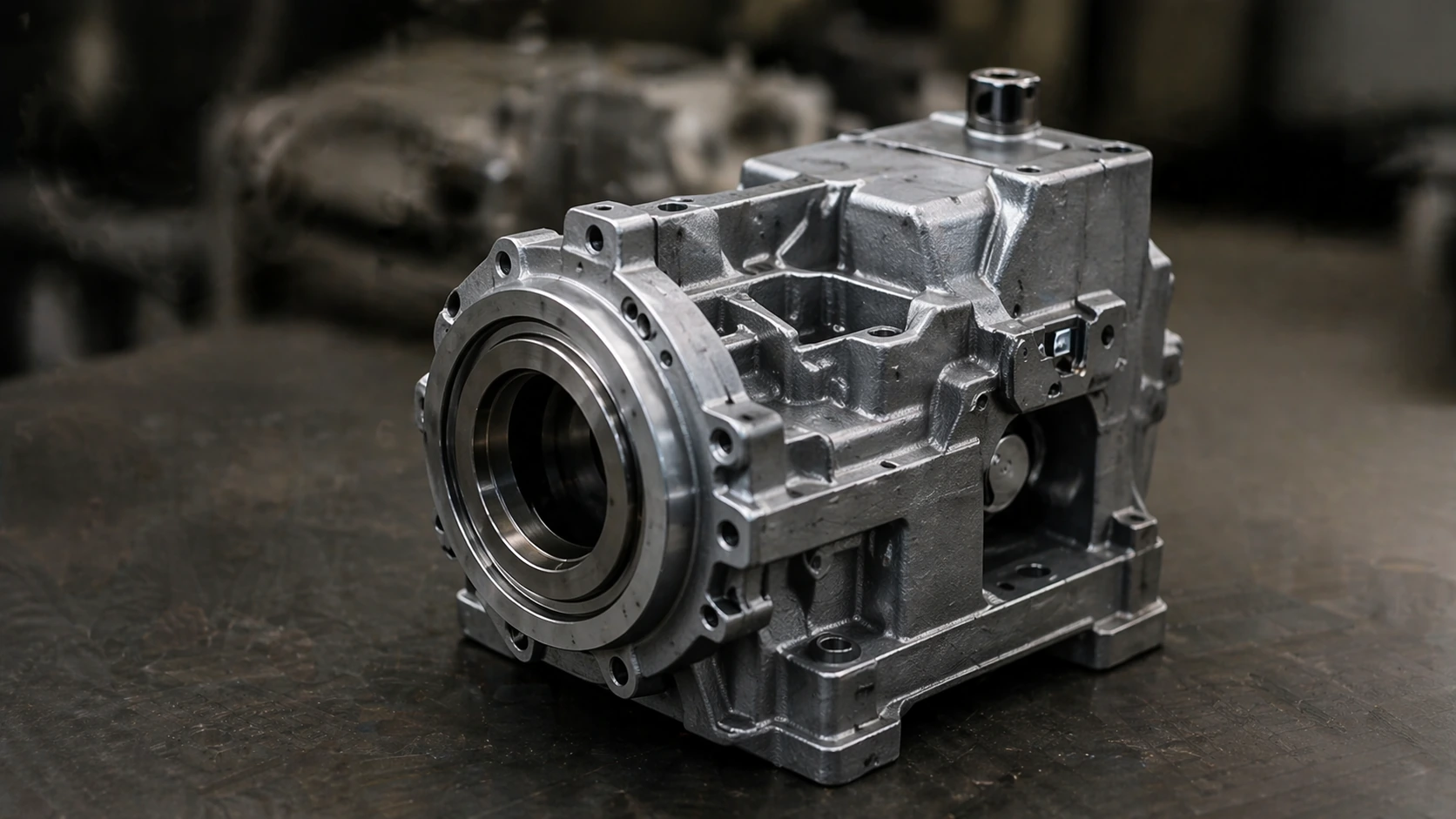

- Mechanical and plant engineering, Vehicle-related and technical mobility applications, Apparatus engineering, tools and technical products, Medical technology
- 01
Enquiry and technical classification (drawing, quantity, material,
- 02

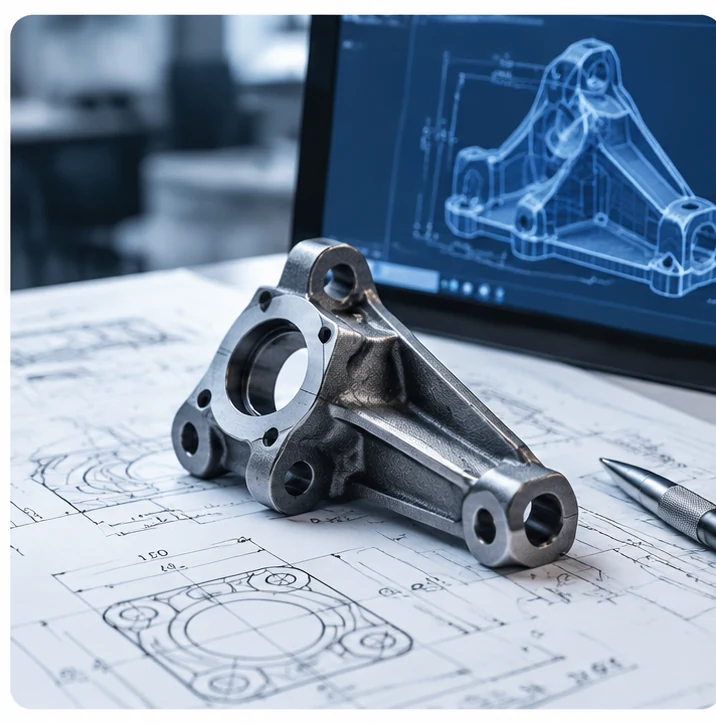

Engineering support: determine manufacturability, process and material
- 03
Supplier selection and supplier suitability assessment
- 04

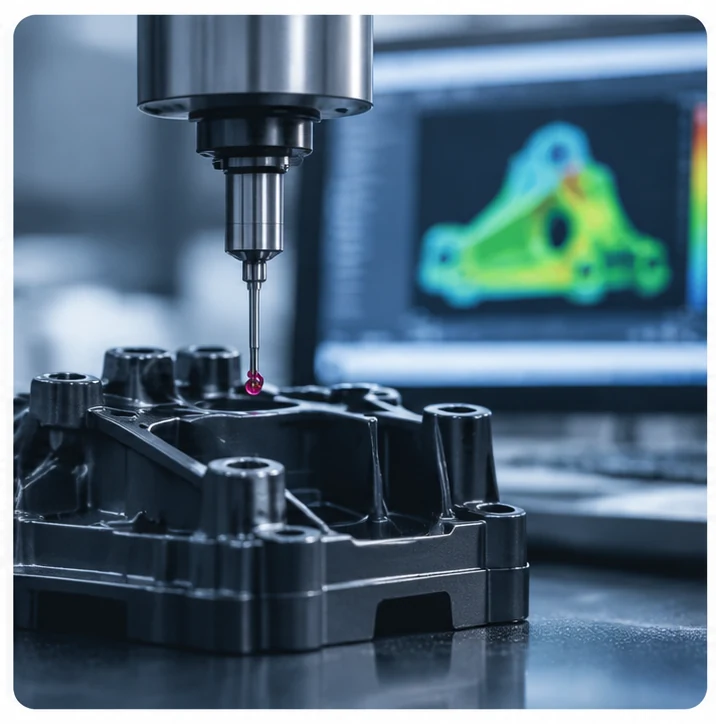

Agree inspection features and evidence before production start
- 05
Samples and first article inspection / sampling
- 06

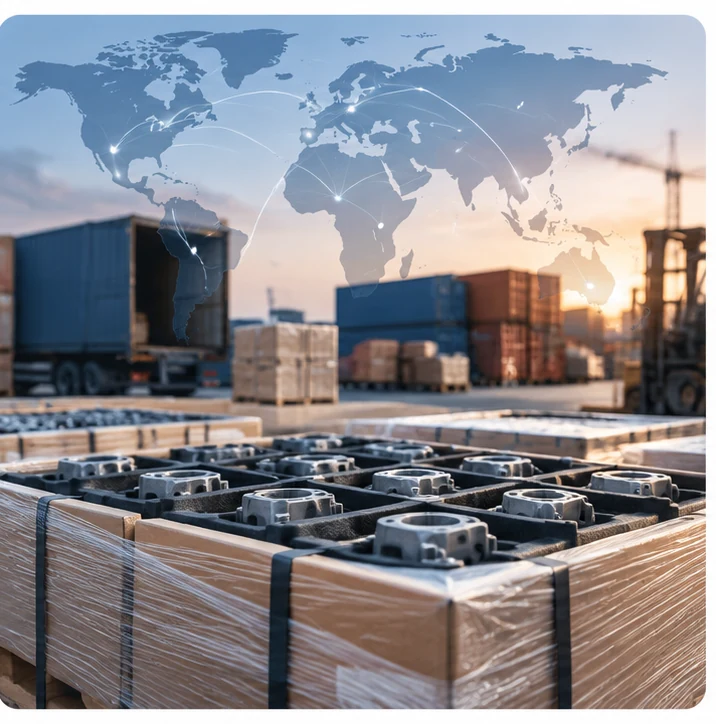

Series supply via frame orders, warehouse and call-off logic in Bellach
- 07
Delivery with documented inspection records, complaint and
Processes and Materials
Steel
Material for CNC machining, die forging and sheet metal working with a focus on strength and load capacity.
Stainless steel
Corrosion-resistant material, among other things for investment casting and CNC precision parts.
Aluminium
Light metal for die casting, permanent mould casting, extrusion and machining.
Zinc (zinc die casting)
Die casting material for high volumes with tight tolerances and thin walls.
Magnesium
Light metal for die-cast components with weight requirements.
Copper alloys
For applications with conductivity and thermal requirements, documented in the materials database.
Nickel alloys
For thermally stressed and special applications, part of the materials database.
Cast materials
Investment casting, die casting, sand casting and permanent mould casting for mechanical functional components to drawing.
Plastics
Injection moulding, blow moulding and extrusion with functional integration and tight tolerances.
Elastomers
For sealing, friction and media contact applications, documented in the materials database.
Ceramics
For electrical insulation, temperature and wear requirements.
Tool steel
Material for injection moulding tools, mould plates and standard mould parts (DIN 16760 ff.).

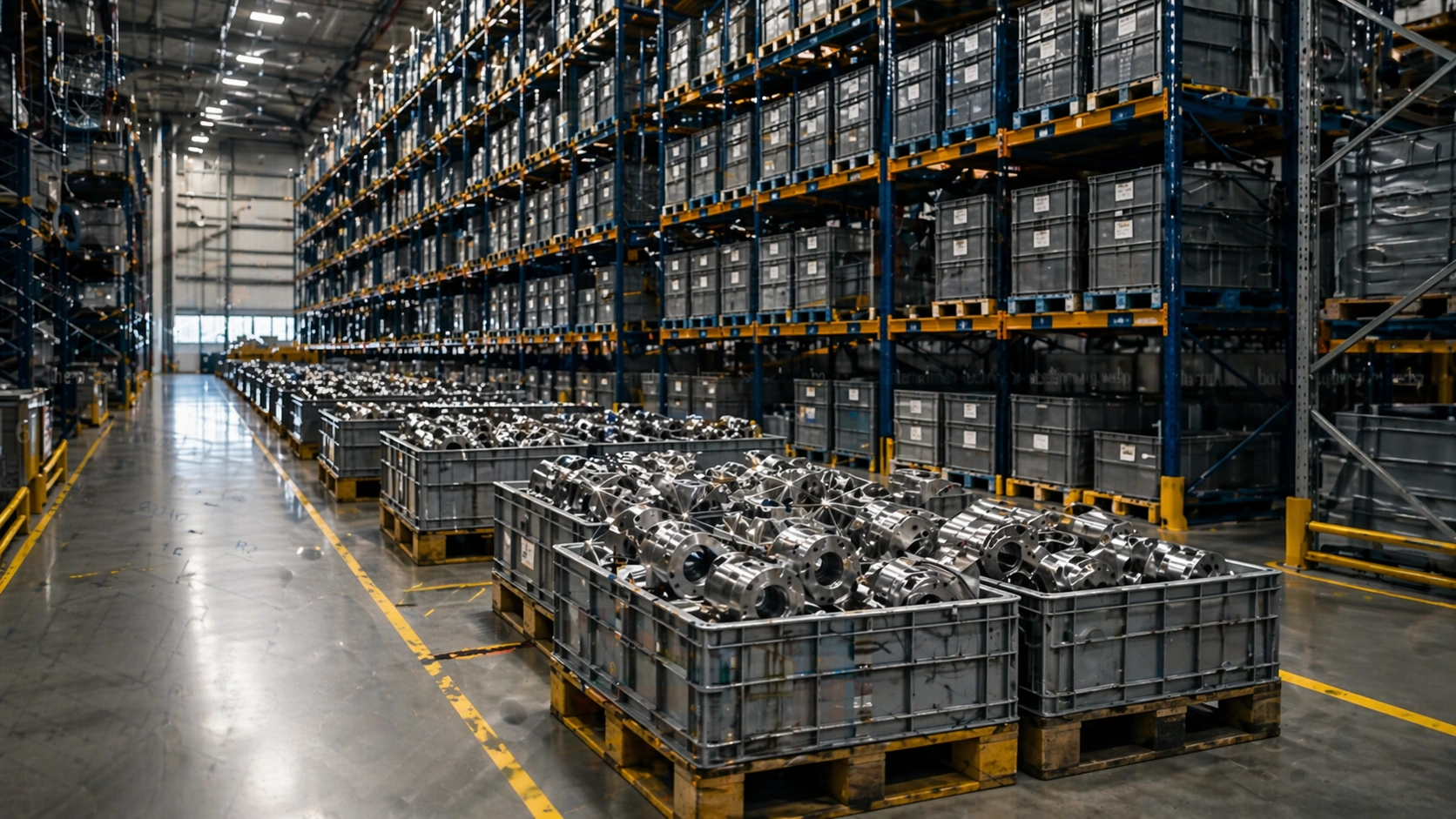

Location
Bellach
CHOperative base for call-offs, frame orders, warehouse, handling and communication
- Lot size
- Frame orders and call-offs
- Materials
- All brokered materials and processes
- Warehouse and call-off logistics

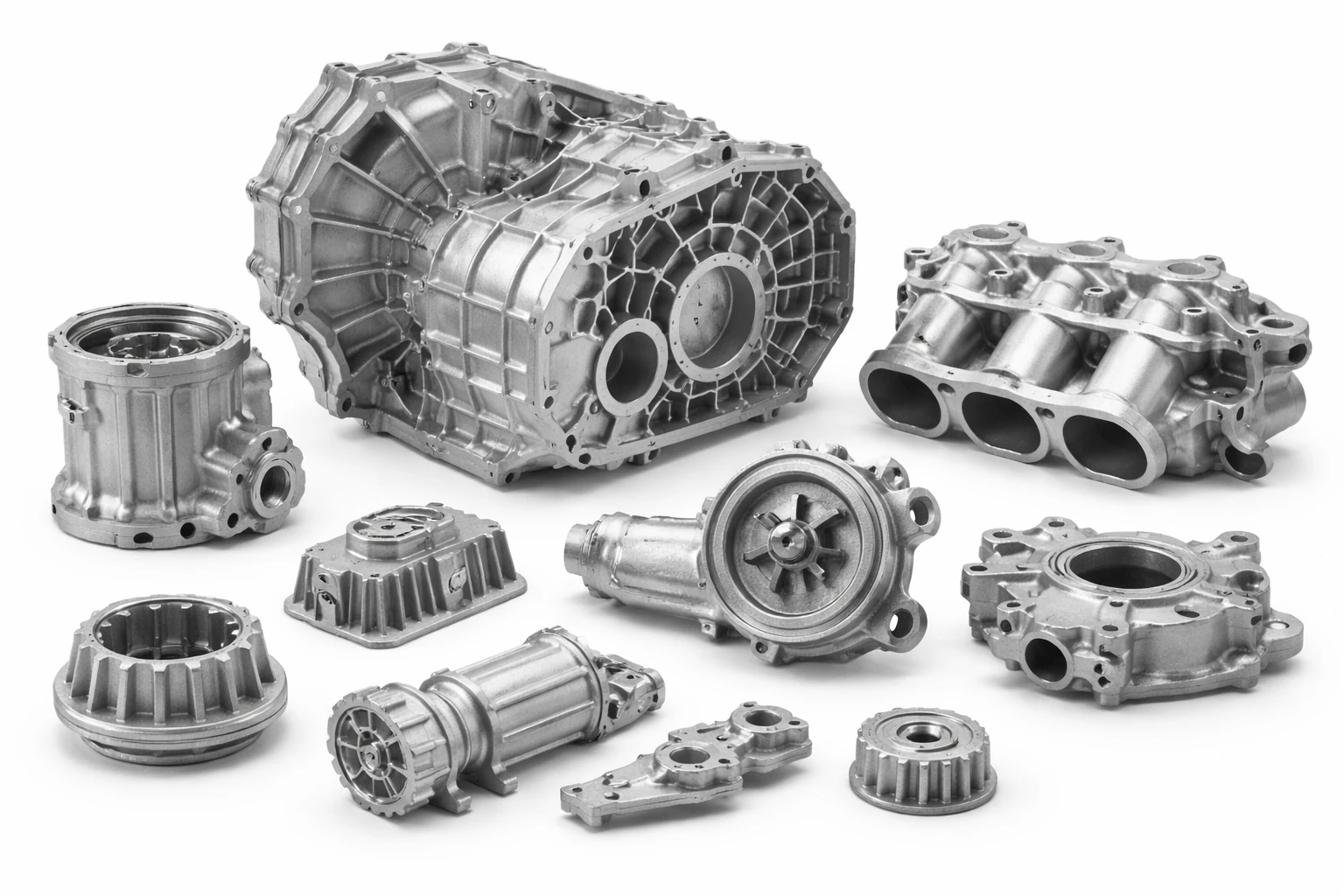

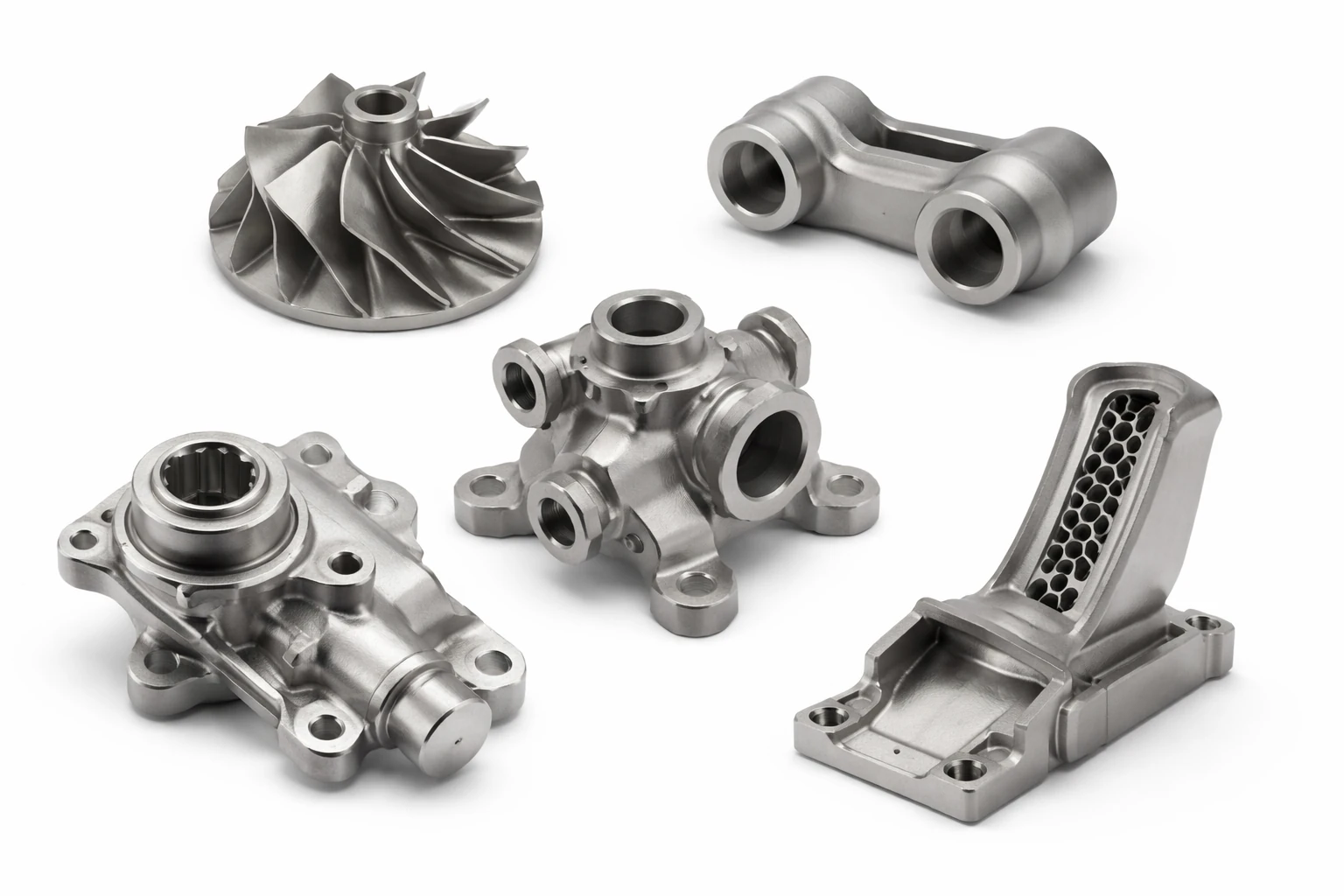

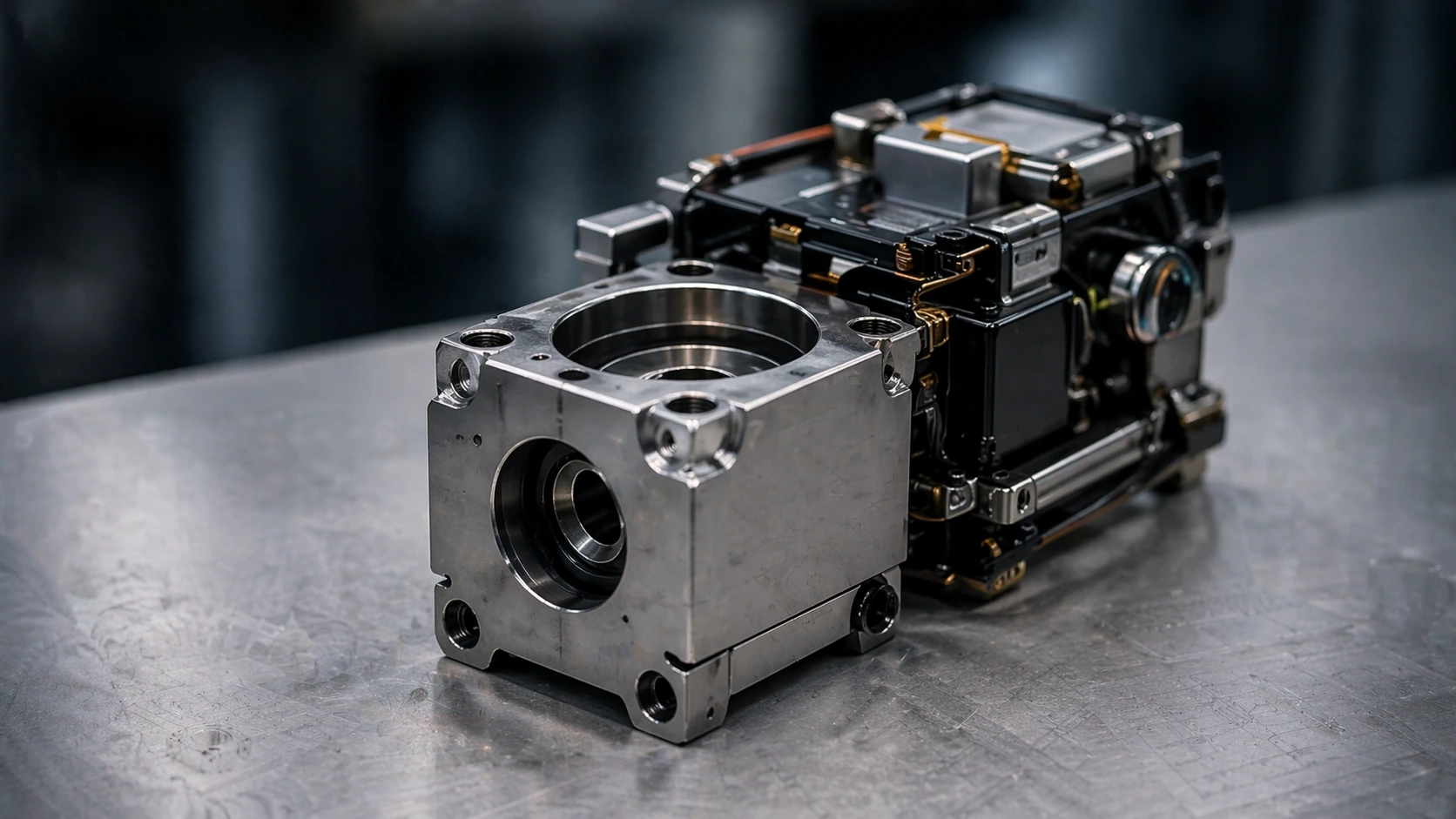

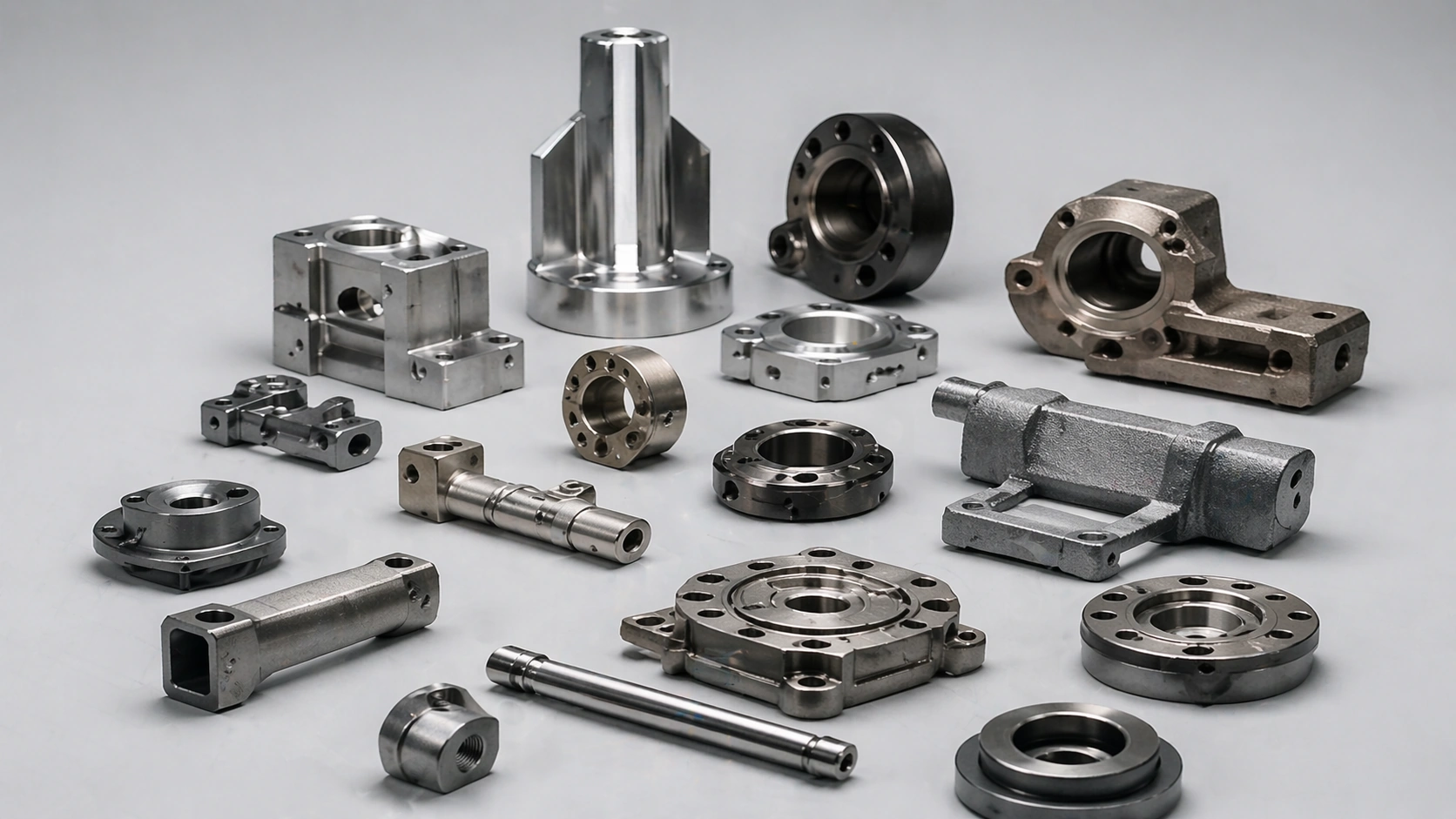

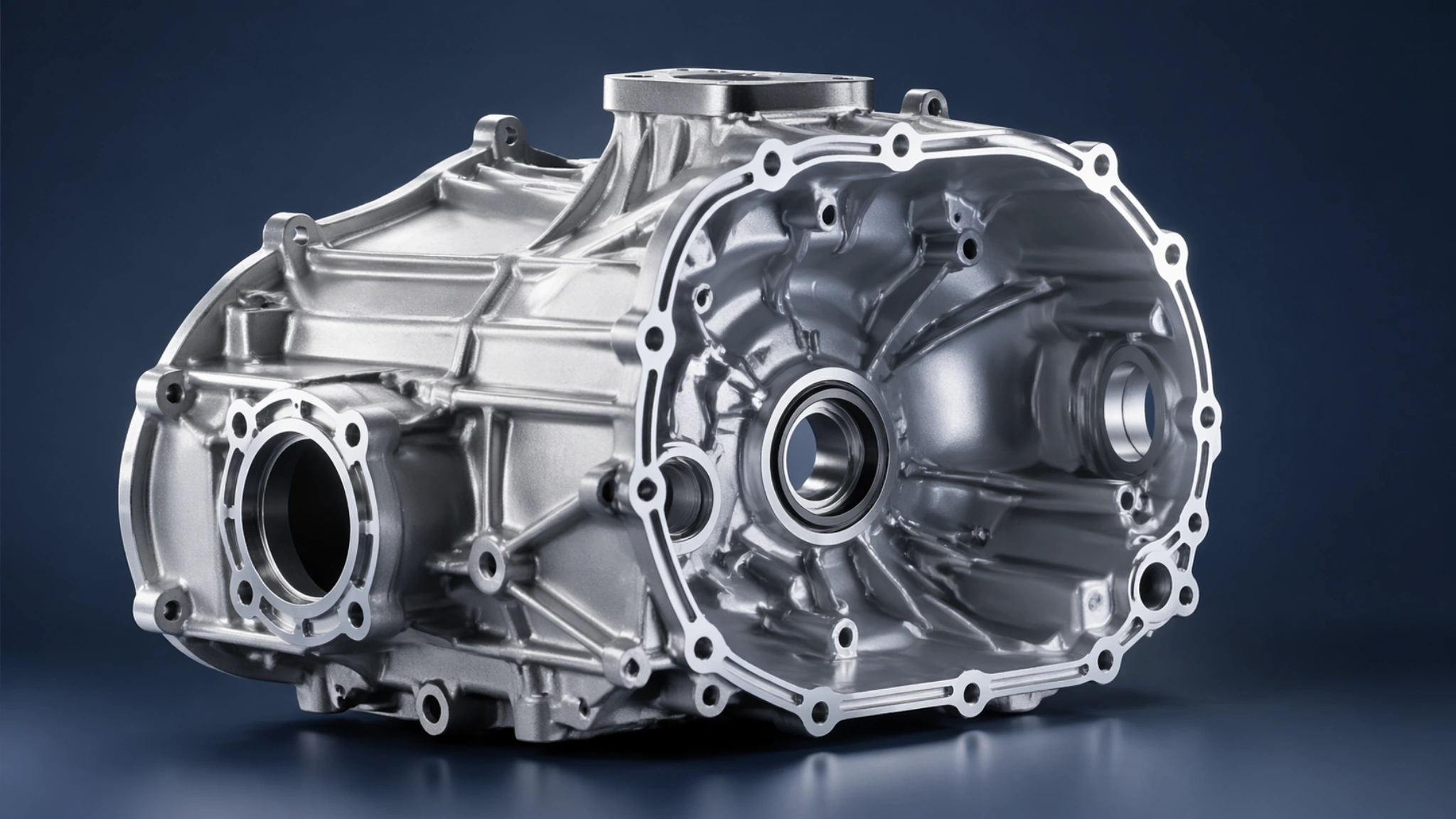

Typical Components

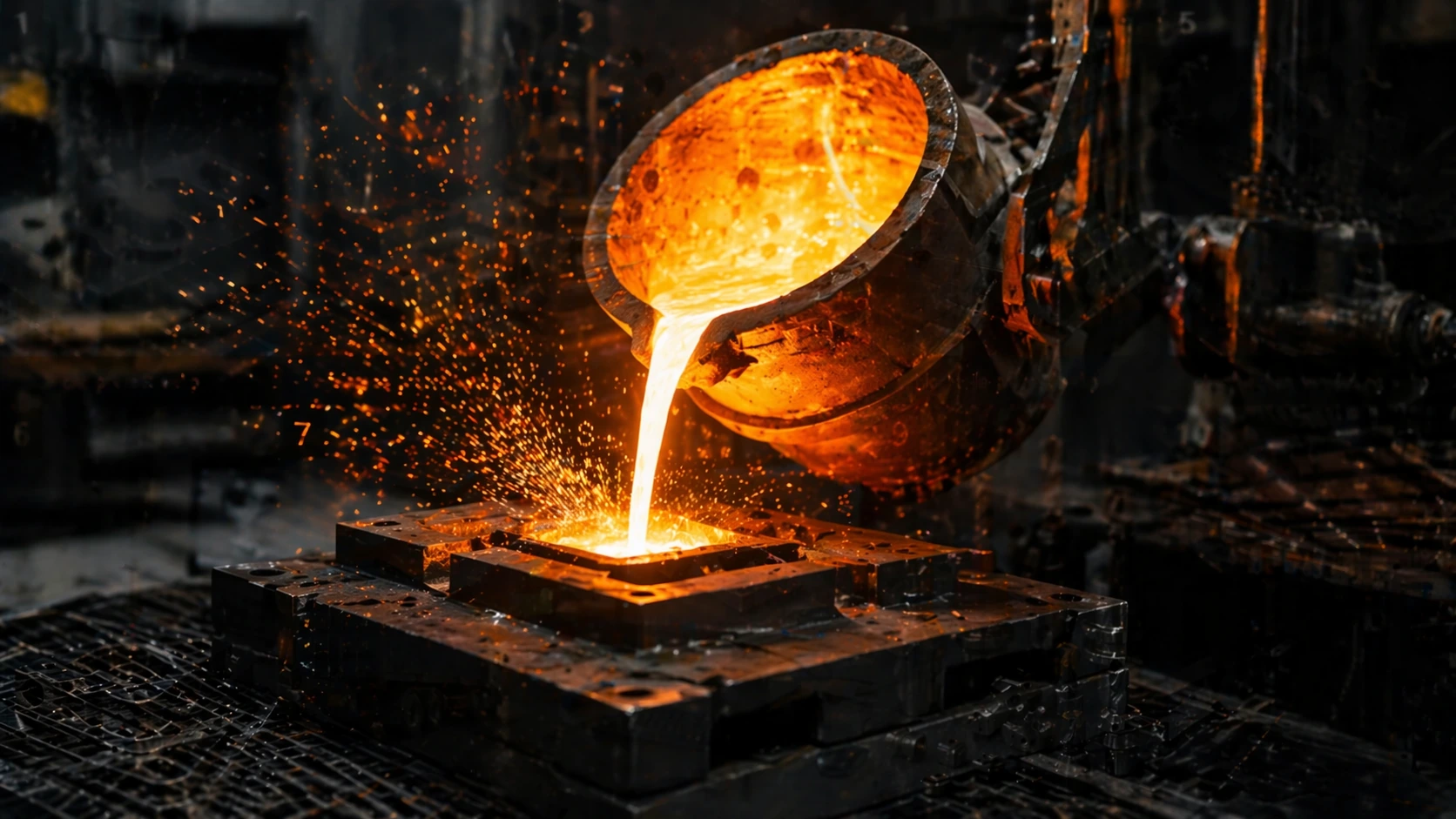

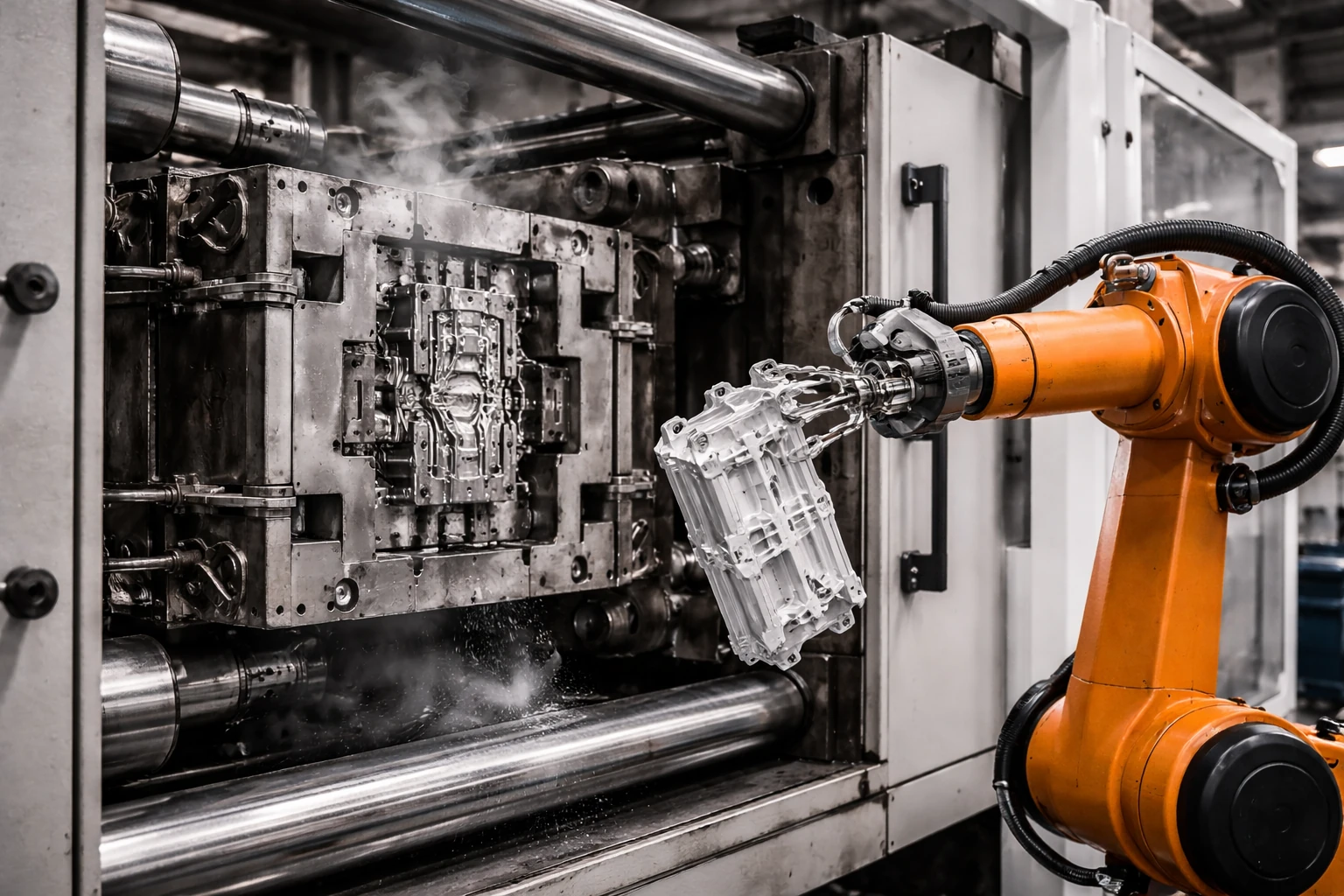

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Investment castingCasting | – | – | – | – | Steel, Stainless steel, further alloys |
| Die castingCasting | tight tolerances | – | – | medium volumes – high volumes | Aluminium, Zinc, Magnesium |
| Sand castingCasting | – | – | – | – | various materials |
| Permanent mould castingCasting | good dimensional accuracy | – | – | – | Aluminium |
| CNC machining (turning/milling)Machining | high precision | – | – | – | Steel, Aluminium, Cast materials |
| Die forgingForming | – | – | – | – | Steel |
| MIM (metal injection moulding)Casting | – | – | – | – | Metal |
| Injection mouldingPlastics | tight tolerances | – | – | – | Plastic |
| Sheet metal working (incl. deep drawing)Forming | – | – | – | – | Steel, Aluminium |
| ExtrusionForming | – | – | – | – | Aluminium, Plastic |
| Blow mouldingPlastics | – | – | – | – | Plastic |
| 3D printing / rapid prototypingAdditive | – | – | – | – | – |
| Toolmaking for injection moulding (moulds, hot runner, standard mould parts)Engineering | – | – | – | – | Tool steel |
| CoatingSurface | – | – | – | – | Steel, Stainless steel, Aluminium, Zinc die casting, Magnesium, Copper alloys, Plastic, Elastomer |
| Inspection and quality assurance (dimensional reports, inspection protocols, hardness testing,Testing | – | – | – | – | – |
| Technical procurement, engineering support and project coordination for components to drawingEngineering | – | – | – | Prototype – Series | – |
Additional services
Background
Over 19 years of experience in technical procurement, engineering support and international collaboration for components to drawing
