Specialist in deep hole drilling: concentric and eccentric deep hole drilling up to 20 m length and 75 t weight, complemented by turning, milling and honing.
Kaiser Maschinenbau und Zerspanungstechnik GmbH & Co. KG
ToppenstedtNew on Amplifa
About Kaiser Maschinenbau
Kaiser Maschinenbau und Zerspanungstechnik GmbH & Co. KG is a family-run contract manufacturer in Toppenstedt (Lower Saxony), in operation for generations and focused on deep hole drilling technology since 1995. With a total of 28 deep hole drilling machines, 10 lathes, 5 milling machines and 3 honing machines, the company machines workpieces up to 20 m in length, 2000 mm outer diameter and 75 t in weight. Its service portfolio includes concentric and eccentric deep hole drilling (solid drilling, core drilling, boring, form drilling, peel rolling) using BTA, ejector and single-lip gun drilling methods, multi-spindle drilling, turning, milling, honing, lapping, sawing and straightening, complemented by a transportable deep hole drilling unit for on-site operations. Materials of all kinds are processed, including steel and titanium alloys, non-ferrous metals and plastics, among other things for turbine shafts, extrusion cylinders, high-pressure pipes, gearbox shafts, hydraulic blocks and medical implants. Customer industries include mechanical engineering, energy/hydropower, petrochemicals, oil and gas, and medical technology.
- Site
- Toppenstedt
- Processes
- Concentric deep hole drilling, Solid drilling, core drilling, boring, pull boring, form drilling, peel rolling, counterboring, Eccentric deep hole drilling, Multi-spindle deep hole drilling, Honing, Turning, Milling, Sawing
- Materials
- Steel and titanium alloys, Non-ferrous metals, Plastics, Materials of all kinds (no specific standards named), Centrifugal castings
- Certificates
- certified quality management, Certified quality management
- Founded
- 1916
- Industries
- Mechanical engineering, Energy/hydropower, Petrochemicals, Oil and gas, Medical technology
- 01
Sawing
- 02
Straightening
- 03
Deep hole drilling (BTA/ejector/single-lip gun drilling)
- 04
Turning
- 05
Milling
- 06
Honing/lapping
- 07
Final inspection before delivery
Materials and Processes
Steel and titanium alloys
Core materials for deep hole drilling, including difficult-to-machine alloys using the BTA process.
Non-ferrous metals
Combustible and non-ferrous metals for deep hole drilling and machining orders.
Plastics
Machining of plastics in the deep hole drilling and machining process.
Centrifugal castings
Internal contour drilling of centrifugal cast pipes using a special deep hole drilling method developed for this purpose.
Sites
Toppenstedt
DEHeadquarters and production
- Part weight / size
- Max. 75 t (deep hole drilling), 50 t (turning), 30 t
- Lot size
- Single and rush orders up to large series
- Materials
- Steel and titanium alloys, non-ferrous metals, plastics
- 28 deep hole drilling machines (including G+K B3/B2, Wohlenberg B8, TBT, Buck 6-axis, Union 9-axis, Loch)
- 10 lathes (including Traub TNA 480 L, Heyligenstaedt, Tacchi HD3-20000)
- 5 milling machines (including Daewoo ACE-V65)
- 3 honing machines (including Gehring, honing length up to 12 m)
- 5 CNC sawing machines (max. Ø 450 mm)
- 3 straightening presses (max. 17 m, 500 t)
- Transportable deep hole drilling unit
Customer site (mobile)
DEOn-site deep hole drilling, e.g. turbine repair at a hydropower plant
- Lot size
- Single orders
- Transportable deep hole drilling unit (drilling depth up to 3000 mm)

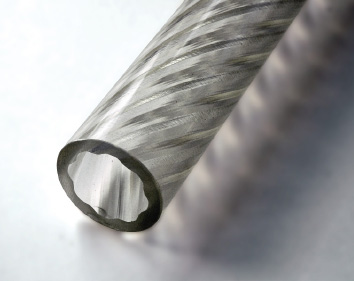

Components

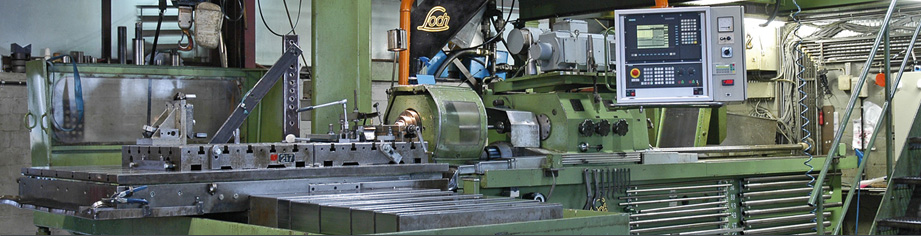

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Concentric deep hole drillingMachining | – | 20 m × max. outer diameter 2000 mm | 75 t | – | Steel and titanium alloys, Non-ferrous metals, Plastics |
| Solid drilling, core drilling, boring, pull boring, form drilling, peel rolling, counterboringMachining | – | 20 m | 75 t | – | – |
| Eccentric deep hole drillingMachining | – | 6000 mm (max. drilling depth) × Bore diameter 3–320 mm | 40 t | – | – |
| Multi-spindle deep hole drillingMachining | – | 2500 mm × Drill diameter 3–45 mm | – | – | – |
| HoningMachining | – | 10 m (max. honing length) × Honing diameter 35–800 mm | 50 t | – | – |
| TurningMachining | – | 20 m × max. turning diameter 1400 mm | 50 t | – | – |
| MillingMachining | – | 20 m | 30 t | – | – |
| SawingMachining | – | max. sawing diameter 450 mm | – | – | – |
| StraighteningForming | – | max. straightening length 17 m | – | – | – |
| BTA process (deep hole drilling Ø 6–2000 mm)Machining | – | – | – | – | difficult-to-machine materials |
| Ejector process (deep hole drilling Ø 18.4–250 mm)Machining | – | – | – | – | – |
| Single-lip gun drilling (gun drilling Ø 0.8–40 mm)Machining | – | – | – | – | – |
| LappingMachining | – | – | – | – | – |
| Transportable on-site deep hole drilling (repair, drilling depth 3000 mm)Machining | – | 3000 mm | – | – | – |
| Internal contour drilling of centrifugal cast pipes (special deep hole drilling method)Machining | – | – | – | – | Centrifugal castings |
23 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| CNC lathe | Traub TNA 480 L | 1 | Ø445/360 mm, length 2000 mm, with steady rest and driven tools | – | Toppenstedt |
| CNC roll turning lathe | Heyligenstaedt | 1 | Turning diameter over bed 1100 mm, turning length 5000 mm, workpiece weight 10,000 kg | – | Toppenstedt |
| CNC vertical machining center | Daewoo ACE-V65 | 1 | Travel paths 1300x650x650 mm, clamping area 1800 mm x 750 mm, with driven indexing head | – | Toppenstedt |
| CNC lathe with milling turret and tool magazine | Tacchi HD3-20000 | – | Turning diameter over bed 1400 mm, turning length 20000 mm | – | Toppenstedt |
| Lathe (general, total) | – | 10 | max. turning/milling length 20 m, max. turning diameter 1400 mm, max. weight 50 t | – | Toppenstedt |
| Milling machine (general, total) | – | 5 | max. milling length 20 m, max. weight 30 t | – | Toppenstedt |
| Deep hole drilling machine (concentric, total) | – | 15 | max. drilling length 20 m, max. outer diameter 2000 mm, max. bore diameter 800 mm, max. weight | – | Toppenstedt |
| Deep hole drilling machine | G+K B3 | 1 | max. drilling length 3000 mm, max. drilling diameter 100 mm | – | Toppenstedt |
| Deep hole drilling machine, counter-spindle | G+K B2 | 1 | max. drilling length 7000 mm, drilling diameter 16–70 mm | – | Toppenstedt |
| Deep hole drilling machine, counter-spindle | Wohlenberg B8 | 1 | max. drilling length 15000 mm, drilling diameter 50–300 mm | – | Toppenstedt |
| Honing machine | Gehring | 1 | max. honing length 12000 mm, honing diameter 35–800 mm | – | Toppenstedt |
| Honing machine (total) | – | 3 | max. honing length 10 m, honing diameter 35–800 mm | – | Toppenstedt |
| Deep hole drilling machine (eccentric, total) | – | 12 | max. drilling depth 6000 mm, bore diameter 3–320 mm, max. weight 40 t | – | Toppenstedt |
| Deep hole drilling machine (multi-spindle, total) | – | 5 | max. drilling length 2500 mm, drilling diameter 3–45 mm | – | Toppenstedt |
| Deep hole drilling and milling center, 6 axes | Buck | 1 | max. drilling depth 2000 mm, max. drilling diameter 30 mm, table 1800 mm x 1600 mm | – | Toppenstedt |
| Deep hole drilling and milling center, 9 axes | Union | 1 | max. drilling depth 3000 mm, max. drilling diameter 130 mm, table 2500 x 3000 mm | – | Toppenstedt |
| Deep hole drilling machine | Loch | 1 | Drilling depth 2500 mm, max. drilling diameter 70 mm, table 1500 x 2000 mm | – | Toppenstedt |
| Deep hole drilling machine | TBT | 1 | Drilling depth 5000 mm, max. drill Ø 30 mm, table 6000 mm x 2000 mm | – | Toppenstedt |
| Deep hole drilling machine (push and pull drilling) | TBT | 1 | Drilling depth 4500 mm, max. drill Ø 320 mm | – | Toppenstedt |
| Multi-spindle deep hole drilling machine | TBT | 1 | Drilling depth 800 mm | – | Toppenstedt |
| CNC sawing machine | – | 5 | max. sawing diameter 450 mm | – | Toppenstedt |
| Straightening press | – | 3 | max. straightening length 17 m, max. pressing force 500 t | – | Toppenstedt |
| Deep hole drilling systems (total) | – | 28 | max. workpiece length 20 m, max. weight 75 t | – | Toppenstedt |
Additional services
Quality
A certified quality management system is an integral part of internal production processes; every workpiece undergoes meticulous inspection before delivery.
| Evidence | Toppenstedt |
|---|---|
| Certified quality management |
History
- 1916
Founded as a contract threshing business; essentially the company name Kaiser survives from this.
- 1960
Establishment of the turning shop as a second pillar, which developed and ultimately replaced the original business.
- 1995
Concentration of the company on deep hole drilling technology; metalworking and machining remain part of business operations.
