Manufacture of finished parts and assemblies from thermoplastic and thermosetting plastics using CNC machining, laser processing, forming and deep drawing
Kunststofftechnik Naumann GmbH
01665 Klipphausen (company headquarters, production and administration)New on Amplifa
About Kunststofftechnik Naumann GmbH
Kunststofftechnik Naumann GmbH is a supplier based in Klipphausen near Dresden that manufactures finished parts and assemblies from thermoplastic and thermosetting plastics to drawing, sketch or sample. The company was founded in 1968 as Günter Naumann Kunststoffverarbeitung in Dresden and has been family-owned as Kunststofftechnik Naumann GmbH since 1999. On 1500 m² of production space, processes such as CNC milling, CNC turning, laser cutting and engraving, cut-to-size blanks up to 4200 mm cutting length, diamond polishing, bending, hot forming, vacuum deep drawing, bonding and annealing are offered. Materials include acrylic glass XT/GS, POM, PET, ABS, PTFE, PS, PE, PP as well as wood-based materials such as MDF, multiplex and plywood. Lot sizes range from single-piece production to series. Since 2015 the company has been certified to DIN ISO 9001:2008 and supplies the supplier industry at home and abroad.
- Site
- Klipphausen
- Processes
- CNC milling, Universal milling, CNC turning, Laser cutting, Laser engraving, Cut-to-size service (sawing), Diamond polishing, Bending (linear heating machine)
- Materials
- Acrylic glass XT, Acrylic glass GS, POM, PET, ABS, PTFE, PS, PE
- Certificates
- DIN ISO 9001:2008, ISO 9001
- Founded
- 1968
- Industries
- Supplier industry
- 01
Design (CAD/CAM)
- 02
Cut-to-size blanks (sawing)
- 03
CNC milling
- 04
CNC turning
- 05
Laser cutting/engraving
- 06
Diamond polishing
- 07
Bending
- 08
Hot forming
- 09
Deep drawing
- 10
Bonding
- 11
Annealing
- 12
Assembly manufacturing
Materials and Processes
Acrylic glass XT and GS
For laser cutting, engraving and diamond polishing up to sheet length 3100 mm.
POM
Machinable technical thermoplastic for precision parts from milling, turning and laser processing.
PET
Laser-cut sheets for technical applications.
ABS
For laser cutting, forming and assemblies.
PTFE
High chemical resistance for technical finished parts.
PS
Laser-cut components.
PE
For cut-to-size blanks, laser processing and assemblies.
PP
Polypropylene for cut and formed components.
Thermoplastic Plastics
For hot forming, deep drawing, bending and annealing.
Thermosetting Plastics
Machinable thermosets for finished parts and assemblies.
MDF
Wood-based material for laser cutting and engraving.
Multiplex and Plywood
Wood-based materials for laser-cut components.
Klipphausen Site
Klipphausen
DEProduction and administration (company headquarters)
- Part weight / size
- up to 3050 x 2050 x 300 mm milling area
- Lot size
- Single pieces to series
- Materials
- Thermoplastics and thermosets, acrylic glass, POM, PET, ABS, PTFE, PS, PE, PP, wood-based materials
- CNC panel saw (cutting length up to 4200 mm)
- 2 panel saws
- Mitre band saw up to Ø 320 mm
- 2 CNC 3D machining centres (3050 x 2050 x 300 mm, SINUMERIK 840 D)
- Universal tool milling machine (400 x 300 x 400 mm)
- CNC universal lathe (swing diameter 400 mm, travel 700 mm)
- Precision lathe Weiler Praktikant
- Laser system 200 W (1300 x 1300 mm)
- Diamond polishing machine four-cutter PCD-MKD (up to 3100 mm)
- Linear heating machine (part length up to 3100 mm)
- Circulating air ovens for hot forming (up to 2000 x 1000 mm)
- Universal vacuum forming machine (800 x 600 mm, draw depth 200 mm)
- Threading, drilling and bending machines

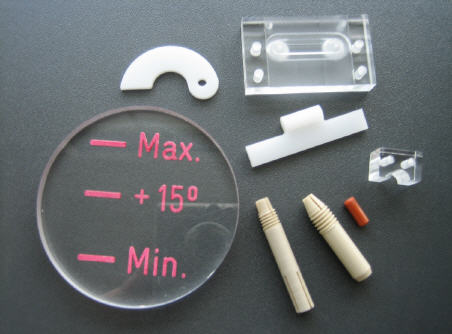

Plastic Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| CNC millingMachining | – | 3050 mm × 2050 mm × 300 mm | – | Single piece – Series | Thermoplastics, Thermosets |
| Universal millingMachining | – | 400 mm × 300 mm × 400 mm | – | – | Plastics |
| CNC turningMachining | – | 700 mm | – | – | Plastics |
| Laser cuttingMachining | – | 1300 mm × 1300 mm | – | – | Acrylic glass XT/GS, POM, PET, ABS, PTFE, PS, PE, PP, MDF, Multiplex, Plywood |
| Laser engravingSurface | – | 1300 mm × 1300 mm | – | – | Acrylic glass XT/GS, POM, PET, ABS, PTFE, PS, PE, PP, MDF, Multiplex, Plywood |
| Cut-to-size service (sawing)Machining | – | 4200 mm | – | – | Plastics |
| Diamond polishingSurface | – | 3100 mm | – | – | Acrylic glass, Thermoplastic plastics |
| Bending (linear heating machine)Forming | – | 3100 mm | – | – | Thermoplastic plastics |
| Hot forming / formingForming | – | 2000 mm × 1000 mm | – | – | Thermoplastic plastics |
| Deep drawing (vacuum forming)Forming | – | 800 mm × 600 mm × 200 mm | – | – | Thermoplastic plastics in sheet and film form up to |
| BondingJoining | – | – | – | – | Thermoplastic and thermosetting plastics, other materials |
| AnnealingHeat treatment | – | – | – | – | Plastics |
| Design (CAD/CAM)Engineering | – | – | – | – | – |
| ThreadingMachining | – | – | – | – | Plastics |
| DrillingMachining | – | – | – | – | Plastics |
| Manufacturing and assembly production to drawing/sketch/sampleAssembly | – | – | – | Single piece – Series | Thermoplastic and thermosetting plastics |
15 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| CNC panel saw | – | – | Cutting length up to 4200 mm | – | Klipphausen |
| Panel saw | Altendorf (possible) | 2 | – | – | Klipphausen |
| Mitre band saw | – | – | up to diameter 320 mm | – | Klipphausen |
| CNC 3D machining centre (milling machine) | – | 2 | 3050 x 2050 x 300 mm, control SINUMERIK 840 D | – | Klipphausen |
| Universal tool milling machine | EU RFU 22M (possible) | – | 400 x 300 x 400 mm | – | Klipphausen |
| CNC universal lathe | NEF 400 (possible) | – | Swing diameter 400 mm, travel 700 mm, spindle bore 65 mm, 65-4000 rpm, SINUMERIK 840 D | – | Klipphausen |
| Precision lathe | Weiler Praktikant | – | – | – | Klipphausen |
| Laser system (cutting and engraving) | – | 1 | 1300 x 1300 mm, 200 W, pass-through height 135 mm | 2006 | Klipphausen |
| Diamond polishing machine | Four-cutter PCD-MKD | – | Sheet length up to 3100 mm | – | Klipphausen |
| Linear heating machine (bending) | – | – | Part length up to 3100 mm, IR quartz emitters | – | Klipphausen |
| Circulating air ovens / special machines (hot forming) | – | – | up to 2000 x 1000 mm | – | Klipphausen |
| Universal vacuum forming machine (deep drawing) | – | 1 | Forming area 800 x 600 mm, draw depth 200 mm, thickness up to 5 mm, SIMATIC S7-200 | – | Klipphausen |
| Threading machines | – | – | – | – | Klipphausen |
| Drilling machines | – | – | – | – | Klipphausen |
| Bending machines | – | – | – | – | Klipphausen |
Additional services
Quality Assurance
Production is carried out under DIN ISO 9001:2008-certified quality management; PPS-controlled workflows and CAD/CAM manufacturing ensure dimensional accuracy from design to finished part.
| Evidence | Klipphausen |
|---|---|
| ISO 9001 |
Company History
- 1968
Foundation of Günter Naumann Kunststoffverarbeitung in Dresden.
- 1999
Generational change with renaming to Kunststofftechnik Naumann GmbH.
- 2001
Construction of the current company headquarters in Klipphausen.
- 2002
Expansion of the machine fleet with a second CNC milling machine.
- 2003
Introduction of a PPS system to control the entire operational workflow.
- 2006
Acquisition of a laser system for cutting plastics.
- 2007
Expansion with a CNC lathe with CAD/CAM system.
- 2015
Certification to DIN ISO 9001:2008.
