Full-service system supplier for sheet metal parts and assemblies: laser cutting, bending, welding and assembly from batch size 1.
LST Laser & Schalttechnik GmbH & Co. KG
Beuren (Linsenhofer Straße 65, 72660)New on Amplifa
About LST247
LST Laser & Schalttechnik GmbH & Co. KG (LST247) is an owner-managed full-service system supplier for sheet metal parts and sheet metal assemblies based in Beuren at the foot of the Swabian Alb. Founded in 1994 by Hans-Dieter Gugel, the family business, now in its second generation, manufactures custom sheet metal parts to drawing as a contract manufacturer – from laser blanks and bent parts to complex, ready-to-assemble welded assemblies. The process chain includes laser cutting (2D and 3D, 6-axis), bending and folding, mechanical machining, welding as a certified welding specialist shop according to ISO 3834-2, and surface treatment; finishing, heat treatment and further machining are carried out via a long-standing partner network. Materials processed include quality steel sheet up to 25 mm, stainless steel up to 20 mm and aluminium up to 10 mm in more than 35 grades, stocked in the fully automatic STOPA sheet metal warehouse with over 700 tonnes of inventory. Customers come from mechanical engineering, plant construction, automotive, automation technology, medical technology, electrical engineering and other industries – from batch size 1 via prototypes and small series through to large series with framework agreements, optionally with 24-hour express production and online quoting.
- Site
- Beuren
- Processes
- Laser cutting (2D), Bending & folding, Roll bending (3- and 4-roll roll bending machines), Mechanical machining (drilling, thread cutting, countersinking, reaming, chamfering, riveting,, Welding (MAG, MIG, TIG, stud welding, spot welding, hand-guided laser welding) and, 3D laser processing (6-axis, laser cutting and laser welding), Surface treatment: deburring, edge rounding, surface grinding,, Surface finishing via partner network: powder coating, wet painting, KTL coating,
- Materials
- Steel sheet (structural steel), Deep-drawing steel, Case-hardening steel, Spring steel, Weathering steel (Corten), Wear-resistant steel (cf. Hardox), Stainless steel sheet, Aluminium sheet (pure aluminium)
- Certificates
- ISO 9001:2015, ISO 14001, ISO 3834-2 (certified welding specialist shop), APZ 3.1 according to DIN EN 10204
- Founded
- 1994
- Employees
- 60+
- Industries
- Mechanical engineering, Plant construction, Automotive and vehicle manufacturing, Apparatus and vessel construction, Automation technology, Logistics and handling technology
- 01
Consulting, feasibility and potential analysis, CAD design
- 02
Material storage (fully automatic STOPA sheet metal warehouse)
- 03
Laser cutting 2D and 3D (6-axis)
- 04
Bending, folding, roll bending
- 05
Mechanical machining (drilling, tapping, milling, turning, riveting)
- 06
Surface treatment (deburring, tumble finishing, blasting)
- 07
Welding and assembly of subassemblies incl. procurement of standard parts
- 08
Quality assurance with inspection plans and APZ 3.1
- 09
Surface finishing via partner network
- 10
Logistics, picking and delivery (Europe-wide, 24h express)
Materials and Processes
Structural steel (steel sheet)
Versatile steel sheet up to 25 mm, among other things as bent parts for mechanical engineering.
Deep-drawing steel
For forming-intensive sheet metal parts with high requirements on drawability.
Case-hardening steel
For wear-stressed components with elaborate heat treatment.
Spring steel
For elastic bent and spring parts.
Weathering steel (Corten)
For components with weathering and rust protection requirements in outdoor applications.
Wear-resistant steel (cf. Hardox)
For heavily abrasively stressed components.
Stainless steel sheet
Corrosion-resistant and food-safe, up to 20 mm, among other things for food and medical technology.
Aluminium sheet (pure aluminium)
Light and robust, up to 12 mm, for weight-reduced designs.
Aluminium sheet (magnesium alloys)
For highest strength requirements at low weight.
Laser cutting (2D and 3D, 6-axis)
TRUMPF laser machines with up to 8000 W, tolerances according to DIN EN ISO 9013-2017, parts up to 3000 x 1500 x 500 mm.
Bending and folding
10 TRUMPF CNC press brakes with ACB laser sensors, bending lengths up to 4 m, tolerance at least DIN ISO 2768-m.

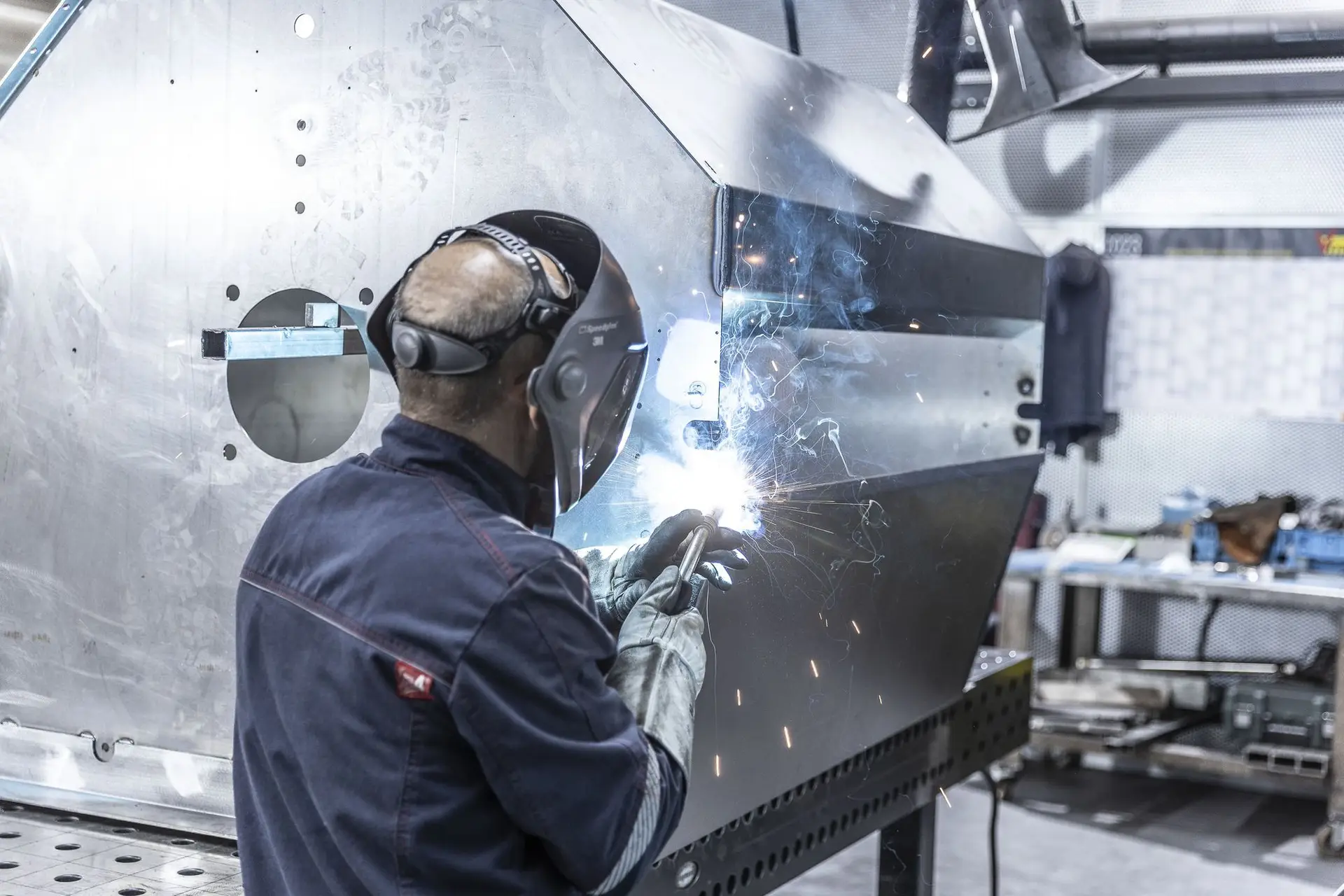

Welding (MAG, MIG, TIG, laser welding)
Certified welding specialist shop according to ISO 3834-2 for assemblies up to 5 t and overall dimensions up to 8–10 m.
Locations
Beuren
DEHeadquarters and production (6,000+ m² production area)
- Part weight / size
- Assemblies up to 5 t; 3D laser processing up to 250 kg
- Lot size
- Batch size 1 to large series
- Materials
- Steel sheet up to 25 mm, stainless steel up to 20 mm, aluminium up to 10 mm
- 4 TRUMPF laser machines (3x CO2, 1x fiber, 5000 W, 3000 x 1500 mm, warehouse-connected)
- 2 TRUMPF TruLaserCell CO2 (6-axis, up to 8000 W)

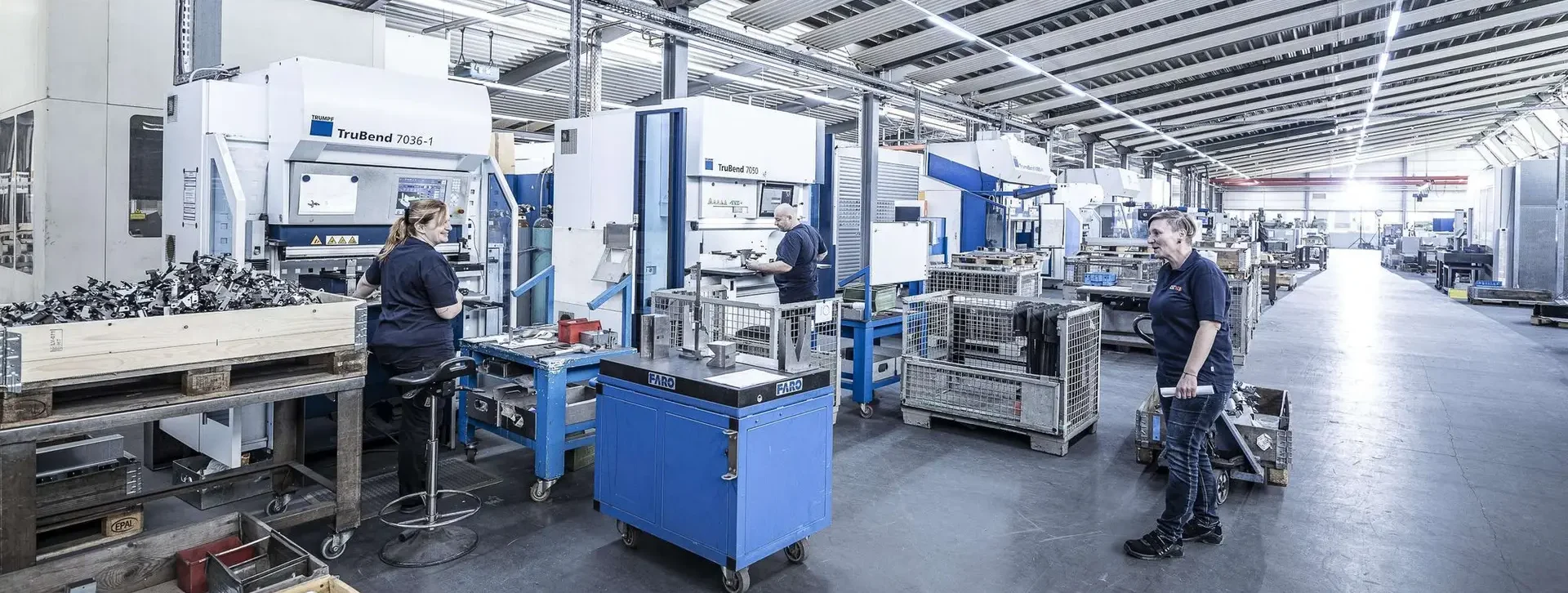

- 10 TRUMPF CNC press brakes (2300 kN, 4 m, ACB sensors)
- 1 fully automatic TRUMPF robotic bending cell
- 3-roll/4-roll roll bending machines (up to 1500 mm at 4 mm)
- 7 manual welding stations (MAG, MIG, TIG)
- 1 KUKA MAG welding robot
- 1 TRUMPF TruArcWeld 1000 welding cell
- Fully automatic STOPA sheet metal warehouse (600+ slots, 700+ t)
- Dry grinding, tumble finishing and blasting systems
- CNC 3-axis machining center, CNC thread-cutting center, conventional milling and turning machines
- 10 manual workstations
Components

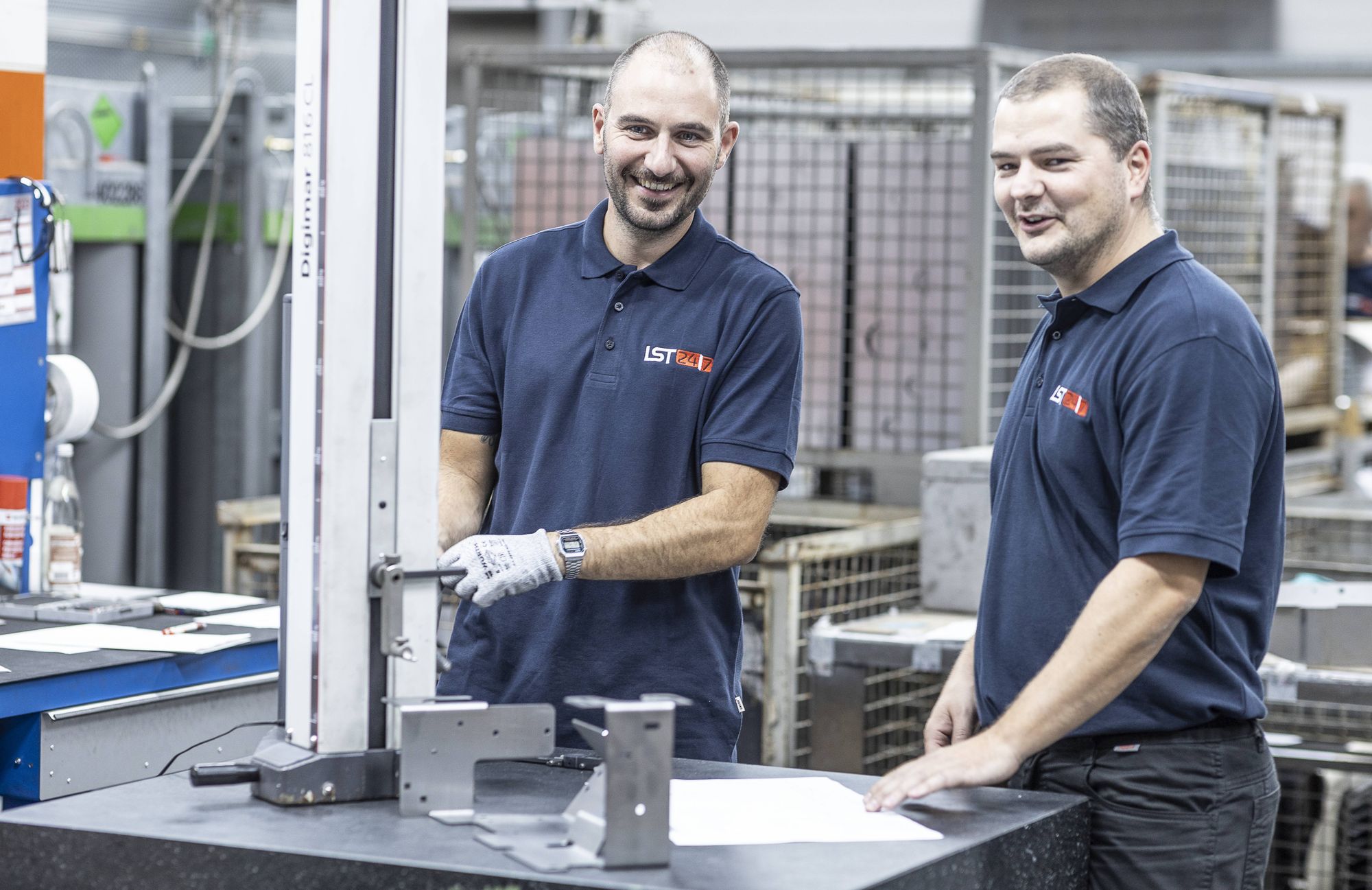

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Laser cutting (2D)Machining | Position deviation +/-0.1 mm (DIN EN ISO 9013-2017) | 3000 mm × 1500 mm | – | Batch size 1 | Structural steel, Stainless steel, Aluminium |
| Bending & foldingForming | at least DIN ISO 2768-m | 4000 mm | – | Batch size 1 | Structural steel, Stainless steel, Aluminium |
| Roll bending (3- and 4-roll roll bending machines)Forming | – | 1500 mm | – | – | Sheet up to 4 mm material thickness |
| Mechanical machining (drilling, thread cutting, countersinking, reaming, chamfering, riveting,Machining | per drawing specification | – | – | – | Structural steel, Stainless steel, Aluminium |
| Welding (MAG, MIG, TIG, stud welding, spot welding, hand-guided laser welding) andJoining | – | 8-10 m overall dimension × 1500 mm | 5 to. | – | Structural steel, Stainless steel, Aluminium |
| 3D laser processing (6-axis, laser cutting and laser welding)Machining | – | 3000 mm × 1500 mm × 500 mm | 250 kg | – | Stamped parts, Spin-formed parts, Deep-drawn parts, Housings, Tubes, CNC tube-bent parts |
| Surface treatment: deburring, edge rounding, surface grinding,Surface | – | – | – | – | Structural steel, Stainless steel, Aluminium |
| Surface finishing via partner network: powder coating, wet painting, KTL coating,Surface | – | – | – | – | Structural steel, Stainless steel, Aluminium |
| Heat treatment via partner network: hardening, annealingHeat treatment | – | – | – | – | Structural steel, Stainless steel, Aluminium |
| Cutting and marking (laser marking, needle embossing, stamp punching, electrolytic marking,Surface | – | – | – | – | Structural steel, Stainless steel, Aluminium |
| Assembly work / assembly of subassemblies (incl. procurement of purchased and standard parts,Assembly | – | – | – | – | Structural steel, Stainless steel, Aluminium |
| Design and development (CAD, design for manufacturability, assembly development,Engineering | – | – | – | – | – |
| Quality assurance: dimensional and functional inspection, leak testing of welded assemblies,Testing | – | – | – | – | – |
17 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| CO2 laser machine | TRUMPF | 3 | 3000 x 1500 mm, 5000 W laser power | – | Beuren |
| Fiber laser machine | TRUMPF | 1 | 3000 x 1500 mm, 5000 W laser power | – | Beuren |
| CNC press brake | TRUMPF | 10 | Max. press force 2300 kN, max. bending length 4 m, ACB (laser) bending sensors | – | Beuren |
| Robotic bending cell (fully automatic) | TRUMPF | 1 | – | – | Beuren |
| Roll bending machine (3- and 4-roll) | – | – | Bending width up to 1500 mm at 4 mm material thickness | – | Beuren |
| 6-axis laser processing system (3D laser cutting/welding) | TRUMPF TruLaserCell CO2 | 2 | 3000 x 1500 x 500 mm, up to 8000 W laser power, max. profile diameter 500 mm | – | Beuren |
| MAG welding robot | KUKA | 1 | – | – | Beuren |
| Welding cell | TRUMPF TruArcWeld 1000 | 1 | – | – | Beuren |
| Manual welding stations | – | 7 | max. part size 3000 x 1500 mm | – | Beuren |
| Dry grinding systems | – | 3 | 2 automatic and 1 manual system for deburring/edge rounding/surface grinding | – | Beuren |
| Tumble finishing systems (trowalizing) | – | 2 | – | – | Beuren |
| Systems for glass bead blasting, belt grinding, surface grinding, satin finishing and pickling | – | – | – | – | Beuren |

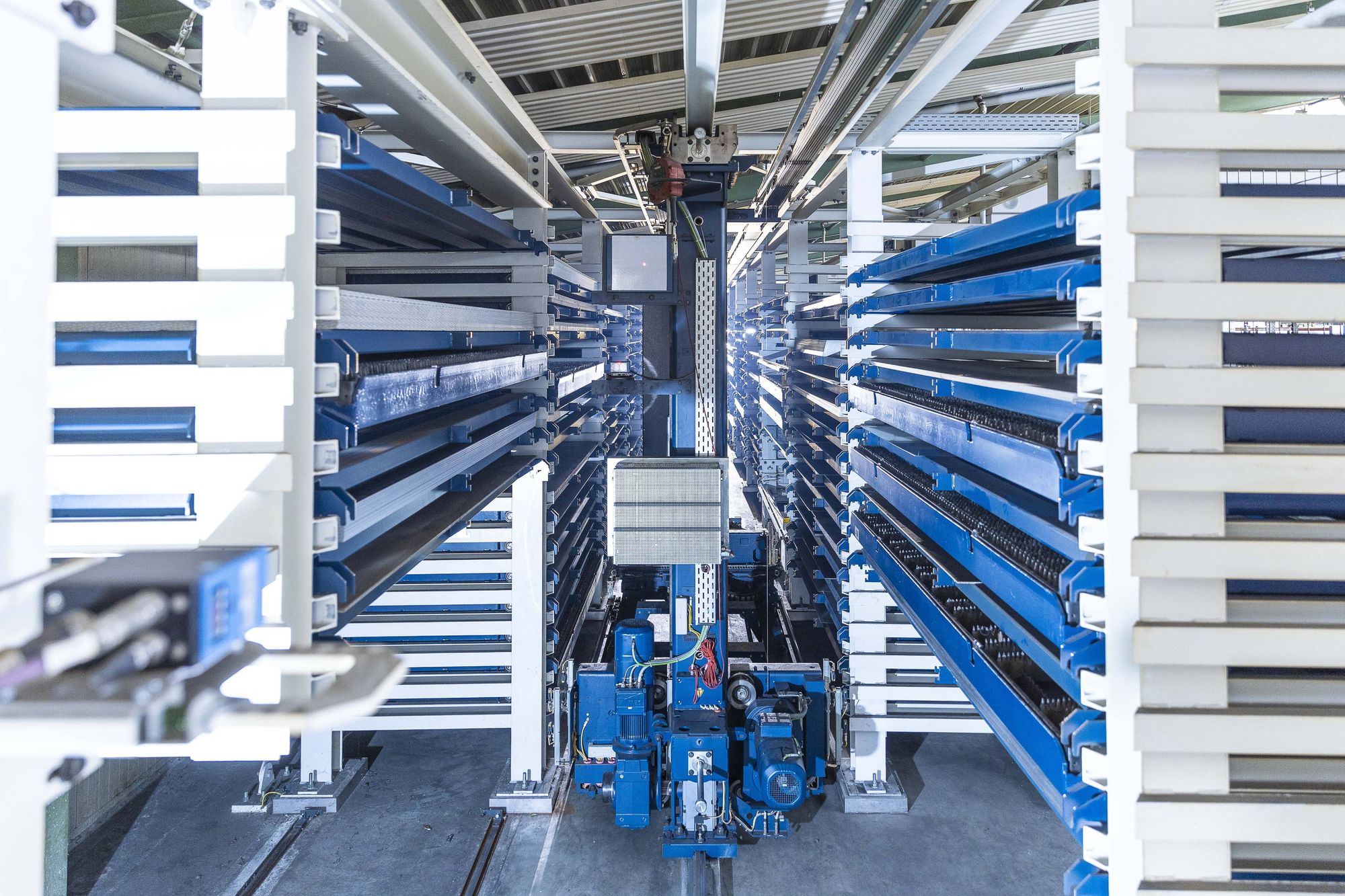

| Fully automatic sheet metal warehouse | STOPA | 1 | over 600 storage slots, over 700 t sheet stock | – | Beuren |
| CNC 3-axis milling machining center | – | 1 | – | – | Beuren |
| CNC thread-cutting machine / thread-cutting center | – | – | – | – | Beuren |
| Conventional milling and turning machines | – | – | – | – | Beuren |
| Manual workstations (pillar drilling machines, radial drilling machines, flexible | – | 10 | – | – | Beuren |
Additional services
Quality
Production follows a certified quality management system according to ISO 9001:2015 and ISO 14001 as well as the certified welding specialist shop according to ISO 3834-2. Services include extended dimensional and functional inspections, leak testing of welded assemblies, initial sample inspection reports, acceptance test certificates according to DIN EN 10204-3.1 and batch traceability back to the sheet metal manufacturer.
| Evidence | Beuren |
|---|---|
| ISO 9001:2015 | |
| ISO 14001 | |
| ISO 3834-2 (certified welding specialist shop) | |
| APZ 3.1 according to DIN EN 10204 |
History
- 1994
Founded by Hans-Dieter Gugel in Neuffen as a one-man company (LST Laser & Schalttechnik GmbH) in the premises of a former car repair shop.
- heute
Development into a full-service system supplier for sheet metal parts and assemblies; owner-managed family business in its second generation based in Beuren.
