About mb bergmann
mb bergmann GmbH is a contract manufacturer and special machinery builder based in Hösbach-Rottenberg with over 25 years of market experience and more than 2,000 completed projects. The company produces turned and milled parts for mechanical and plant engineering, the food and packaging machinery industry, the automotive sector, textile and electrical engineering, as well as medical and hydraulic technology. The value chain includes design (AutoCAD, SolidWorks, COSCOM, DELCAM), CNC turning, 3D and 5-axis milling, wire EDM, grinding, laser cutting of PKD/CVD/PCBN, vacuum brazing, shot blasting, pickling, sawing, 3D coordinate measurement, and the assembly of modules and special machines. Materials processed include steel, stainless steel, and cutting materials such as polycrystalline diamond, CVD diamond and PCBN. The modern, continuously expanded machine park enables prototypes such as the IAA wheel rim of an automotive supplier as well as series and assembly production. More than 50 percent of energy requirements are self-generated.
- Site
- Hösbach-Rottenberg
- Processes
- CNC milling / 3D milling, CNC turning, Grinding (cylindrical as well as surface and profile grinding), Wire EDM, Laser cutting of polycrystalline diamond (PKD), CVD and solid PCBN, Vacuum brazing of natural diamond, PKD, PCBN, CVD & cermet onto substrate materials, Shot blasting (injector blasting system, stainless steel only), Shot blasting (injector blasting system, steel only)
- Materials
- Stainless steel, Steel, Polycrystalline diamond (PKD), Natural diamond, CVD diamond, PCBN, Cermet
- Certificates
- 3D coordinate measurement (Zeiss SPECTRUM 700), ISO 9001 (stated: QM officially certified)
- Industries
- Mechanical and plant engineering, Food machinery, Packaging machinery, Automotive suppliers, Textile industry, Electrical engineering
- 01
Design (CAD/CAM)
- 02
Sawing
- 03
CNC turning
- 04

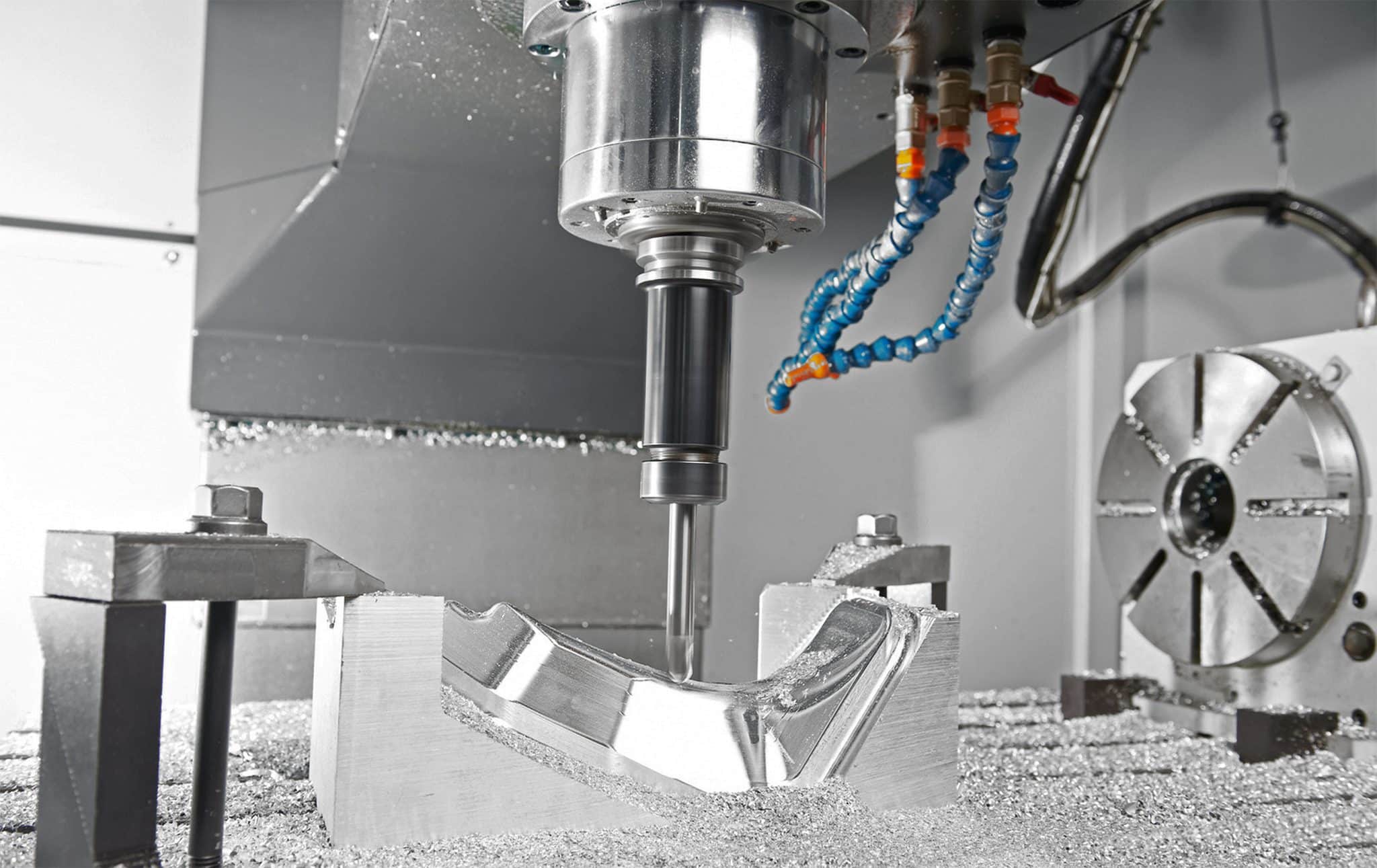

CNC milling (3D/5-axis)
- 05
Wire EDM
- 06
Laser cutting (PKD/CVD/PCBN)
- 07
Vacuum brazing
- 08
Grinding
- 09
Shot blasting / pickling
- 10
3D coordinate measurement
- 11
Assembly / module manufacturing
Materials & Processes
Steel
Machining and shot blasting (own injector blasting system exclusively for steel).
Stainless steel
Machining, shot blasting and pickling in the stainless steel blasting system and stainless steel pickling bath respectively.
Polycrystalline diamond (PKD)
Laser cutting of PKD blanks up to 3.2 mm thickness with a 100 W YAG laser without EDM burn-off edge.
CVD diamond
Laser-machinable cutting material for precision tools, cut on a 220×220 mm worktable.
PCBN
Solid PCBN cutting materials are precisely cut with a YAG laser.
Natural diamond
Brazed in high vacuum onto substrate materials (brazing chamber Ø140×285 mm, up to approx. 980 °C).
Cermet
Cemented-carbide-like cutting material for vacuum brazing onto substrate materials.
Locations

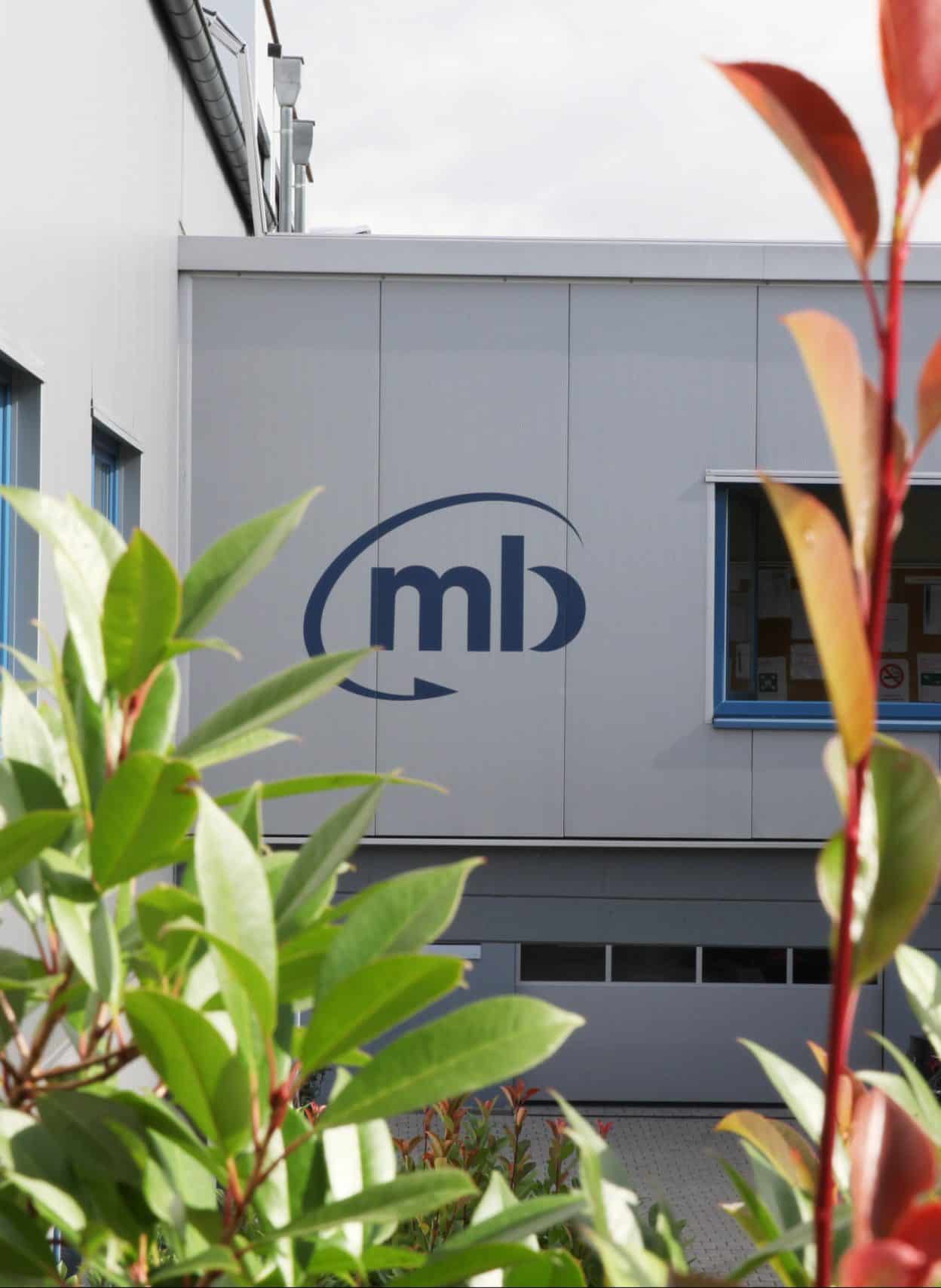

Hösbach-Rottenberg
DEHeadquarters, manufacturing, design and special machinery
- Part weight / size
- Milling up to 950×850×650 mm; EDM up to 1050×800×295 mm;
- Lot size
- Prototypes, small and medium series, assemblies
- Materials
- Steel, stainless steel, PKD, CVD diamond, PCBN, natural diamond, cermet
- DMG DMU 95 monoBLOCK / DMU 75 monoBLOCK
- Hermle C20U / C600 (5-axis)
- MT CUT U332F-5A 5-axis traveling-column machine
- Mikron VCE 1200 Pro
- Okuma LT2000-2T1MY turn-mill cell
- Gildemeister CTX 400 S / N.E.F. 320 K
- DMT CD480 CNC lathe
- Mitsubishi FA20-S Advance / Brother HS70 A wire EDM
- YAG laser cutting machine (PKD/CVD/PCBN)
- Vacuum brazing machine (Ø140×285 mm)
- ELB surface/profile grinding machine, MSO cylindrical grinding machine
- Zeiss SPECTRUM 700 coordinate measuring machine
- Kastro/Behringer band sawing machines
- MHG injector blasting systems, TOP-Acid pickling bath

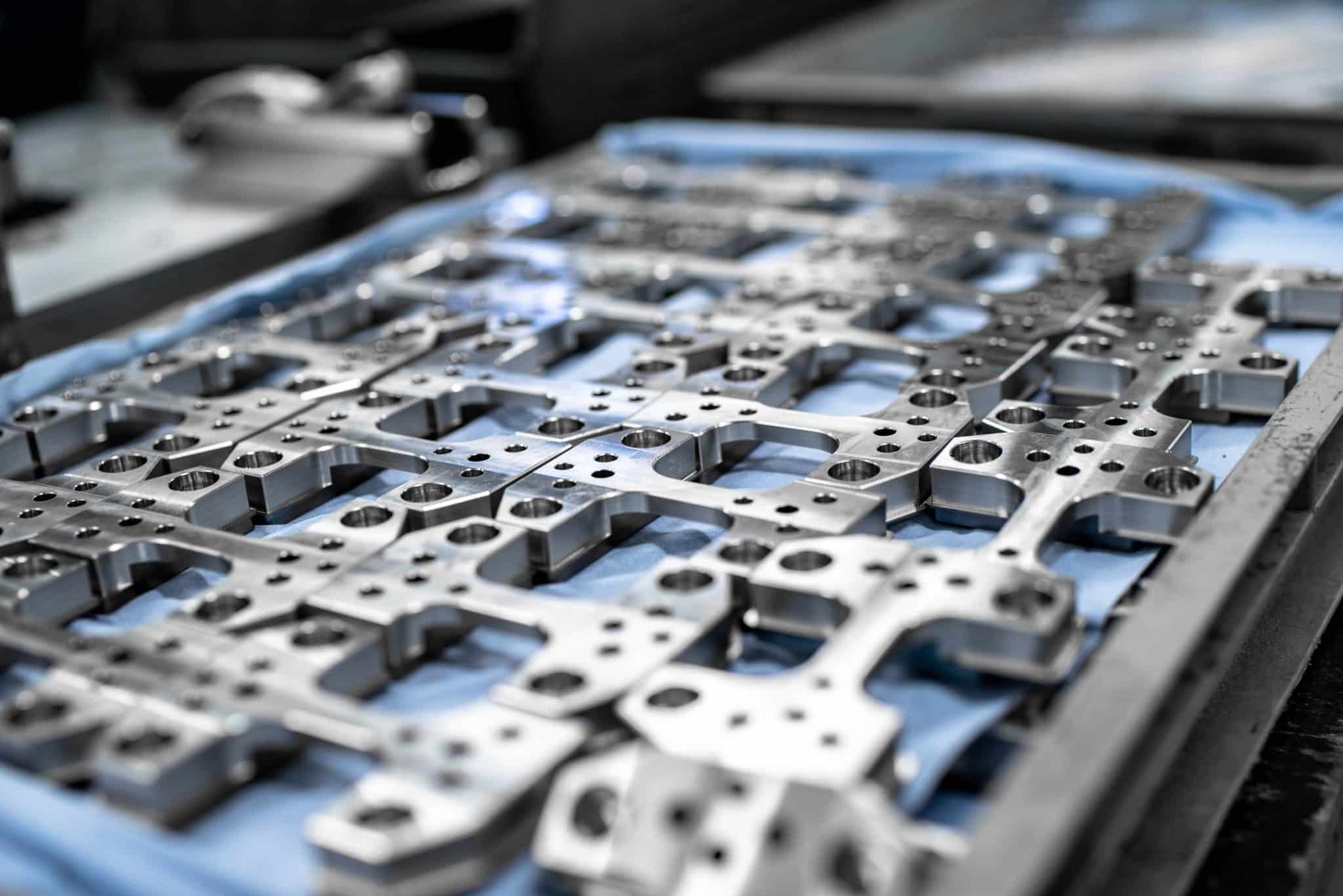

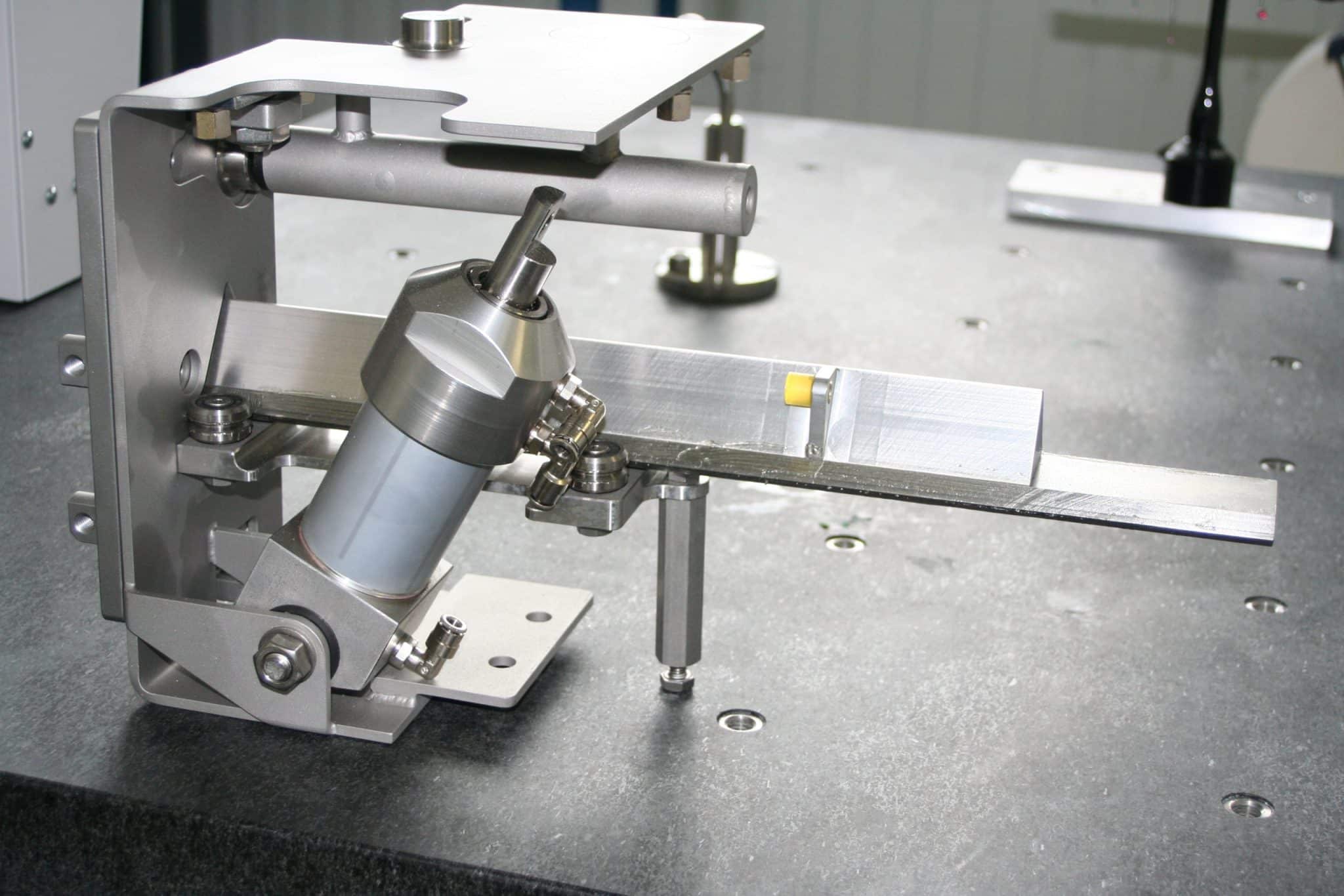

Manufactured Components

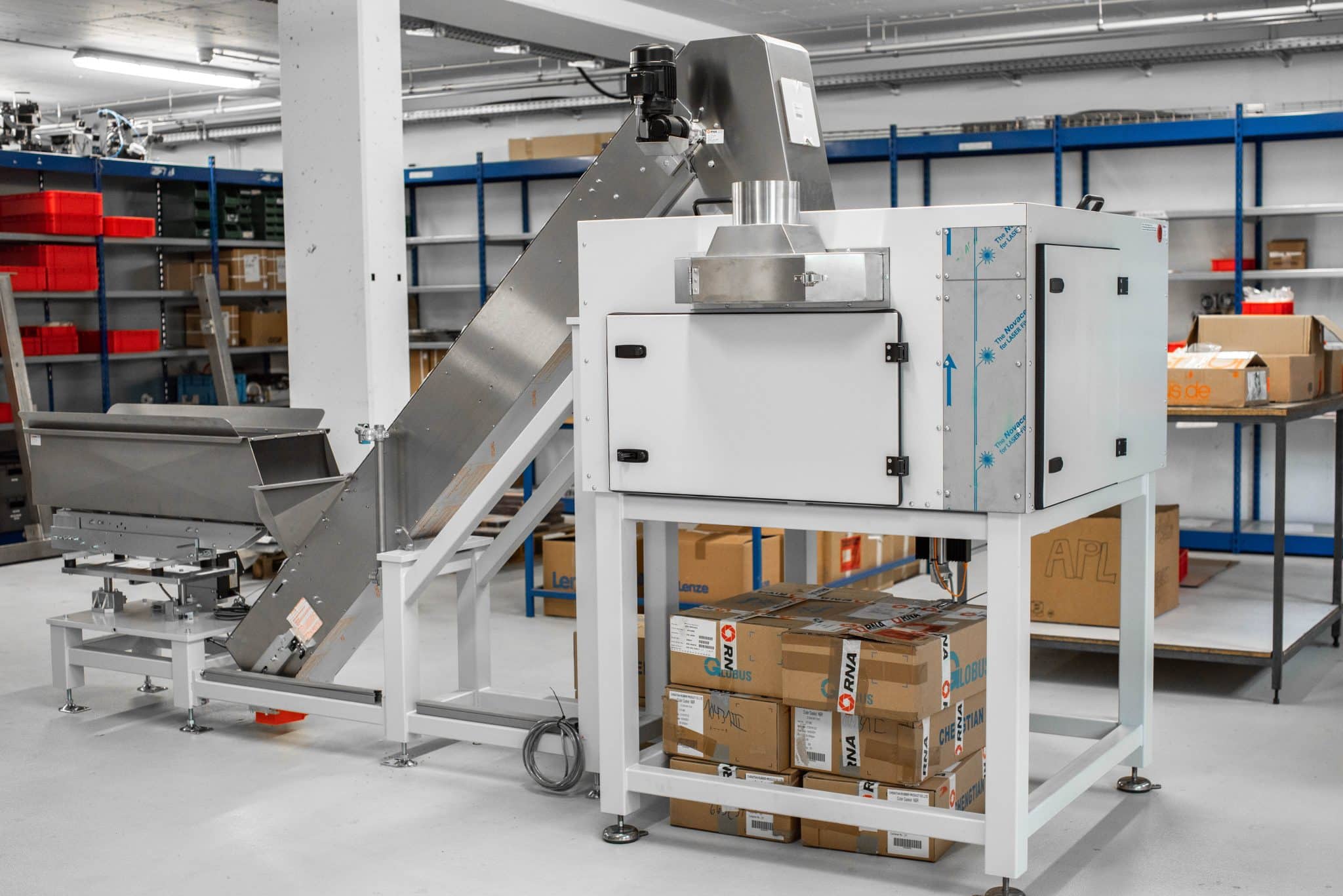

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| CNC milling / 3D millingMachining | – | 950 mm × 850 mm × 650 mm | – | – | – |
| CNC turningMachining | – | 130 mm | – | – | – |
| Grinding (cylindrical as well as surface and profile grinding)Machining | – | 1000 mm × 750 mm × 600 mm | – | – | – |
| Wire EDMMachining | – | 1050 mm × 800 mm × 295 mm | – | – | – |
| Laser cutting of polycrystalline diamond (PKD), CVD and solid PCBNMachining | – | 220 mm × 220 mm × 3.2 mm | – | – | Polycrystalline diamond (PKD), CVD diamond, PCBN, Cermet |
| Vacuum brazing of natural diamond, PKD, PCBN, CVD & cermet onto substrate materialsJoining | – | 285 mm × 140 mm | – | – | Natural diamond, PKD, PCBN, CVD, Cermet |
| Shot blasting (injector blasting system, stainless steel only)Surface | – | 1100 mm × 660 mm × 550-700 mm | – | – | Stainless steel |
| Shot blasting (injector blasting system, steel only)Surface | – | 650 mm × 450 mm × 300-550 mm | – | – | Steel |
| Pickling (stainless steel pickle in pickling tank, stainless steel only)Surface | – | 850 mm × 600 mm × 450 mm | – | – | Stainless steel |
| Sawing (band sawing machines)Machining | – | 520 mm × 440 mm | – | – | – |
| Metrology (3D coordinate measurement)Inspection | – | 700 mm × 1000 mm × 600 mm | – | – | – |
| Assembly / assembly manufacturingAssembly | – | – | – | – | – |
| Prototype and series productionMachining | – | – | – | – | – |

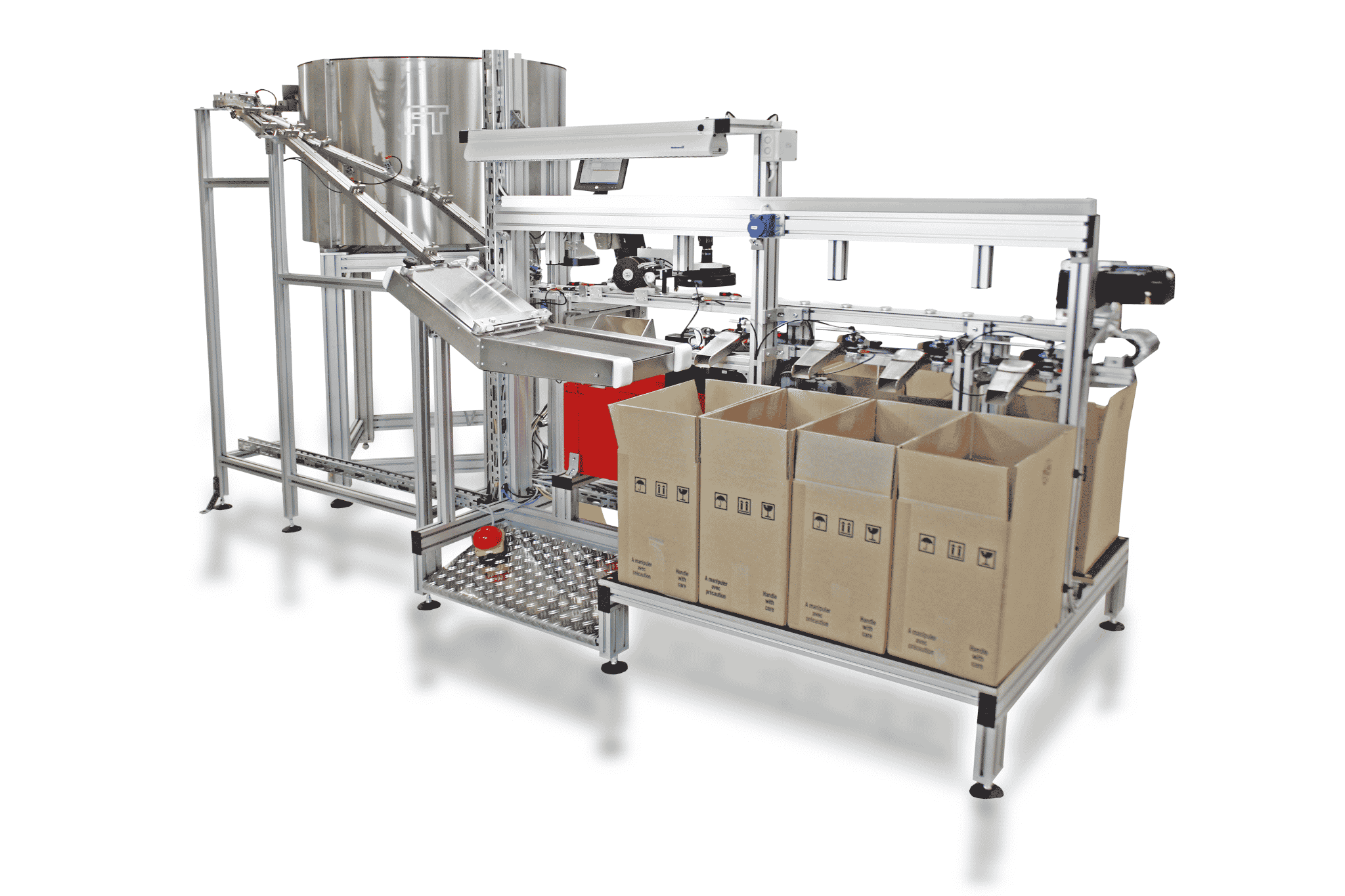

| Special machinery (food machinery, packaging machinery, conveying systems,Engineering | – | – | – | – | – |
| Design / CAD-CAM (AutoCAD, Solid Works, COSCOM 2D/3D, DELCAM)Engineering | – | – | – | – | – |
26 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|

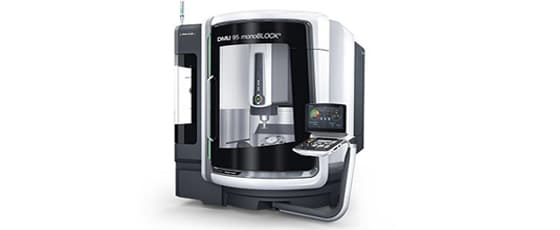

| Universal machining center | Maho (DMG) DMU 95 monoBLOCK | 1 | 950x850x650 mm | – | Hösbach-Rottenberg |
| Universal machining center | Maho (DMG) DMU 75 monoBLOCK | 1 | 750x650x560 mm | – | Hösbach-Rottenberg |

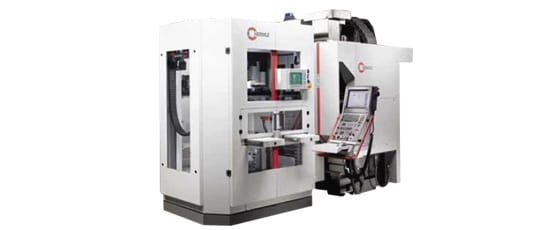

| 5-axis machining center | Hermle C20U | 1 | 600x450x450 mm | – | Hösbach-Rottenberg |
| 5-axis machining center | Hermle C600 | 1 | 600x450x450 mm | – | Hösbach-Rottenberg |
| Machining center | Mikron VCE 1200 Pro | 1 | 1200x600x675 mm | – | Hösbach-Rottenberg |
| Machining center | MT CUT MTcut V110 | 1 | 1100x610x610 mm | – | Hösbach-Rottenberg |
| 5-axis machining center (traveling column design) | MT CUT U332F-5A | 1 | 3320x760x760 mm | – | Hösbach-Rottenberg |

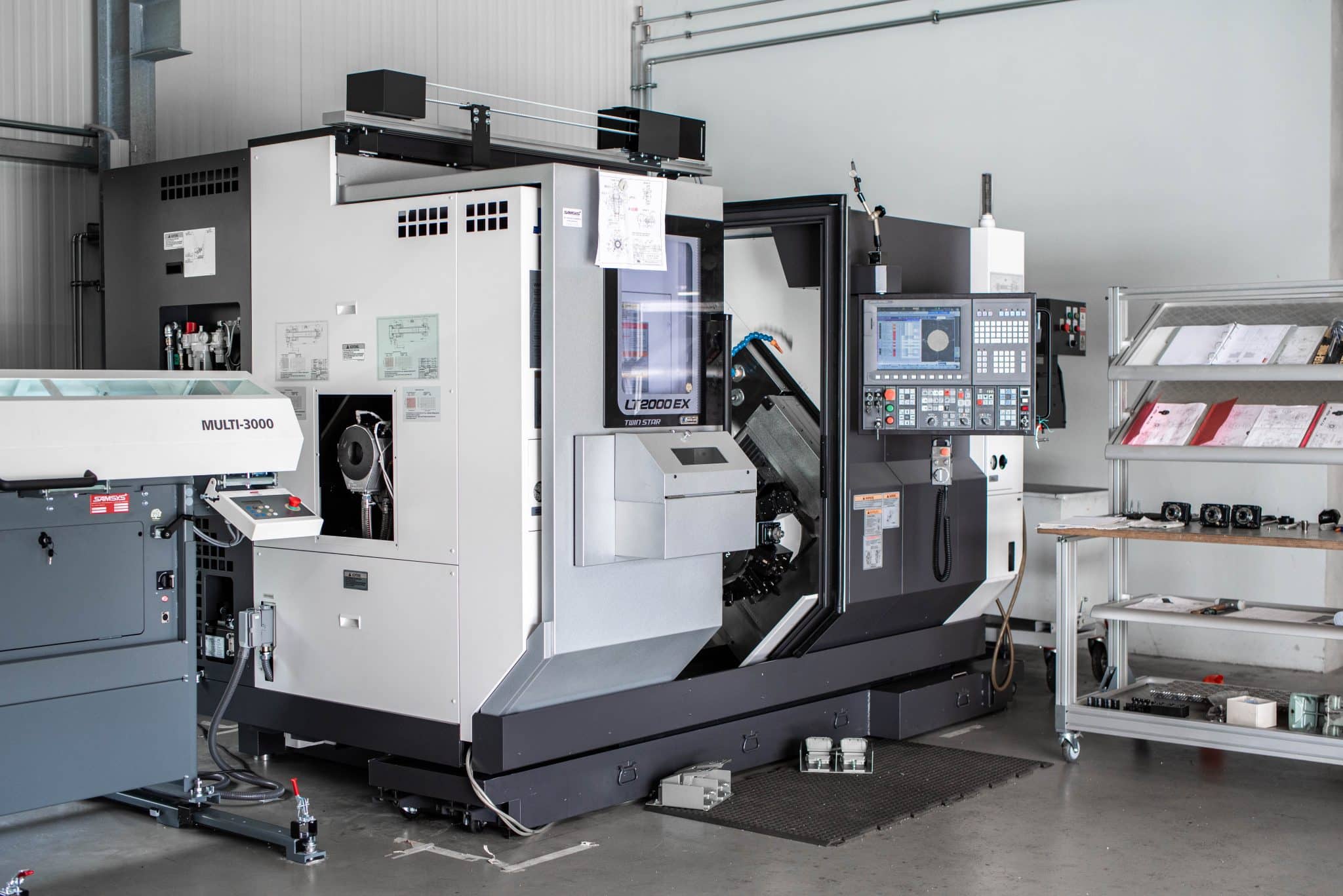

| Turn-mill machine | Okuma LT2000-2T1MY | 1 | Ø210 x 130 mm | – | Hösbach-Rottenberg |
| Lathe | Gildemeister N.E.F. 320 K | 1 | Swing over bed Ø320 mm, distance between centers 750 mm | – | Hösbach-Rottenberg |
| 2-axis universal lathe | Gildemeister CTX 400 S Serie 2 | 1 | Ø200x650 mm | – | Hösbach-Rottenberg |
| Precision lathe | Kern CD480 | 1 | Swing over bed Ø320 mm, distance between centers 1500 mm | – | Hösbach-Rottenberg |
| CNC universal lathe with Y-axis | MTRent MTcut T25SYMC | 1 | Ø250x558 mm | – | Hösbach-Rottenberg |
| CNC lathe | DMT CD480 | 1 | Swing over bed Ø475 mm, turning length 1250 mm | – | Hösbach-Rottenberg |
| Wire EDM machine | Mitsubishi FA20-S Advance | 1 | 1050x800x295 mm, table 500x350x300 mm | – | Hösbach-Rottenberg |
| Wire EDM machine | Brother HS70 A | 1 | 580x350x170 mm, max. 350 kg | – | Hösbach-Rottenberg |

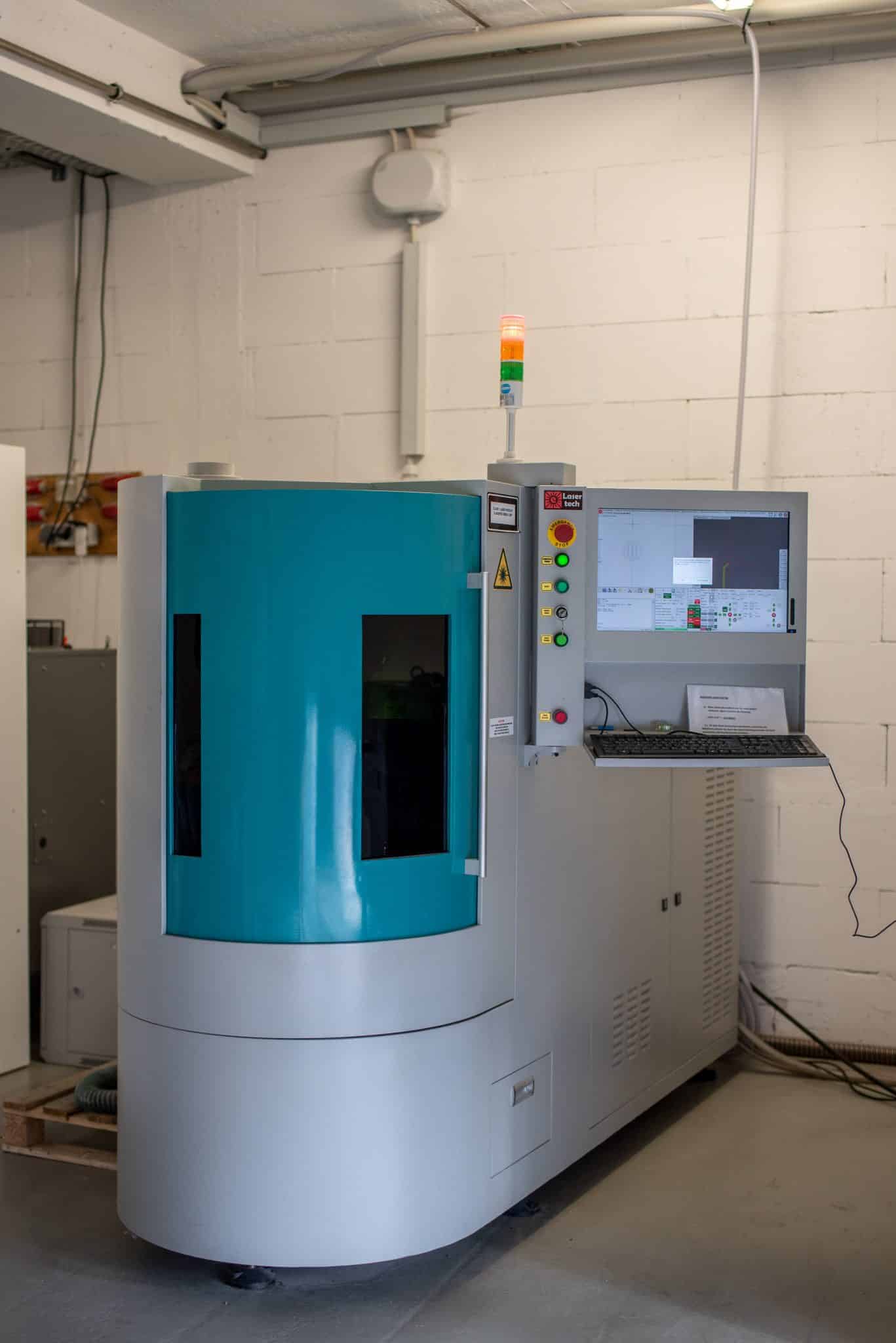

| Laser cutting machine (100W YAG laser for PKD/CVD/PCBN) | – | 1 | Worktable 220x220 mm, max. thickness 3.2 mm | – | Hösbach-Rottenberg |

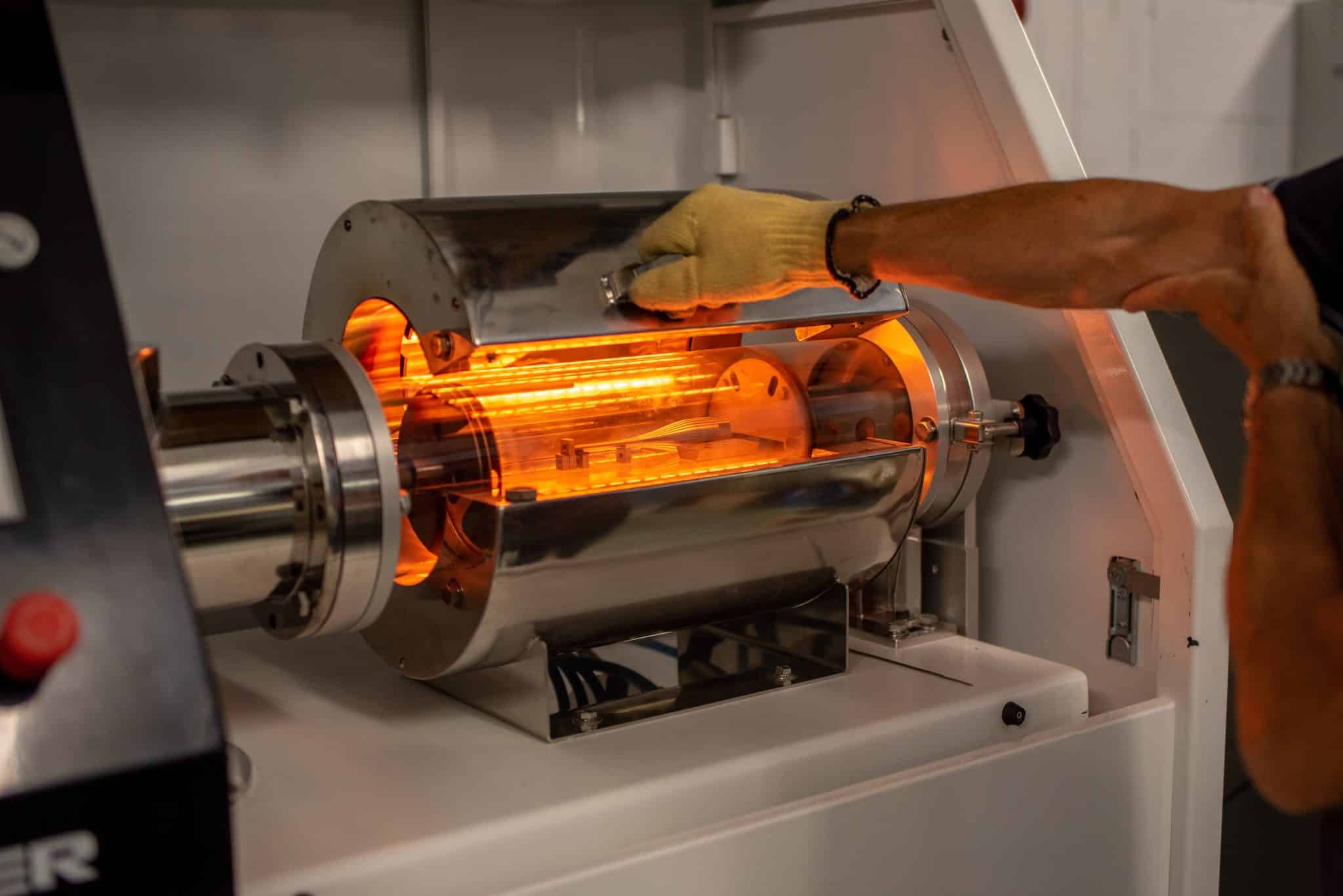

| Vacuum brazing machine | – | 1 | Brazing chamber Ø140 x 285 mm, max. approx. 980°C | – | Hösbach-Rottenberg |
| Injector blasting system (stainless steel only) | MHG SMG 45 DUST-EX Kompakt | 1 | 1100x660x550-700 mm | – | Hösbach-Rottenberg |
| Injector blasting system (steel only) | MHG SMG 25-FMB35 | 1 | 650x450x300-550 mm | – | Hösbach-Rottenberg |
| Band sawing machine | Kastro KASTROtwin A4x5 | 1 | 520x440 mm / Ø440 mm | – | Hösbach-Rottenberg |
| Band saw with automatic bar feed | Behringer HBP263A | 1 | Ø270 mm | – | Hösbach-Rottenberg |
| Coordinate measuring machine | Zeiss SPECTRUM 700 | 1 | 700x1000x600 mm | – | Hösbach-Rottenberg |
| Cylindrical grinding machine (internal/external) | MSO | 1 | Ø300x750 mm | – | Hösbach-Rottenberg |
| High-precision surface and profile grinding machine | ELB Perfekt BD 10/750 SPS-NK | 1 | 1000x750x600 mm | – | Hösbach-Rottenberg |
| Pickling bath (stainless steel pickle) | TOP-Acid | 1 | max. 850x600x450 mm | – | Hösbach-Rottenberg |
| CAD/CAM workstations (AutoCAD, Solid Works, COSCOM 2D/3D, DELCAM) | – | – | – | – | Hösbach-Rottenberg |
Additional services
Reference customers
Quality & Metrology

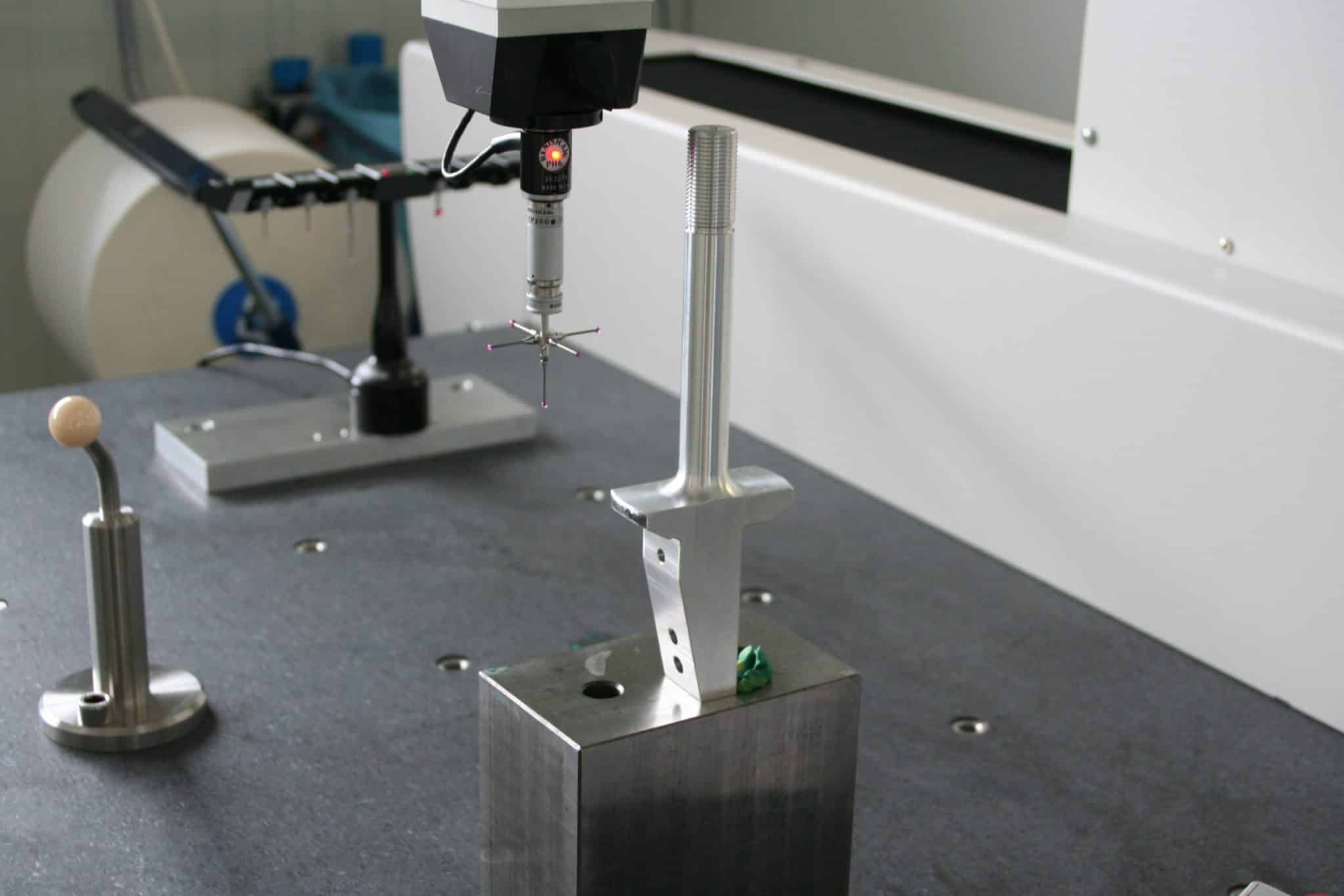

Production is inspected by 3D coordinate measurement on a Zeiss SPECTRUM 700 (travel range 700×1000×600 mm). According to the company, products are manufactured with certification.
| Evidence | Hösbach-Rottenberg |
|---|---|
| 3D coordinate measurement (Zeiss SPECTRUM 700) | |
| ISO 9001 (stated: QM officially certified) |
Company History
Founding of mb bergmann GmbH; active in the market for over 25 years.

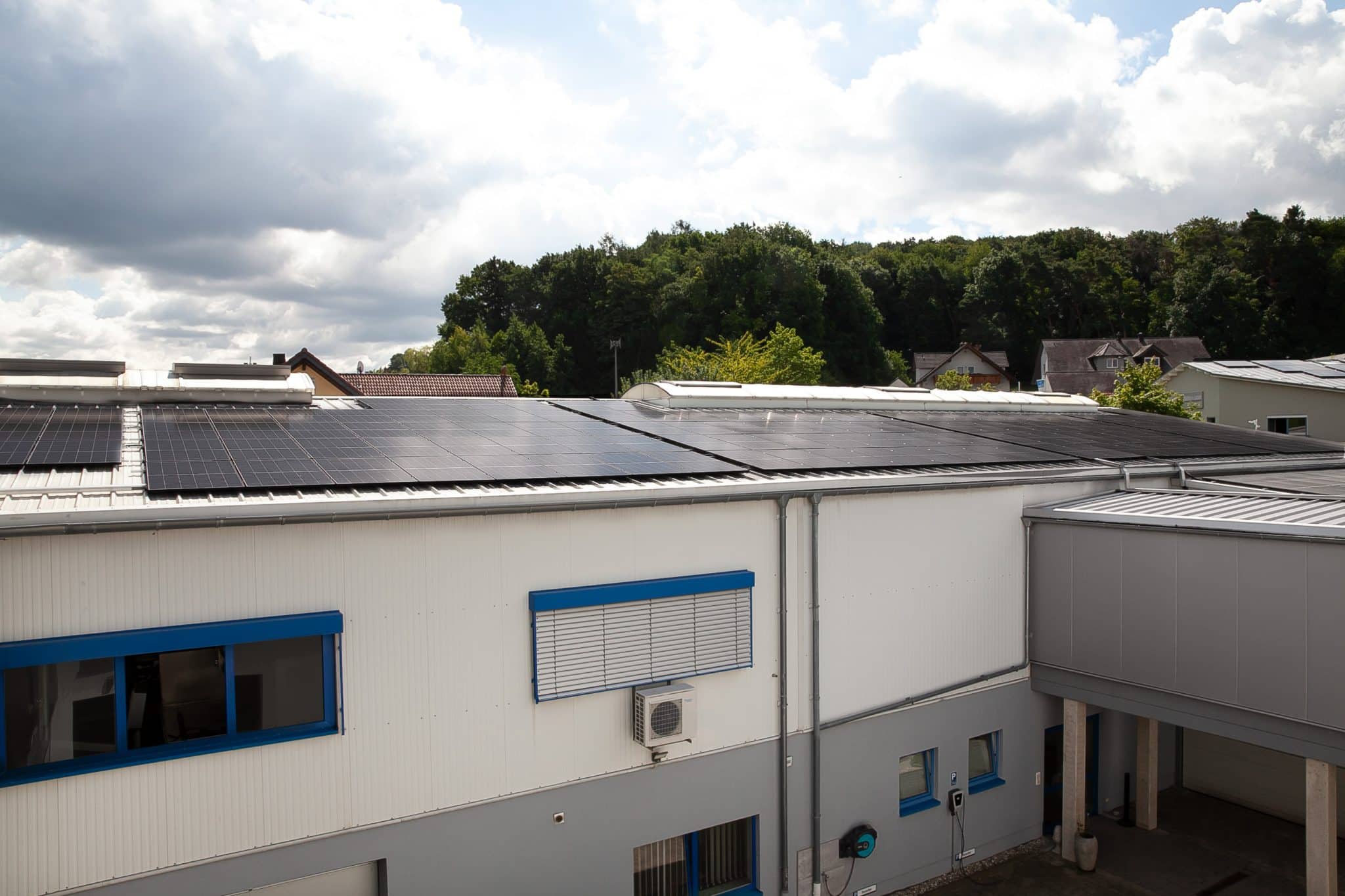

More than 2,000 projects successfully completed; switch to largely self-generated electricity (>50% of energy requirements).
