Fine mechanical master workshop for CNC turned parts, laser processing, assemblies and CAD design
Mechanische Werkstatt Lothar Günther Inh. Tilo Günther e.K.
01773 Altenberg (Bärenstein district), SaxonyNew on Amplifa
About Us
Mechanische Werkstatt Lothar Günther is a fine mechanical master workshop founded in 1990, based in Altenberg (Bärenstein district) in the Eastern Ore Mountains, near the watchmaking town of Glashütte and not far from Dresden. The family business produces CNC turned parts on sliding-headstock lathes up to Ø 16 mm (lot sizes from 500 pieces) as well as turning work on machine tools up to Ø 50 mm. Further services include 5-axis laser processing (marking, engraving, micro-welding/-drilling/-cutting up to 400 mm travel length), drilling and tapping, sheet metal and punching work up to 1.5 mm, mechanical processing of plastics, and the assembly of individual parts into small assemblies, including CAD design. Production is carried out in machinable metals — including stainless steel — and plastics, primarily for measurement and control technology, electronics, optics, telecommunications, aerospace as well as precision engineering and medical technology. With the Uni Scriber (Unireißer), the company also develops its own product with utility model protection.
- Site
- Altenberg (Bärenstein district)
- Processes
- Turning work on CNC sliding-headstock lathes (CNC turned parts), Laser processing on 5 axes (engraving, marking, micro-welding/-drilling/-cutting), Drilling and tapping, Turning work on machine tools, Sheet metal and punching work, Mechanical processing of plastics, Completion of individual parts into small assemblies (device manufacturing/assemblies), CAD design
- Materials
- Metals (machinable), Plastics, Stainless Steel, Machinable Metals
- Founded
- 1990
- Industries
- Measurement and Control Technology, Electronics, Optics, Telecommunications, Aerospace, Precision Engineering
- 01
CAD Design
- 02
CNC Turning
- 03
Drilling and Tapping
- 04
Laser Processing
- 05
Sheet Metal and Punching Work
- 06
Assembly into Assemblies
Materials and Processes
Machinable Metals
Base materials for CNC turned parts and assemblies in precision engineering and devices.
Stainless Steel
Used, for example, for products such as the Uni Scriber (angle) with a smooth, flat back-surface design.
Plastics
Mechanical processing up to Ø 50 mm; also laser-markable.
Sites
Bärenstein (Altenberg)
DECompany headquarters and production
- Lot size
- from 500 pieces (sliding-headstock lathe)
- Materials
- Machinable metals, plastics
- CNC sliding-headstock lathe STAR SA16-RC (up to Ø 16 mm)
- CNC sliding-headstock lathe STAR SB16-C (up to Ø 16 mm, C-axis, 35 m rapid traverse)
- CNC turning machine RD 250-S8
- 5-axis laser processing machine (1.064 µm, 65 W, up to 400 mm)

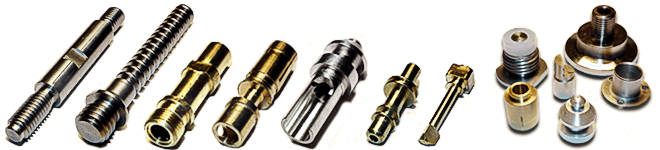

Parts
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Turning work on CNC sliding-headstock lathes (CNC turned parts)Machining | – | 16 mm diameter | – | 500 pieces | Metals, Plastics |
| Laser processing on 5 axes (engraving, marking, micro-welding/-drilling/-cutting)Surface | Repeatability 0.01 mm | 400 mm travel length | – | – | Metals, Plastics |
| Drilling and tappingMachining | – | – | – | – | Metals, Plastics |
| Turning work on machine toolsMachining | – | 50 mm diameter | – | – | Metals, Plastics |
| Sheet metal and punching workForming | – | 1.5 mm sheet thickness | – | – | Metals |
| Mechanical processing of plasticsPlastics | – | 50 mm diameter | – | – | Plastics |
| Completion of individual parts into small assemblies (device manufacturing/assemblies)Assembly | – | – | – | – | – |
| CAD designEngineering | – | – | – | – | – |
4 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| CNC sliding-headstock lathe | STAR SA16-RC | – | up to Ø 16 mm | – | Bärenstein |
| CNC sliding-headstock lathe | STAR SB16-C | – | up to Ø 16 mm, 35 m rapid traverse, C-axis | – | Bärenstein |
| CNC turning machine | RD 250-S8 | – | – | – | Bärenstein |
| 5-axis laser processing machine | TRUMPF (according to website) or Rofin-Sinar (according to PDF/EN page) | – | up to 400 mm travel length, beam source 1.064 µm, 65 watt solid-state laser | – | Bärenstein |
Additional services
History
- 1990
Founding of Mechanische Werkstatt Lothar Günther by Lothar Günther in Lauenstein (Saxony) on January 1
Relocation of the company headquarters to the newly built residential and commercial building in Bärenstein, based there for over 32 years
