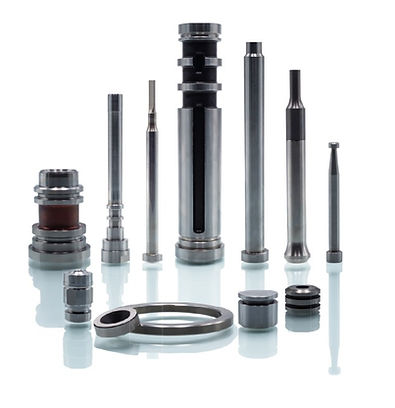

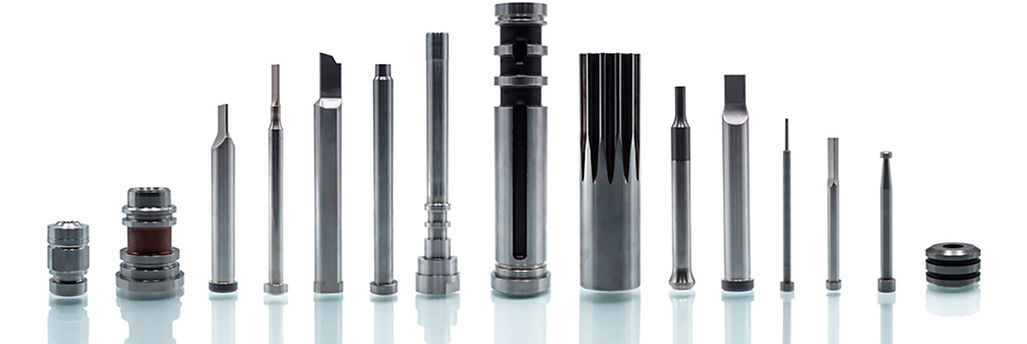

Standard components for mould and stamping tool making as well as CNC contract manufacturing of precision parts to drawing.
Pieper Normteile GmbH
KenzingenNew on Amplifa
About Pieper Normteile

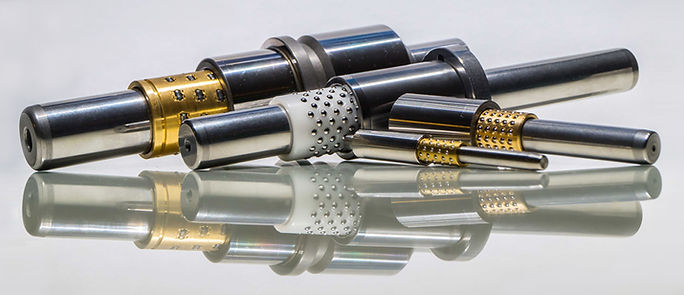

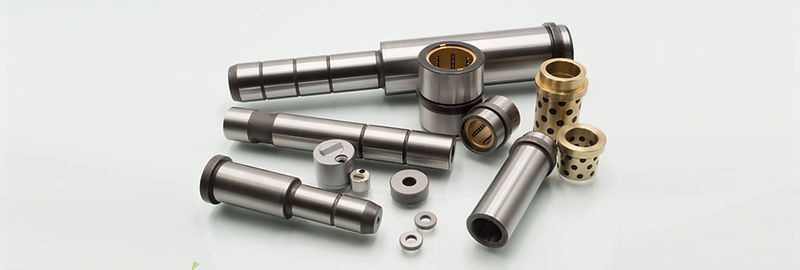

Pieper Normteile GmbH, headquartered in Kenzingen (Baden-Württemberg), is a supplier of standard mould bases and standard components for mould making, stamping tool making, jig and fixture construction and mechanical engineering, and specialises in CNC contract manufacturing of precision parts to drawing. The product range includes ejector pins, ejector sleeves, guide elements, cutting and piercing punches, springs, gas springs, temperature control elements and connecting elements; the standard components are 1:1 interchangeable with Hasco, Meusburger, Fibro and Steinel products. Complete manufacturing to drawing ranges from material procurement through CNC turning and milling, drilling, grinding and EDM to heat treatment, coating (PVD/CVD, DLC) and marking. Manufacturing takes place in the company's own network of certified production companies with machines from manufacturers such as Hermle, Mazak, Studer, Agathon, Mitsubishi and Sodick. Customers come from the automotive, electrical engineering, medical technology, mechanical engineering, mould and tool making and automation technology sectors.
- Site
- Kenzingen
- Processes
- CNC turning, CNC milling, Drilling (incl. deep-hole drilling), Grinding (cylindrical, surface, profile, form grinding and more), Sinker and wire EDM, Heat treatment (vacuum hardening, induction hardening, plasma nitriding, oxidising, tempering), Surface finishing (polishing, lapping, blasting, laser marking, engraving), Coating (PVD/CVD hard material coatings, DLC)
- Materials
- X155CrMo12 (cold work steel), X40CrMoV5-1 (hot work steel), X5CrNi18-10 (stainless steel), 100Cr6, HS6-5-2 (high-speed steel), Powder metallurgical steel, Carbide, Engineering plastics (PA, POM, PTFE, PEEK)
- Certificates
- ISO 9001:2015
- Founded
- 1994
- Industries
- Mould making, Stamping tool making, Tool making, Jig and fixture construction, Mechanical engineering, Automotive
- 01
Enquiry and technical review
- 02
Material procurement
- 03
CNC turning and milling
- 04
Drilling, grinding, EDM
- 05
Heat treatment
- 06
Surface treatment and coating
- 07
Marking and engraving
- 08
Quality control and documentation
- 09
Packaging and shipping
Materials and Processes
X155CrMo12 (cold work steel)
Wear-resistant cold work steel for cutting punches, dies and tool components.
X40CrMoV5-1 (hot work steel)
Hot work steel for mould inserts and cores in mould making and die casting.
X5CrNi18-10 (stainless steel)
Corrosion-resistant stainless steel for components in industry and medical technology.
100Cr6
Rolling bearing steel for precise, highly stressed components such as bolts and pins.
HS6-5-2 (high-speed steel)
High-speed steel for punches and cutting elements with high wear resistance.
Powder metallurgical steel
PM steels such as Vanadis and ASP for the highest demands on wear resistance and toughness.
Carbide
Carbide grades for filigree contours and highly wear-resistant tool components.
Engineering plastics (PA, POM, PTFE, PEEK)
Plastics for low-friction, non-conductive or weight-optimised components.
Ceramics
Zirconia ceramics for wear- and temperature-stressed applications.
Aluminium
Lightweight, easily machinable aluminium alloys for turned and milled parts.
Brass and copper
Materials with good conductivity for precise electrically conductive components.
Titanium
Lightweight, corrosion-resistant special material for demanding applications.
Location
Kenzingen
DEHeadquarters, sales, standard parts warehouse and coordination of complete manufacturing via a certified partner network
- Lot size
- Single piece to large series
- Materials
- Steel, stainless steel, aluminium, brass, copper, plastic, carbide, ceramics, castings
- CNC turning centres (including Mazak, Fanuc, Rollomatic, Ewamatic)
- Machining centres (including Hermle, Mikron, Makino)
- Grinding machines (including Studer, Agathon, Kellenberger, Ziersch, Tschudin, Mikrosa)
- EDM machines (Mitsubishi, Sodick, Agie Charmilles)
- Measuring machines (Benzinger)
- Honing machines (Sunnen)
- Laser/punching machines (Amada)
Components and Products

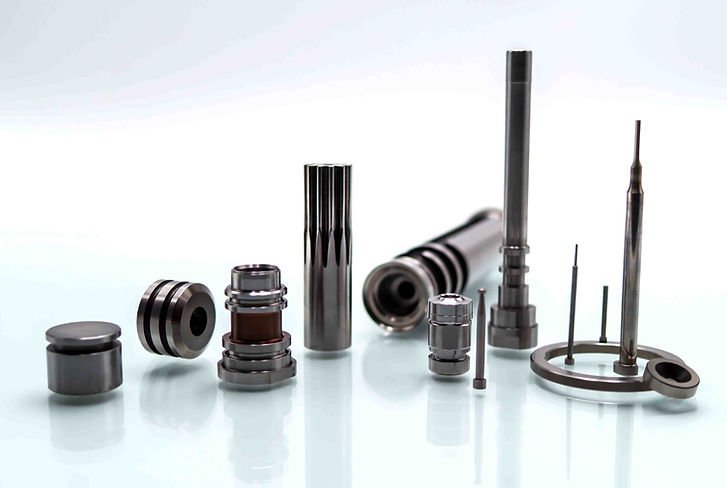

Inside the production
Industries
20 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Grinding machine | Agathon | – | – | – | Partner network |
| Grinding machine | Kellenberger (Kellenberg) | – | – | – | Partner network |
| Grinding machine | Klingenberg | – | – | – | Partner network |
| EDM machine | Mitsubishi | – | – | – | Partner network |
| EDM machine | Sodick | – | – | – | Partner network |
| Milling machine / Machining centre | Mikron | – | – | – | Partner network |
| Machining centre | Makino | – | – | – | Partner network |
| Grinding machine | Studer | – | – | – | Partner network |
| Lathe | Mazak | – | – | – | Partner network |
| Measuring machine | Benzinger | – | – | – | Partner network |
| Lathe | Ewamatic | – | – | – | Partner network |
| Honing machine | Sunnen | – | – | – | Partner network |
| Lathe | Fanuc | – | – | – | Partner network |
| Milling machine | Hermle | – | – | – | Partner network |
| Grinding machine | Mikrosa | – | – | – | Partner network |
| Lathe (long turning) | Rollomatic | – | – | – | Partner network |
| Grinding machine | Ziersch | – | – | – | Partner network |
| EDM machine | Agie Charmilles | – | – | – | Partner network |
| Laser/punching machine | Amada | – | – | – | Partner network |
| Grinding machine | Tschudin | – | – | – | Partner network |
Additional services
Quality
Pieper Normteile is certified to ISO 9001:2015 and inspects components in 2D and 3D using modern measuring and testing equipment with a maximum deviation of approx. 0.002 mm; inspection reports, material certificates as well as regular structural and batch checks are available.
| Evidence | Kenzingen |
|---|---|
| ISO 9001:2015 |
History
- 1994
Pieper Normteile founded by Michael Pieper.
- 2010
Angelika Horn takes over the management.
