Machining of large turned parts up to 2200 mm diameter – turning, milling, boring mill work and drilling as single parts and small series.
Pohl Groß-Drehteile KG
Schönaich (Porschestr. 1, administration and production)New on Amplifa
About Pohl Groß-Drehteile
Pohl Groß-Drehteile KG is an owner-managed family business in Schönaich (Baden-Württemberg) with over 40 years of experience in machining for trades and industry. The core competence lies in the machining of large turned parts with diameters up to 2200 mm and a maximum machining length of approx. 2500 mm. Turning, milling, boring mill and drilling work is offered on manual and CNC-controlled machines, both as single parts and in small series. All machinable materials are processed. Based on customer drawings, the skilled staff create the production programs; on request, the company also takes on metalworking and welding work, management of external machining as well as collection and delivery with its own truck. Administration and production are located at the headquarters in Schönaich, which enables short distances and direct coordination.
- Site
- Schönaich
- Processes
- Turning (large parts, diameters up to 2200 mm), Milling, Boring mill work (boring mills: drilling, milling, internal boring, 2-D contours), Drilling (manual and NC-controlled), Metalworking work, Welding work, Series production / small series, Turning (up to 2200 mm diameter)
- Materials
- All machinable materials
- Industries
- Trades, Industry (all sectors), Industry (general, all sectors)
- 01
Programming based on customer drawing
- 02

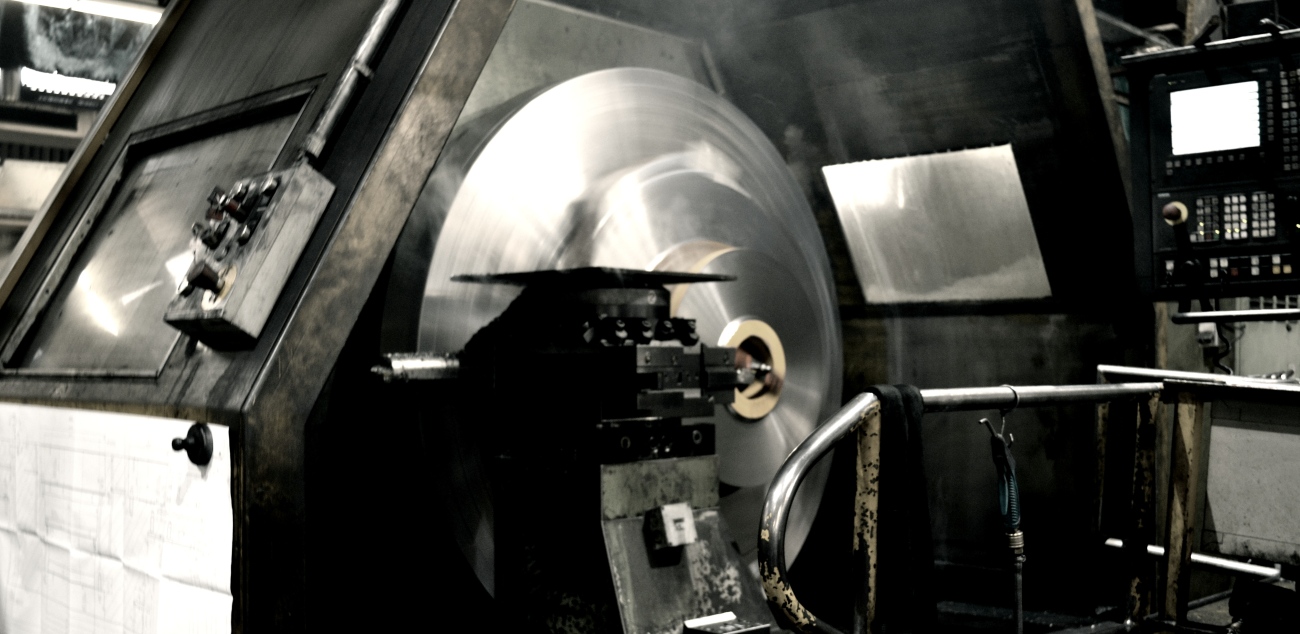

Turning
- 03
Milling
- 04
Boring mill work
- 05
Drilling
- 06
Metalworking and welding work
- 07
External machining management
- 08
Collection and delivery (own truck)
Materials and Processes
All machinable materials
Machining of all machinable materials on turning, milling and drilling machines.
Locations
Schönaich
DEAdministration and production (headquarters)
- Part weight / size
- Turning diameter up to 2200 mm, length approx. 2500 mm
- Lot size
- Single parts and small series
- Materials
- All machinable materials
- Horizontal boring and milling machine TOS WHC 100 CNC (Heidenhain TNC 426 P)
- Horizontal boring and milling machine TOS WHC 105 CNC (Heidenhain TNC 426 P)
- Coordinate boring machine Orlikon KCS – R12 PL
- CNC rapid radial drilling machine Donau Donumeric 440
- Universal milling machine Reckermann 1130
- Radial drilling machines Stanko RB 50 and Kolb
- Facing lathes Ravensburg KT 45, P 20 IV, KT 600
- CNC facing lathes Ravensburg KH 35 CNC, KH 55 CNC, KH 55 CNC 2000
- Center lathes VDF DEU 1000, V 800, 560
- Single-column vertical turret / Schiess lathe Moweg

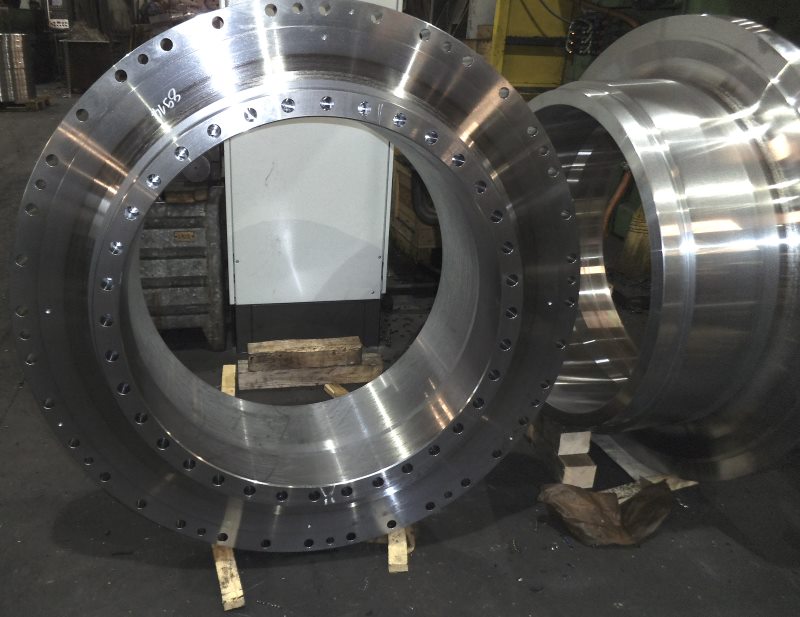

Components

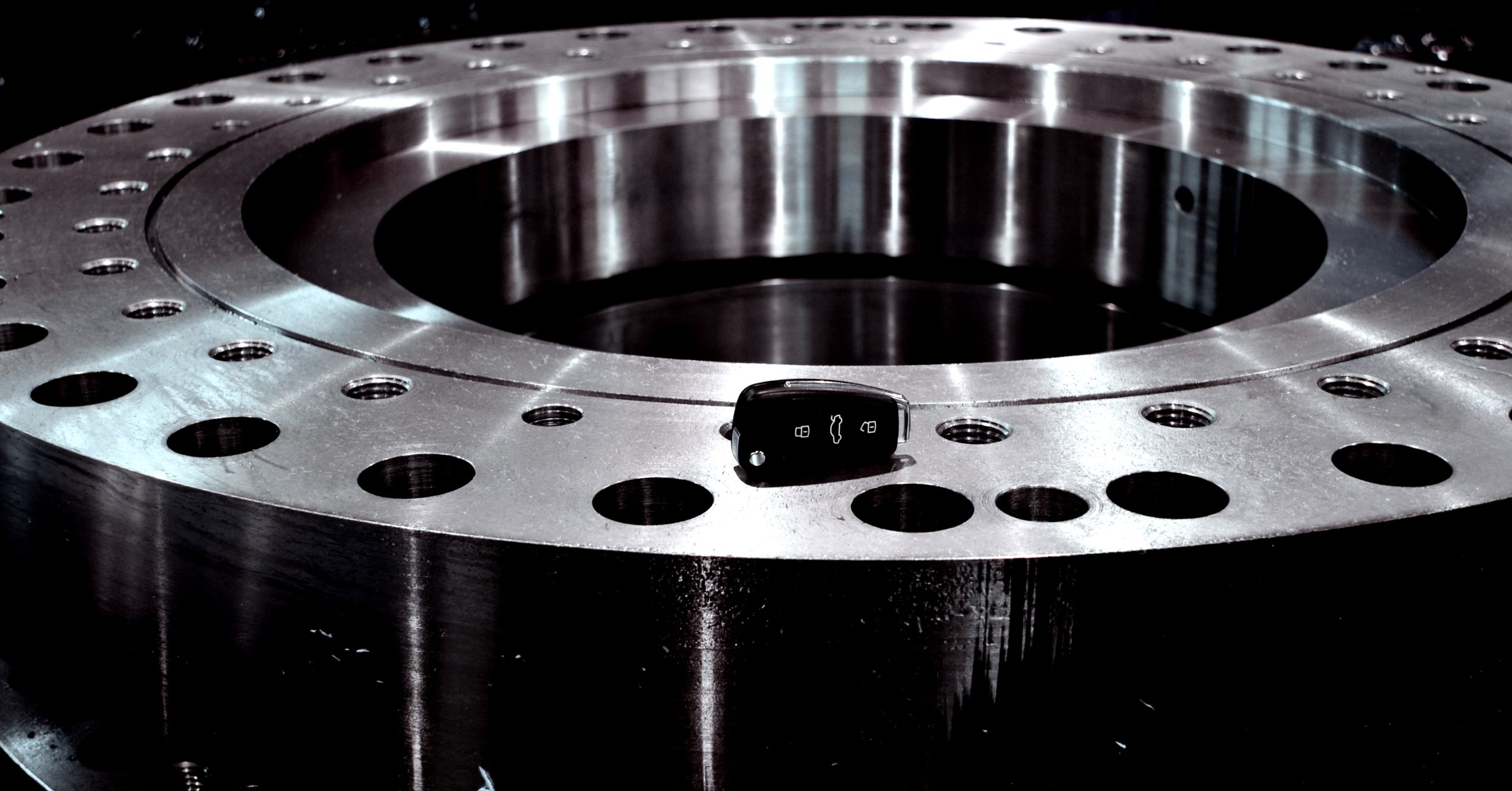

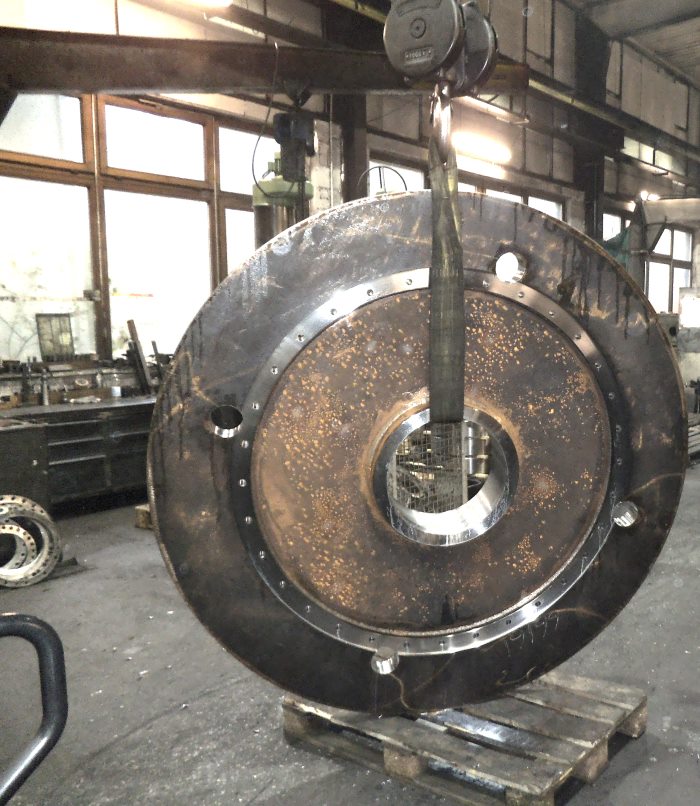

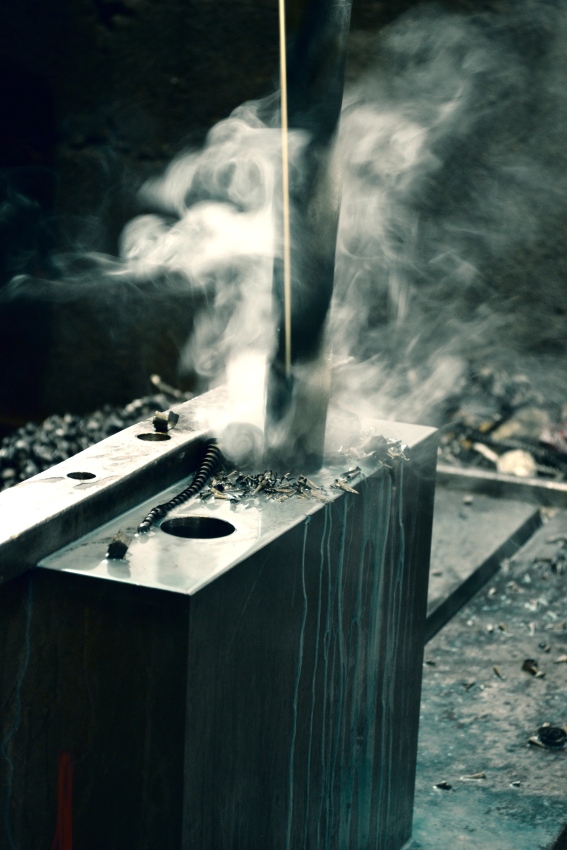

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Turning (large parts, diameters up to 2200 mm)Machining | – | 2500 mm × 2200 mm (max. turning diameter) | – | 1 (single parts) – Small series | all machinable materials |
| MillingMachining | – | – | – | – | all machinable materials |
| Boring mill work (boring mills: drilling, milling, internal boring, 2-D contours)Machining | – | – | – | – | all machinable materials |
| Drilling (manual and NC-controlled)Machining | – | – | – | – | all machinable materials |
| Metalworking workAssembly | – | – | – | – | – |
| Welding workJoining | – | – | – | – | – |
| Series production / small seriesMachining | – | – | – | Small series (smaller quantities) | all machinable materials |
19 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Horizontal boring and milling machine CNC | TOS WHC 100 CNC (Heidenhain TNC 426 P) | 1 | Travel 1200 x 1000 | – | Schönaich |
| Horizontal boring and milling machine CNC | TOS WHC 105 CNC (Heidenhain TNC 426 P) | 1 | Travel 1800 x 1400 | – | Schönaich |
| Coordinate boring machine | Orlikon (Olivetti NC control) KCS – R12 PL | 1 | Table 2000 x 1800, travel 2000 x 1400, max. height 1000, spindle diameter 100 | – | Schönaich |
| CNC rapid radial drilling machine | Donau Donumeric 440 | 1 | Work table 1200 x 750 mm, travel 1050 mm, drilling capacity Ø 40 mm | – | Schönaich |
| Universal milling machine | Reckermann 1130 | 1 | Table 1500 x 500 | – | Schönaich |
| Radial drilling machine | Stanko RB 50 | 1 | Spindle reach 1600 mm, quill stroke 350 mm, max. workpiece height 1400 mm | – | Schönaich |
| Radial drilling machine | Kolb | 1 | Spindle reach 2000 mm, quill stroke 350 mm, max. workpiece height 2200 mm | – | Schönaich |
| Facing lathe (conventional) | Ravensburg KT 45 | 1 | Max. turning diameter 1350 mm, turning length 450 mm, faceplate Ø 1200 mm | – | Schönaich |
| Facing lathe (conventional) | Ravensburg KT 45 | 1 | Max. turning diameter 2200 mm, turning length 750 mm, faceplate Ø 1600 mm | – | Schönaich |
| Facing lathe (conventional) | Ravensburg P 20 IV | 1 | Max. turning diameter 2060 mm (2500 mm in pit), turning length between centers 3500 mm, faceplate Ø | – | Schönaich |
| Facing lathe (conventional) | Ravensburg KT 600 | 1 | Max. turning diameter 1300 mm, faceplate Ø 1000 mm | – | Schönaich |
| Facing lathe CNC | Ravensburg KH 35 CNC (Sinumerik 3 T) | 1 | Max. turning diameter 1050 mm, turning length 1100 mm, faceplate Ø 1000 mm | – | Schönaich |
| Facing lathe CNC | Ravensburg KH 55 CNC 2000 | 1 | Max. turning diameter 2000 mm, turning length 1200 mm, workpiece weight up to 4500 kg | – | Schönaich |
| Facing lathe CNC | Ravensburg KH 55 CNC (Sinumerik 3 T) | 1 | Max. turning diameter 1850 mm, turning length 1000 mm, faceplate Ø 1500 mm | – | Schönaich |
| Center lathe | VDF DEU 1000 | 1 | Max. turning diameter 1000 mm, turning length 2000 mm, faceplate Ø 1000 mm | – | Schönaich |
| Center lathe | VDF V 800 | 1 | Max. turning diameter 820 mm, turning length 1500 mm, faceplate Ø 800 mm | – | Schönaich |
| Center lathe | VDF 560 | 1 | Max. turning diameter 560 mm, turning length 2000 mm | – | Schönaich |
| Center lathe | VDF DEU 1000 | 1 | Max. turning diameter 1000 mm, turning length 3000 mm, faceplate Ø 1000 mm | – | Schönaich |
| Single-column vertical turret / Schiess lathe | Moweg | 1 | Max. turning diameter 1600 mm, max. workpiece height 1000 mm, faceplate Ø 1400 mm | – | Schönaich |
Additional services
History
Over 40 years active as a family business for all areas of the trades and industry.
