Manufacturer of mineral-insulated thermocouple cables (MIMS) for industrial temperature measurement
SensyMIC GmbH
Alzenau (Borsigstraße 2)New on Amplifa
About SensyMIC
SensyMIC GmbH, based in Alzenau (Bavaria), is a manufacturer of mineral-insulated cables (MIMS cables) as well as thermocouple cables, compensation cables and extension leads for industrial measurement and control technology. As part of the WIKA Group, the company looks back on a tradition that began in 1960 with the production of mineral-insulated cable by Degussa in Hanau; cable production was fully relocated to Alzenau by 2006. Manufacturing includes the drawing of MIMS cables with industrial-diamond drawing dies for homogeneous outer diameters, special heat treatment processes for the aging and stabilization of thermoelectric voltage values (including Type K), final polishing with a passivation layer, and double-sheath technology for corrosive environments. Highly compressed magnesium oxide and aluminum oxide ceramic capillaries are used as insulation materials; sheath alloys include Alloy TD, Alloy X and Alloy 625. SensyMIC manufactures entirely in Germany in accordance with ISO 9001:2015 and supplies customers worldwide, particularly for applications in accordance with AMS 2750E and CQI-9.
- Site
- Alzenau
- Processes
- Manufacture of mineral-insulated cables (MIMS cables), Manufacture of thermocouple cables, compensation cables and extension leads (Extension &, Heat treatment (aging/stabilization of thermoelectric voltage values, special heat treatment, Polishing (surface treatment of the sheath, passivation layer), Drawing of MIMS cables with industrial-diamond drawing dies (homogeneous outer diameters), Flexibility test (bend diameter = three times the outer diameter, stricter than DIN EN 61515), Insulation resistance testing (>30 GOhm at room temperature), Calibration with certified EMF values (calibration certificate)
- Materials
- Magnesium oxide (highly compressed, insulation material), Aluminum oxide (ceramic capillaries), Thermocouple Type K, Alloy TD (sheath alloy), Alloy X (sheath alloy), Alloy 625 (sheath alloy), Thermocouple Type K (MIMS), Magnesium oxide (highly compressed)
- Certificates
- ISO 9001:2015
- Founded
- 2017
- Industries
- Industrial measurement and control technology, Temperature measurement technology, Heat treatment (AMS 2750E, CQI-9)
- 01
Procurement of raw materials (sheath alloys, insulation materials)
- 02
Drawing of MIMS cables with industrial-diamond drawing dies
- 03
Heat treatment (aging/stabilization, final annealing)
- 04
Polishing with passivation layer
- 05
Testing (flexibility, insulation resistance)
- 06
Calibration with certified EMF values
- 07
Delivery from stock / production
Materials & Processes
Thermocouple Type K (MIMS)
Most widely used thermocouple; aging and stabilization of thermoelectric voltage values through additional heat treatment processes.
Alloy TD (sheath alloy)
Sheath alloy for mineral-insulated cables, available on request.
Alloy X (sheath alloy)
Sheath alloy for mineral-insulated cables, available on request.
Alloy 625 (sheath alloy)
Nickel-based alloy as sheath material for demanding applications.
Magnesium oxide (highly compressed)
Insulation material with very good insulation properties even at high temperatures.
Aluminum oxide (ceramic capillaries)
Ceramic insulation material for high temperatures.

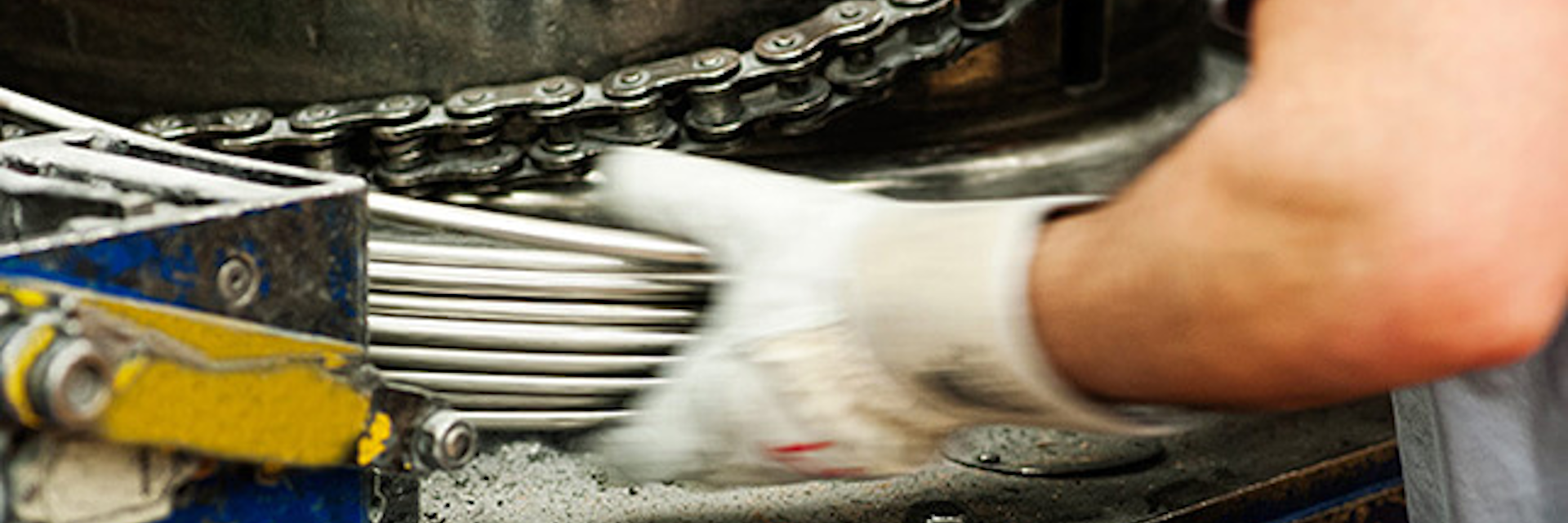

Mineral-insulated cable (MIMS)
Core product for industrial temperature measurement with high flexibility and long-term stability.
Double-sheath technology
Two layered tube materials delay corrosion under aggressive environmental conditions.
Extension & Compensating Cable
Thermocouple cables, compensation cables and extension leads as a complement to the MIMS portfolio.
Locations
Alzenau
DEProduction and sales
- Materials
- MIMS cables, thermocouple/compensation cables
- Drawing machines with industrial-diamond drawing dies
- Heat treatment furnaces
- Testing and calibration equipment
Components & Products

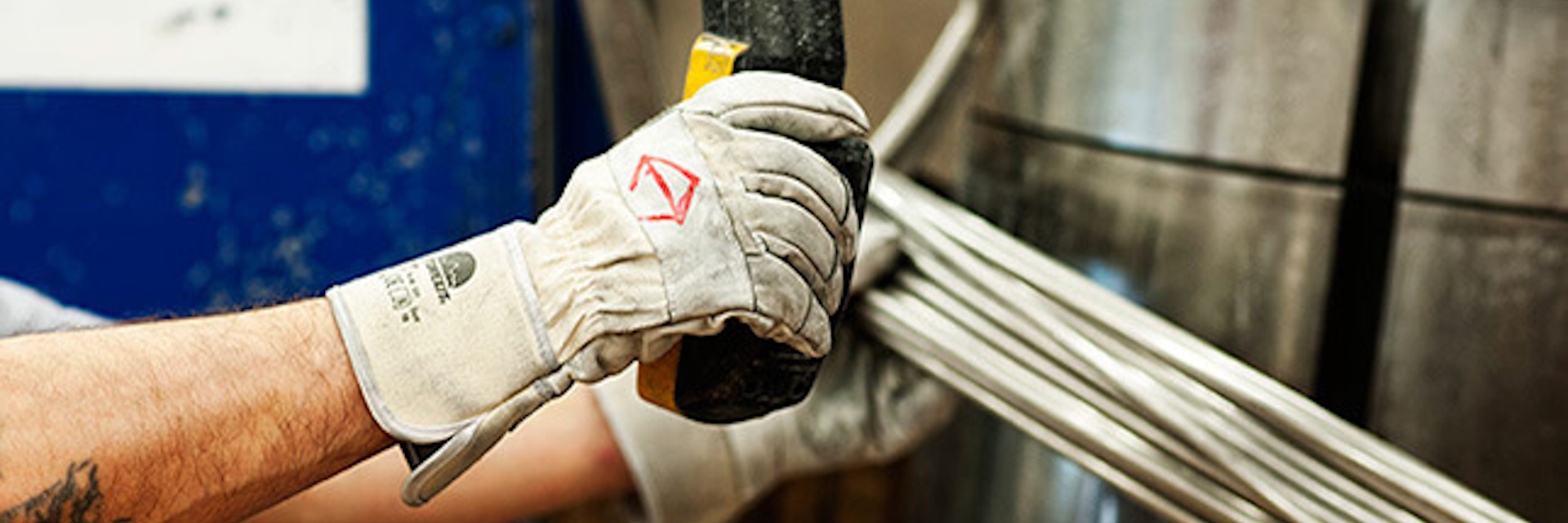

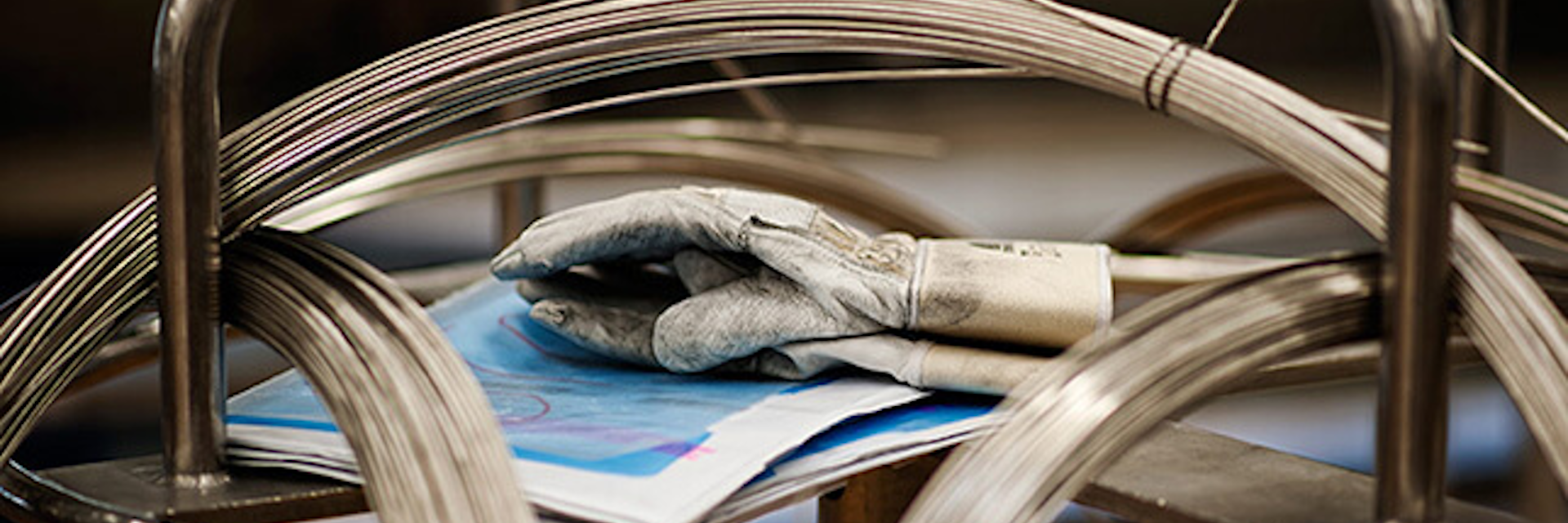

Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Manufacture of mineral-insulated cables (MIMS cables)Cable/sensor manufacturing | – | – | – | – | Magnesium oxide (insulation material), Aluminum oxide (ceramic capillaries), Thermocouple Type K material |
| Manufacture of thermocouple cables, compensation cables and extension leads (Extension &Cable/sensor manufacturing | – | – | – | – | – |
| Heat treatment (aging/stabilization of thermoelectric voltage values, special heat treatmentHeat treatment | – | – | – | – | Type K (MIMS) |
| Polishing (surface treatment of the sheath, passivation layer)Surface | – | – | – | – | – |
| Drawing of MIMS cables with industrial-diamond drawing dies (homogeneous outer diameters)Forming | Tolerance class 0 in the positive range of the | – | – | – | – |
| Flexibility test (bend diameter = three times the outer diameter, stricter than DIN EN 61515)Testing | – | – | – | – | – |
| Insulation resistance testing (>30 GOhm at room temperature)Testing | – | – | – | – | – |
| Calibration with certified EMF values (calibration certificate)Testing | – | – | – | – | – |
| Double-sheath technologyCable/sensor manufacturing | – | – | – | – | – |
Additional services
Quality & Certification
All MIMS cables undergo a flexibility test (bend diameter = three times the outer diameter, stricter than DIN EN 61515) as well as an insulation resistance test (>30 GOhm at room temperature). Calibration is performed with certified EMF values including a calibration certificate; in addition, a premium class is offered as input material for sensors in accordance with AMS 2750E or CQI-9.
| Evidence | Alzenau |
|---|---|
| ISO 9001:2015 |
History
- 1960
Production of mineral-insulated cable by Degussa in Hanau
- 1989
Temperature business spun off into SENSYCON
- 1991
Acquisition of SENSYCON by Hartmann & Braun
- 1994
Acquisition by Mannesmann; relocation to Alzenau
- 1996
Acquisition by Elsag Bailey; registration of the SensyMIC brand
- 1999
Takeover of Elsag Bailey by ABB
- 2006
Relocation of cable production from Hanau to Alzenau completed
- 2017
Founding of SensyMIC as part of the WIKA Group
