Metal processing and steel construction: laser cutting, welding, bending technology, component manufacturing, railings, canopies and agricultural equipment.
Weiss GmbH
Pfarrfeldstrasse 9, 88410 Bad Wurzach-Unterschwarzach (DE)New on Amplifa
About us
Weiss GmbH was founded in 1993 by Joachim Weiss in Eberhardzell and today operates as a master metalworking business (Schlosserei) at a single site in Bad Wurzach-Unterschwarzach. With around 25 employees, the company processes approximately 1,200 tonnes of steel per year. Its service range extends from laser cutting (fiber laser, 3D tube laser) and waterjet and plasma cutting to bending technology, CNC machining (drilling, milling, turning) and welding, including an 8-axis robotic welding system. This is complemented by surface technology such as shot blasting, powder coating and hot-dip galvanizing, as well as design, assembly and contract work. Key focuses are steel construction, stairs, balconies and railings made of steel and stainless steel, steel-glass canopies, component manufacturing for mechanical engineering, custom fabrication, and its own products in the fields of agricultural equipment and scissor lift platforms (WhitePowerBull). Customers include industry, trade, agriculture, municipalities and private customers in the Upper Swabia region and beyond.
- Site
- Bad Wurzach
- Processes
- Laser cutting (flatbed laser, fiber laser system), 3D tube laser LVM, Waterjet cutting (W2D), Plasma/oxy-fuel cutting (HiFocus), Swing beam shear ERMARKSAN CNC, Band saws MEBA 510 DGA 3200 CNC, MebaSwing 3350, Bending/folding (CNC press brake Weinbrenner), Roll bending
- Materials
- Steel, Chromium-nickel steels (stainless steel), Aluminium, Brass, Bronze, Plastic, Glass, Wood
- Certificates
- DIN EN ISO 9001:2015, DIN EN 1090-2 (EXC 3), DIN EN 1090-3, DIN EN ISO 3834-2, ISO 9001, EN 1090, ISO 3834-2
- Founded
- 1993
- Employees
- approx. 25
- Industries
- Mechanical engineering, Construction/steel construction, Trade, Agriculture, Municipalities, Private customers
- 01
Design (3D CAD)
- 02
Cutting (laser, waterjet, plasma, sawing)
- 03
Bending/folding
- 04
Machining (drilling, milling, turning)
- 05
Welding (manual/robot)
- 06
Surface treatment (blasting, coating, galvanizing)
- 07
Assembly
Materials and processes
Steel
Main material with approximately 1,200 t processed annually, e.g. for steel construction, agricultural equipment and component manufacturing.
Stainless steel (chromium-nickel steels)
Used for railings, stairs, balconies and railing-specific constructions.
Aluminium
Processed in cutting, bending technology and machining.
Brass
Can be machined in milled and turned parts as well as contract work.
Bronze
Machining of milled and turned parts.
Plastic
Supplementary material in products and custom fabrications.
Reinforcing steel
Welding according to DIN ISO 17660.
Locations
Bad Wurzach-Unterschwarzach
DEProduction facility with office and administration
- Lot size
- Single piece to series
- Materials
- Steel, stainless steel, aluminium, brass, bronze
- Fiber laser system (2020)
- 3D tube laser LVM (2022)
- Waterjet cutting system W2D, 7,000 x 2,100 mm, up to 100 mm
- Plasma/oxy-fuel cutting system HiFocus, 6,050 x 2,050 mm
- Swing beam shear ERMARKSAN CNC 3,000 mm
- Band saws MEBA 510 DGA 3200 CNC and MebaSwing 3350
- CNC press brakes WEINBRENNER 3,600 mm x 200 t / 250 t
- Press brake PROMECAM
- CNC drilling and milling machine FICEP 12,000 x 1,000 mm
- 5-axis CNC milling machine
- CNC and conventional lathe
- CLOOS 8-axis robotic welding system with rotary positioner
- Steel shot blasting system
Components and products
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Laser cutting (flatbed laser, fiber laser system)Machining | – | – | – | – | Steel, Stainless steel (chromium-nickel steels), Aluminium, Brass, Bronze |
| 3D tube laser LVMMachining | – | – | – | – | Steel, Stainless steel, Aluminium |
| Waterjet cutting (W2D)Machining | – | 7,000 mm × 2,100 mm | – | – | material-independent |
| Plasma/oxy-fuel cutting (HiFocus)Machining | – | 6,050 mm × 2,050 mm | – | – | Steel |
| Swing beam shear ERMARKSAN CNCMachining | – | 3,000 mm | – | – | Steel |
| Band saws MEBA 510 DGA 3200 CNC, MebaSwing 3350Machining | – | 3,200 mm | – | – | Steel, Stainless steel, Aluminium |
| Bending/folding (CNC press brake Weinbrenner)Forming | – | 3,600 mm | – | – | Steel, Stainless steel, Aluminium |
| Roll bendingForming | – | 3,000 mm | – | – | Steel |
| Mandrel and helical bending for profiles and tubes up to 60 mmForming | – | – | – | – | Steel, Stainless steel, Aluminium |
| Profile drilling (CNC profile drilling machine FICEP)Machining | – | 12,000 mm × 1,000 mm | – | – | Steel |
| Milling (5-axis CNC milling machine)Machining | – | 2,000 mm × 600 mm × 600 mm | – | – | Steel, Stainless steel, Aluminium, Brass, Bronze |
| Turning (CNC and conventional)Machining | – | 3,000 mm × Ø 700 mm | – | – | Steel, Stainless steel, Aluminium, Brass, Bronze |
| Welding MAG 135 / TIG 141 / manual metal arc 111, laser-hybrid 783Joining | – | – | – | – | Steel, Stainless steel, Aluminium |
| Stud welding according to DIN ISO 14555:2017-10Joining | – | – | – | – | Steel |
| Reinforcing steel welding according to DIN ISO 17660Joining | – | – | – | – | Steel (reinforcing steel) |
| Robotic welding (CLOOS 8-axis robot)Joining | – | 1,000 mm × 1,000 mm × 1,000 mm | – | – | Steel, Stainless steel |
| Steel shot blastingSurface | – | – | – | – | Steel |
| Glass bead blastingSurface | – | – | – | – | Steel, Stainless steel, Aluminium |
| Powder coatingSurface | – | – | – | – | Steel, Stainless steel, Aluminium |
| Painting workSurface | – | – | – | – | Steel, Stainless steel, Aluminium |
| Hot-dip galvanizingSurface | – | – | – | – | Steel |
| Electroplated surface finishingSurface | – | – | – | – | Steel, Stainless steel, Aluminium, Brass, Bronze |

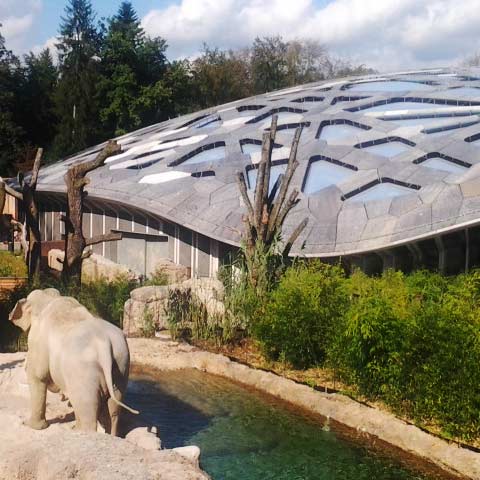

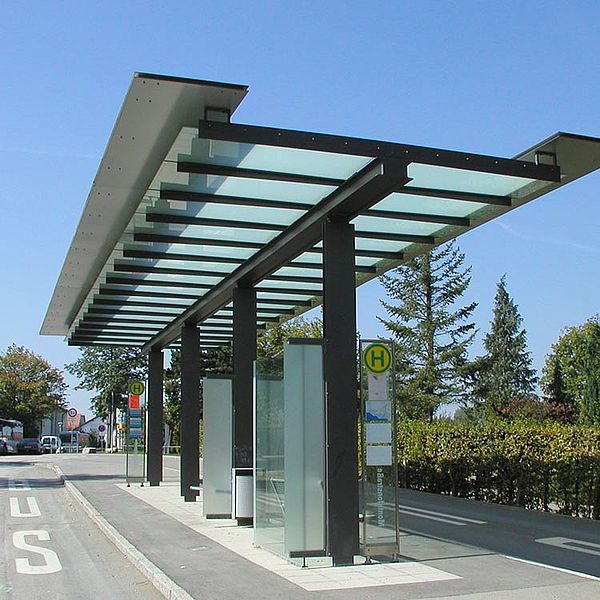

| Steel construction (halls, entrance canopies, bus stops, steel-glass canopies)Assembly | – | – | – | – | Steel, Glass |

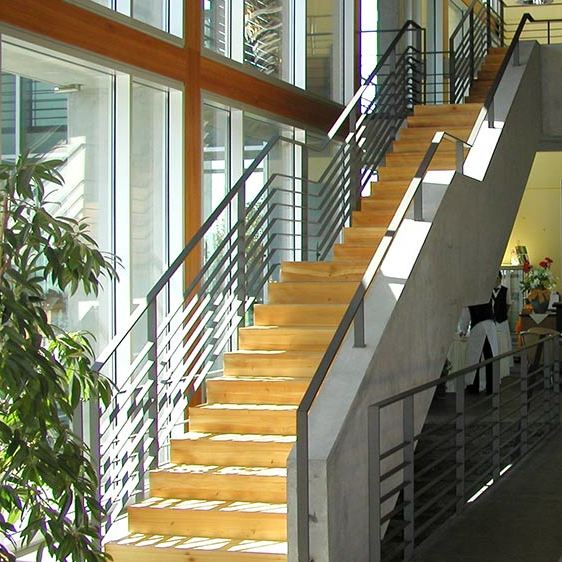

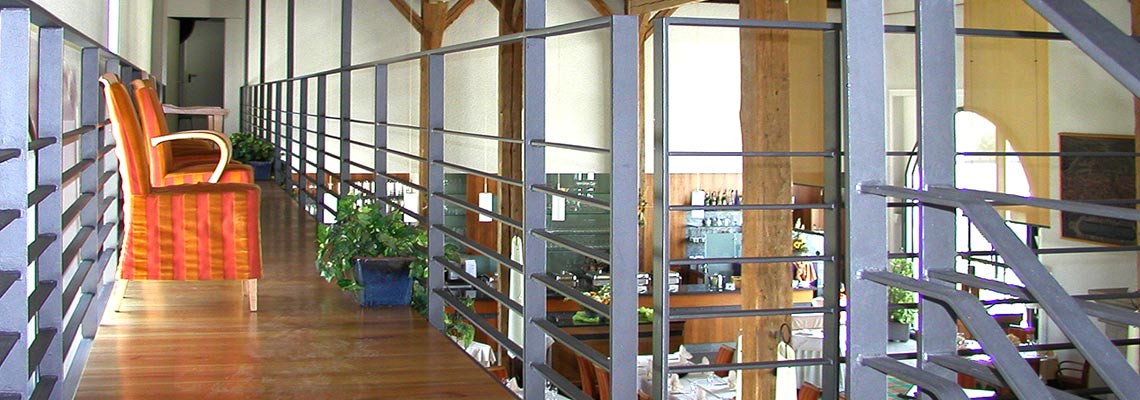

| Balcony, railing and stair constructionAssembly | – | – | – | – | Steel, Stainless steel |
| Custom fabrications / special metal constructionsAssembly | – | – | – | – | Steel, Stainless steel, Aluminium |

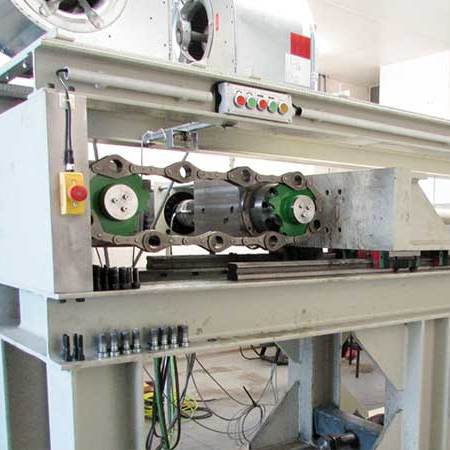

| Component manufacturing for mechanical engineering (single piece and series)Assembly | – | – | – | – | Steel, Stainless steel, Aluminium |

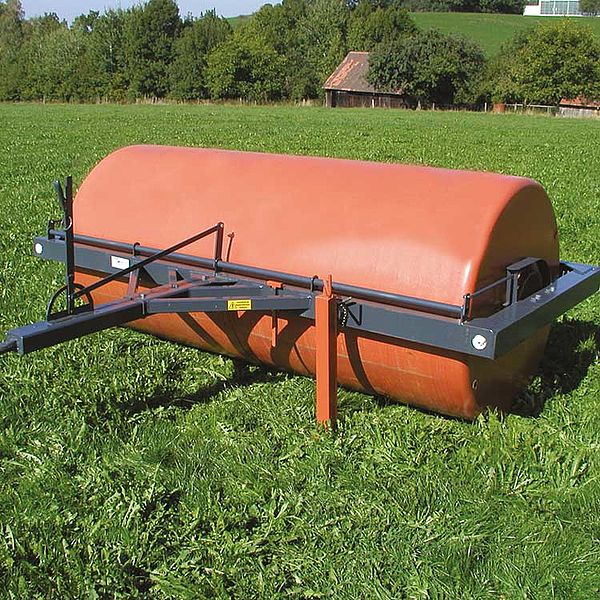

| Agricultural equipment (snow ploughs, rollers, bale forks, manure scrapers, ground anchors)Assembly | – | – | – | – | Steel |
| Design / engineering (3D design software, 4 employees)Engineering | – | – | – | – | – |
| Façades made of steel sheetAssembly | – | – | – | – | Steel |
| Scissor lift platforms (manufacture and distribution, rental)Assembly | – | – | – | – | Steel |
19 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Fiber laser system | – | 1 | – | 2020 | Bad Wurzach-Unterschwarzach |

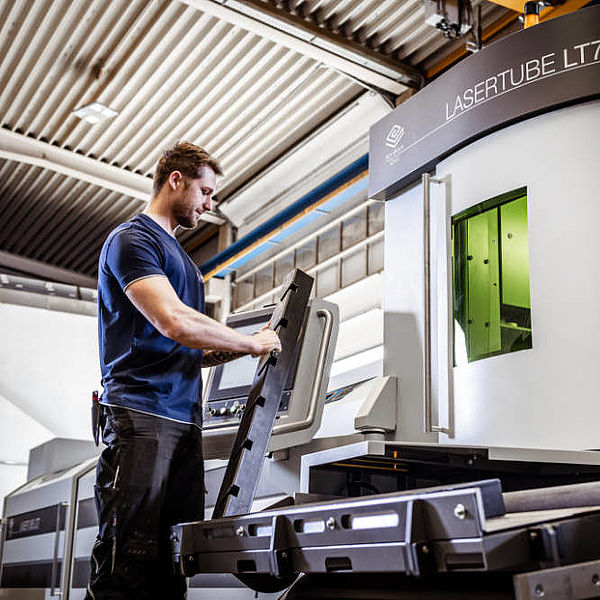

| 3D tube laser | LVM | 1 | – | 2022 | Bad Wurzach-Unterschwarzach |

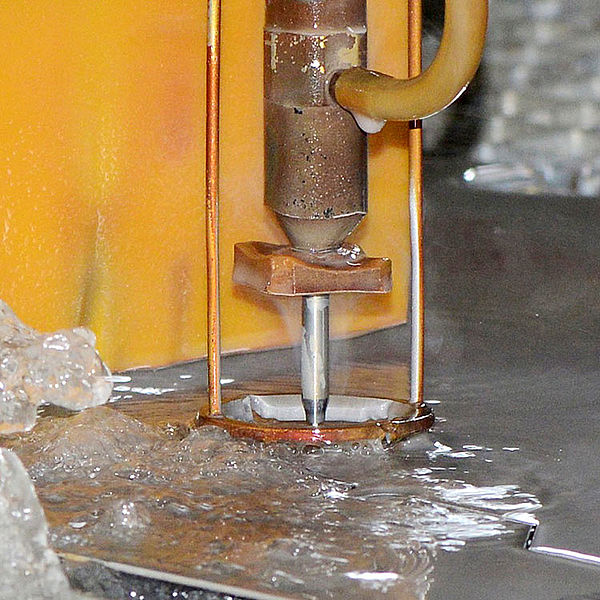

| Waterjet cutting system | Weiss GmbH W2D | 1 | 7,000 mm x 2,100 mm, material thickness up to 100 mm | 2012 | Bad Wurzach-Unterschwarzach |
| Plasma/oxy-fuel cutting system | HiFocus | 1 | 6,050 mm x 2,050 mm, material thickness up to 30 mm | – | Bad Wurzach-Unterschwarzach |
| Swing beam shear CNC | ERMARKSAN | 1 | 3,000 x 0.5 - 8 mm | – | Bad Wurzach-Unterschwarzach |
| Band saw double miter fully automatic CNC | MEBA 510 DGA 3200 | 1 | – | – | Bad Wurzach-Unterschwarzach |
| Band saw | MEBA MebaSwing 3350 | 1 | – | – | Bad Wurzach-Unterschwarzach |

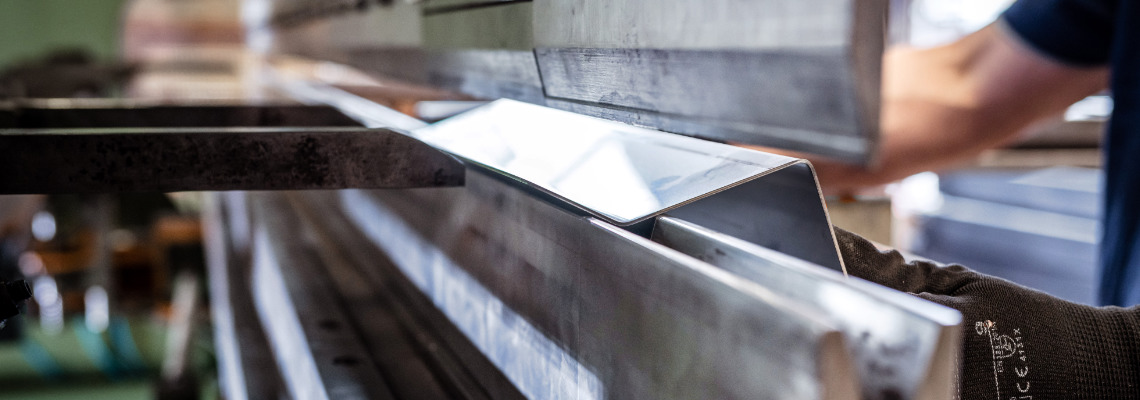

| CNC press brake | WEINBRENNER | 1 | 3,600 mm x 200 t | – | Bad Wurzach-Unterschwarzach |
| CNC press brake | WEINBRENNER | 1 | 3,600 mm x 250 t | – | Bad Wurzach-Unterschwarzach |
| Press brake | PROMECAM | 1 | – | – | Bad Wurzach-Unterschwarzach |
| CNC drilling and milling machine (profile drilling machine) | FICEP | 1 | 12,000 mm x 1,000 mm | – | Bad Wurzach-Unterschwarzach |
| 5-axis CNC milling machine | – | 1 | x=2,000 mm, y=600 mm, z=600 mm | – | Bad Wurzach-Unterschwarzach |
| CNC lathe and conventional lathe | – | 2 | 560 mm x 3,000 mm, up to 3,000 mm distance between centers, Ø 700 mm | – | Bad Wurzach-Unterschwarzach |

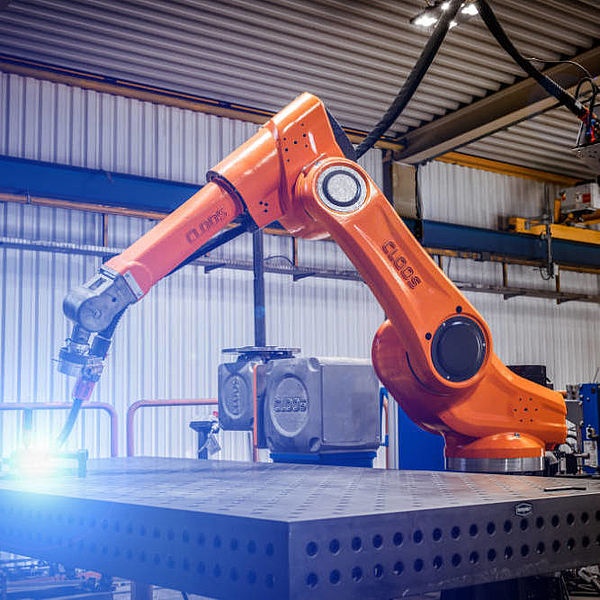

| 8-axis robotic welding system with welding positioner | CLOOS | 1 | 1,000 x 1,000 x 1,000 mm | 2021 | Bad Wurzach-Unterschwarzach |
| Steel shot blasting system | – | 1 | – | 2010 | Bad Wurzach-Unterschwarzach |
| Scissor lift platform | SAB A-78 | 1 | Working height 7.80 m | – | Bad Wurzach-Unterschwarzach |
| Scissor lift platform | SAB B-137 | 1 | Working height 13.70 m | – | Bad Wurzach-Unterschwarzach |
| Scissor lift platform | SAB AR-102 | 1 | Working height 10.50 m | – | Bad Wurzach-Unterschwarzach |
| Mobile assembly crane with winch function | ATLAS | 1 | 16 m x 1 t | – | Bad Wurzach-Unterschwarzach |
Additional services
Reference customers
Quality and certifications
Weiss GmbH is certified according to DIN EN ISO 9001:2015, DIN EN 1090-2 (EXC 3), DIN EN 1090-3 and DIN EN ISO 3834-2 (dynamic range). Welding is performed in processes 111, 135, 141 and 783, including stud welding and reinforcing steel welding.
| Evidence | Bad Wurzach-Unterschwarzach |
|---|---|
| ISO 9001 | |
| EN 1090 | |
| ISO 3834-2 |
Company history
- 1993
Founded by Joachim Weiss as a one-man business in Eberhardzell
- 1995
Three employees and one apprentice
- 1998
Move into an additional production facility in Bad Wurzach-Unterschwarzach; 10 employees
- 2000
Move into new offices in Eberhardzell
- 2002
Construction start of the new production facility in Bad Wurzach-Unterschwarzach
- 2003
Occupancy of the new production facility (Pfarrfeldstrasse 9); concentration on one location
- 2004
Expansion to include scissor lift platforms
- 2008
New construction of a warehouse
- 2009
Expansion of the administrative area
- 2010
Acquisition of a steel shot blasting system
- 2012
Own waterjet cutting system W2D; certification DIN 9001:2008; design expansion with 3D CAD
- 2013
Certification DIN EN 1090-2
- 2016
Merger of Weiss Metallverarbeitung and Weiss GmbH
- 2019
New construction/extension of production and warehouse hall and expansion of administration
- 2020
Commissioning of a fiber laser system
- 2021
Acquisition of CLOOS 8-axis welding robot
- 2022
Acquisition of 3D tube laser LVM
- 2023
30th anniversary
