Heavy steel construction, large-part machining and special superstructures for vehicle technology, mechanical engineering and plant construction
Zaunrith Fahrzeugtechnik GmbH
Frankenburg, AustriaNew on Amplifa
About Zaunrith
Zaunrith Fahrzeug- und Fertigungstechnik in Frankenburg am Hausruck (Upper Austria) is a family-owned company with around 35 employees on approximately 3,000 m² of production space, manufacturing components and assemblies for the metal industry, plant engineering and vehicle construction. Its core competencies are heavy steel construction and large-part machining – from the development of individual components through assemblies and small series to series production including final assembly and transport. Parts production uses oxy-fuel flame cutting (sheet thicknesses up to 300 mm), plasma cutting and a CNC-controlled 300-t press brake for parts up to 20 t; structural steels, stainless steels and aluminium are machined. A second pillar is vehicle technology with customised trailer and vehicle superstructures, for example for Effer cranes or wood chip transports, complemented by special surface treatment. The company is certified to ISO 9001, EN 1090-1 EXC3 and EN ISO 3834-2.
- Site
- Frankenburg
- Processes
- Oxy-fuel Flame Cutting, Plasma Cutting, Bending (CNC-controlled press brake), Heavy Steel Construction, Large-Part Machining, Welding (certified to EN ISO 3834-2, EN 1090-1 EXC3), Surface Treatment, Final Assembly and Transport (large projects, plant construction)
- Materials
- Structural Steels, Stainless Steels, Aluminium, Steel (Steel Construction)
- Certificates
- EN 1090-1 EXC3, EN ISO 3834-2, ISO 9001 (named on the company website), ISO 9001
- Employees
- 35
- Industries
- Metal Industry, Plant Construction, Vehicle Construction/Superstructures, Mechanical Engineering
- 01
Design / Development
- 02
Flame and Plasma Cutting
- 03

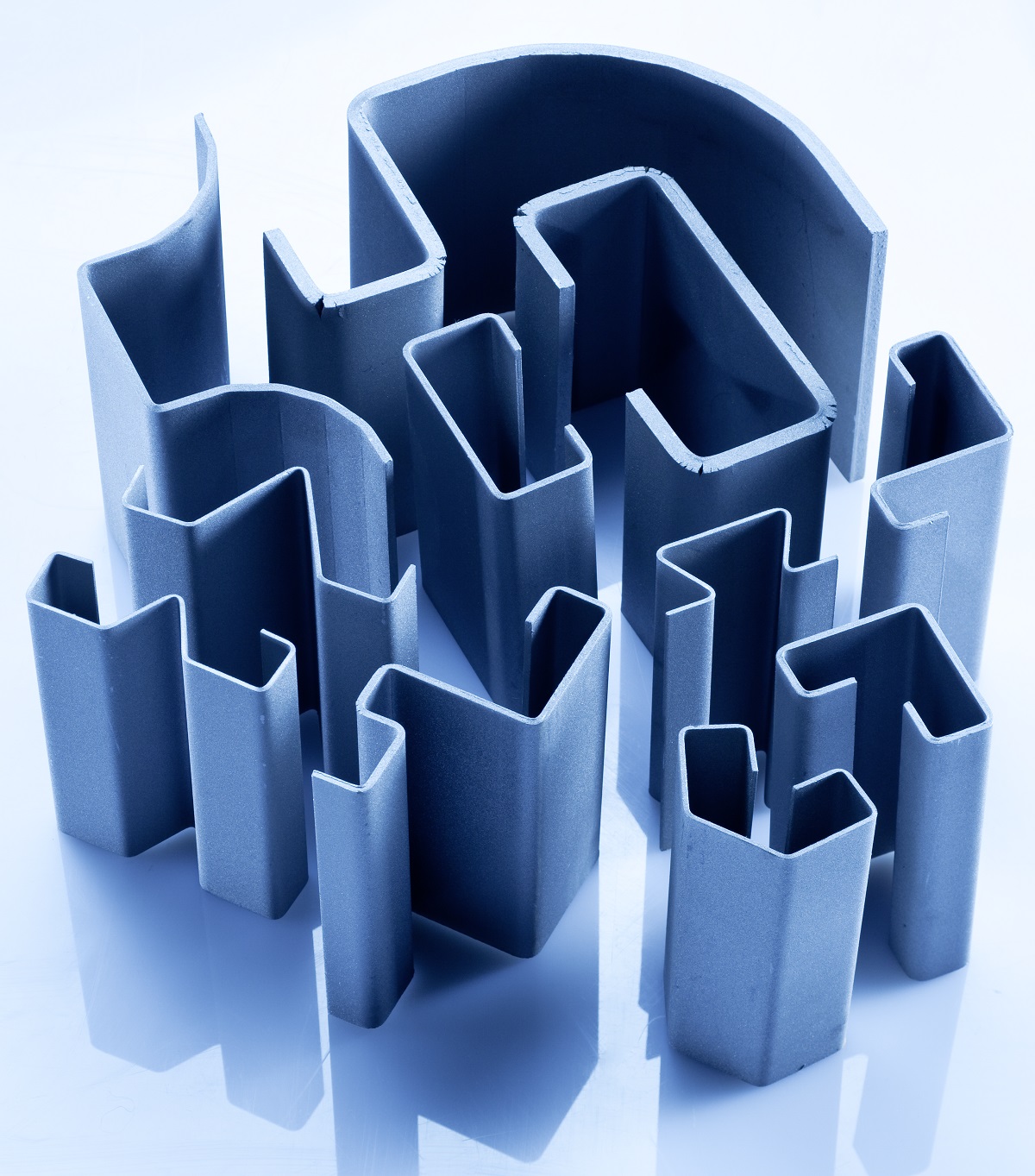

Bending
- 04
Heavy Steel Construction / Welding
- 05
Large-Part Machining
- 06
Surface Treatment
- 07
Final Assembly
- 08
Transport / Logistics
Materials & Processes
Structural Steels

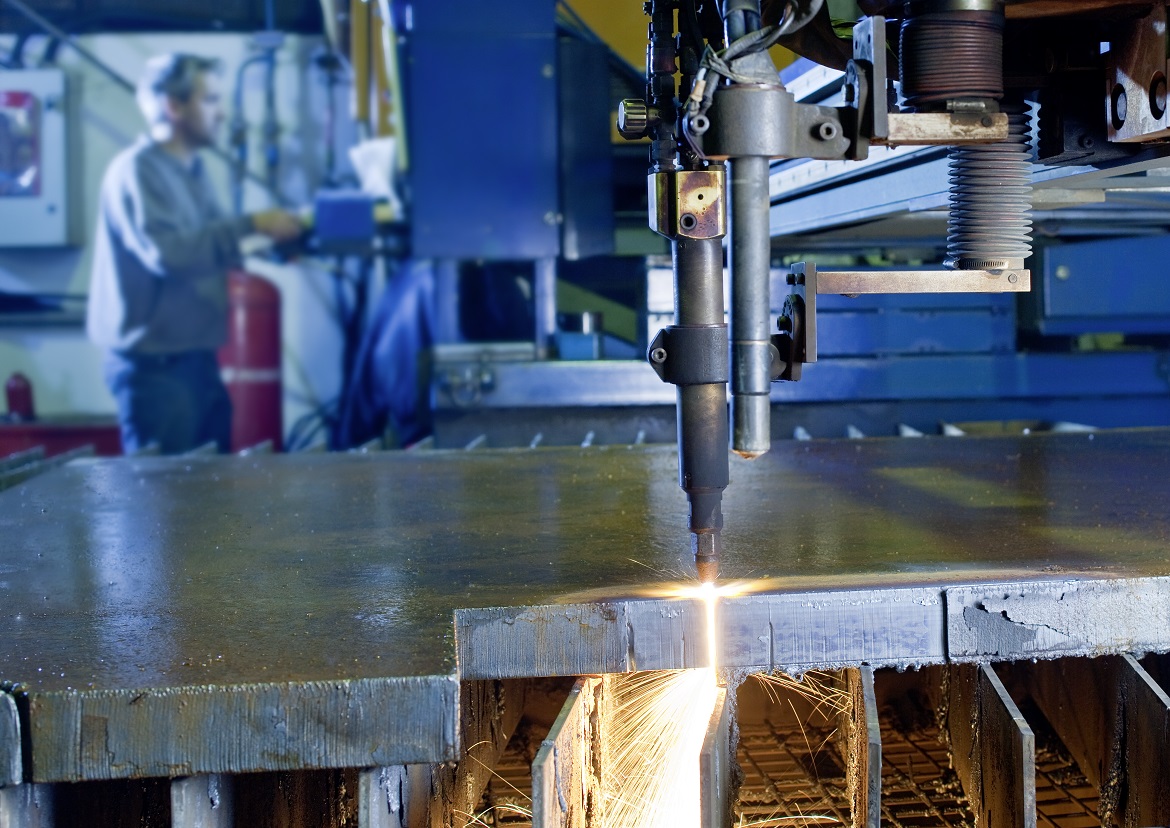

Basis for steel construction and oxy-fuel flame cutting of sheets up to 300 mm thickness.
Stainless Steels
Processed by plasma cutting up to 60 mm sheet thickness.
Aluminium
For parts up to 60 mm sheet thickness using the plasma cutting process.
Locations

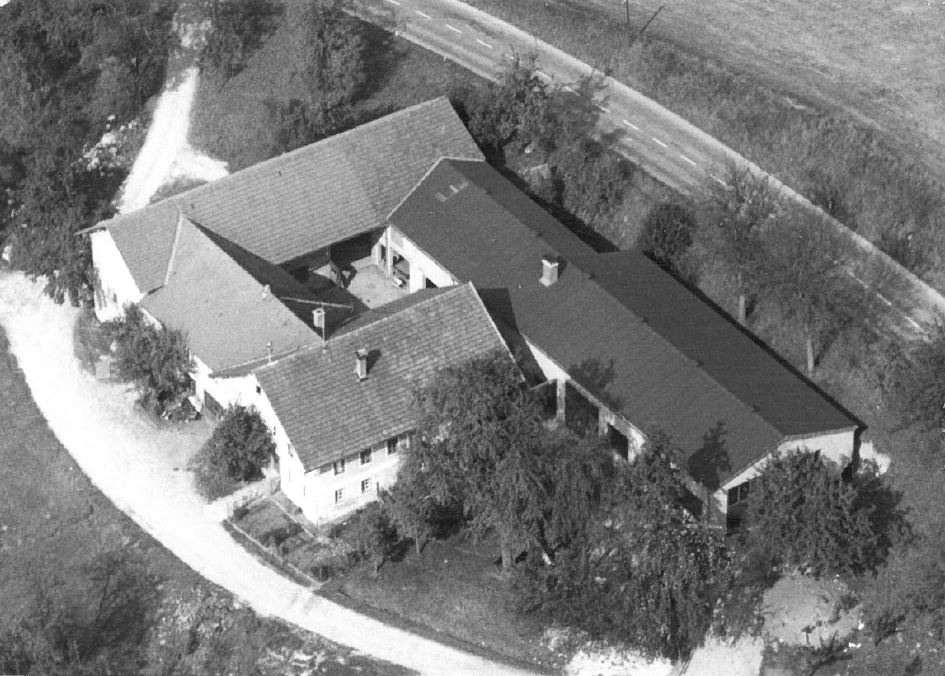

Frankenburg
ATAdministration and Production
- Part weight / size
- Part weight up to 20 t
- Lot size
- Single parts to series production
- Materials
- Structural steels, stainless steels, aluminium
- Oxy-fuel flame cutting machine (X ≤ 6.000 mm, Y ≤ 3.000 mm)
- Plasma cutting machine (X ≤ 6.000 mm, Y ≤ 3.000 mm)
- CNC press brake 300 t, width ≤ 4.3 m
Components & Services
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Oxy-fuel Flame CuttingMachining | – | 6000 mm × 3000 mm | – | – | Structural Steels |
| Plasma CuttingMachining | – | 6000 mm × 3000 mm | – | – | Stainless Steels, Aluminium |
| Bending (CNC-controlled press brake)Forming | – | 4.3 m | 20 t | – | – |
| Heavy Steel ConstructionJoining | – | – | – | – | Steel |
| Large-Part MachiningMachining | – | – | – | – | – |
| Welding (certified to EN ISO 3834-2, EN 1090-1 EXC3)Joining | – | – | – | – | Steel |
| Surface TreatmentSurface | – | – | – | – | – |
| Final Assembly and Transport (large projects, plant construction)Assembly | – | – | – | – | – |
| Vehicle Technology / Special Superstructures (trailers, Effer cranes, wood chip transports)Assembly | – | – | – | – | Steel |
| Design / Development of Components and PartsEngineering | – | – | – | – | – |

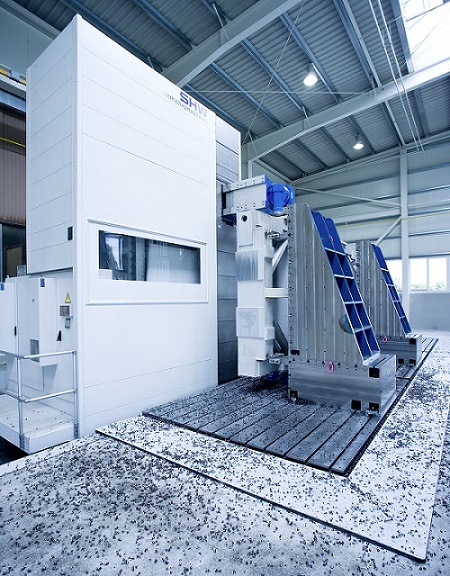

3 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Press Brake | – | – | Width <= 4.3 m, sheet thickness <= 12 mm, press force 300 t, part weight <= 20 t | – | Frankenburg |
| Flame Cutting Machine (oxy-fuel) | – | – | X <= 6000 mm, Y <= 3000 mm, sheet thickness <= 300 mm | – | Frankenburg |
| Plasma Cutting Machine | – | – | X <= 6000 mm, Y <= 3000 mm, sheet thickness <= 60 mm | – | Frankenburg |
Additional services
Reference customers
Quality & Certifications
The company operates according to certified management systems and complies with welding standards EN ISO 3834-2 and EN 1090-1 EXC3 for steel construction structures.
| Evidence | Frankenburg |
|---|---|
| ISO 9001 | |
| EN 1090-1 EXC3 | |
| EN ISO 3834-2 |
History
- 1970er
Operation of a farriery and wagon smithy as the origin of the company
- 1970er
Company taken over by Gottlieb Zaunrith, expansion to include container manufacturing
- 2000
Company handed over to son Josef Zaunrith; specialisation in vehicle technology and special superstructures
