About Zindel Maschinenbau
Zindel GmbH & Co. KG is a mechanical engineering company based in Freigericht-Somborn (Hesse). As a contract manufacturer, the company produces custom-made parts, small series and complete assemblies to customer drawings or datasets for SMEs and large corporations. The value chain covers development and design, CNC milling on 3-, 4- and 5-axis machines, CNC turning as well as die-sinking, small-hole and wire EDM, used where mechanical machining reaches its limits. Complex workpieces are milled from solid as well as castings and formed parts. In addition to machining, toolmaking is a core area of the company. Production is carried out with modern CNC technology and CAM software; more than 2000 projects have been realized to date.
- Site
- Freigericht-Somborn
- Processes
- 3-, 4- and 5-axis CNC milling (milling of complex workpieces from solid, machining of castings and, CNC turning (custom-made parts, small series and assemblies to customer drawings or datasets), Die-sinking EDM, Small-hole EDM, Wire EDM, Toolmaking, Design / Development, Contract manufacturing
- Materials
- 5-axis milling, 3- and 4-axis milling, CNC turning, Die-sinking EDM, Small-hole EDM, Wire EDM, Toolmaking, Design/Development
- Certificates
- ISO 9001:2015, DEKRA seal (quality and safety), ISO 9001, DEKRA seal
- Industries
- SMEs, Large corporations, Mechanical engineering
- 01
Design/Development
- 02
CNC milling
- 03
CNC turning
- 04
EDM
- 05
Assembly production/Assembly
Manufacturing processes

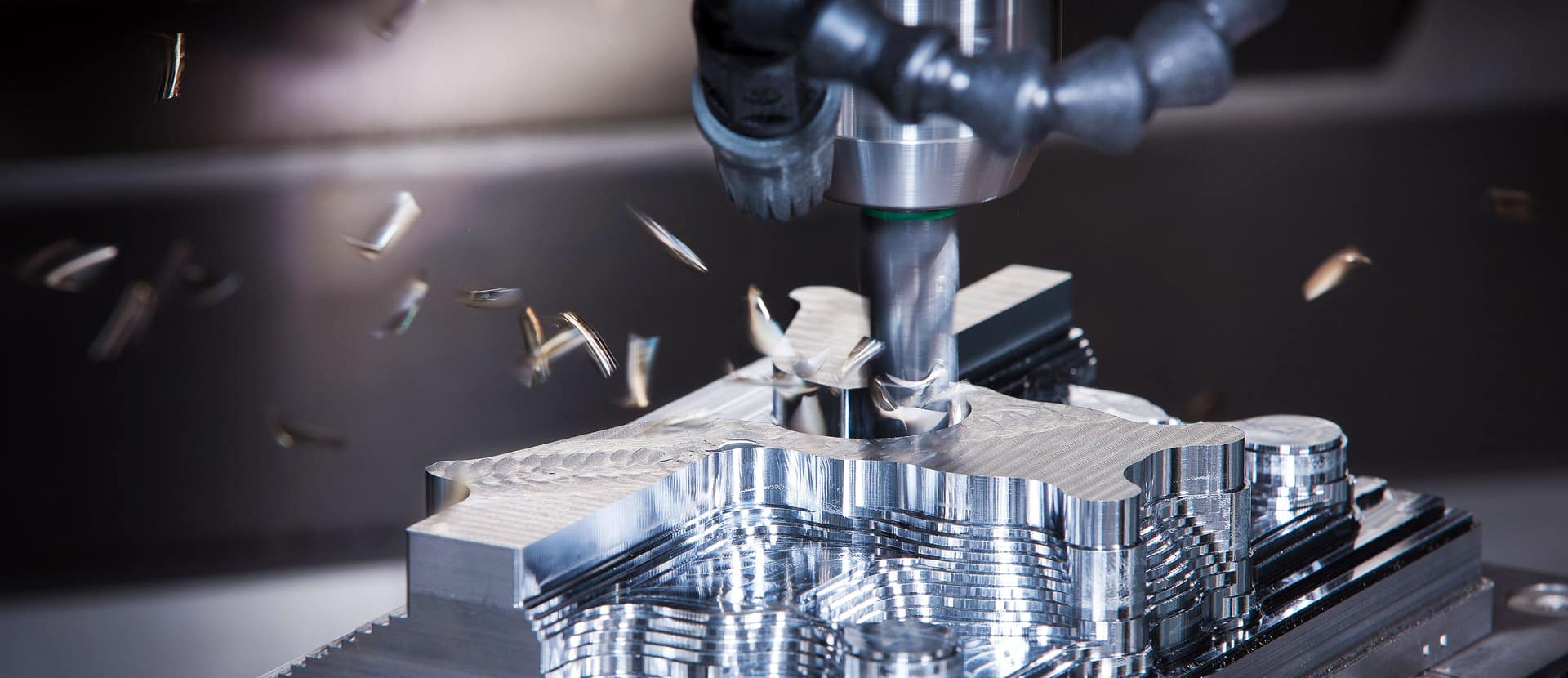

5-axis milling
Machining of complex workpieces from solid on 5-axis machining centers.
3- and 4-axis milling
Milling depending on requirements, also of castings and formed parts.
CNC turning
Dimensionally accurate custom-made parts, small series and assemblies to customer drawings or datasets.
Die-sinking EDM
Machining where mechanical machining reaches its limits.
Small-hole EDM
Small-hole EDM process for hard-to-machine tasks.
Wire EDM
Precise cutting and contouring without mechanical force.
Toolmaking
Core area of the company and the pivotal point of production.
Design/Development
Manufacturing-related, technological and organizational support of projects.
Locations
Freigericht-Somborn
DEHeadquarters and production
- Lot size
- Custom-made parts, small series

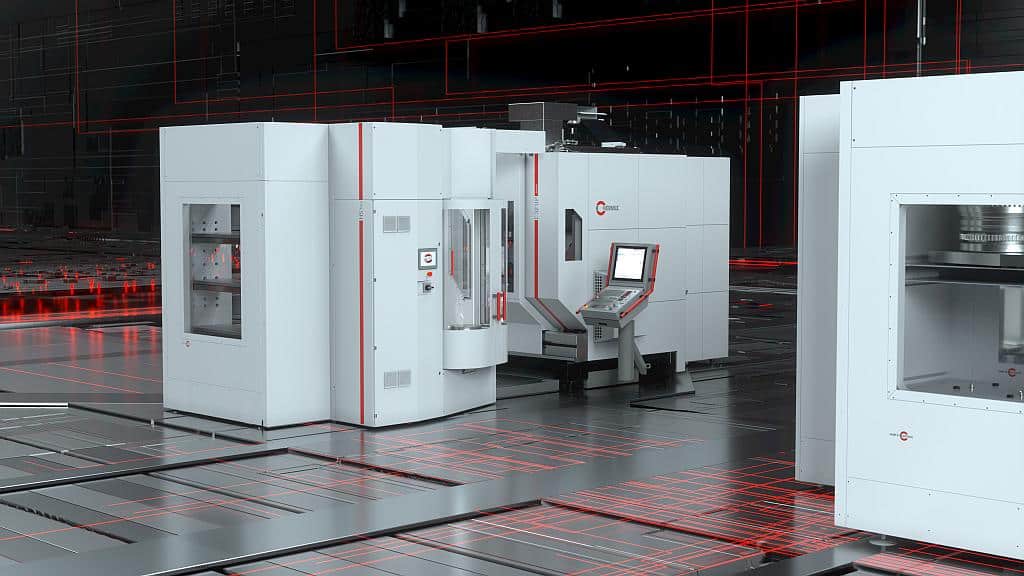

- 5-axis machining center Hermle C32 U with HS flex heavy handling system
- Handling systems HS flex / HS flex heavy
- CNC milling machines 3-/4-/5-axis
- CNC lathes
- Die-sinking, small-hole and wire EDM machines
Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| 3-, 4- and 5-axis CNC milling (milling of complex workpieces from solid, machining of castings andMachining | – | – | – | – | – |
| CNC turning (custom-made parts, small series and assemblies to customer drawings or datasets)Machining | – | – | – | – | – |
| Die-sinking EDMMachining | – | – | – | – | – |
| Small-hole EDMMachining | – | – | – | – | – |
| Wire EDMMachining | – | – | – | – | – |
| ToolmakingEngineering | – | – | – | – | – |
| Design / DevelopmentEngineering | – | – | – | – | – |
| Contract manufacturingMachining | – | – | – | – | – |
| Manufacture of prototypes, series parts and complete assemblies (incl.Assembly | – | – | – | – | – |
4 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| 5-axis machining center / CNC milling machine with handling system | C32 U with HS flex heavy | – | – | – | Freigericht-Somborn |
| CNC milling machines 3-/4-/5-axis | – | – | – | – | Freigericht-Somborn |
| CNC lathes | – | – | – | – | Freigericht-Somborn |
| EDM machines (die-sinking, small-hole and wire EDM) | – | – | – | – | Freigericht-Somborn |
Additional services
Quality
The quality management system is certified to ISO 9001:2015 (DEKRA, certificate no. 30224103, valid until 21.02.2027) for the design, manufacture and distribution of prototypes, series parts and complete assemblies. In addition, the company bears the DEKRA seal for quality and safety.
| Evidence | Freigericht-Somborn |
|---|---|
| ISO 9001 | |
| DEKRA seal |
History
- 2023
Commissioning of the new Hermle C32 U machine with HS flex heavy as well as the HS flex / HS flex heavy handling systems; sponsorship of TSV Wirtheim.
- 2024
Received the DEKRA seal for quality and safety; ISO 9001 recertification valid from 22.02.2024.
