Precision flat steel, CNC finished parts, industrial knives, sand-lime brick tools, screw conveyors and biogas feed-in technology made of steel.
PRÄZI-FLACHSTAHL AG
Everswinkel (Headquarter) · Bohmte · Ostiglia (IT) · Napajedla (CZ) · Kisújszállás & Törökszentmiklós (HU)New on Amplifa
Precision in steel since 1904

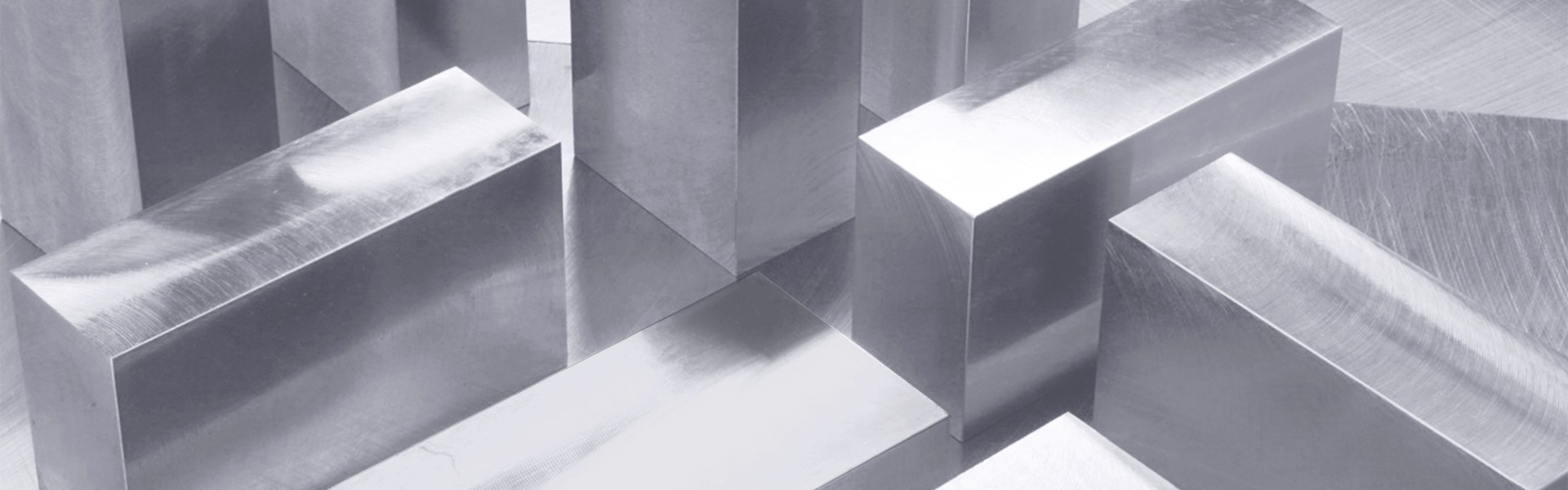

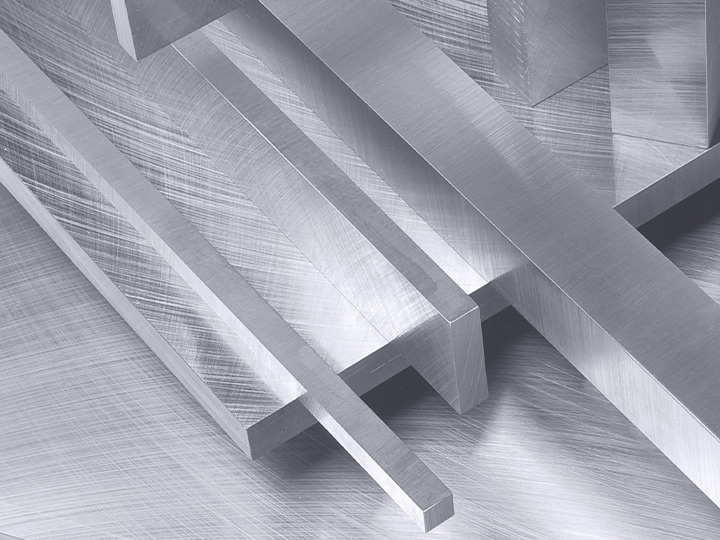

The PRÄZI GROUP, led by PRÄZI-FLACHSTAHL AG, pools the expertise of five medium-sized manufacturing companies at five locations in Germany, Italy, the Czech Republic and Hungary. The group manufactures precision flat steel to DIN 59350, drawing-compliant finished parts such as sliding guides, guide rails and custom machine parts, industrial and machine knives up to 5,000 mm in one-piece length, forming tools and wear parts for sand-lime brick and concrete block production, as well as rotationally symmetrical components, assembly groups, screw conveyors and solid feed-in systems for biogas plants. The in-house value chain includes sawing, CNC machining, segment and circumference grinding in a climate-controlled room, heat treatment with salt bath, tempering and induction hardening up to 5,400 mm workpiece length, as well as surface treatment and assembly. The material basis comprises precision tool steels such as 1.2379, 1.2363, 1.2842, 1.2343 (ESU), 1.2083, 1.4112, 1.7225 and TOOLOX® grades. Customers include mechanical and plant engineering, tool and die making, the sand-lime brick and concrete block industry, the biogas and biomass industry, agricultural and conveying technology, and the plastics, food, recycling, paper and wood industries. Founded in 1904 and 100 % owned by the family of Günther Claas, the family-run company employs over 500 staff and supplies more than 15,500 customers worldwide.
- Site
- Everswinkel
- Processes
- Sawing (vertical band saws), Sawing (horizontal band saws), De-magnetising, CNC machining (machining centres), CNC machining (with rotary table), Horizontal CNC machining, Segment grinding, Circumference grinding (in a climate-controlled room)
- Materials
- Cold work tool steel 1.2379 (X153CrMoV12), Air-hardening cold work tool steel 1.2363 (X100CrMoV5), Cold work tool steel 1.2083 (X40Cr14), Cold work tool steel 1.2436 (X210CrW12), Hot work tool steel 1.2343 (X37CrMoV5-1), Hot work tool steel 1.2343 ESU (X37CrMoV5-1, ESR), Pre-hardened steel 1.2085 (X33CrS16), Tool steel 1.3343
- Certificates
- EN ISO 9001:2015, MSZ-EN-ISO-3834-2:2006 (welding certificate), ISO 9001, Other (MSZ-EN-ISO-3834-2:2006 welding certificate)
- Founded
- 1904
- Employees
- 500+
- Industries
- Mechanical and plant engineering, Tool and die making, Sand-lime brick and concrete block production, Biogas/biomass industry, Agricultural and conveying technology, Plastics industry
- 01
Design/CAD development
- 02
Sawing of raw material
- 03
CNC machining
- 04
Grinding (segment/circumference grinding)
- 05
Heat treatment (salt bath hardening, tempering, induction hardening)
- 06
Surface treatment (painting, phosphating, burnishing, galvanising)
- 07
Assembly into modules
- 08
Quality inspection & inspection reports to DIN EN 10204
- 09
Logistics/shipping
Five Centres of Competence in Europe
Everswinkel
DEHeadquarter PRÄZI-FLACHSTAHL AG (flat steels, sliding and guide rails) as well as PRÄZI-FÖRDERTECHNIK GmbH
- Materials
- Steel/tool steel
- Vertical band saw (max. 3000 mm)
- Horizontal band saw (max. sawing width 1050 mm)
- CNC machining centres (X=7000 mm)
- Segment grinding machine (length max. 8300 mm)
- Circumference grinding machine in a climate-controlled room
- Salt bath hardening furnace
- Induction hardening system (up to 5400 mm)
- Painting facility (max. 8000 mm)
- Phosphating and burnishing system
- Galvanic zinc-plating system
- 3D measuring machine (Y=6500 mm)
- De-magnetising system
Bohmte
DEPRÄZI-FÖRDERTECHNIK GmbH – Biogas Technology & Service
- Materials
- Steel
Ostiglia
ITPRAZI PARTS S.R.L. – Screw conveyors and rotating components, production since 2023
- Materials
- Steel
Napajedla
CZPRECIZ, s.r.o. – Tools and wear parts for sand-lime brick, steel components, flat steel to DIN 59350
- Materials
- Steel/tool steel
Kisújszállás
HUPRÄZI-HUNGARIA Kft. – rotationally symmetrical components and assembly groups
- Materials
- Steel
Törökszentmiklós
HUPRÄZI-HUNGARIA Kft. – site
Products & Components
Inside the production
Industries
Processes & technical limits
| Processes | Tolerance | Max. part | Weight | Lot size | Materials |
|---|---|---|---|---|---|
| Sawing (vertical band saws)Machining | – | 3000 mm (at thickness max. 200 mm) × 200 mm | – | – | Steel |
| Sawing (horizontal band saws)Machining | – | 1050 mm (at thickness max. 530 mm) × 530 mm | – | – | Steel |
| De-magnetisingSurface | – | 190 mm × 190 mm | – | – | Steel |
| CNC machining (machining centres)Machining | – | 7000 mm × 800 mm × 970 mm | – | Single part – Series | Steel |
| CNC machining (with rotary table)Machining | – | 4000 mm × 1000 mm × 1100 mm | – | – | Steel |
| Horizontal CNC machiningMachining | – | 1000 mm × 1000 mm × 900 mm | – | – | Steel |
| Segment grindingMachining | – | 8300 mm × 1000 mm × 400 mm | – | – | Steel |
| Circumference grinding (in a climate-controlled room)Machining | – | 6200 mm × 800 mm × 650 mm | – | – | Steel |
| CNC-controlled grinding machines with profile dressingMachining | – | – | – | – | Steel |
| Salt bath hardeningHeat treatment | – | 3000 mm × 400 mm (furnace diameter) | – | – | Steel |
| TemperingHeat treatment | – | 5500 mm × 900 mm × 1000 mm | – | – | Steel |
| Induction hardening (medium-frequency technology)Heat treatment | – | 5400 mm | – | – | Steel |
| PaintingSurface | – | 8000 mm | – | – | Steel |
| PhosphatingSurface | – | 2500 mm | – | – | Steel |
| BurnishingSurface | – | 2500 mm | – | – | Steel |
| Galvanic zinc-plating (coating thickness 8–12 μm, max. 25 μm possible)Surface | – | 2700 mm × 600 mm × 1600 mm | – | – | Steel |
| Industrial & machine knives to drawing (profile knives, planer knives, shear knives,Machining | – | 5000 mm (one-piece design) | – | Single part – Small series | 1.2379 (AISI D2), 1.2363 (AISI A2), 1.2842 (AISI O2), 1.4112 (AISI 440B) |
| Coating of industrial knives (DLC, TiN)Surface | – | 5000 mm | – | – | Steel |
| Knife refurbishment / reconditioningMachining | – | – | – | – | Steel |
| Custom machine parts to drawing (brackets, base plates, holding plates, cover plates)Machining | – | – | – | Single part – Series | 1.2379, 1.2363, 1.2083, 1.2436, 1.2343, 1.2343 ESU, 1.2085, 1.3343, 1.4112, 1.2767, 1.2842, 1.7225, 1.2311, 1.2312 |
| Sliding guides & guide elements (slide plates, guide strips, spacer strips)Machining | – | – | – | – | 1.2379, 1.2363, 1.2083, 1.2436, 1.2343, 1.2343 ESU, 1.2085, 1.3343, 1.4112, 1.2767, 1.2842, 1.7225 |

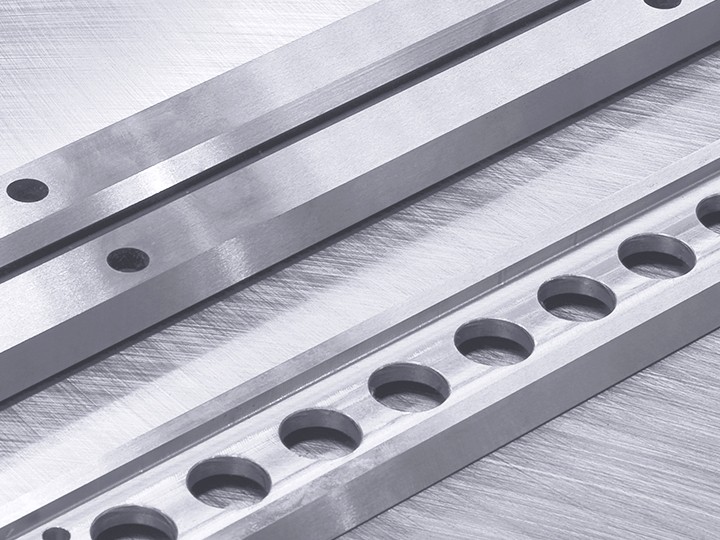

| Guide rails (flat guides, prism guides)Machining | – | 5400 mm (induction-hardened, one piece) | – | – | Steel |

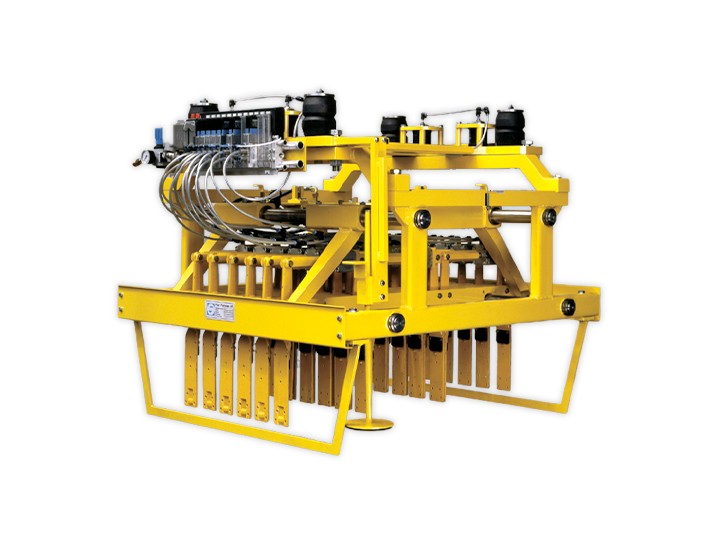

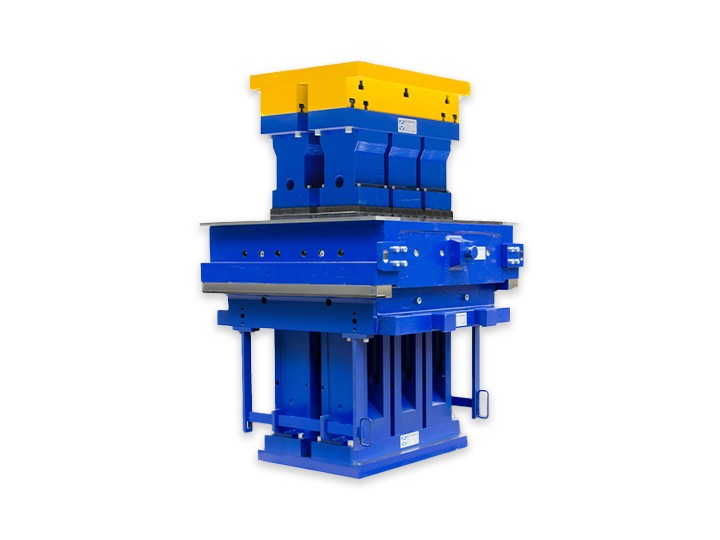

| Forming tools & spare parts for sand-lime brick productionMachining | – | – | – | – | Steel |

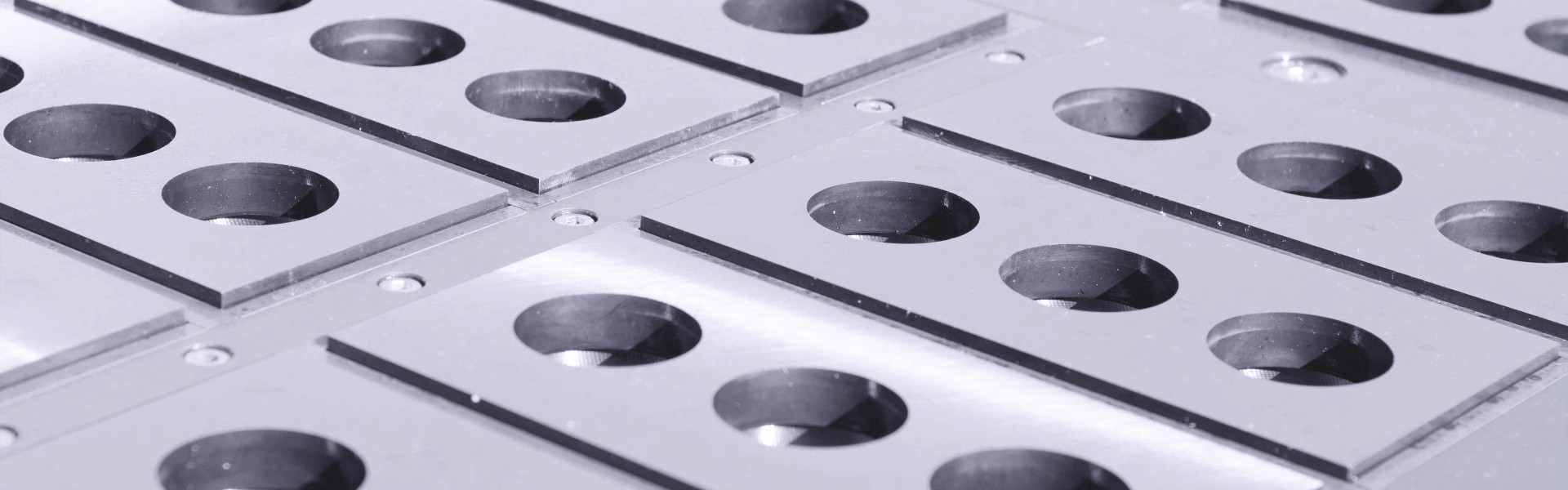

| Wear parts for sand-lime brick (longitudinal, front, stamp and cover plates, form prisms,Machining | – | – | – | – | Steel |

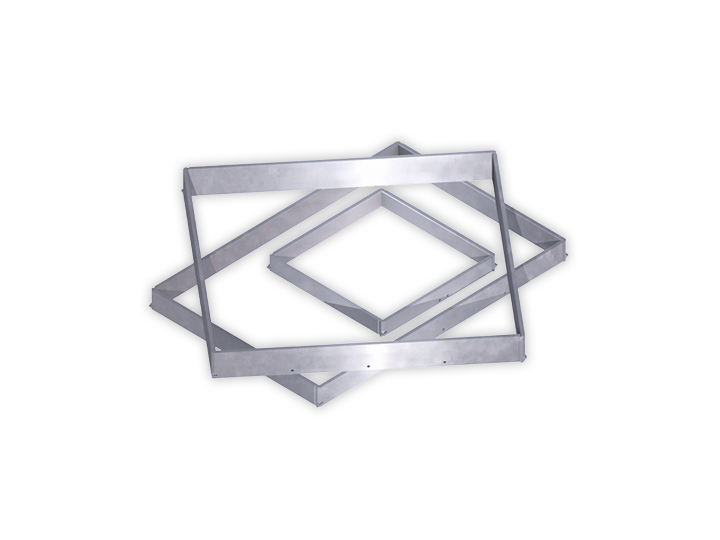

| Wear parts for concrete block production (moulds, impact plates, side wear strips, anvils)Machining | – | – | – | – | Steel |

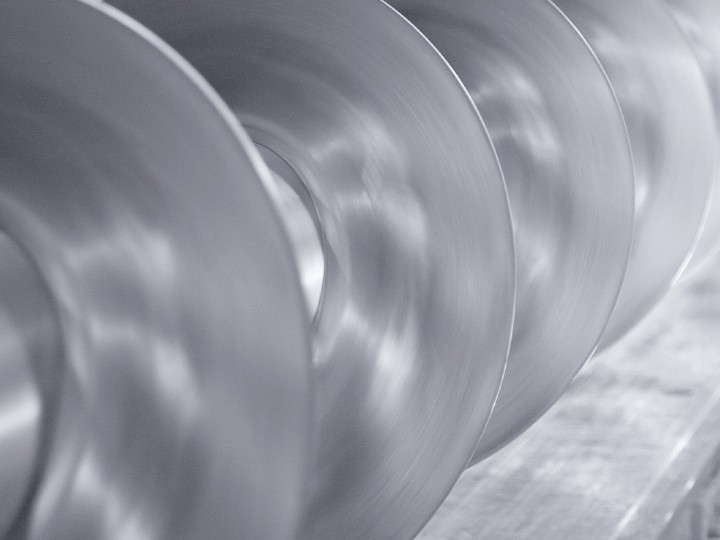

| Solid feed-in systems for biogas plantsAssembly | – | – | – | – | Steel |
| Retrofit & conversion of biogas feed-in technologyAssembly | – | – | – | – | – |
| Repowering of biogas plantsAssembly | – | – | – | – | – |
| Maintenance & spare parts for feed-in technology (screws, dissolution rollers, drive technology,Assembly | – | – | – | – | – |
| Screw conveyors (ready-to-install high-performance screw conveyors)Machining | – | – | – | – | Steel |
| Rotationally symmetrical components & assembly groupsMachining | – | – | – | – | Steel |
| Spectral analysis of iron-based metalsTesting | – | – | – | – | Iron-based metals |
| Microstructure analysisTesting | – | – | – | – | Steel |
| 3D measurement (measuring machine)Testing | – | 6500 mm × 800 mm × 700 mm | – | – | Steel |
| Hardness testing to HRC, Vickers, HB, LDTesting | – | – | – | – | Steel |
| Low-load hardness testingTesting | – | – | – | – | Steel |
| Surface roughness testingTesting | – | – | – | – | Steel |
| Ultrasonic testingTesting | – | – | – | – | Steel |
17 Anlagen & Maschinen
| Machine | Manufacturer / model | Quantity | Working area | Year built | Site |
|---|---|---|---|---|---|
| Vertical band saw | – | – | max. sawing length 3000 mm at thickness max. 200 mm | – | – |
| Horizontal band saw | – | – | max. sawing width 1050 mm at thickness max. 530 mm | – | – |
| De-magnetising system | – | – | max. workpiece cross-section 190 x 190 mm | – | – |
| CNC machining centre | – | – | X=7000 mm, Y=800 mm, Z=970 mm | – | – |
| CNC machining centre with rotary table | – | – | X=4000 mm, Y=1000 mm, Z=1100 mm | – | – |
| Horizontal CNC machining centre | – | – | X=1000 mm, Y=1000 mm, Z=900 mm | – | – |
| Segment grinding machine | – | – | width max. 1000 mm, thickness max. 400 mm, length max. 8300 mm | – | – |
| Circumference grinding machine (climate-controlled room) | – | – | width max. 800 mm, thickness max. 650 mm, length max. 6200 mm | – | – |
| CNC-controlled grinding machine with profile dressing | – | – | – | – | – |
| Salt bath hardening furnace | – | – | max. hardening length 3000 mm, furnace diameter 400 mm, hot bath 190 °C | – | – |
| Tempering furnace | – | – | max. furnace dimensions 900 × 1000 × 5500 mm | – | – |
| Induction hardening system (medium frequency) | – | – | hardening up to 5400 mm workpiece length | – | – |
| Painting facility | – | – | max. length 8000 mm | – | – |
| Phosphating system | – | – | max. length 2500 mm | – | – |
| Burnishing system | – | – | max. length 2500 mm | – | – |
| Galvanic zinc-plating system | – | – | max. width 600 mm, thickness 1600 mm, length 2700 mm | – | – |
| 3D measuring machine | – | – | X-axis 800 mm, Z-axis 700 mm, Y-axis 6500 mm | – | – |
Additional services
Certified Quality

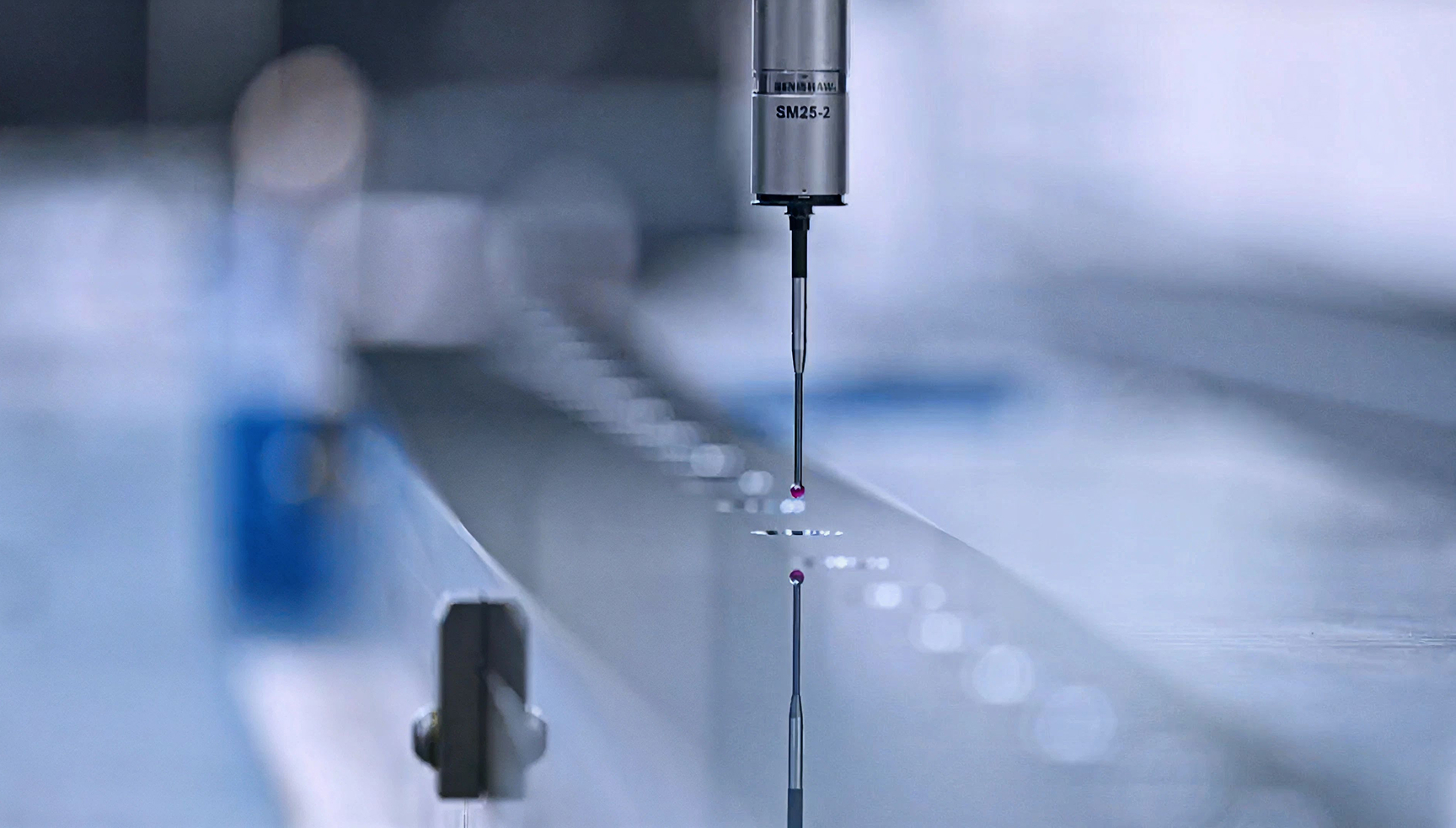

Quality assurance from materials testing to final inspection: spectral analysis, microstructure and ultrasonic testing, hardness testing to HRC/Vickers/HB/LD, surface roughness testing and 3D measurement up to 800 × 700 × 6500 mm. All measuring equipment is regularly maintained, adjusted and calibrated to DKD standards; inspection certificates to DIN EN 10204 available on request.
| Evidence | Everswinkel | Ostiglia | Napajedla | Kisújszállás |
|---|---|---|---|---|
| ISO 9001 | ||||
| Other (MSZ-EN-ISO-3834-2:2006 welding certificate) |
From Twist Drills to the PRÄZI GROUP
- 1904
Founding of the Patent-Spiralbohrerfabrik Engels & Rocholl GmbH (German twist drill tool factory) in Remscheid
- 1955
Günther Claas joins the company
- 1962
Takeover by Günther Claas, founding of the Everswinkel plant (PRÄZI-Flachstahl GmbH, later AG); focus on precision flat steel and guide strips
- 1982
Founding of Präzi-Fördertechnik GmbH in Bohmte (screw conveyors, biogas plants)
- 1995
Founding of Preciz, s.r.o. in Napajedla as a subsidiary of PRÄZI-FLACHSTAHL AG
- 1998
Founding of CONTAREX Agrotechnika Kft. in Hungary (rotationally symmetrical components)
- 2001
UNIEMETAAL B.V., Lelystad, Netherlands (sand-lime brick industry)
- 2016
Founding of PRAZI PARTS S.R.L., Ostiglia (sales company for agricultural and conveying technology)
- 2017
CONTAREX renamed to PRAZI-HUNGARIA Kft.
- 2023
PRAZI PARTS S.R.L. starts production of rotationally symmetrical components
- 2024
PRECIZ expands the sand-lime brick product group; new PRÄZI GROUP brand design
